Description
Design
Two-way bass reflex
Drive units
Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome with MAT
LF/MF: 165 mm (6.5 in.) aluminium cone
Frequency range (-6dB)
42 Hz – 20 kHz
Typical in-room bass response (-6dB)
39 Hz
Frequency response (±3dB)
49 Hz – 20 kHz
Crossover frequency
2.0 kHz
Amplifier requirements
15 – 150 W
Sensitivity (2.83V/1m)
87 dB
Harmonic distortion (90dB, 1m)
<2% 110 Hz and above
<1% 135 Hz – 20 kHz
Maximum output
109 dB
Impedance
4 Ω (min. 3.2 Ω)
Weight *
8.2 kg (18.1 lbs.)
Dimension (H x W x D) with terminal *
357 x 210 x 305 mm (14.1 x 8.3 x 12.0 in.)
Finishes

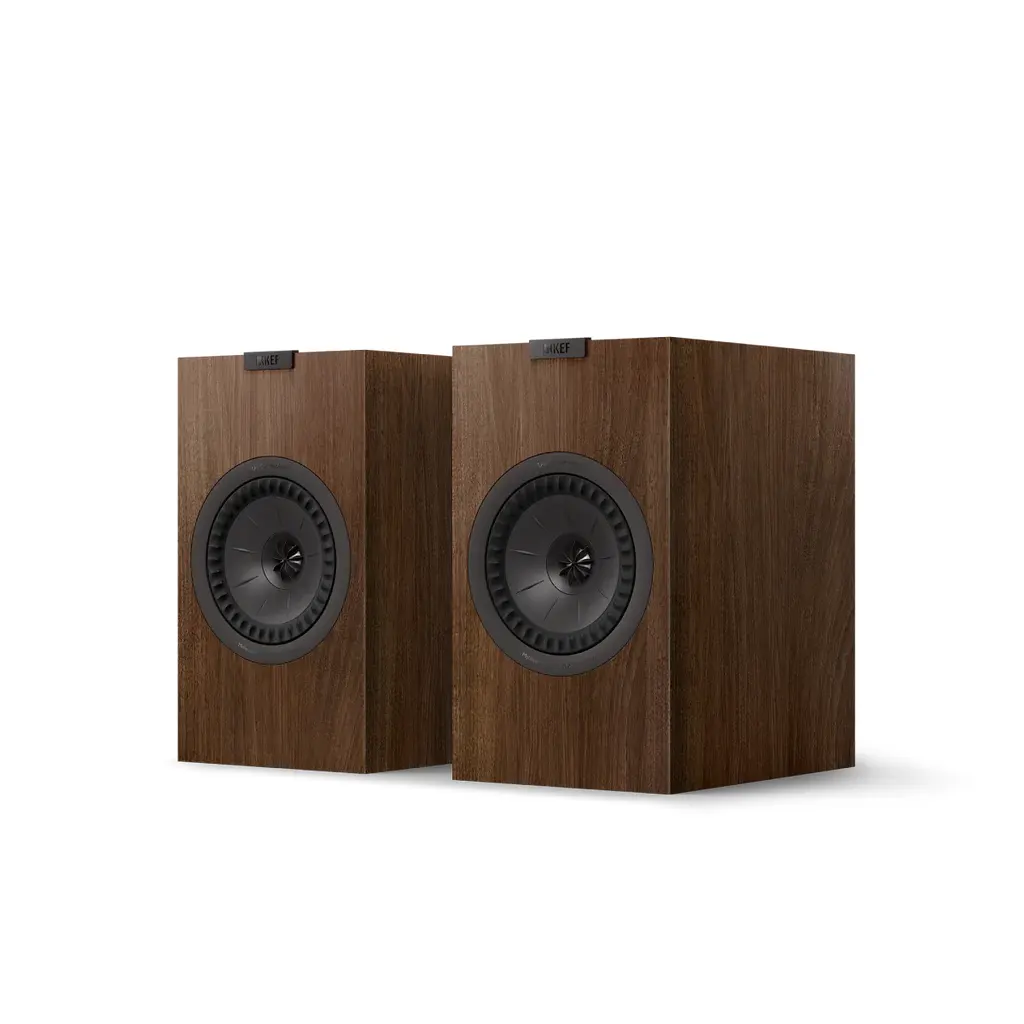

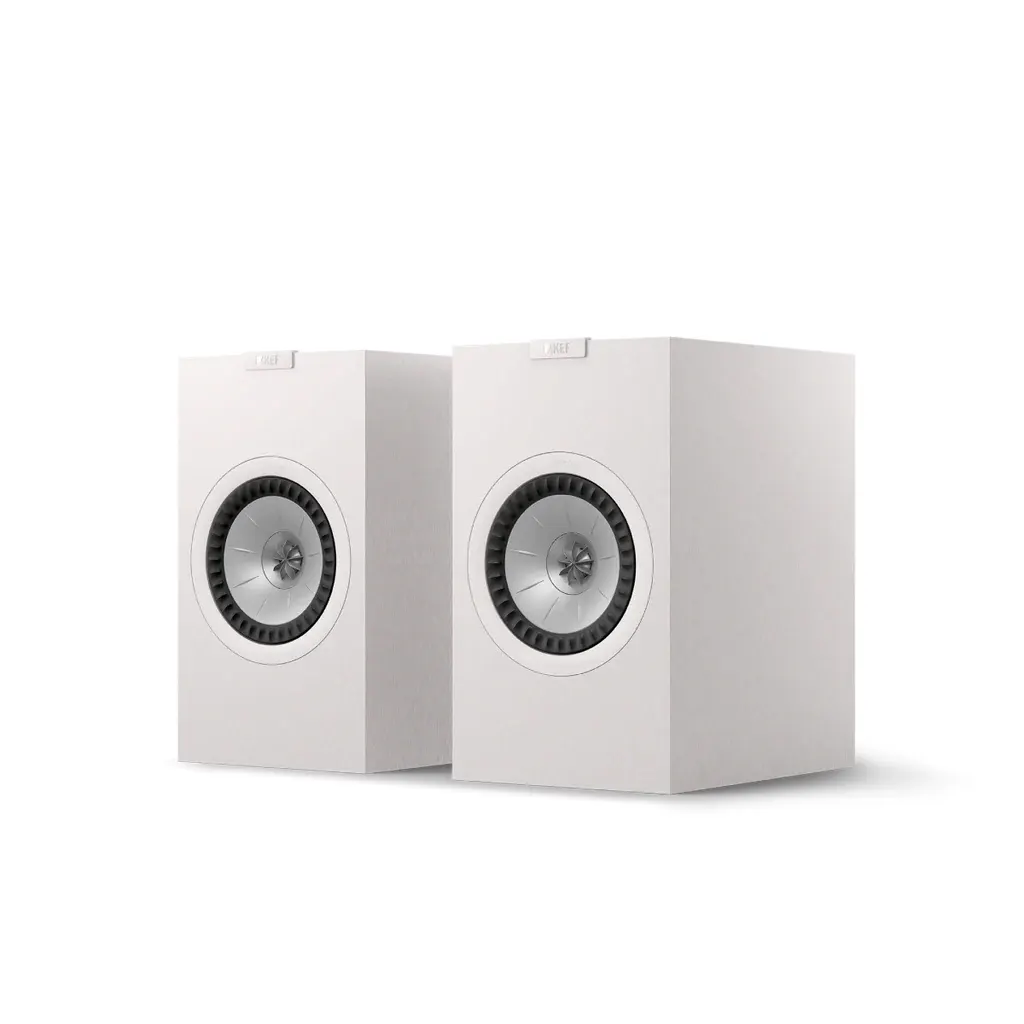

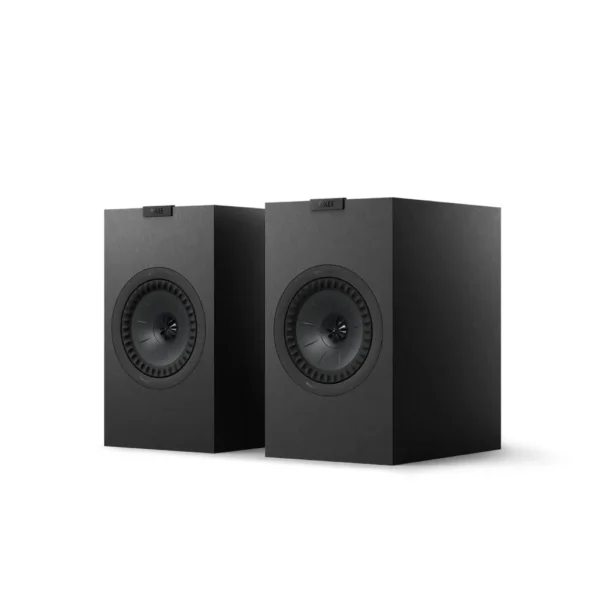

Satin Black / Satin White / Walnut
