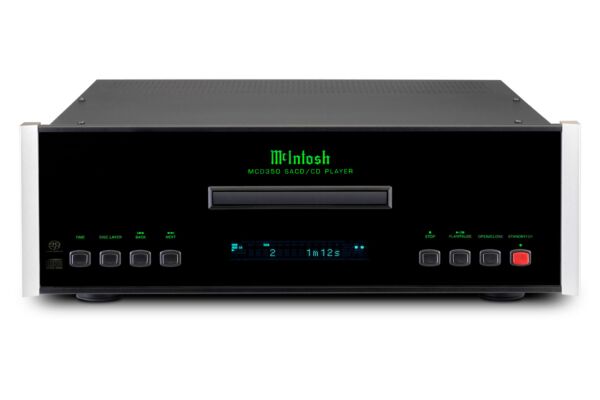

Mcintosh mcd350

Description

AUDIO SPECIFICATIONS

• • Number of Channels
    2
  • Fixed Output Level
    2.0Vrms Unbalanced
    4.0Vrms Balanced
  • Variable Output Level
    N/A
  • Output Impedance
    600 ohms Unbalanced and Balanced
  • Frequency Response
    4Hz to 40kHz, +0.5, -2dB (SACD)
    4Hz to 20kHz, ±0.5dB (CD)
  • Signal To Noise Ratio
    Better than 108dB (A-weighted)
  • Dynamic Range
    Better than 100dB
  • Total Harmonic Distortion
    0.003% @ 1000Hz (SACD)
    0.002% @ 1000Hz (CD)
  • Channel Separation
    Better than 98dB (1,000Hz)
  • Headphone Output Impedance
    N/A

DIGITAL AUDIO SPECIFICATIONS

• • Digital-to-Analog Converter (DAC) Type
    2-channel, 32-bit/192kHz PCM/DSD
  • Coaxial Sample Rate
    N/A
  • Optical Sample Rate
    N/A
  • USB Sample Rate
    N/A
  • Digital Coaxial Input
    N/A
  • Digital Optical Input
    N/A
  • Digital Output Sample Rate
    Up to 24-bit/192kHz
  • Digital Optical Output
    -15dbm to -21dbm
  • Digital USB Input Type
    N/A
  • Digital Coaxial Output
    0.5V p-p/75 ohms
  • Digital XLR Output
    N/A
  • Digital MCT (DIN) Output
    N/A
  • Digital Output Jitter
    N/A

CONNECTIVITY

• • Balanced Fixed Output
    1
  • Unbalanced Fixed Output
    1
  • Balanced Variable Output
    0
  • Unbalanced Variable Output
    0
  • Digital Coaxial Input
    0
  • Digital Optical Input
    0
  • Digital USB Input
    0
  • Digital USB Input Type
    N/A
  • Digital Coaxial Output
    1
  • Digital Optical Output
    1
  • Digital XLR Output
    0
  • Digital MCT (DIN) Output
    0
  • Headphone Output
    0

CONTROL

• • Rear Panel IR Sensor Input
    1
  • Rear Panel Data Input
    1
  • Power Control Input
    1
  • Power Control Output
    1

GENERAL SPECIFICATIONS

• • Disc Formats
    CD, SACD, MP3 and WMA
  • Disc Capacity
    1
  • Laser Type
    Twin Beam
  • Laser Beam Wavelength
    650nm (SACD)
    790nm (CD)
  • Laser Power
    CLASS IIa/CLASS I
  • Standby Power Requirement
    <0.5 watt

WEIGHTS & DIMENSIONS

• • Unit Dimensions (W x H x D)
    17-1/2″ (44.45cm) x 6″ (15.24cm) x 19″ (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
  • Unit Weight
    28 lbs (12.7 kg)
  • Shipping Weight
    42.5 lbs (19.2 kg)
