Description
Mechanical data

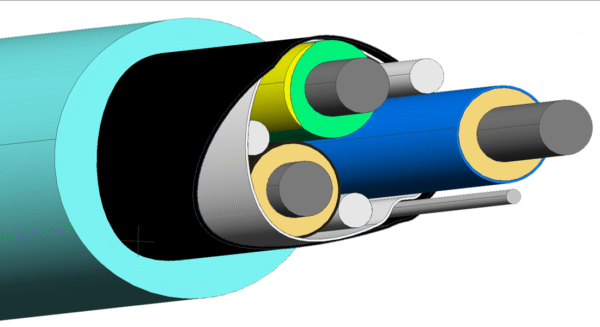

Standard Mains power flex with ground lead and high-end shield
Leads 3 x 2.5 mm2, tin plated 5N oxygen-free copper
Number of strands 320 pieces
Strand dimension Ø 0.10 mm
Di-electric (insulation) Dual layer PVC. Lead identification; green/yellow, blue & brown.
Number of fillers/armoring Yarn, 3 pieces
Shield interconnection to ground Drain wire, ultra flexible, tin plated, 66 strands x Ø 0.07 mm OFC.
Armoring and insulation Woven polyester tape
Shield Woven semi-conductive Carbon/Nolyn tape
Jacket Age and heat resistant PVC
Outer dimension Ø 11 mm
Electrical properties
Resistance / conductor 6.8 Ohm / km
Nominal voltage 110 – 250 Volts
Maximal continuous current 16 Ampere
