Description
Mechanical Specifications
Crossection area per conductor: 2 / 14 mm2 / AWG
Number of conductors: 4 pieces
Number of strands per conductor: 120 pieces
Strand diameter: 0.15 mm
Conductor material: Tin plated oxygen free 5N Copper
Conductor insulation and core: PP
Jacket Heat and age resistant PVC
External diameter: 15 mm
Halogen free/flame retardant: No
Connectors

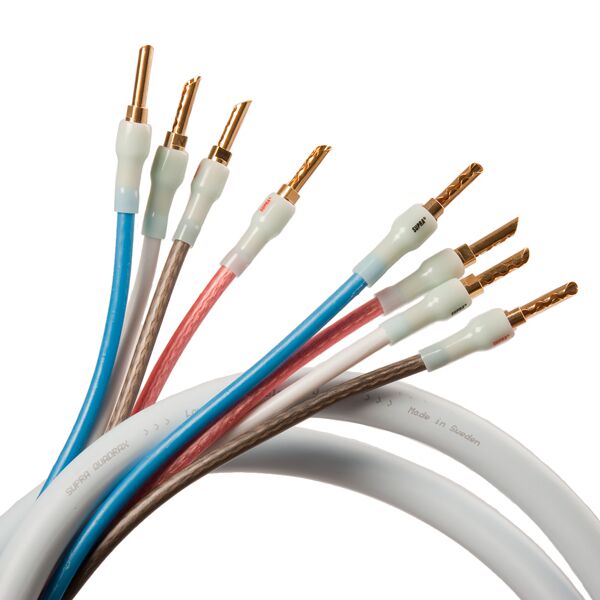

Contact configuration: Bi-amp (4 to 4 connectors)
BFA/Banana: Included
Fork (spade): Included
Cable fixing: High pressure air tight crimp
Electrical performance
Resistance: 8.1 Ohm / km
Inductance: 0.28 µH/m
