| Front Panel Display |
Full-Color 8.8” 1920 x 480 wide IPS LCD |
| CPU |
Intel Low Power Quad-Core |
| System Memory |
8GB |
| SSD for System and Cache |
480GB SSD |
| Main Clock |
OCXO Based Precision Jitter Reducing Clock |
| Storage |
8TB SSD installed. Slot for additional 2.5” drive |
| Word Clock Input |
BNC 10MHz, 12.8MHz (44.1kHz and 48kHz multiples from 1 to 512), Input impedance 75 ohms |
| I/O Ports |
2 x USB 3.0 (rear) |
| Digital Audio Outputs |
AES/EBU, Coaxial, BNC, Optical and USB Audio Class 2.0 x 1 |
| SPDIF Audio Output |
PCM up to 24-bit / 192kHz |
| USB Audio Output |
32-bit / 384kHz, 1-bit, 2.8MHz (DSD64); 1-bit, 5.6MHz (DSD128), 11.2MHz (DSD256), 22.4MHz (DSD512) |
| Compatible Formats |
DSD (DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE |
| DSD-to-PCM |
Precision DSD-to-PCM conversion for SPDIF outputs Support for DSD64/128/256/512 to 88.2kHz or 176.4kHz |
| MQA Core Decoder |
Optional |
| Gigabit Ethernet |
Double-Isolated x 1 |
| Power Supply |

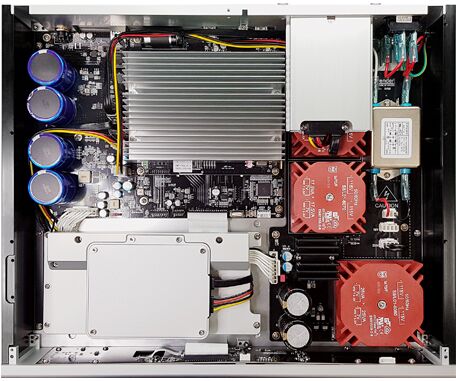

Full-Linear supply isolated by separated chassis |
| UPS |
Yes (Super Capacitor based) |
| Control Software |
Aurender Conductor for iPad, Android Phone / Tablet |
| Material |
Machined Aluminum Chassis |
| Dimensions & Weight (each) |
16.9 x 4.2 x 14.0in., 48.5lbs / 430 x 106 x 353mm., 22.0kg |
| Power Consumption |
Play (40W), Peak (70W), Standby (3.5W) |
