Описание
Size & weight
Dimensions
Height: 1101mm (43.3 in) including tweeter and plinth
Width: 238mm (9.4 in) cabinet only, 308mm (12.1in) including plinth
Depth: 337mm (13.3in) cabinet only, 392mm (15.4in) including grille and terminals
Net weight
40.3kg (88.7lbs)
Technical details
Technical features
Diamond dome tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST midrange
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ base cones
Flowport™
Description
3-way vented-box system
Drive units
1x ø25mm (1in) Diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø165mm (6.5in) Aerofoil™ bass
Frequency range
-6dB 20Hz to 35kHz
Frequency response
19Hz to 24kHz (+/-3dB)
Sensitivity
89dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 90Hz — 20kHz
<0.3% 100Hz – 8kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 200W into 8Ω on unclipped programme
Max recommended cable impedance
0.1Ω
Finishes
Cabinet finishes

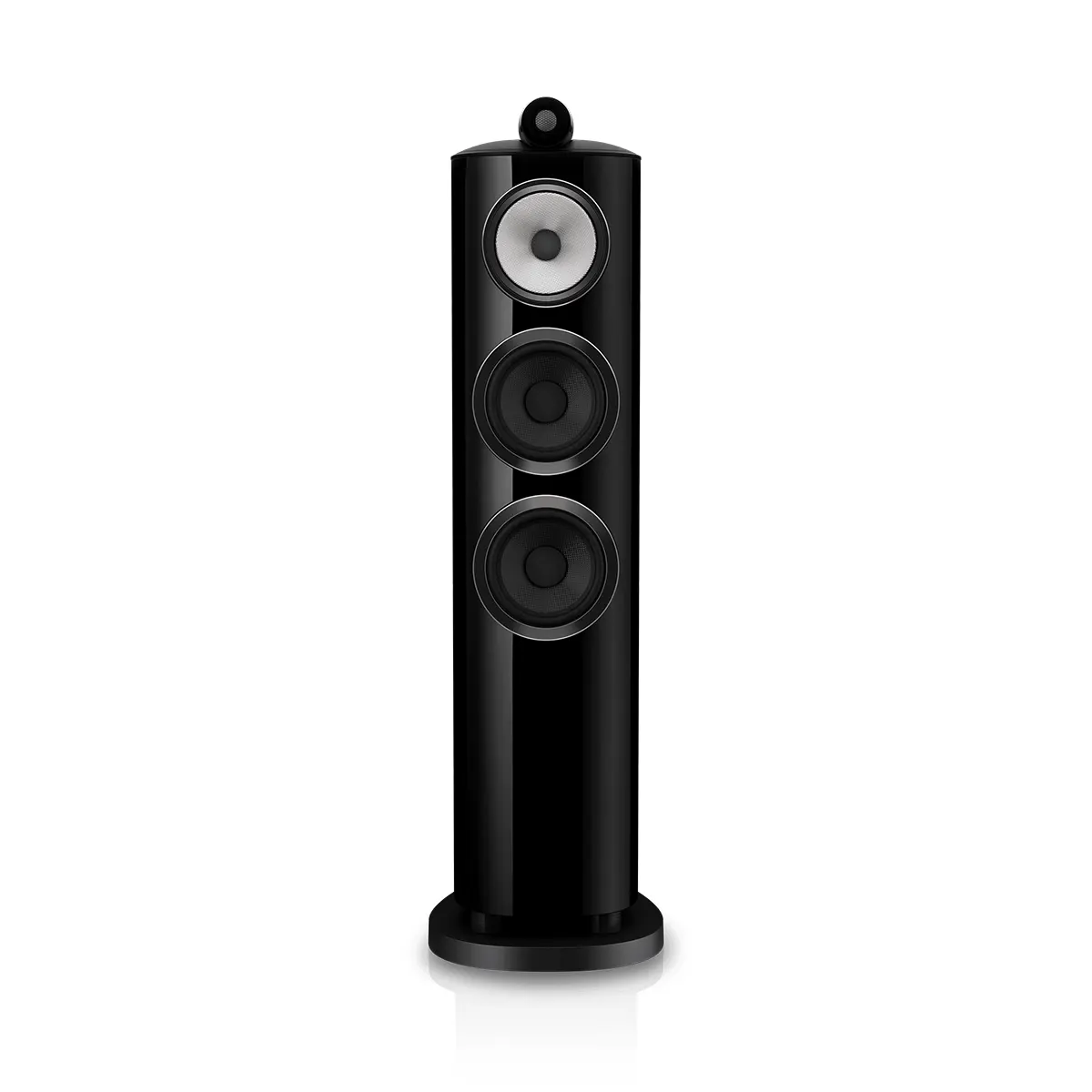

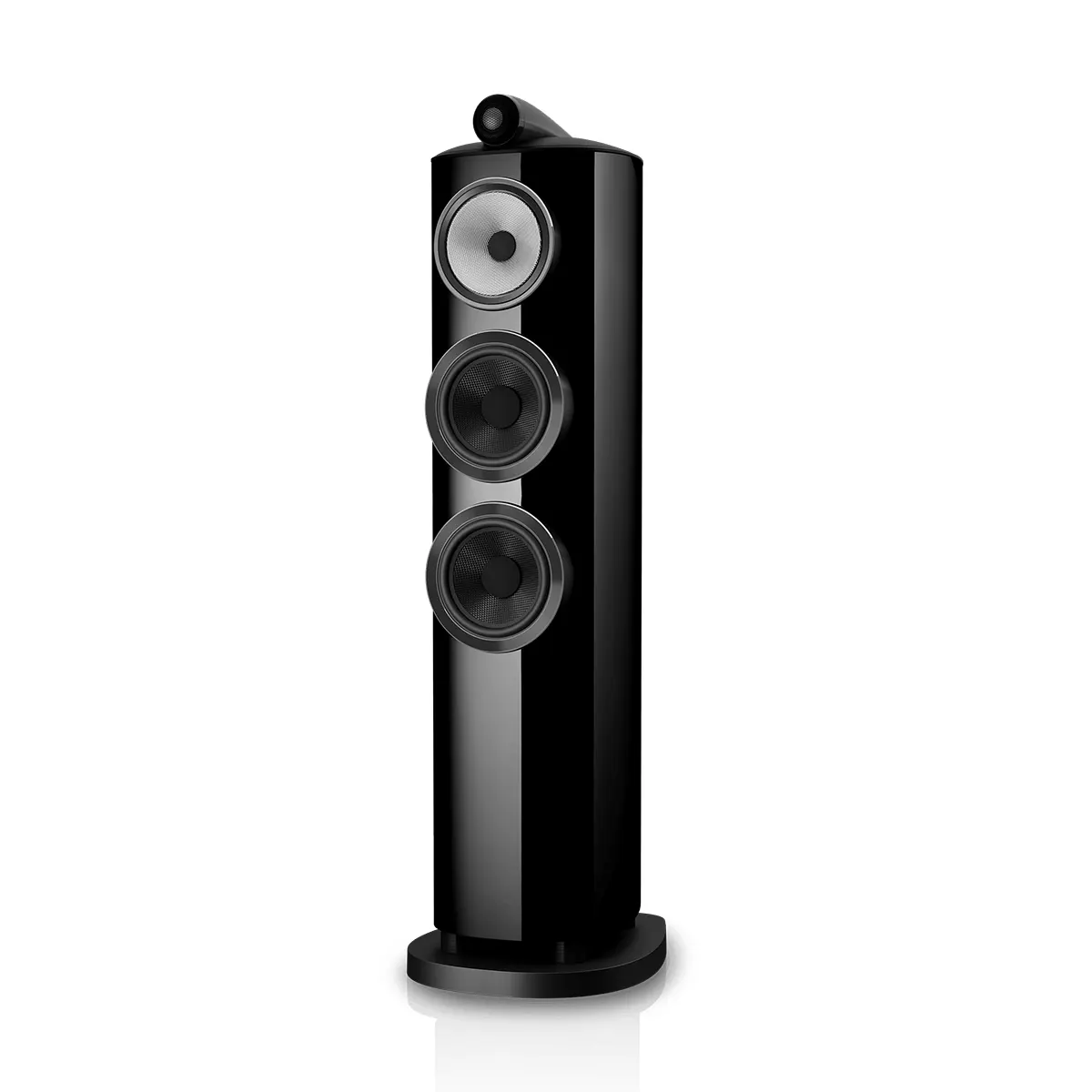

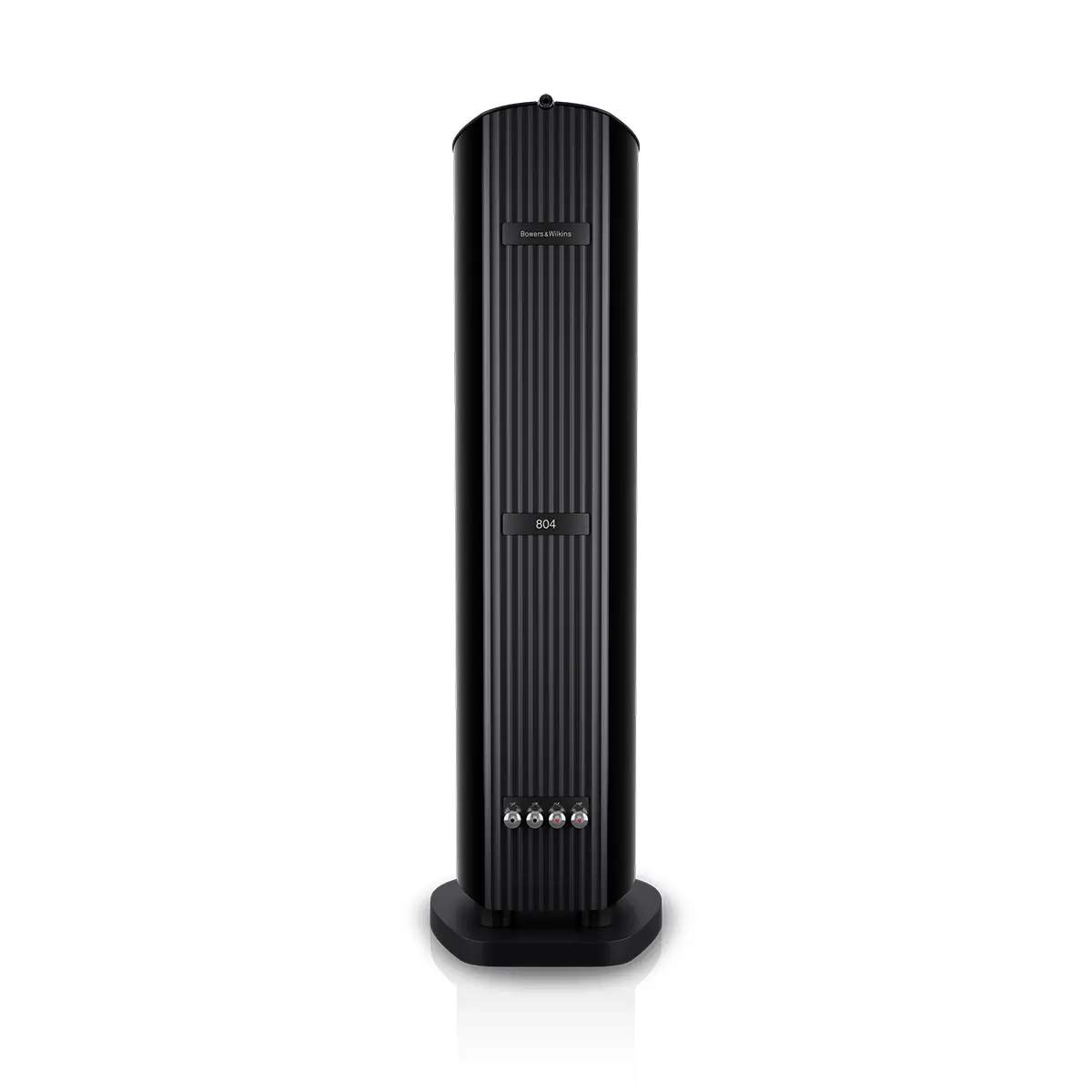

Stealth Black

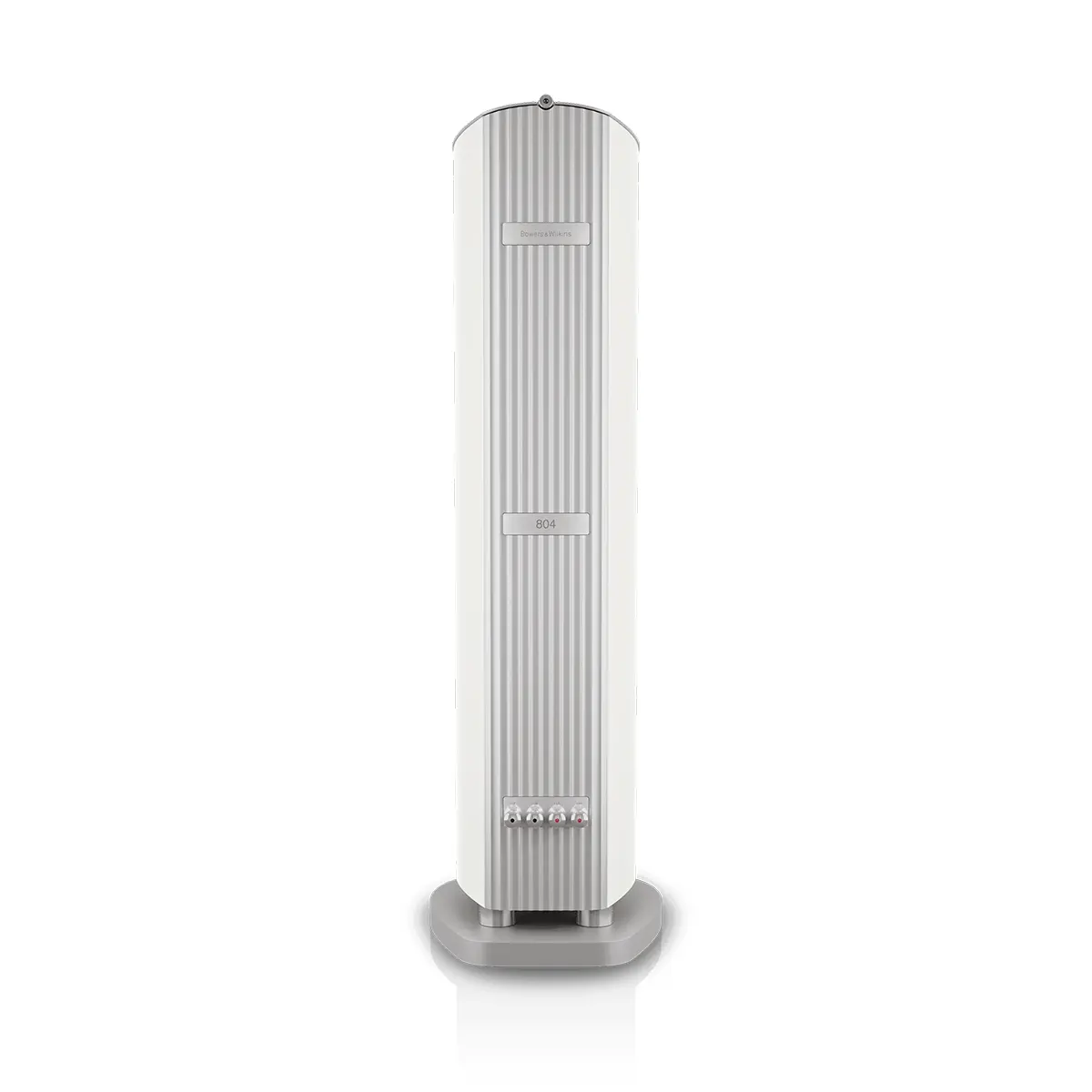

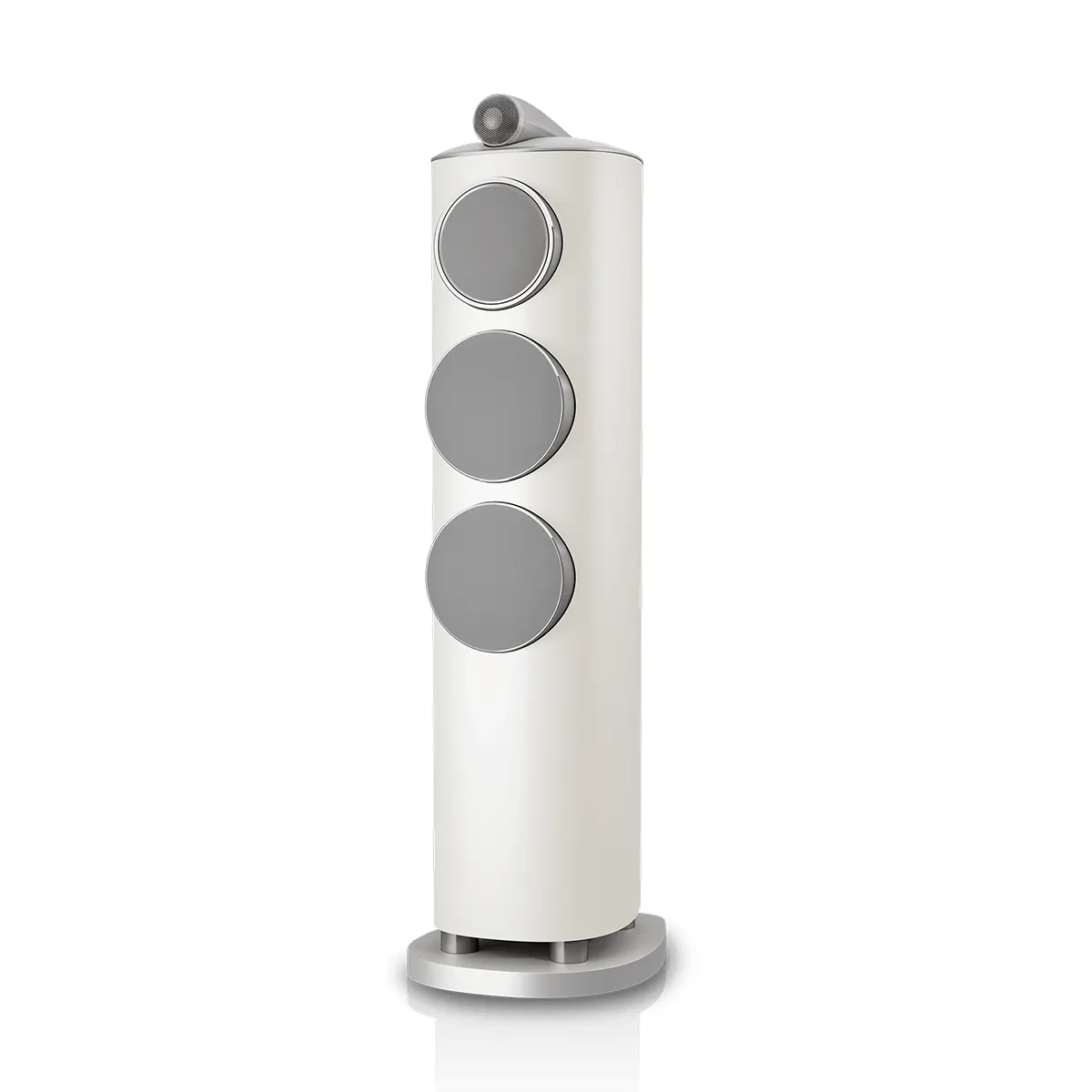

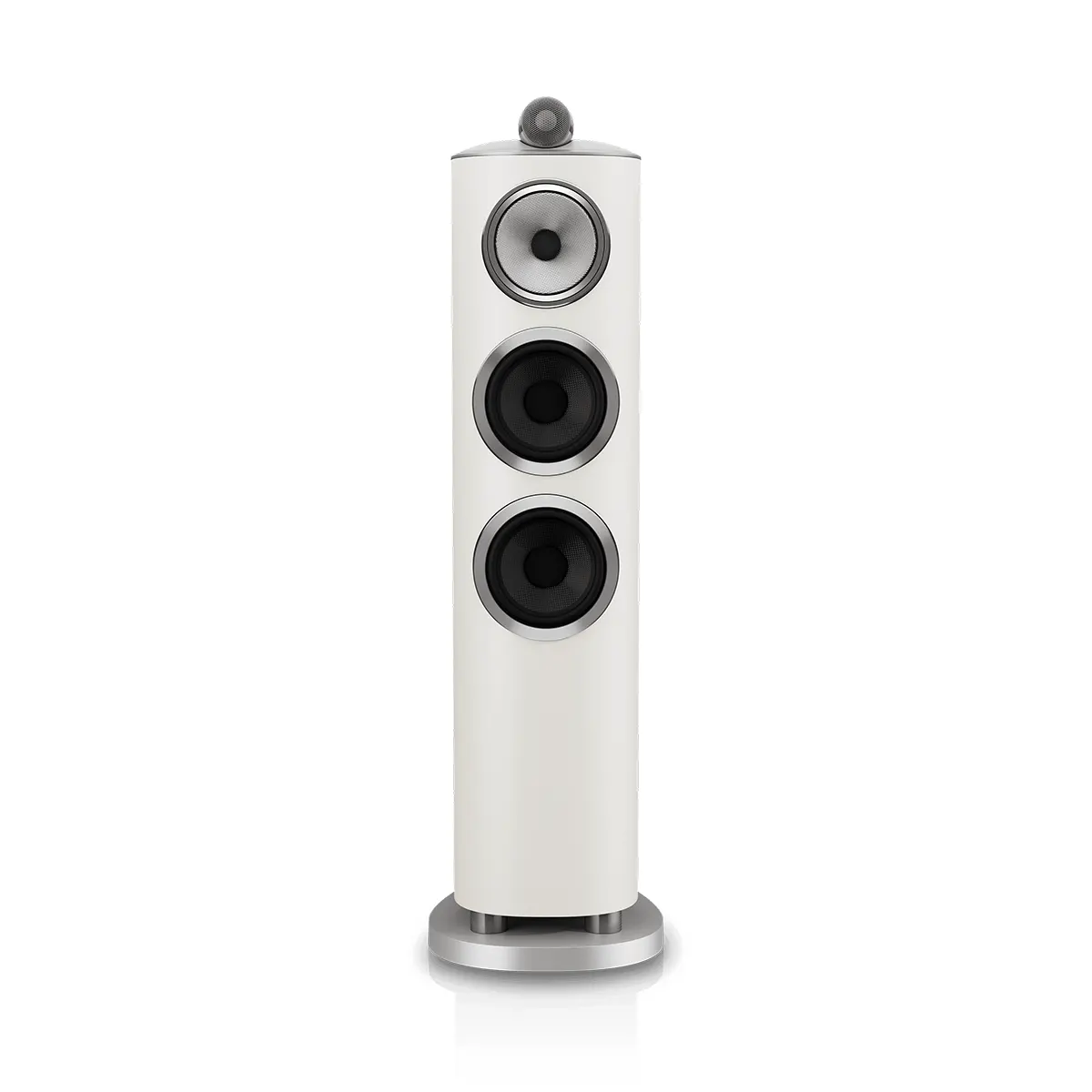

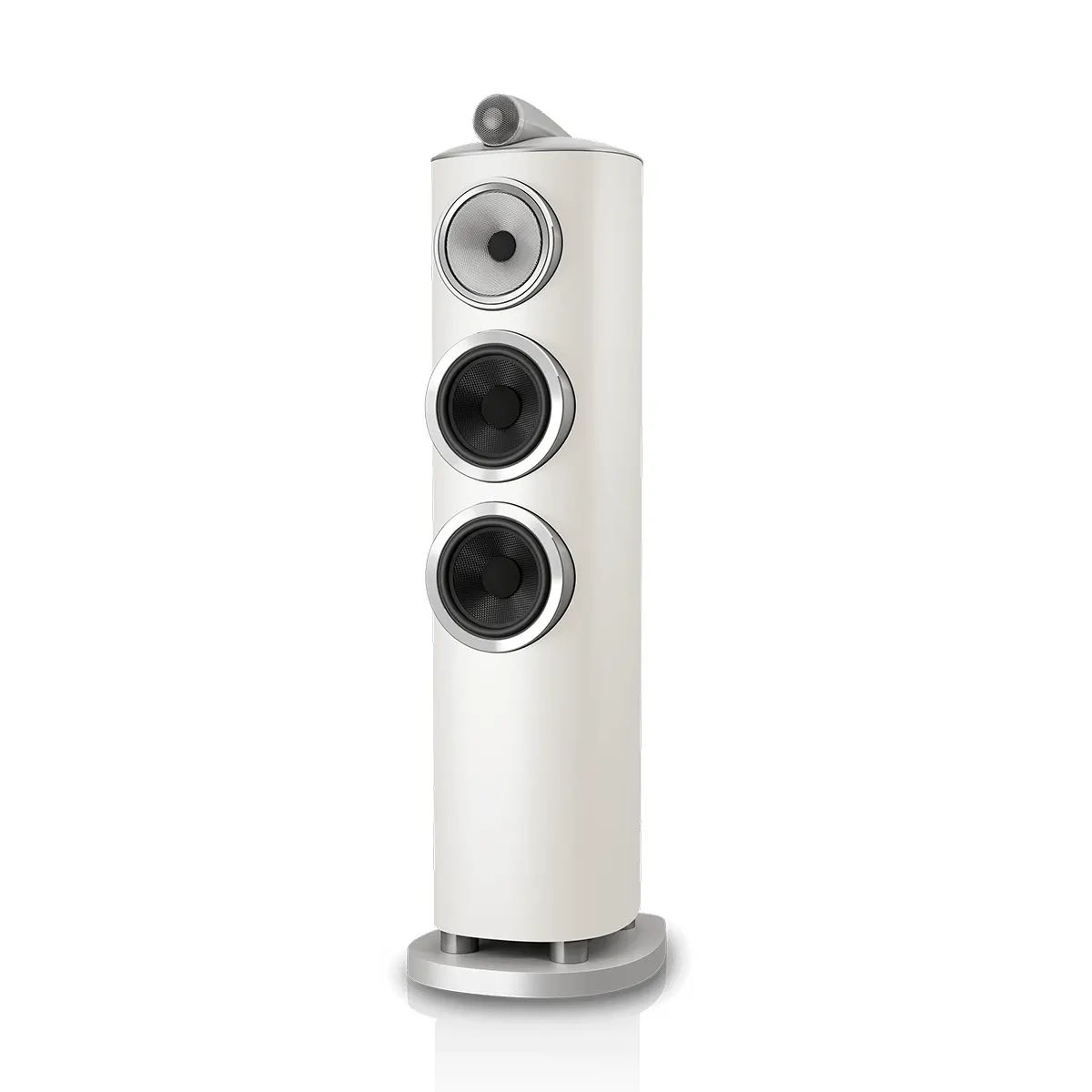

Warm White

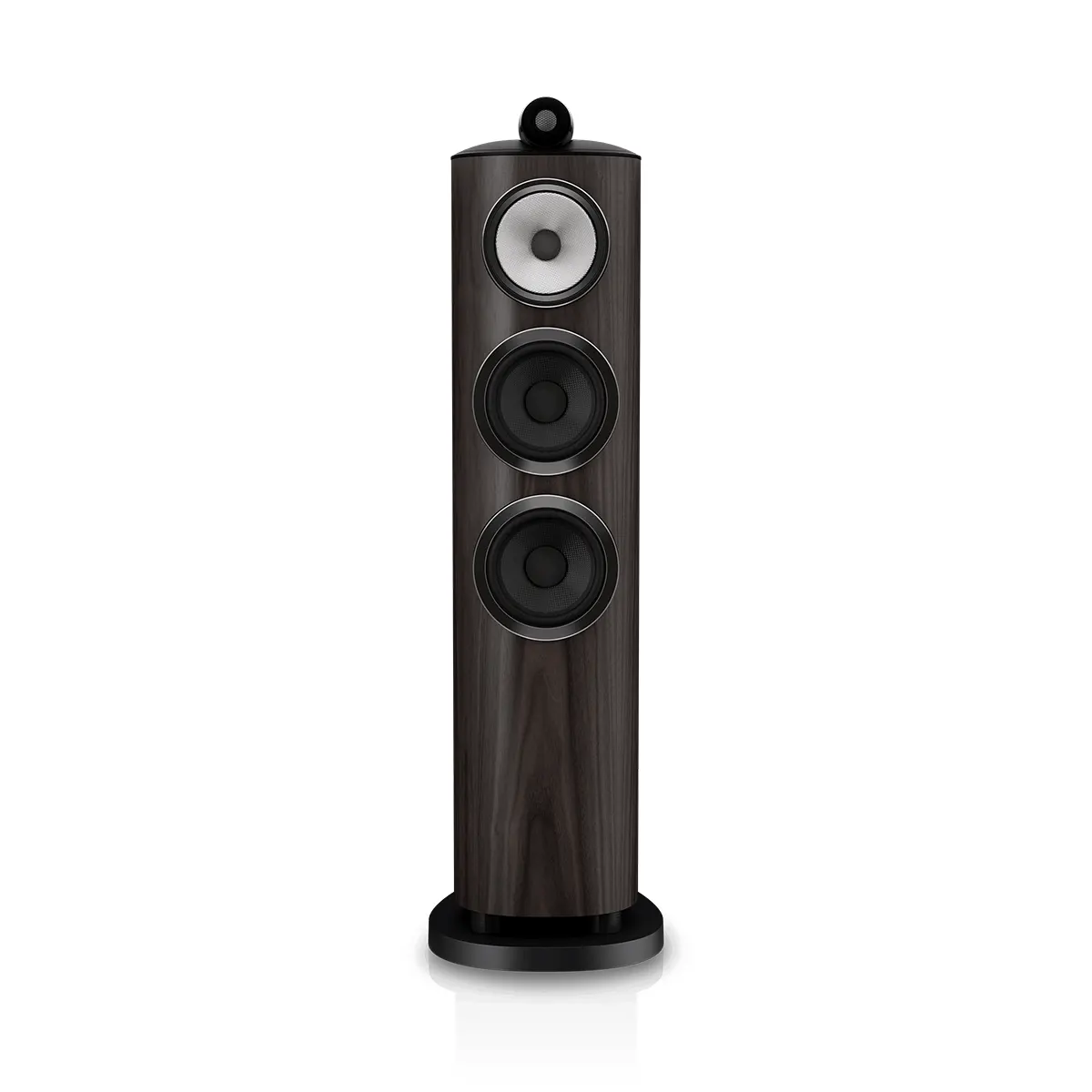

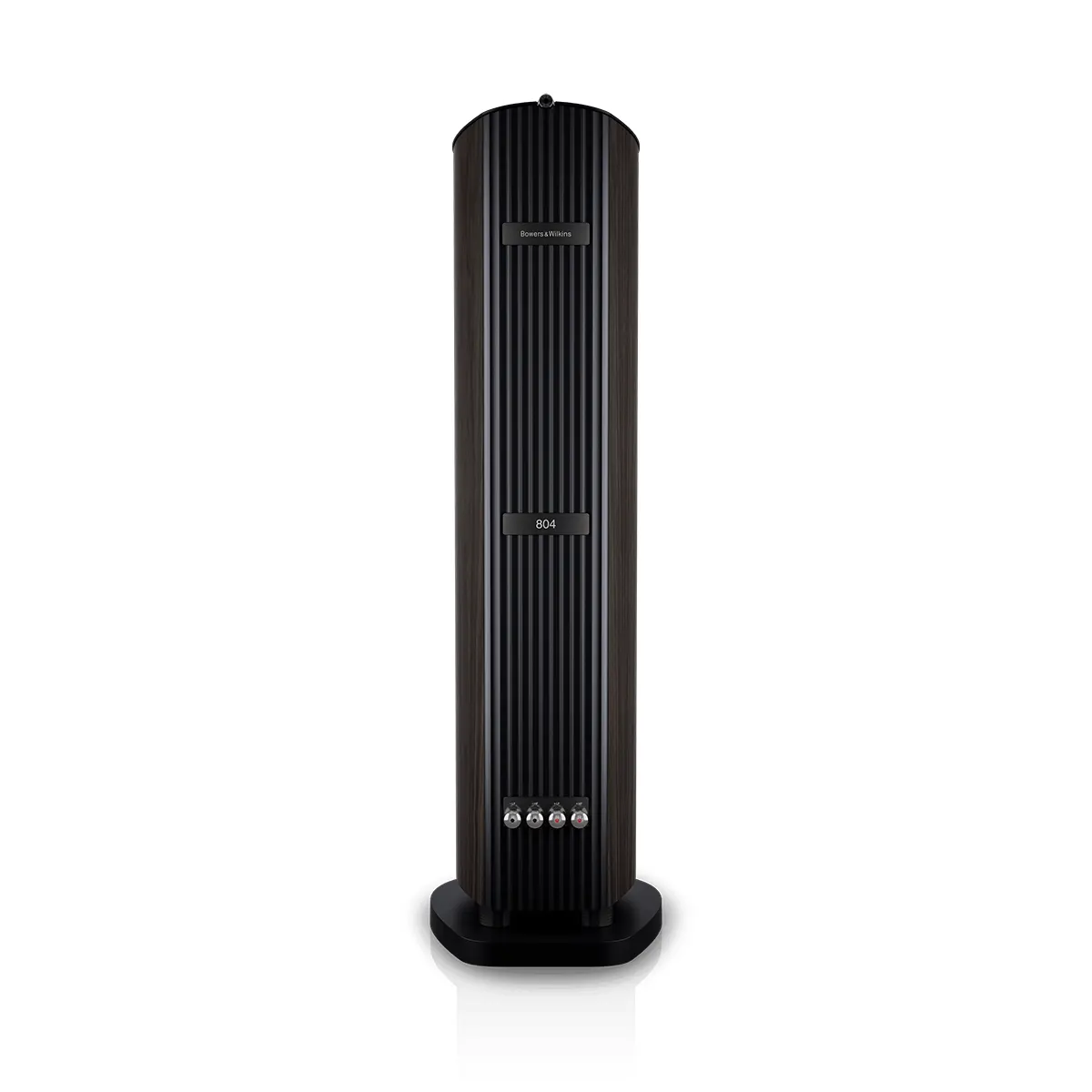

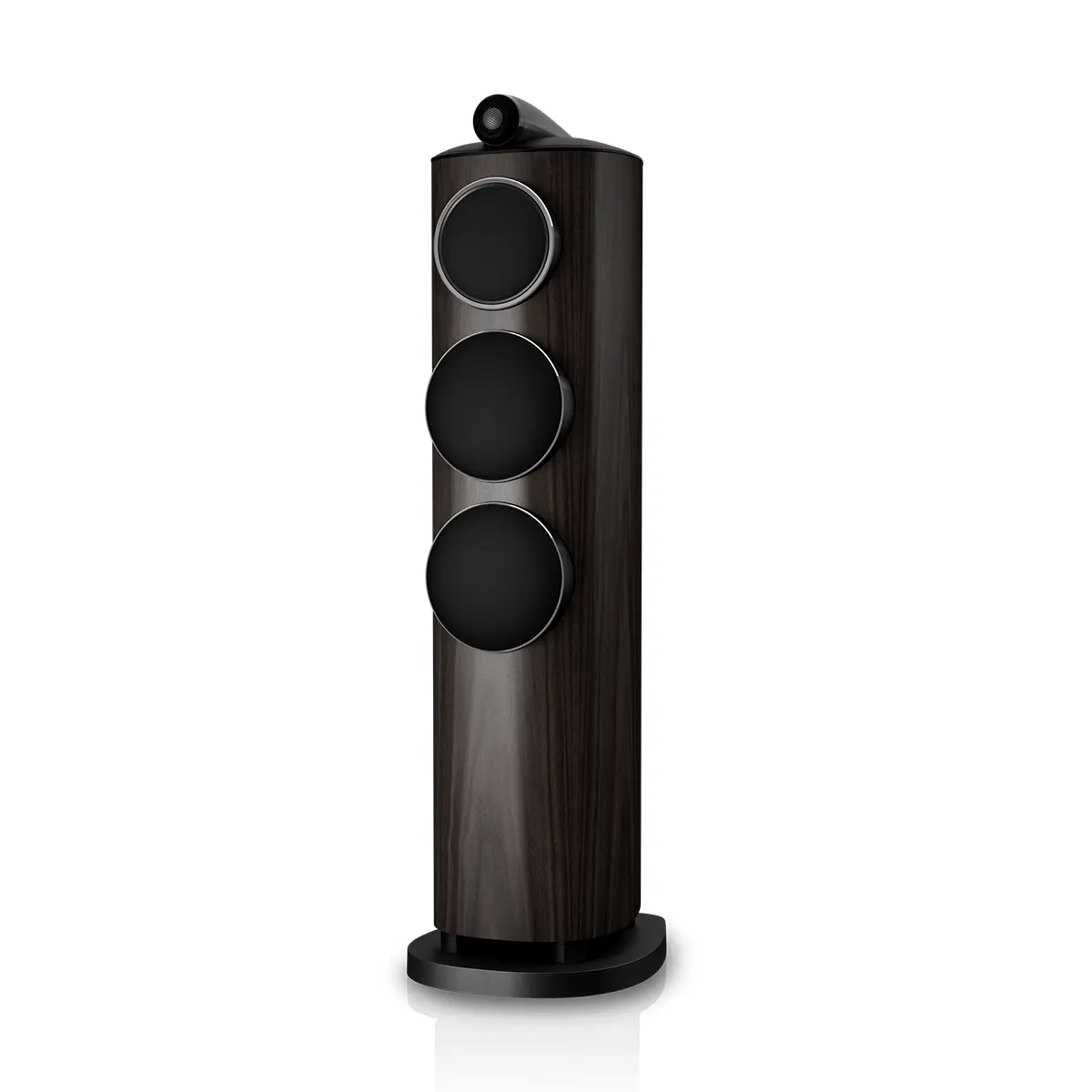

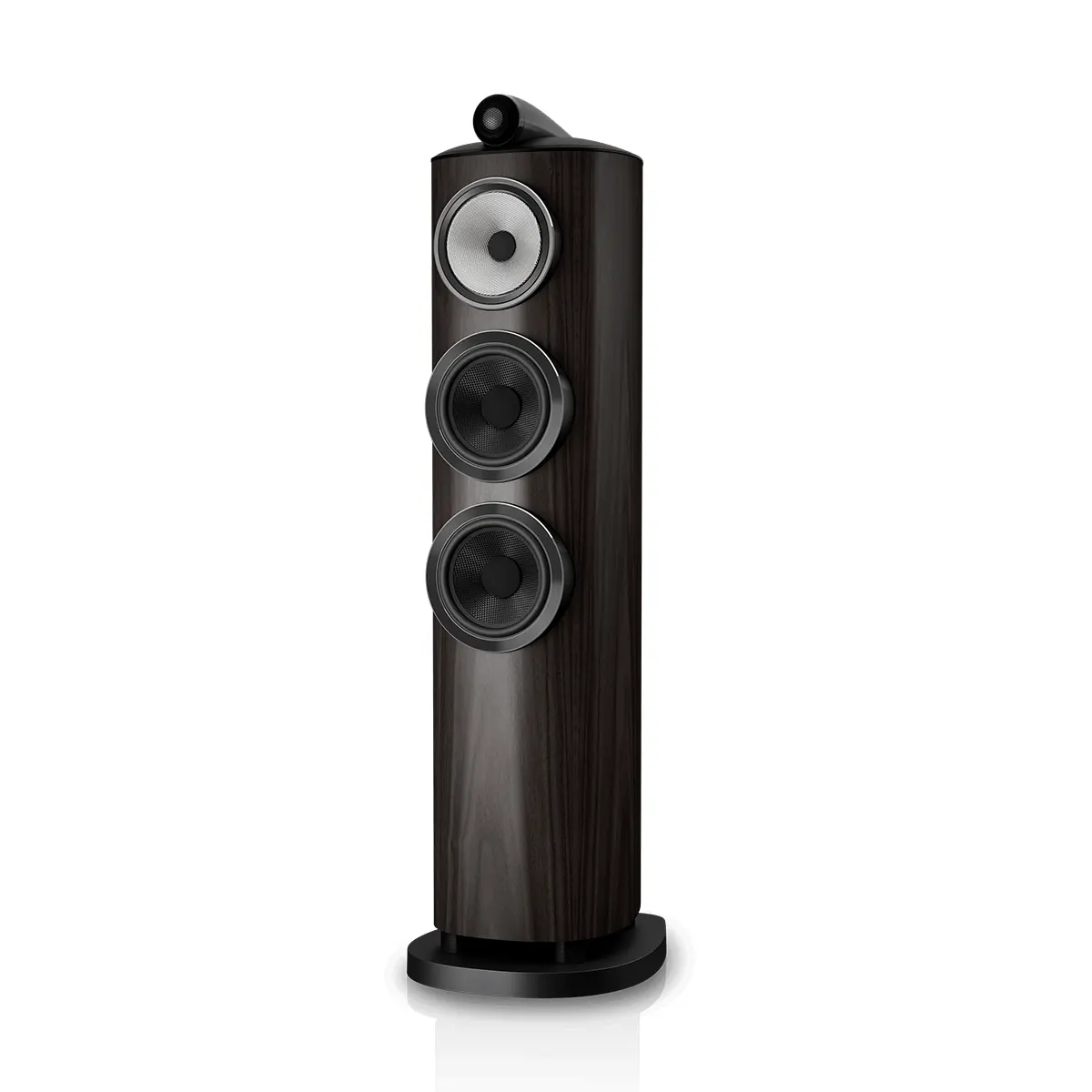

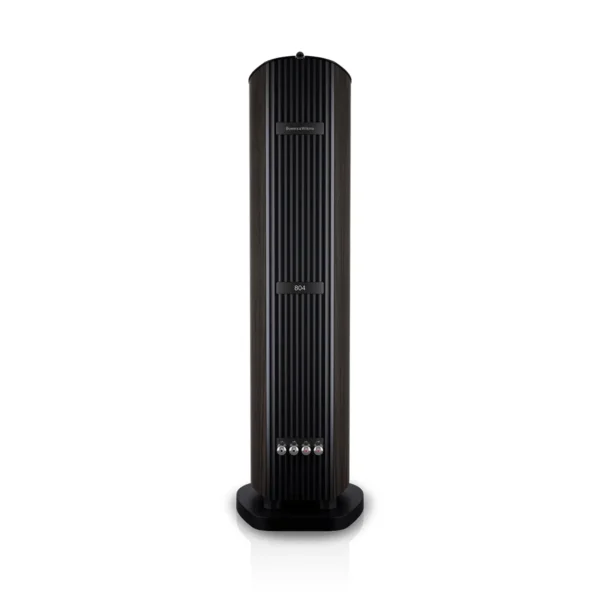

Dark Walnut

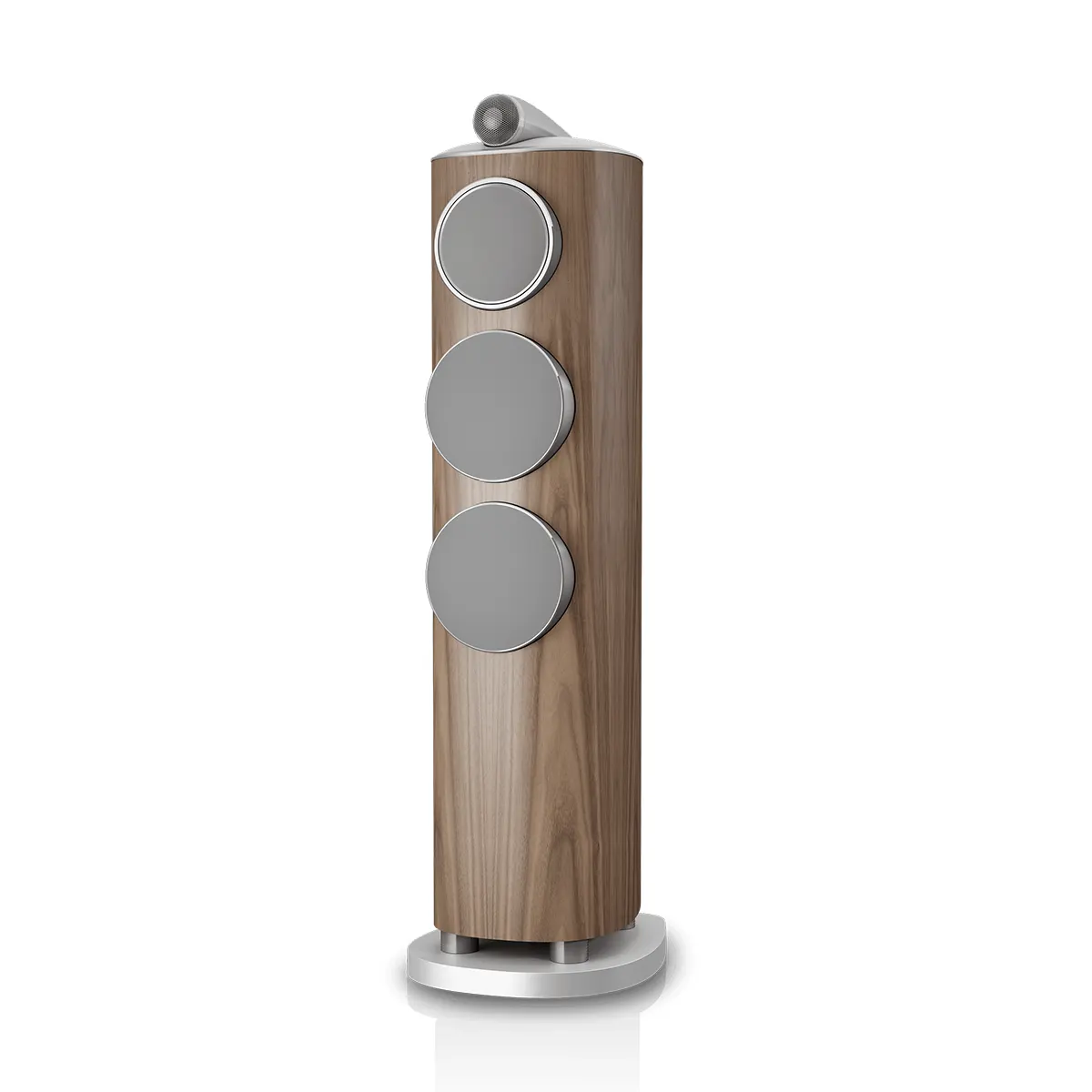

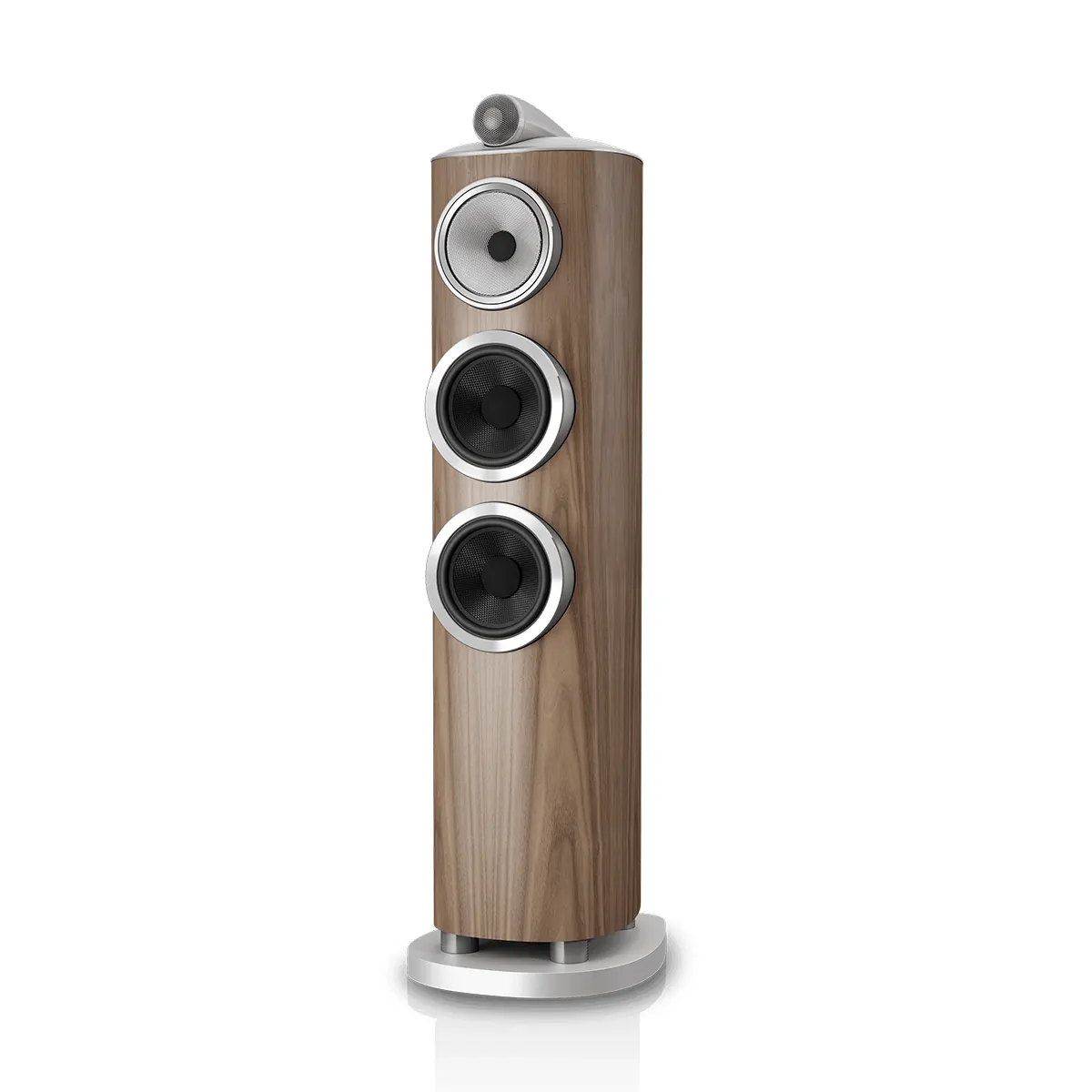

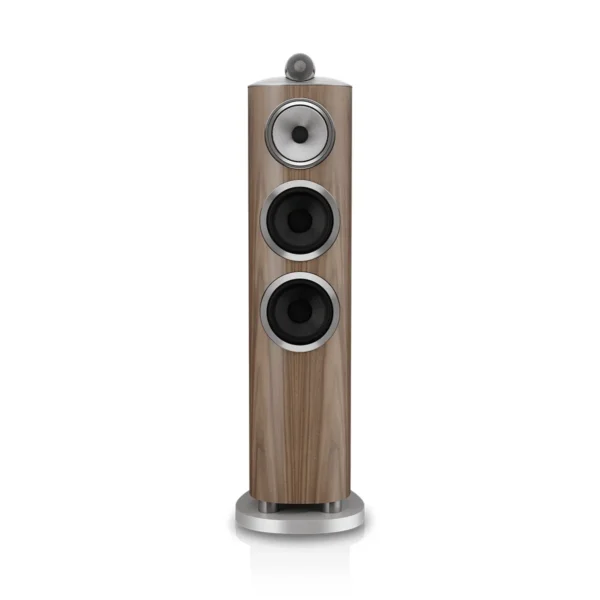

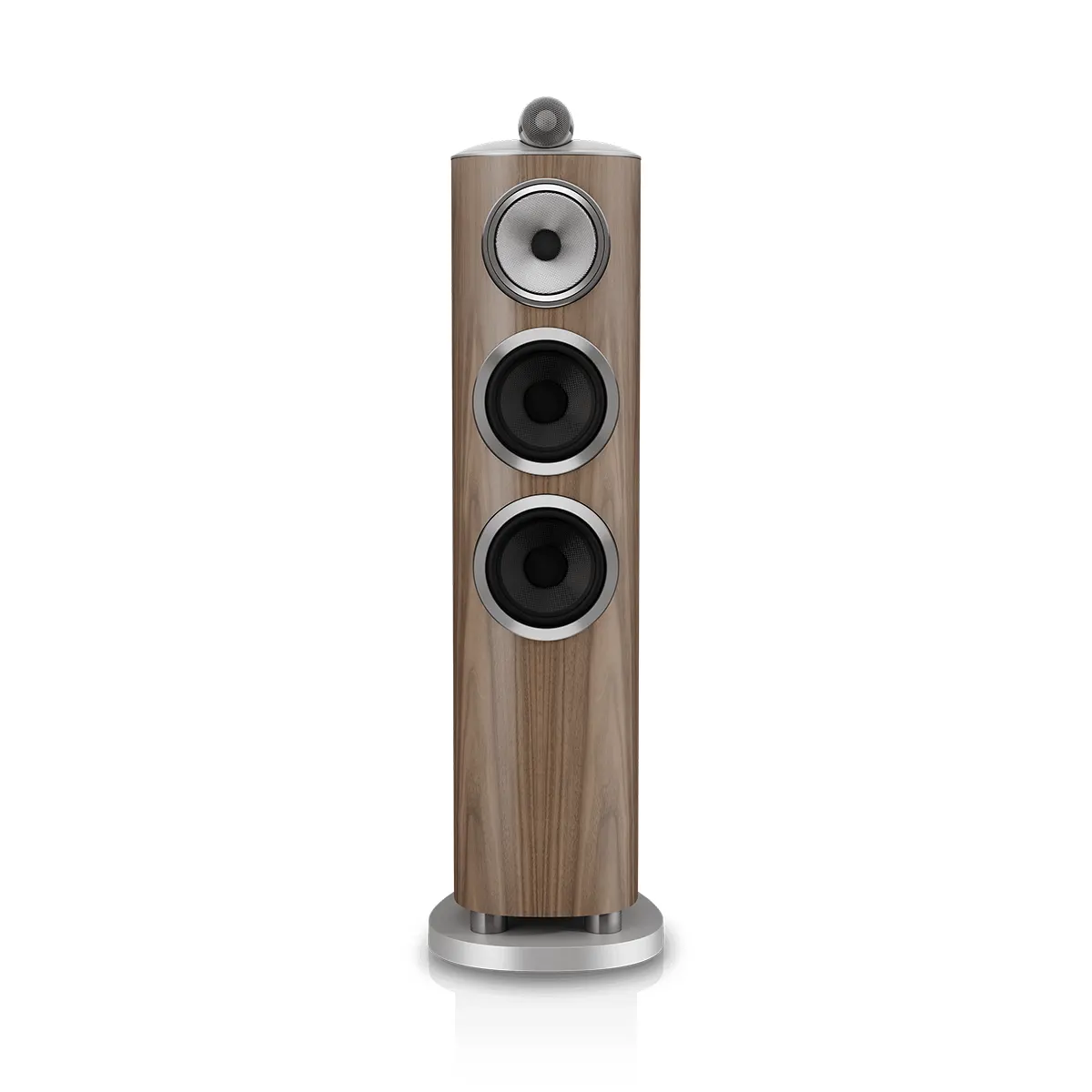

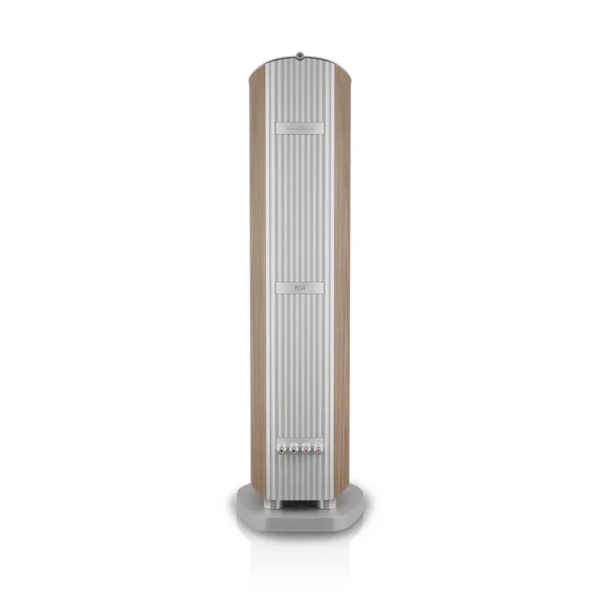

Light Walnut
Grille finishes
Black (Stealth Black and Dark Walnut)
Grey (Warm White and Light Walnut)
