Size & weight
Dimensions
Height: 334mm (13.2 in) including tweeter
Width: 846mm (33.3 in) cabinet only
Depth: 363mm (14.3in) including grille and terminals
Net weight
33.4kg (73.5lbs)
Technical details
Technical features
Diamond dome tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST midrange
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ base cones

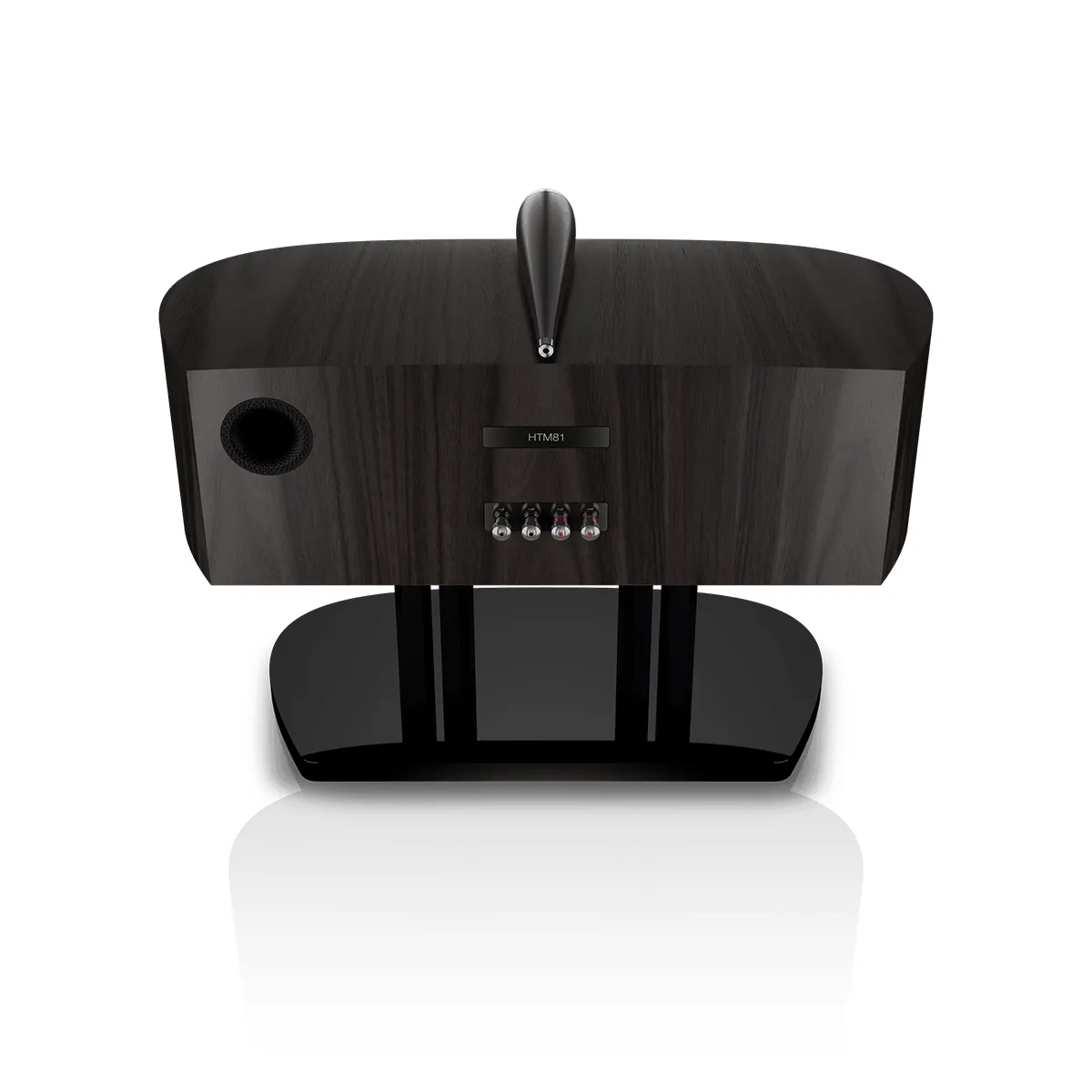

Flowport™
Description
3-way vented-box system
Drive units
1x ø25mm (1in) Diamond dome high-frequency
1x ø150mm (6in) Continuum cone FST midrange
2x ø200mm (8in) Aerofoil™ bass
Frequency range
-6dB 20Hz to 35kHz
Frequency response
28Hz to 28kHz (+/-3dB)
Sensitivity
90dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz – 20kHz
<0.3% 100Hz – 8kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 500W into 8Ω on unclipped programme
Max recommended cable impedance
0.1Ω
Finishes
Cabinet finishes

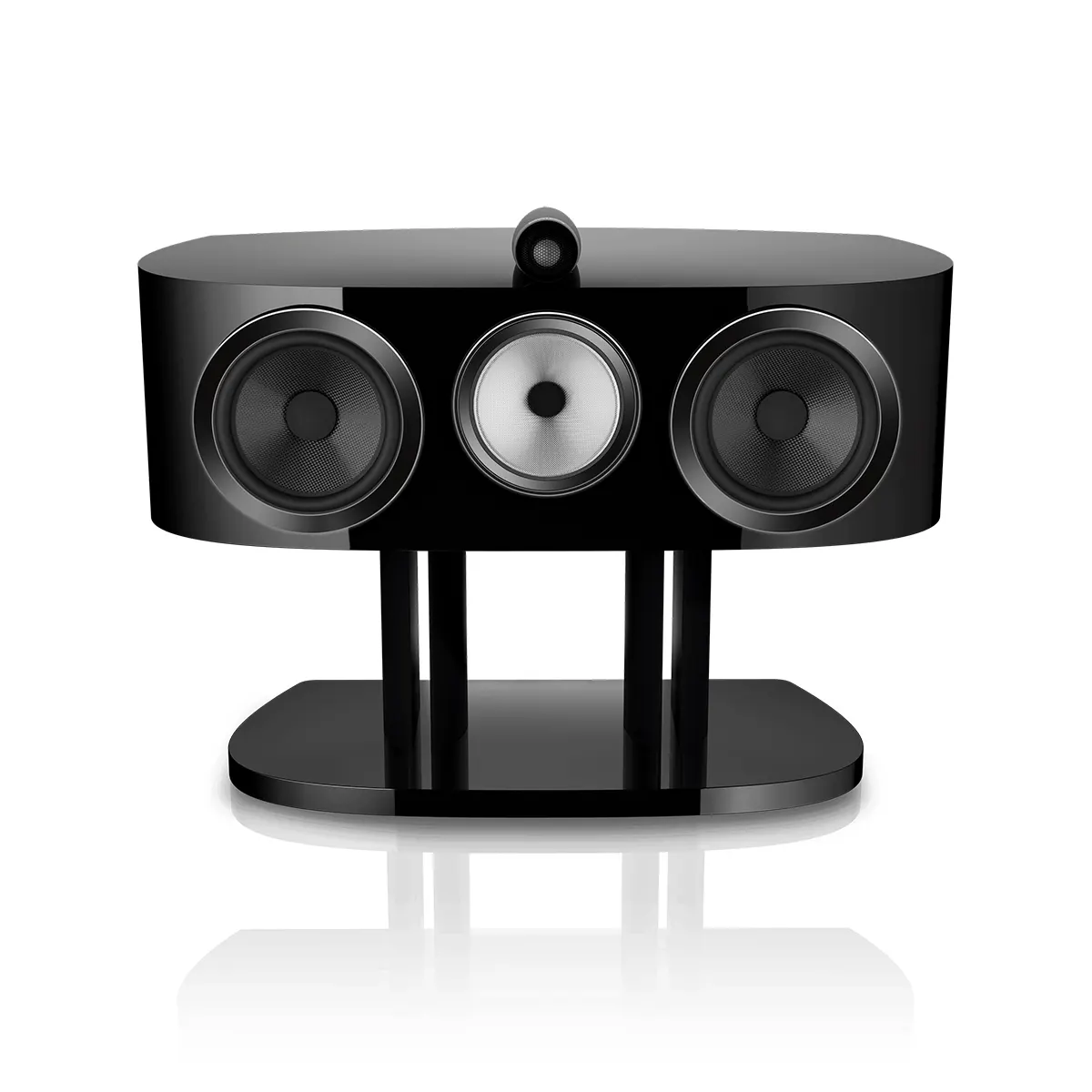

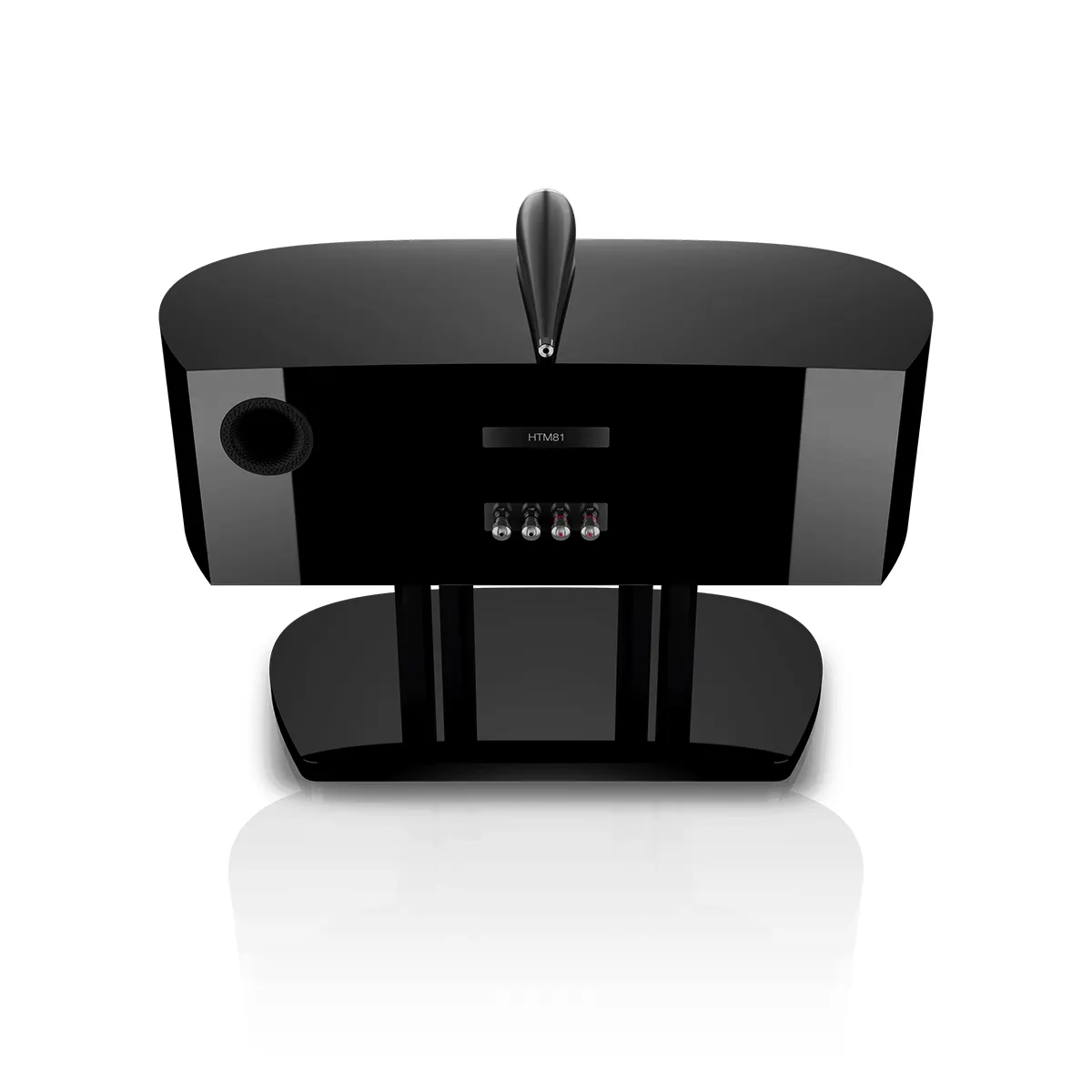

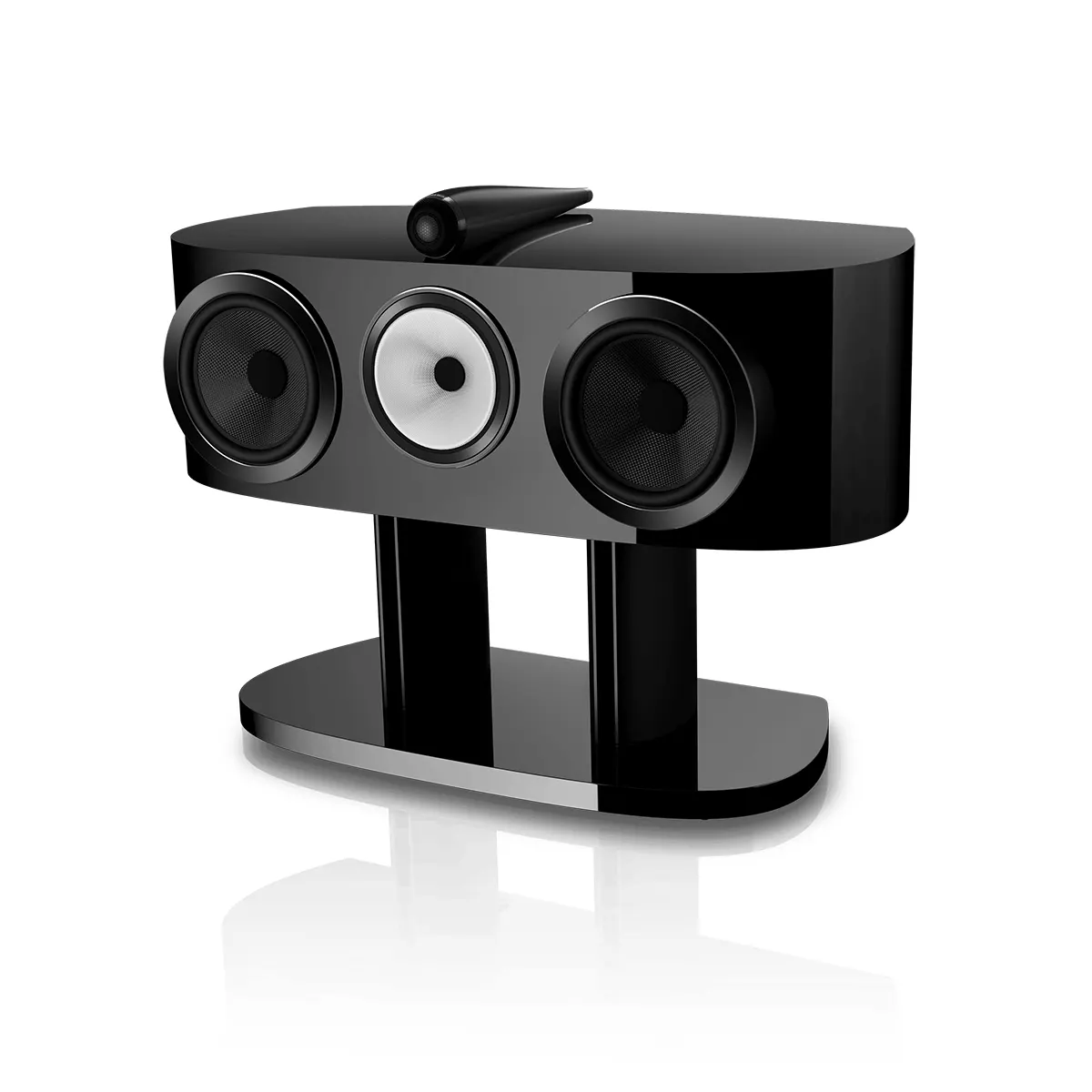

Stealth Black

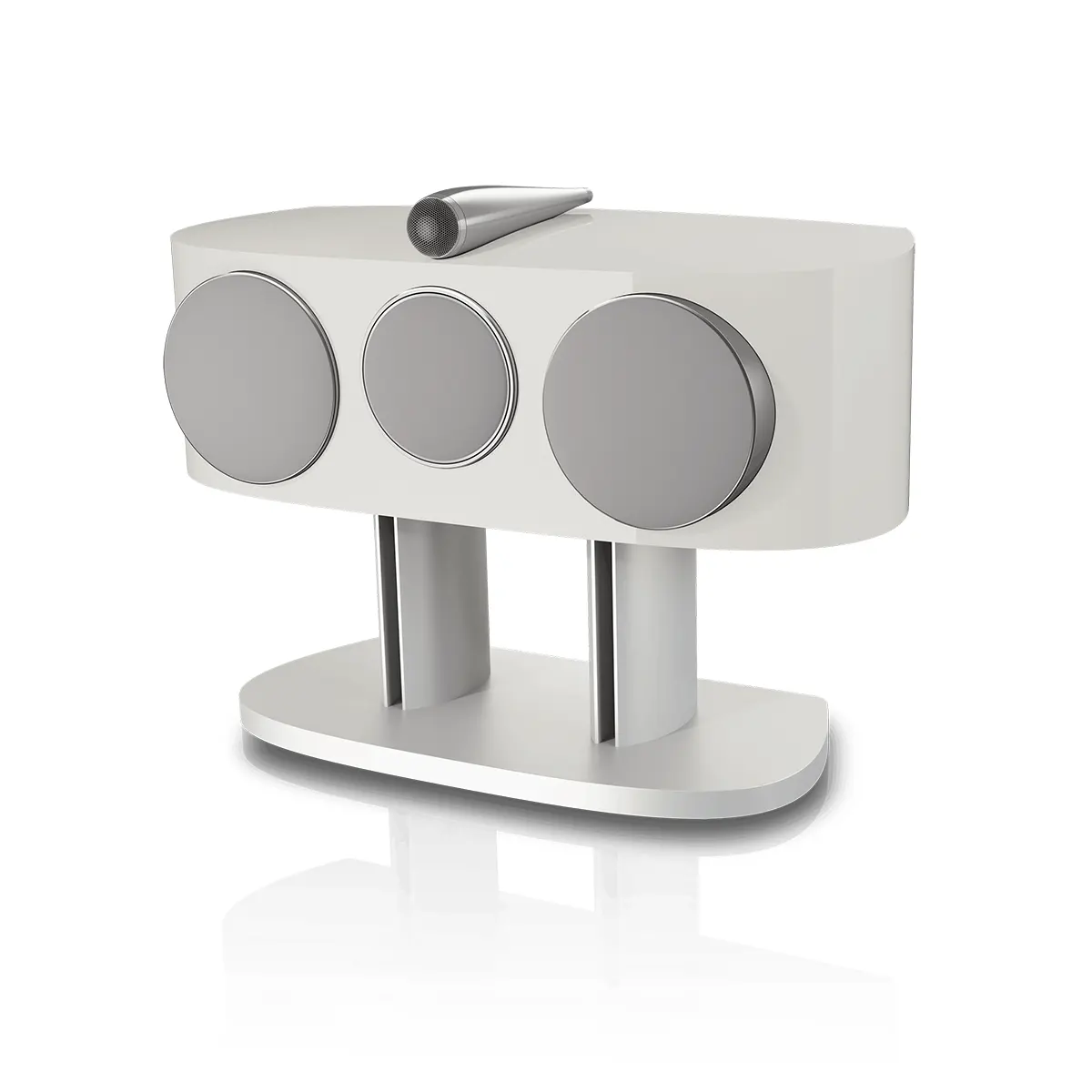

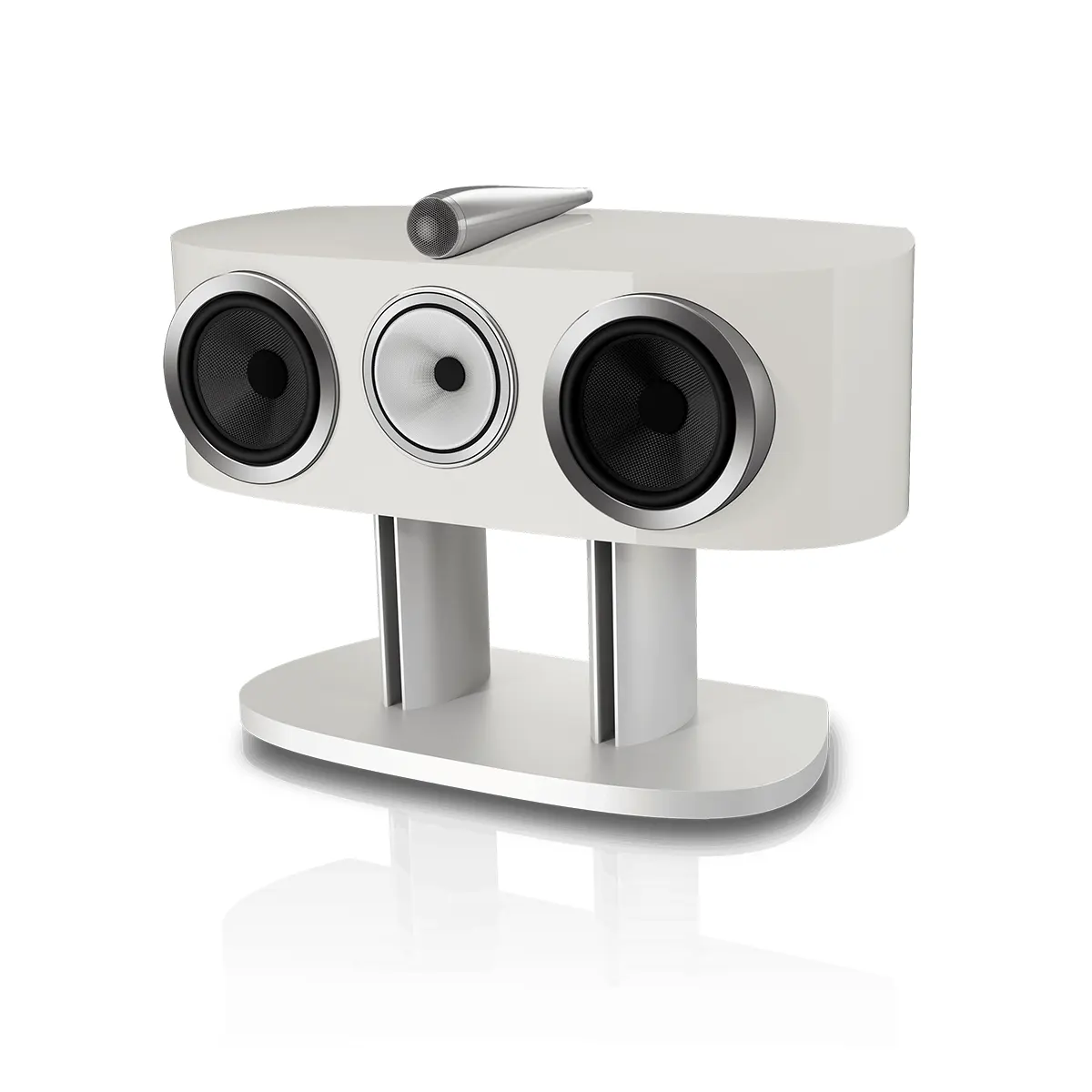

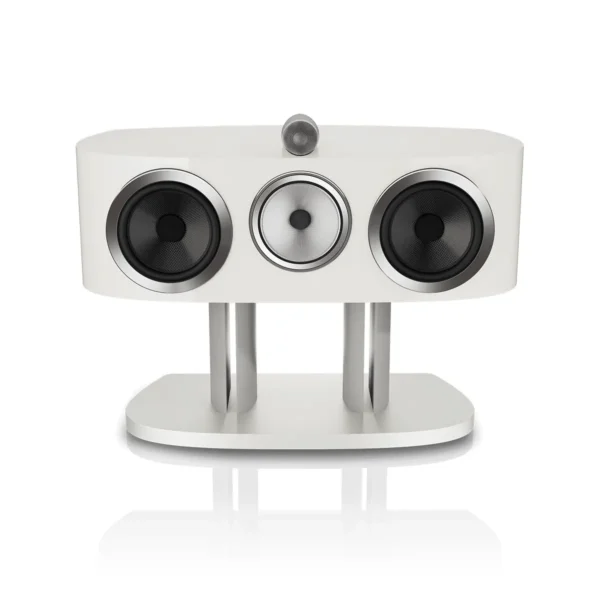

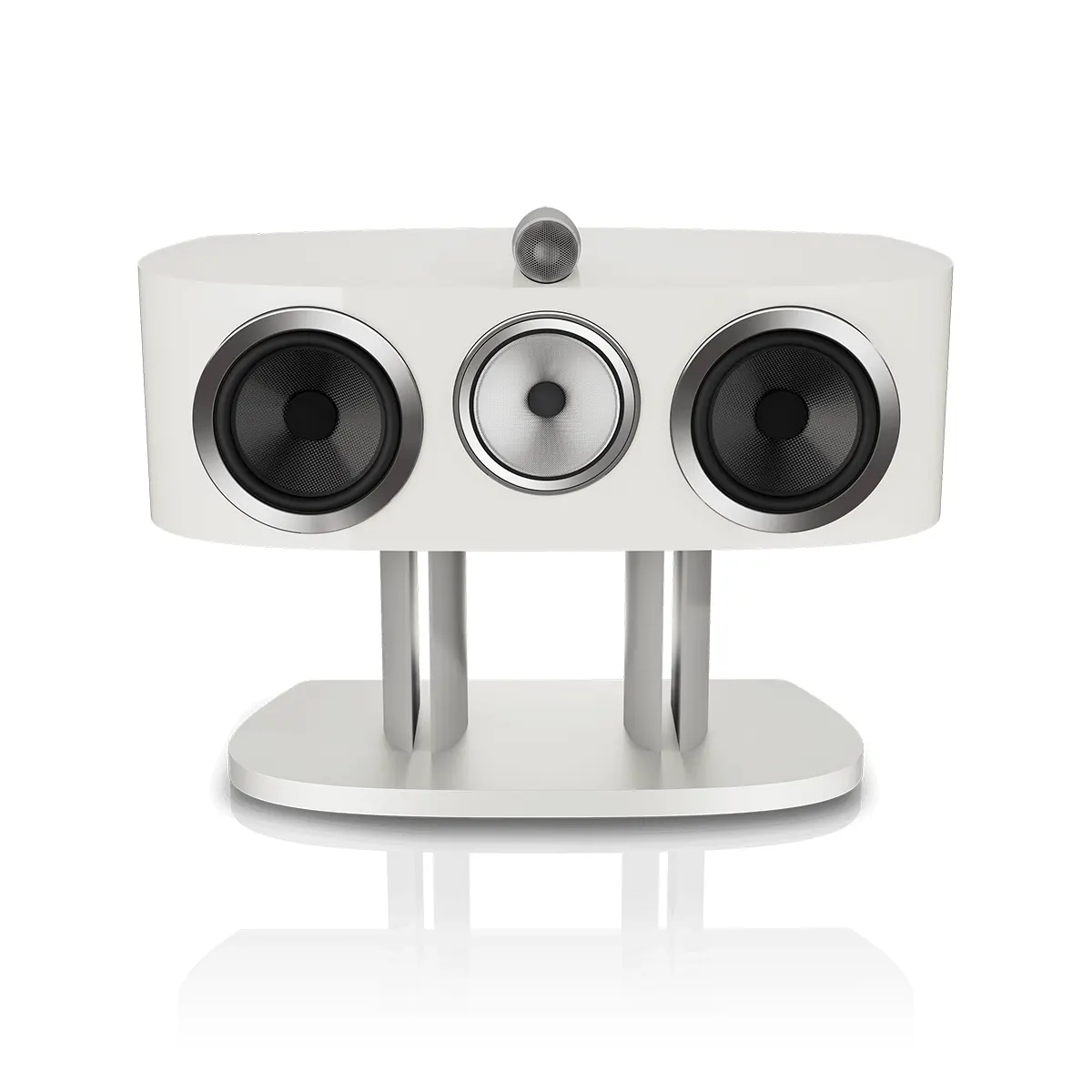

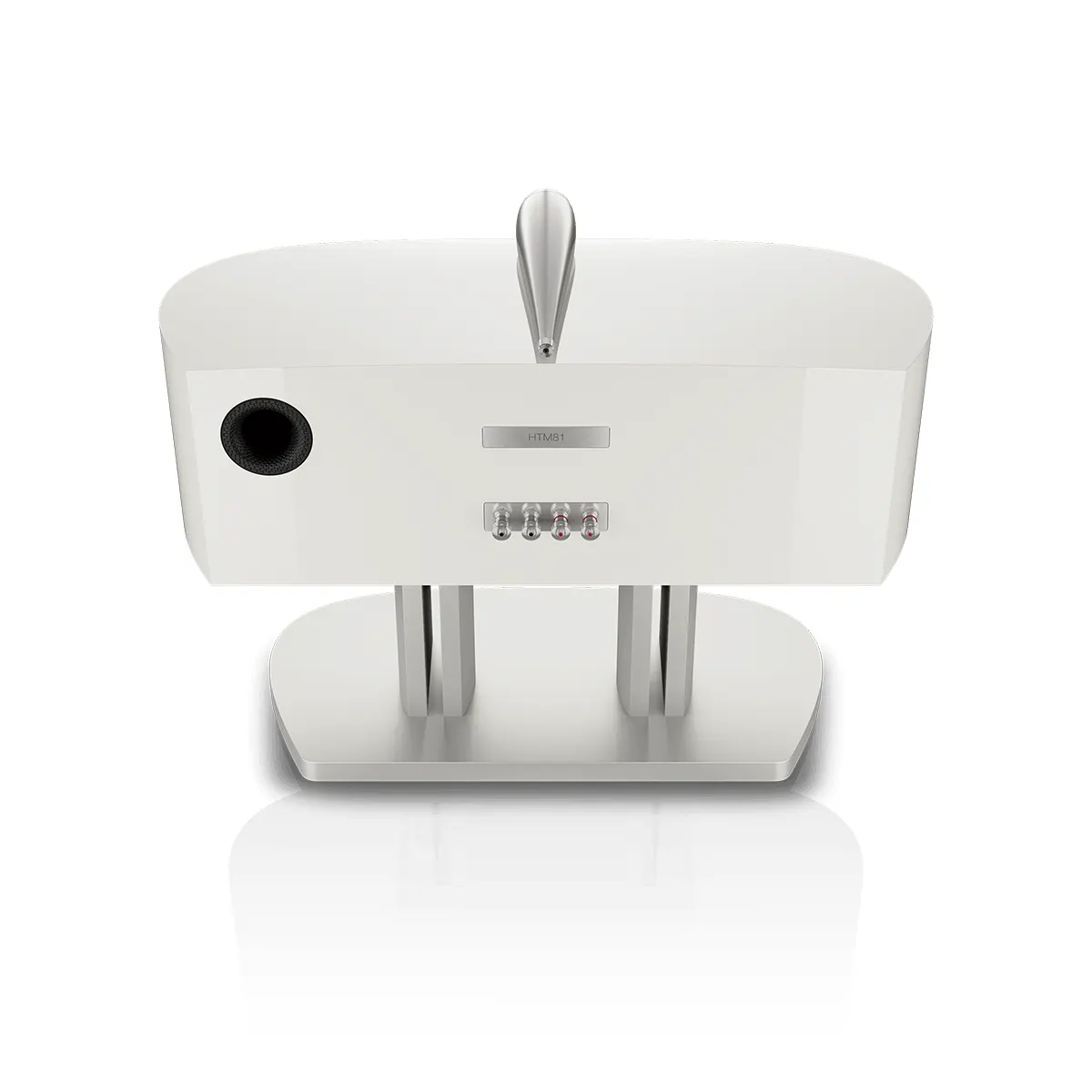

Warm White

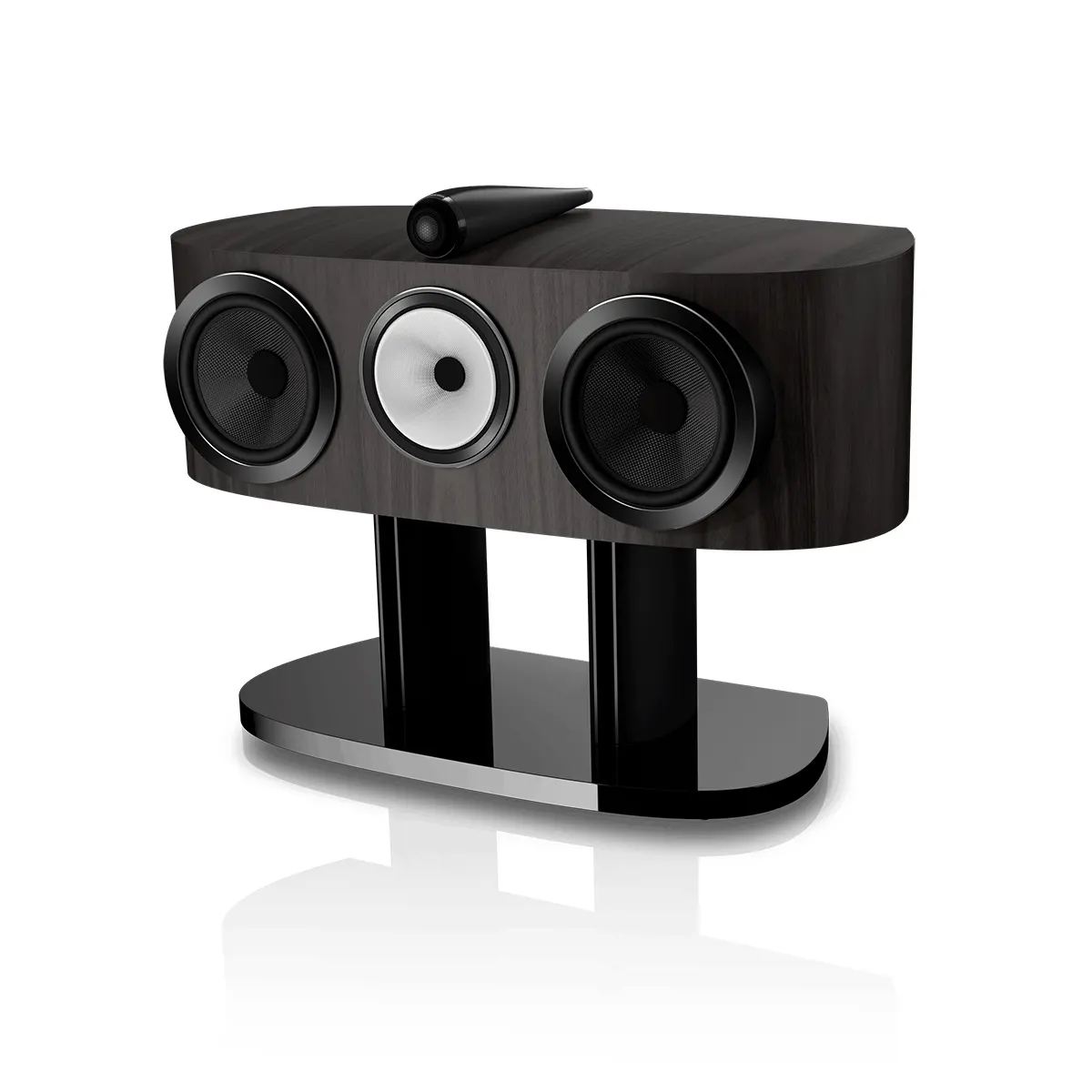

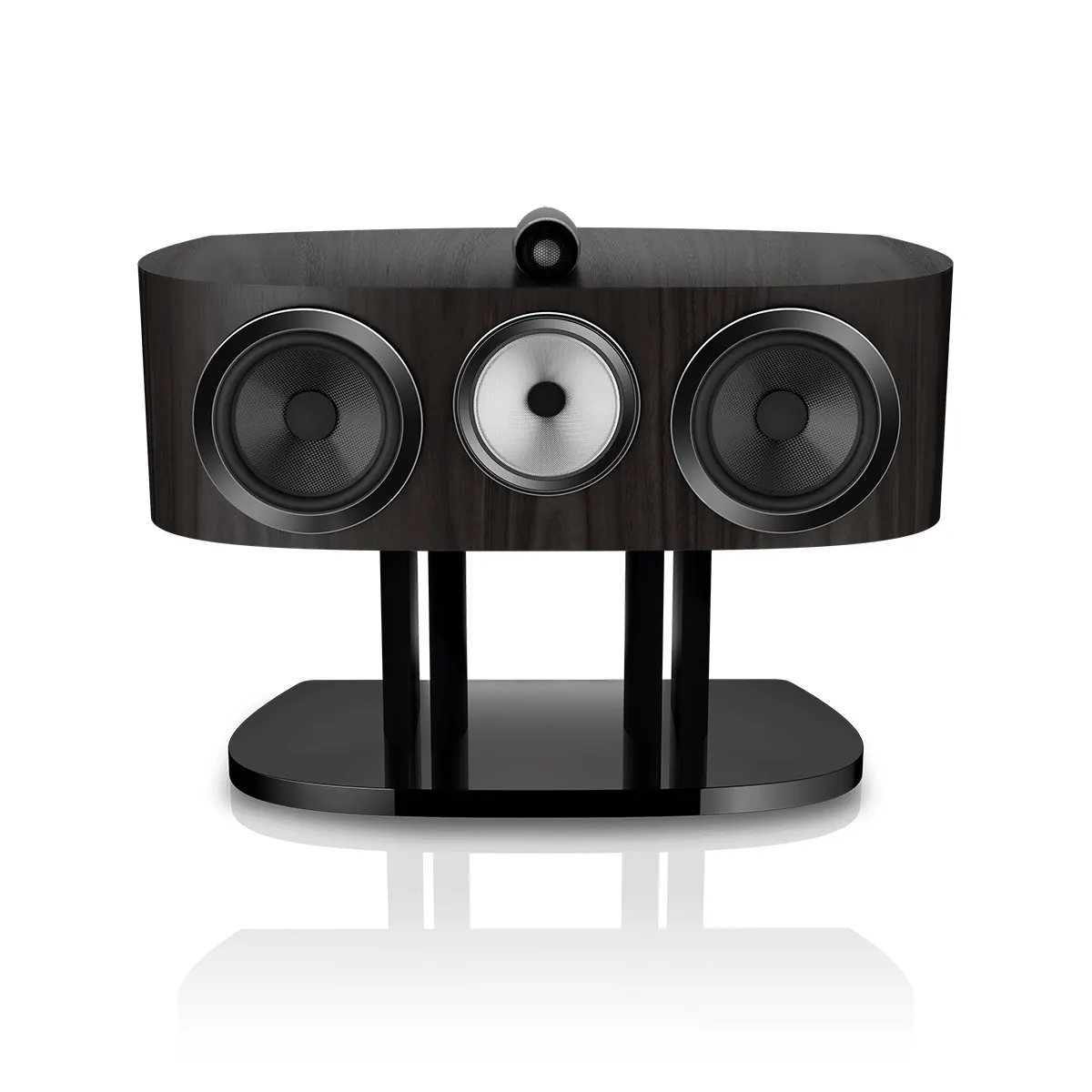

Dark Walnut
Grille finishes

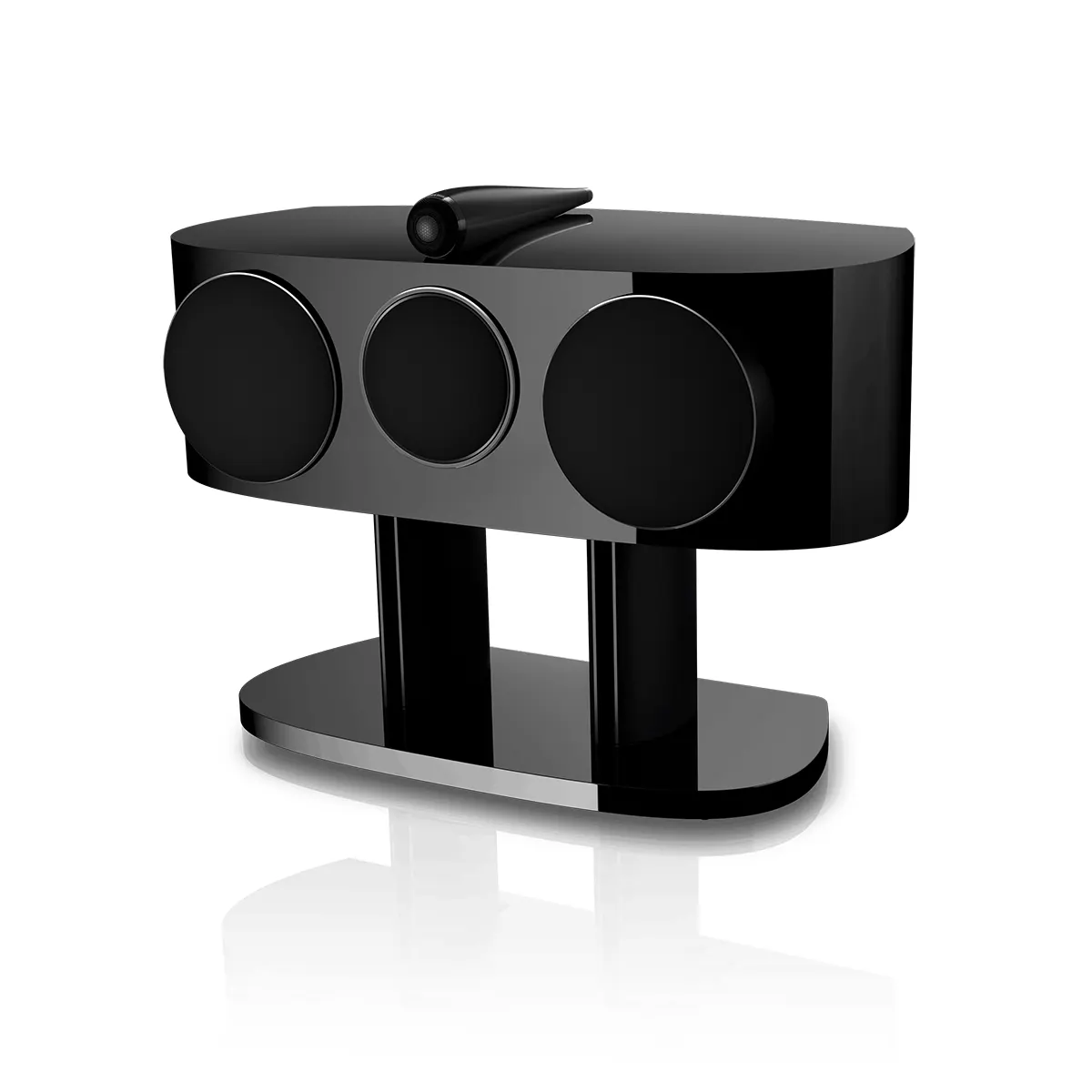

Black (Stealth Black and Dark Walnut)
Grey (Warm White)
Accessories
FS-HTM Black, Stand: Titanium
