Size & weight
Dimensions
Height: 289mm (11.4 in) including tweeter
Width: 715mm (28.1 in) cabinet only
Depth: 363mm (14.3in) including grille and terminals
Net weight
26.1kg (57.5lbs)
Technical details
Technical features
Diamond dome tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST midrange
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ base cones
Flowport™
Description
3-way vented-box system
Drive units
1x ø25mm (1in) Diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø165mm (6.5in) Aerofoil™ bass
Frequency range
-6dB 33Hz to 35kHz
Frequency response
45Hz to 28kHz (+/-3dB)
Sensitivity
89dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 80Hz – 20kHz
<0.3% 100Hz – 8kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 200W into 8Ω on unclipped programme
Max recommended cable impedance
0.1Ω
Finishes
Cabinet finishes

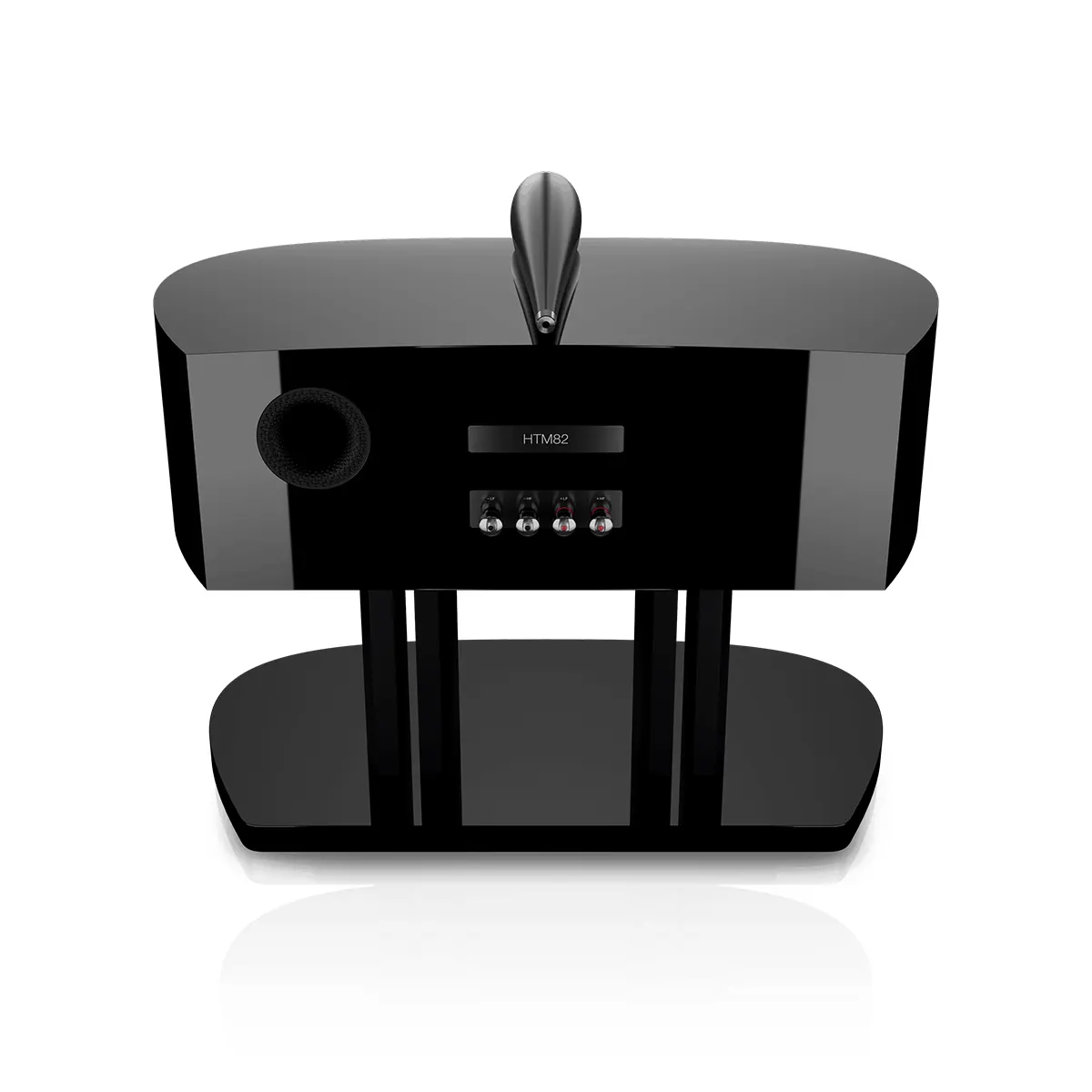

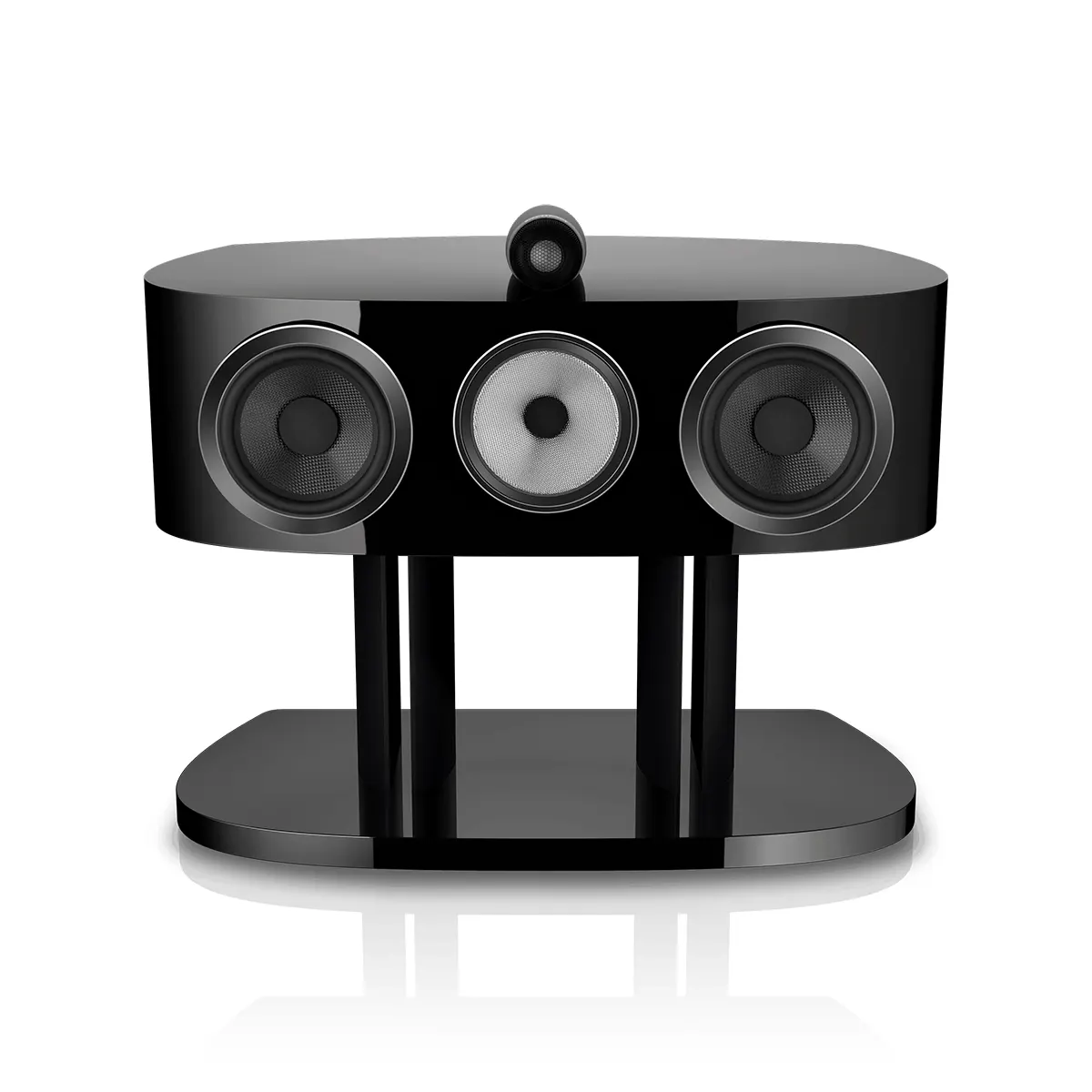

Stealth Black

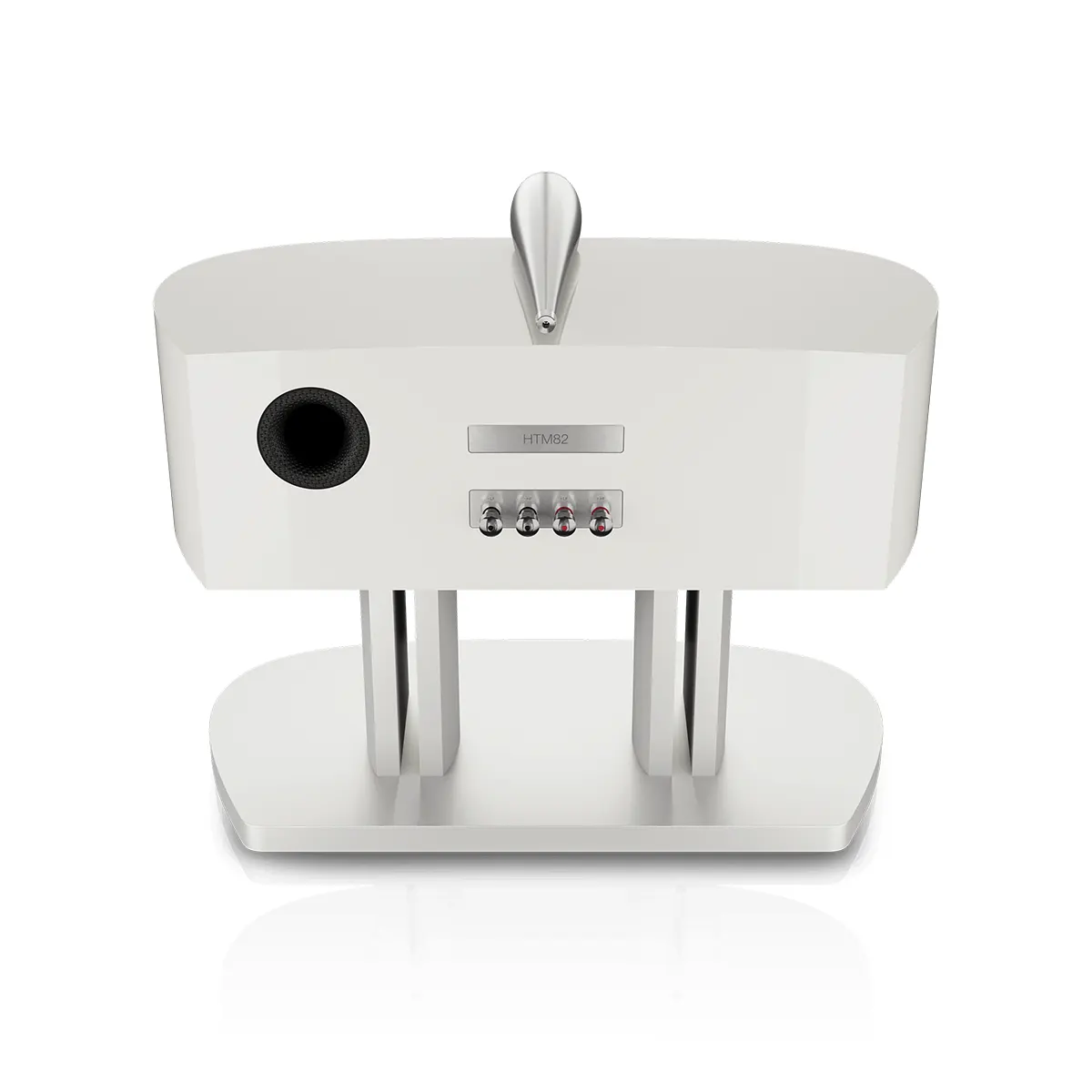

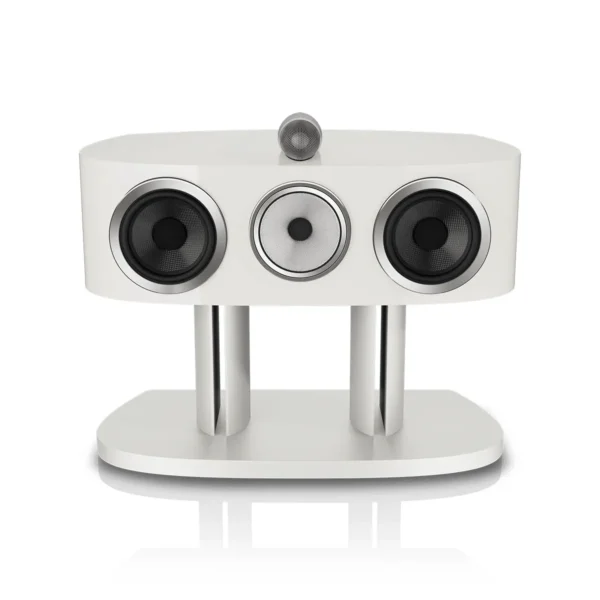

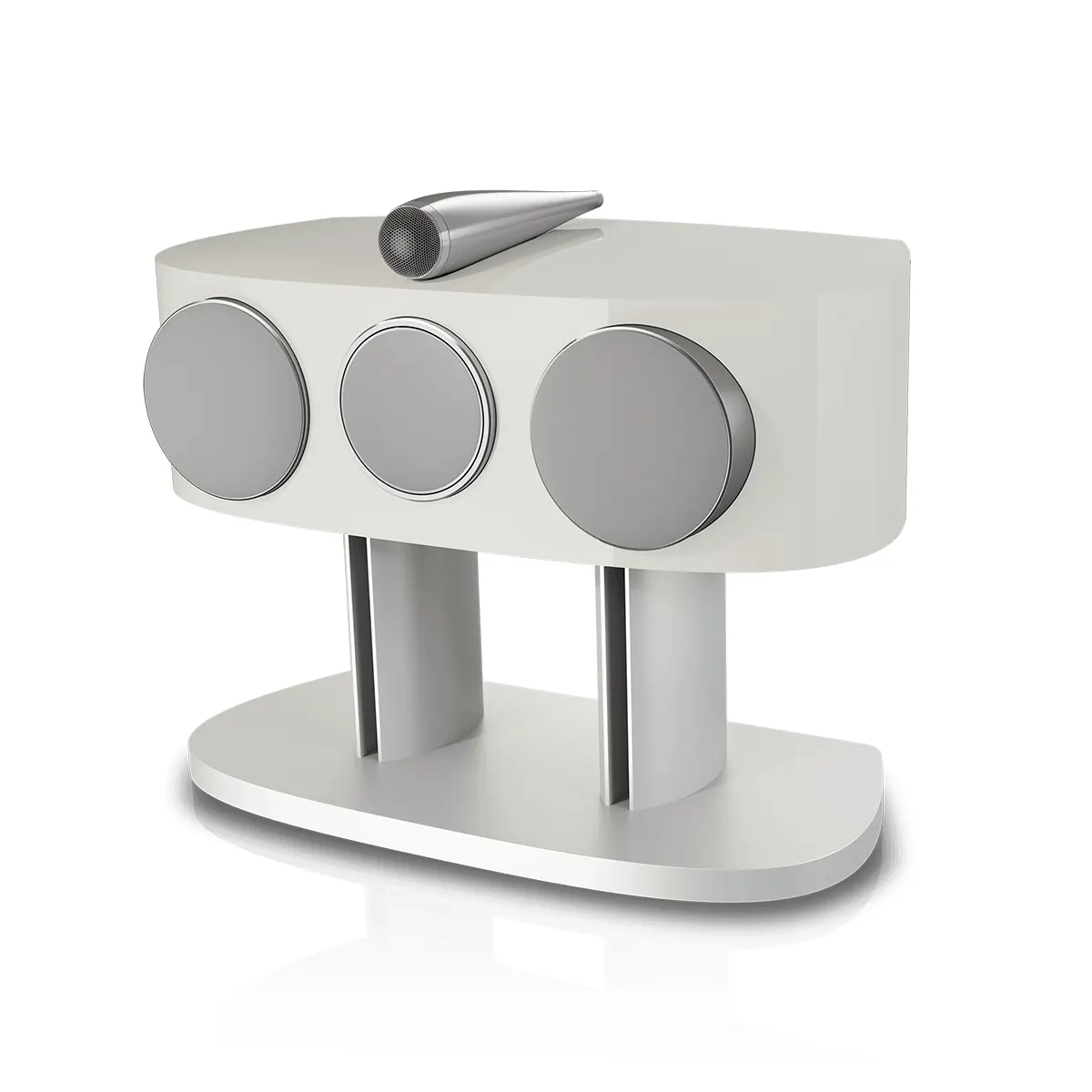

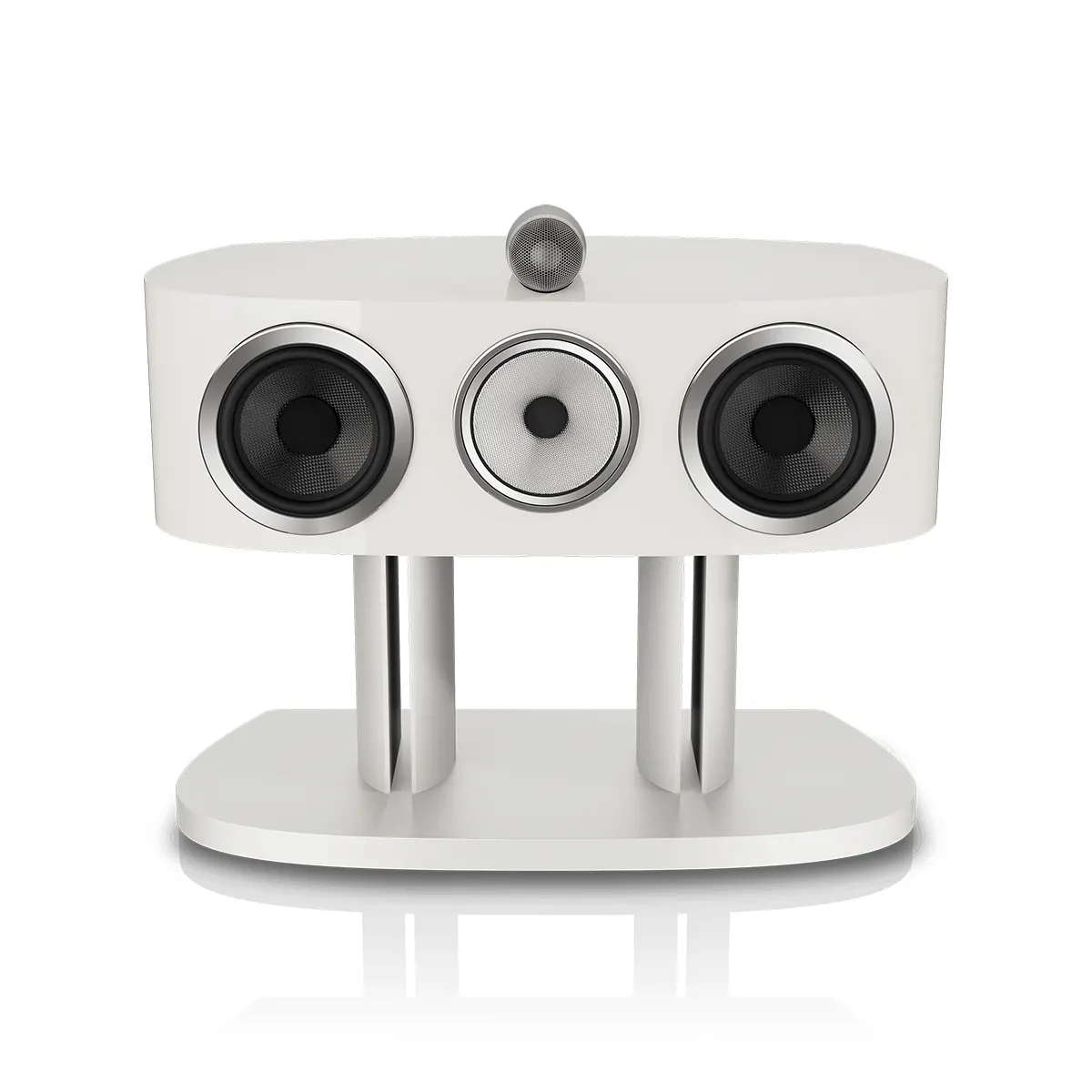

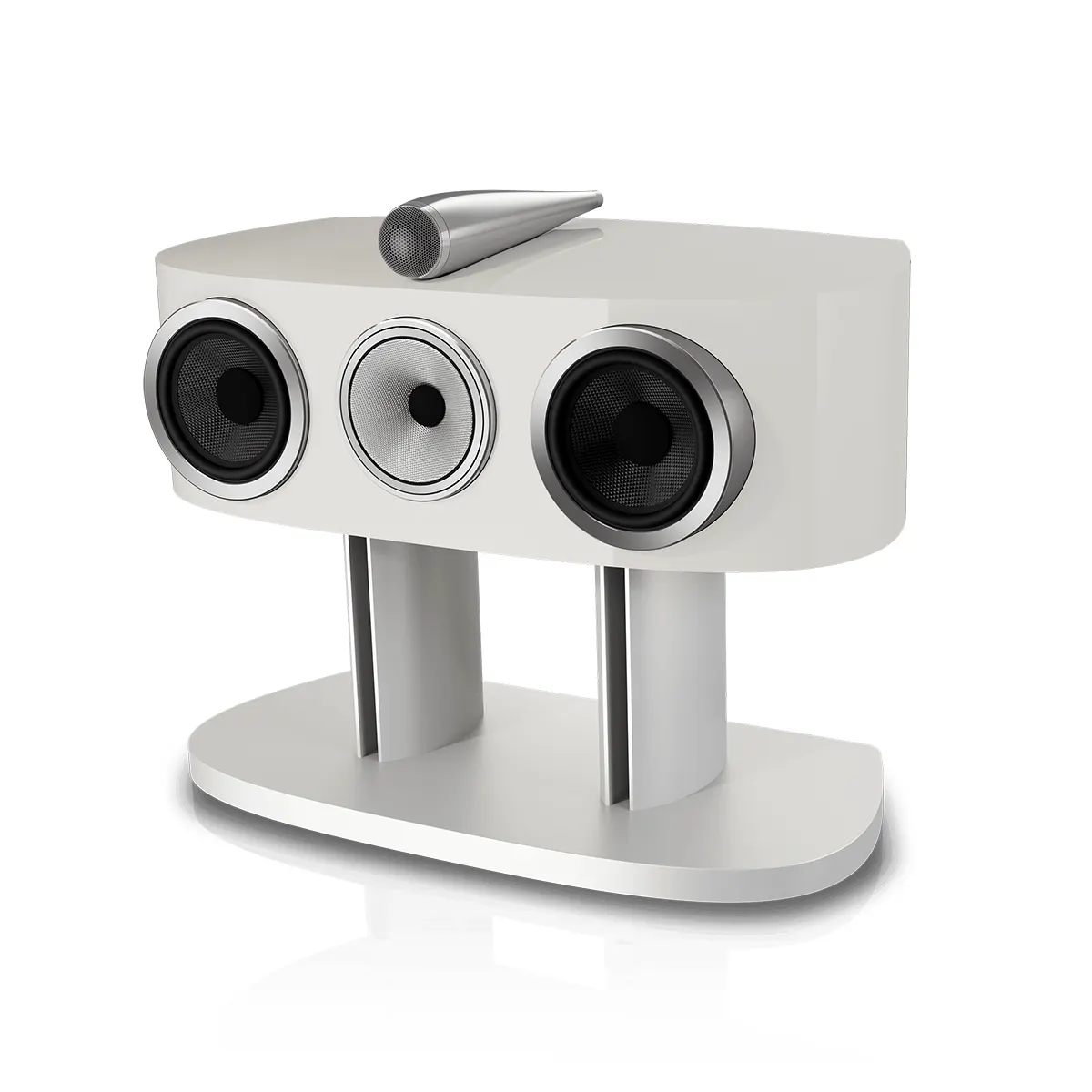

Warm White

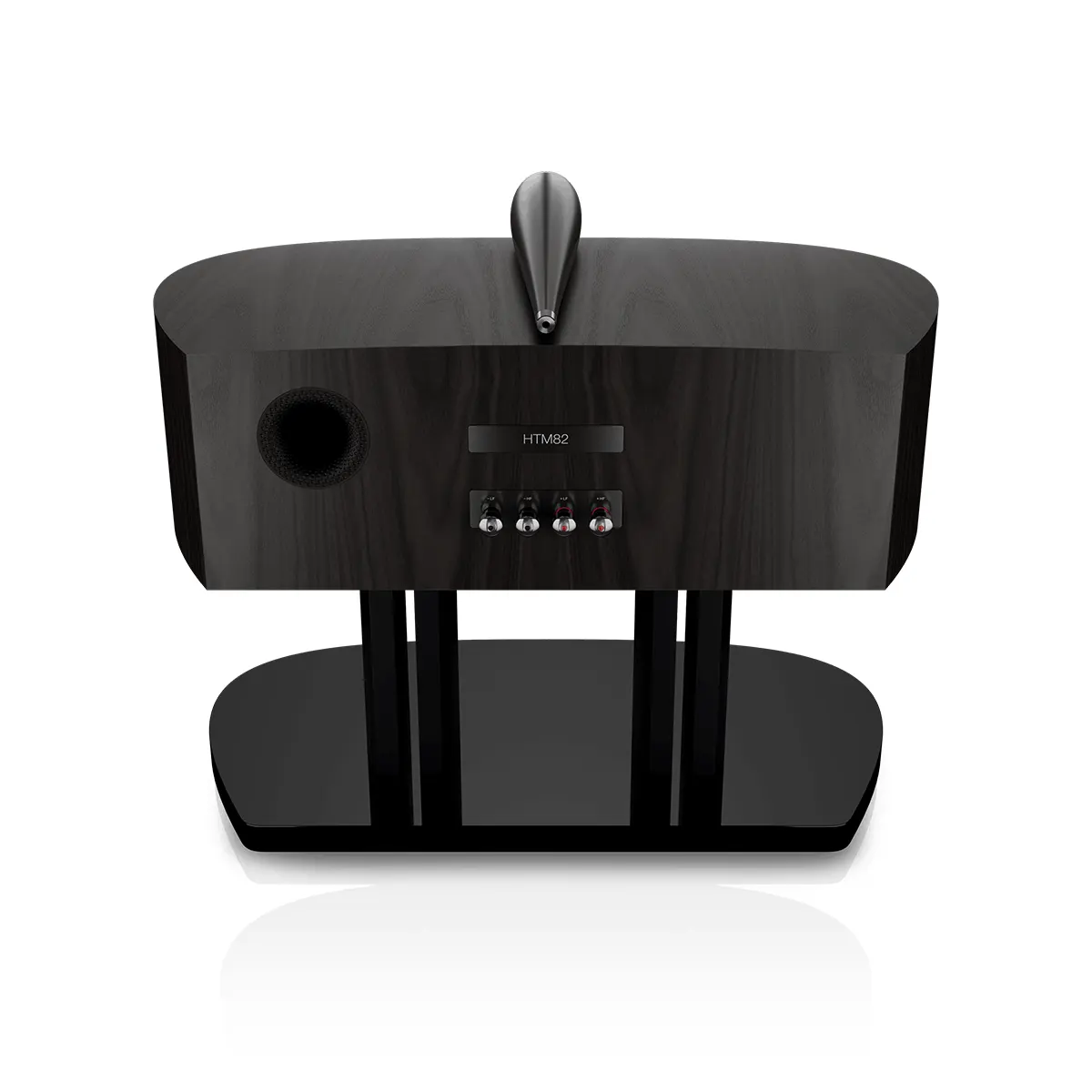

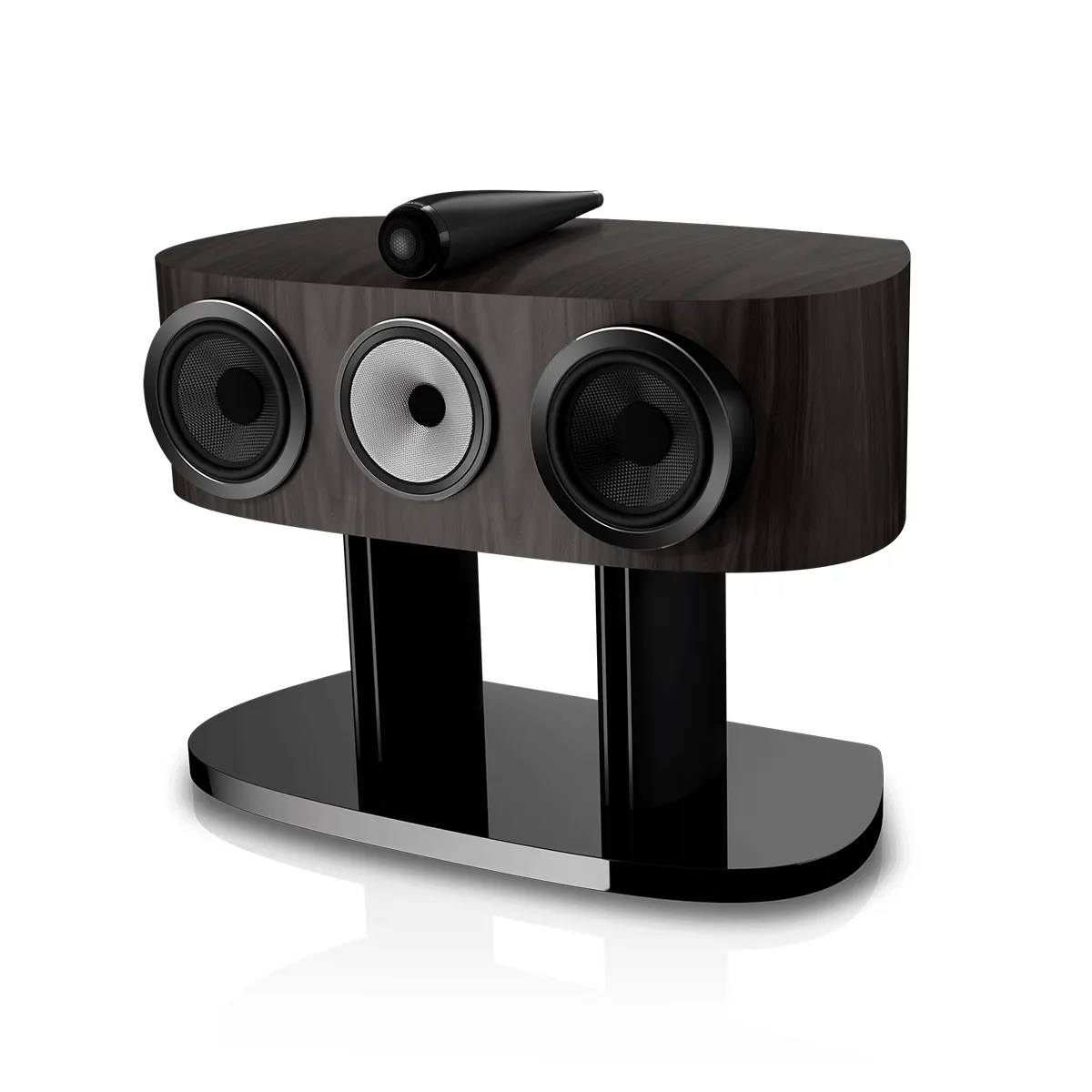

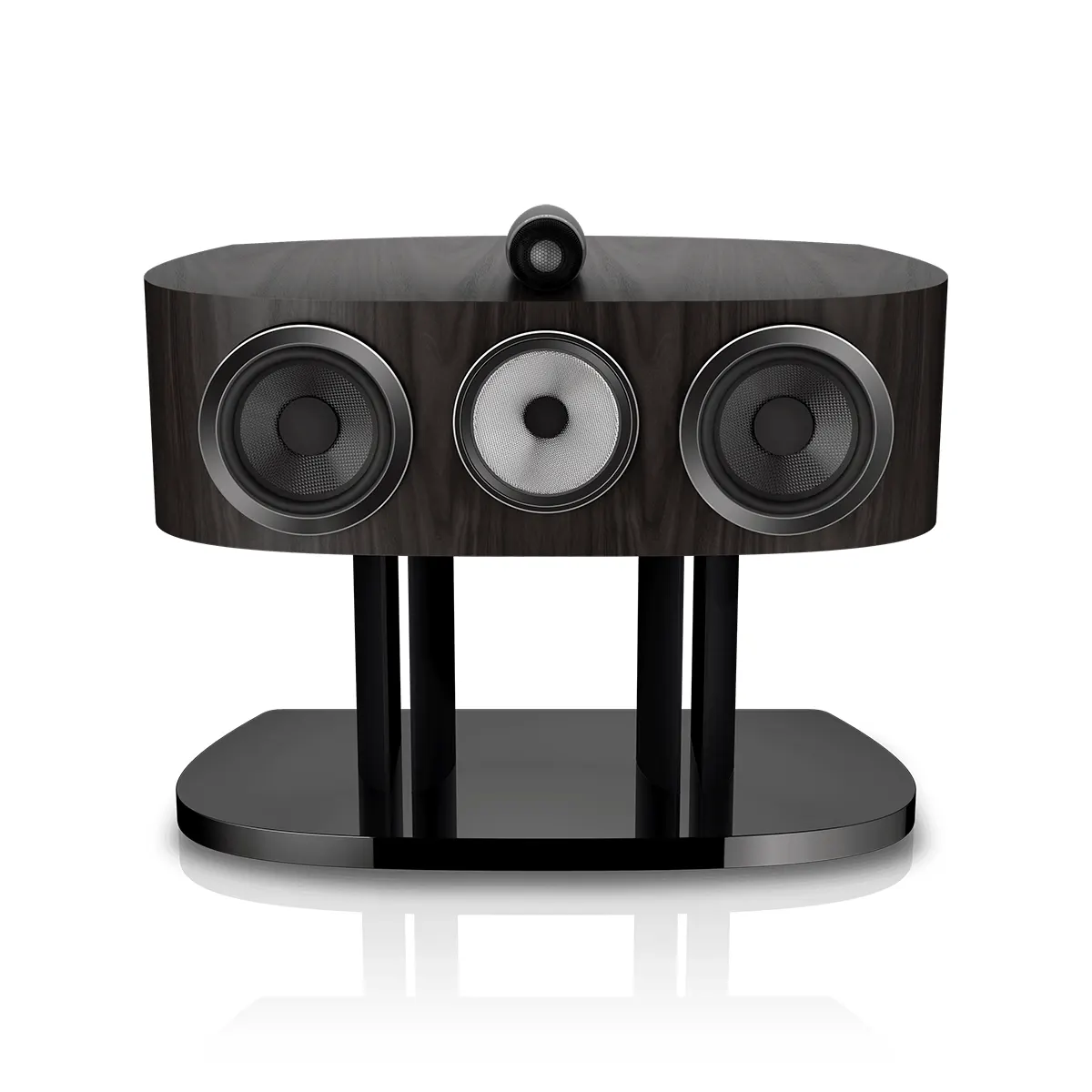

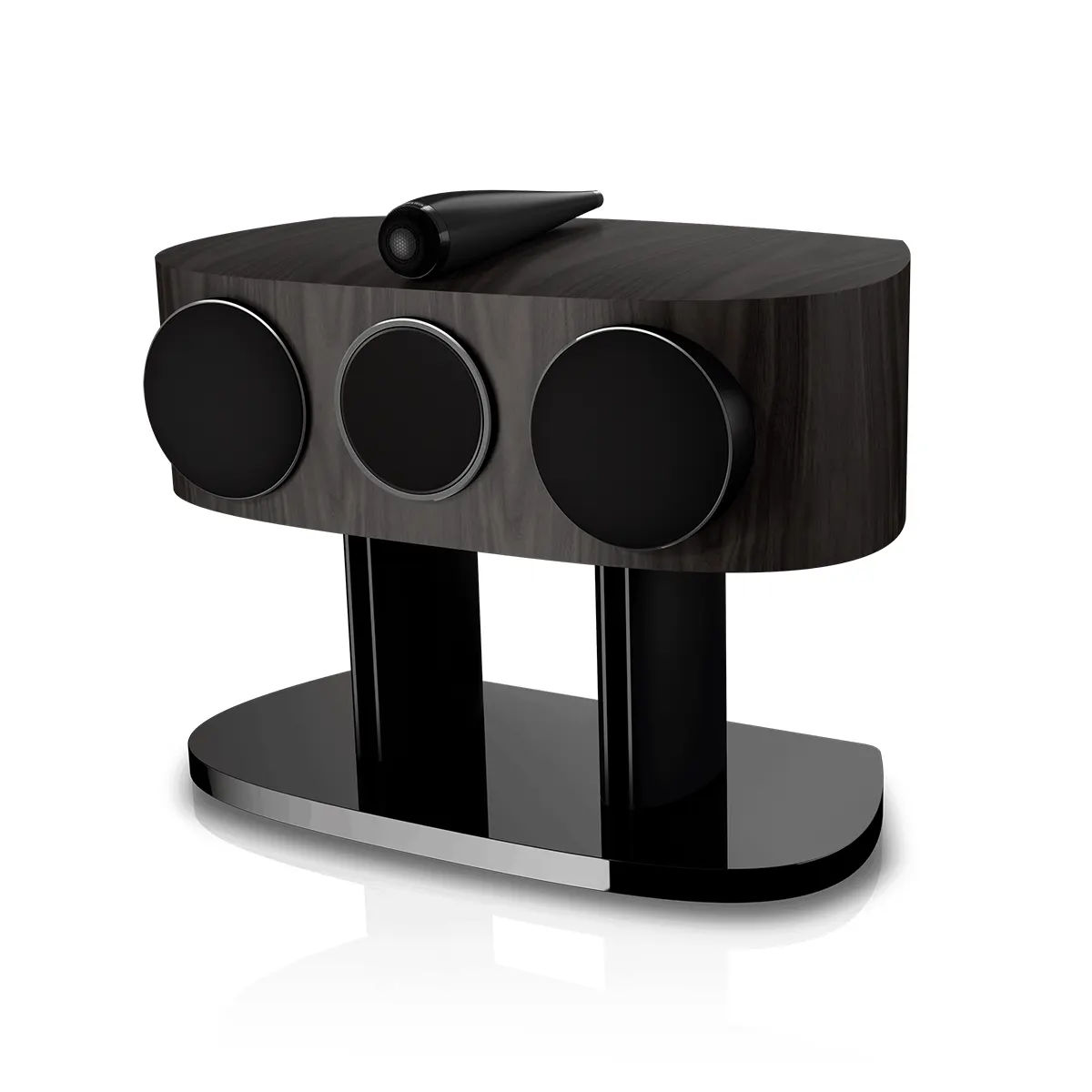

Dark Walnut
Grille finishes

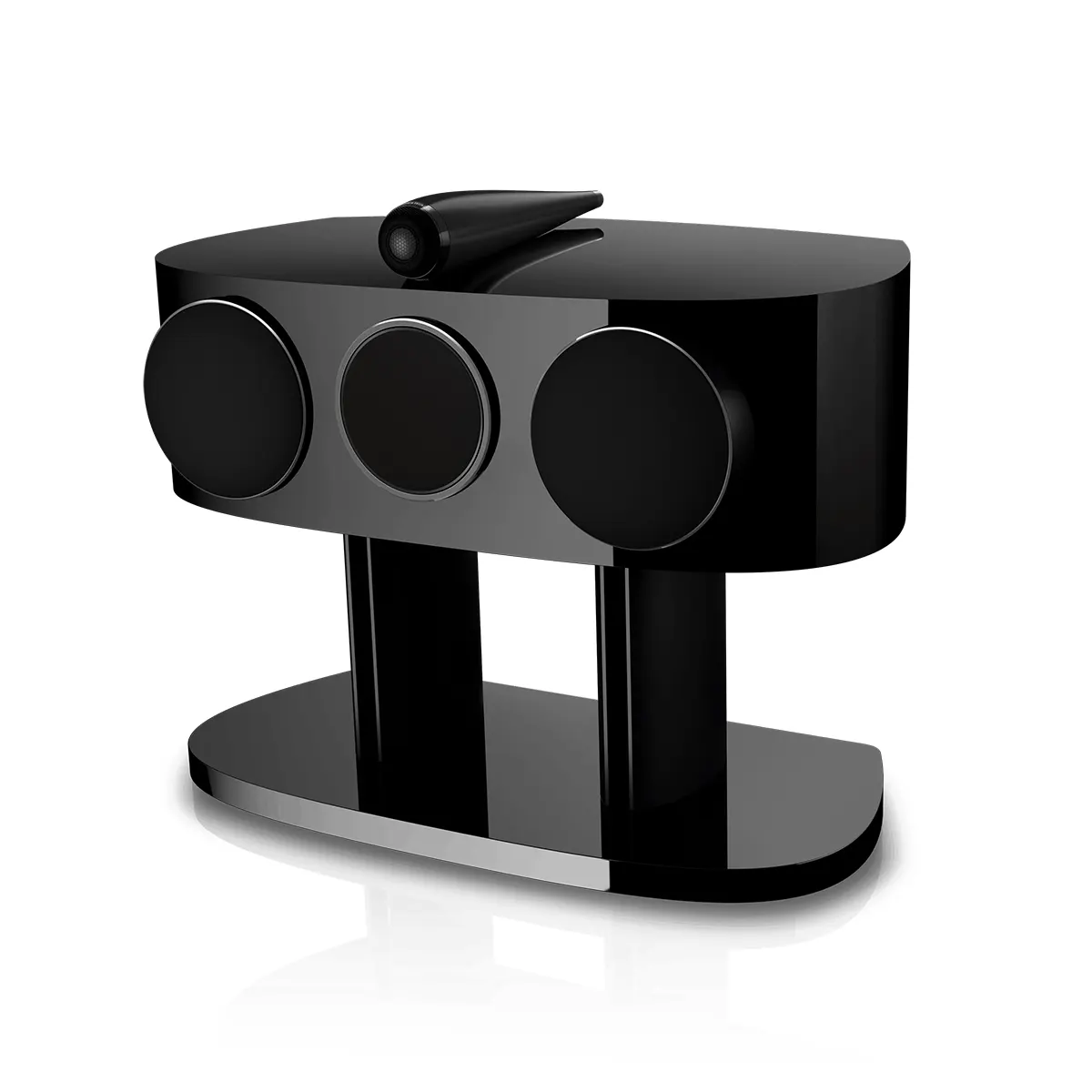

Black (Stealth Black and Dark Walnut)
Grey (Warm White)
Accessories
FS-HTM Black, Stand: Titanium
