Описание
Multichannel Surround
DTS HD Master, DTS:X, DTS:X Pro
Yes, Yes, No
DTS Neo:X, DTS Neural:X
No, Yes
DTS Virtual:X
Yes
IMAX Enhanced
Yes
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music
Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround
No, Yes
Auro 3D
Yes
360 Reality Audio / MPEG H
Yes, Yes
Multichannel Stereo
Yes
Max. Number of Processing (Pre-Amp) Channels
11.4
Sound Enhancements
Mono Block Power Amp Construction
Yes
Discrete Power Amplifier
Yes
D.D.S.C. HD Digital
Yes (32 bit)
Pure Direct
Yes
Clock Jitter Reducer
Yes
Alpha Processing
AL32 Processing Multichannel
Audyssey
MultEQ XT32
Audyssey Dynamic EQ, Dynamic Volume
Yes, Yes
Audyssey LFC
Yes
Dirac Live Upgradability
Yes
Compressed Audio Restorer
Yes
Network
Media Server
Yes
HEOS Wireless Multi-Room Technology
Yes
Alexa / Google Voice Assistant / Apple HomePod
Yes, Yes, Yes
Lossy Formats: MP3, WMA, AAC
Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV
Yes, Yes, Yes
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit)
Yes, Yes, Yes
DSD Audio Streaming
Yes (2.8/5.6MHz)
AirPlay 2
Yes
TuneIn
Yes
Spotify Connect
Yes
Roon Tested
Yes
HEOS App Control
Yes
Compatible with Remote APP for Smart Phones
Denon AVR Remote
Ethernet Ports
Yes
Wi-Fi
Yes
Bluetooth
Yes
HDMI
HDMI Inputs: Back, Front
7, No
HDCP2.3 support
Yes
HDMI Outputs: Main, Zone
2, 1
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB
Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR
Yes , Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming
Yes
Variable Refresh Rate, Quick Frame Transport, Quick Media Switching
Yes, Yes, No
3D Signal Pass-through
Yes
8K Signal Pass-Through, Scaling, GUI Overlay
Yes, Yes, Yes
DSD Audio Capability
Yes
Audio Return Channel (ARC), Enhanced ARC
Yes, Yes
Auto LipSync
Yes
Multi-room CI
Multi-Room Zones
3
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog
Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out
Yes, Yes
Zone HDMI Output from HDMI Source
Yes
IP Control, RS232 Control, Web Control, App Control
Yes, Yes /Yes, Yes
Remote In / Out
Yes, Yes
DC Trigger Output
3
HDMI Diagnostics
Yes
Others
Auto Speaker Setup by Microphone
Audyssey MultEQ XT32
Dirac Live (upgrade)
Front Display
2-Line FLD
GUI Languages
9
Quick Select Plus, Quick Select
Yes, No
Variable Crossover
Yes
Optimized Bass Redirection
Yes
Bass Sync
Yes
ECO Mode
Yes
Auto Power Off
Yes
Sleep Timer
Yes

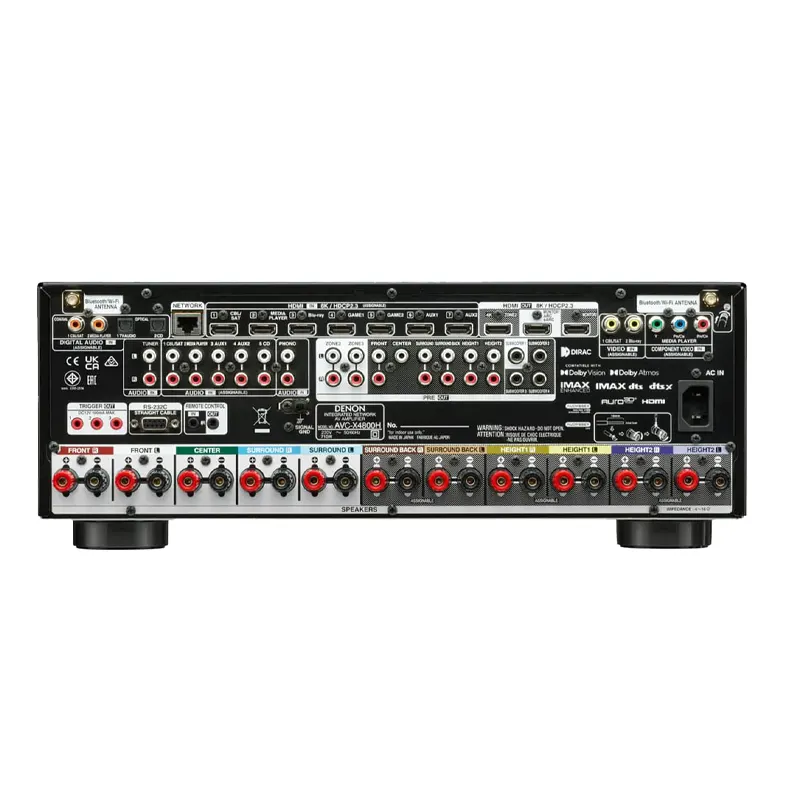

Inputs Outputs
HDMI In, Out
7, 3
Multi-Room Video Out: Video, HDMI
No, Yes
Analog In, Out
5, No
Phono (MM) In
Yes
Digital In: Optical, Coaxial
2, 2
Multi-Room Out: Analog, Digital
2, No
Multichannel Pre-out
Yes (11.4)
Subwoofer Out
4 (independent)
Speaker Terminal: Gold-Plated Screw, Regular Screw
No, Yes
Number of Speaker Terminals
11
Speaker A / B
Assignable
Bi-amp Drive
Assignable
Multi-Room Speaker Terminal
Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB
No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone
Yes, No, No
Specifications
Number of Power Amps
9
Power Output (8 ohm, 20 Hz — 20 kHz, 0.05% 2ch Drive)
125W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
165W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)
200W
General
Metal Front Panel
Yes

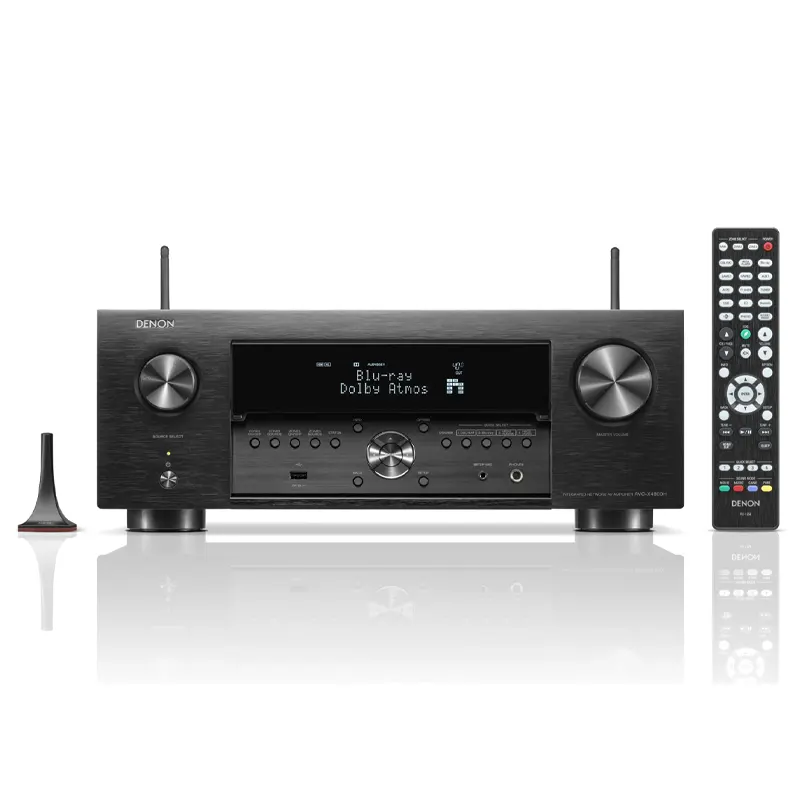

System Remote Control
RC-1252
Pre-Programmed, Learnable, LCD Display
No, No, No
Power Consumption in W
710
Power Consumption No-Sound (ECO On / Off) in W
65W/110W
Standby Consumption in W
0.1
CEC Standby Consumption in W
0.5
Network Standby Consumption in W
Less than 2.0
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in mm
Antenna: Vertical: (W x D x H) in mm
W/O Antenna: (W x D x H) in mm
434 x 389 x 167
( 434 x 389 x 236 )
【 434 x 379x 167 】
Weight in kg
13.4
Weight in kg (Packaging)
16.0
