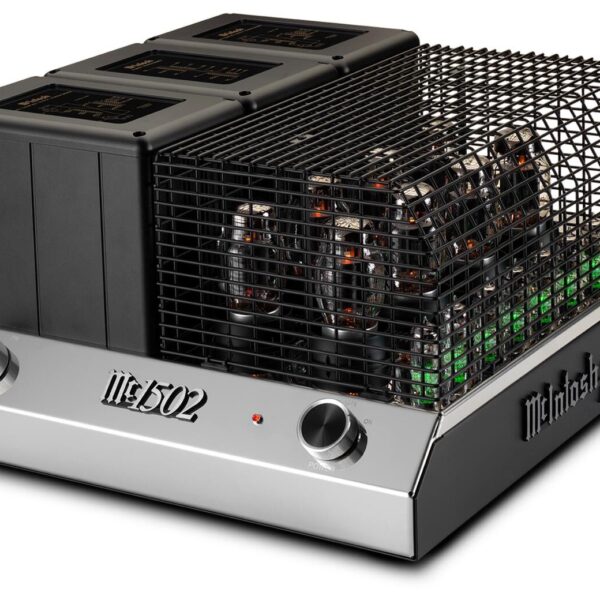

Mcintosh mc1502

Описание

ELECTRONIC SPECIFICATIONS

• • Power Output per Channel
    150W @ 2, 4 or 8 Ohms
  • Number of Channels
    2
  • Total Harmonic Distortion
    0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz
    <0.20% at 1W, 20Hz to 20,000Hz
  • S/N below rated output
    112dB
  • Dynamic Headroom
    1.2dB
  • Damping Factor
    >18
  • Rated Power Band
    20Hz to 20kHz
  • Frequency Response
    +0, -0.25dB from 20Hz to 20,000Hz
    +0, -3dB from 10Hz to 70,000Hz

CONTROL

• • Remote Power Control
    Yes
  • Multi-Channel DB25 Cable
    N/A

CONNECTIVITY

• • Speaker Binding Post Type
    Patented Solid Cinch™ Speaker Binding Posts

GENERAL SPECIFICATIONS

• • Circuit Configuration
    Unity Coupled
  • Circuit Design
    Vacuum Tube
  • Mono Bridge
    No
  • Mono Parallel
    No
  • Output Type
    Unity Coupled Output Transformer
  • Meters
    No
  • Meter Light Switch
    N/A
  • Balanced Input
    2
  • Front Panel
    N/A
  • Illumination
    Small Signal Tubes: Green, Natural
  • Chassis Style
    Polished Stainless Steel

WEIGHTS & DIMENSIONS

• • Unit Dimensions (W x H x D)
    18-1/4″ (46.4cm) x 10-1/4″ (26cm) (including feet) x 21″ (53.3cm)
  • Unit Weight
    118 lbs (53.5 kg)
  • Shipping Weight
    135 lbs (61.2 kg)
