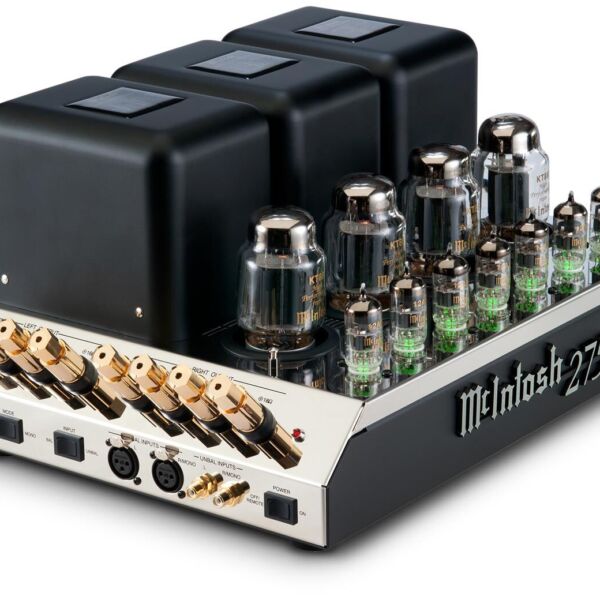

Mcintosh mc275

Описание

• ELECTRONIC SPECIFICATIONS
  • Power Output per Channel
    75W @ 4, 8 or 16 Ohms
  • Number of Channels
    2
  • Total Harmonic Distortion
    0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz
    (≤ 0.25% harmonic distortion at 1kHz)
  • S/N below rated output
    105dB
  • Dynamic Headroom
    1.2dB
  • Damping Factor
    >22
  • Rated Power Band
    20Hz to 20kHz
  • Frequency Response
    +0, -0.5dB from 20Hz to 20,000Hz
    +0, -3.0dB from 10Hz to 100,000Hz
• CONTROL
  • Remote Power Control
    Yes, input and output
  • Multi-Channel DB25 Cable
    N/A
• GENERAL SPECIFICATIONS
  • Circuit Configuration
    Unity Coupled
  • Circuit Design
    Vacuum Tube
  • Mono Bridge
    Yes
  • Mono Parallel
    Yes, 150W @ 2, 4 or 8 Ohms
  • Output Type
    Unity Coupled Output Transformer
  • Meters
    No
  • Meter Light Switch
    Small signal tubes LEDs controlled by McIntosh preamp
  • Balanced Input
    Yes
  • Front Panel
    N/A
  • Illumination
    Small Signal Tubes, LED
  • Chassis Style
    Polished Stainless Steel
• CONNECTIVITY
  • Speaker Binding Post Type
    Patented Solid Cinch™ Speaker Binding Posts
• WEIGHTS & DIMENSIONS
  • Unit Dimensions (W x H x D)
    21-1/2″ (54.6cm) (including cables) x 8-1/2″ (21.6cm) (including feet) x 12″ (30.5cm)
  • Unit Weight
    67 lbs (30.5 kg)
  • Shipping Weight
    75 lbs (34.1 kg)
