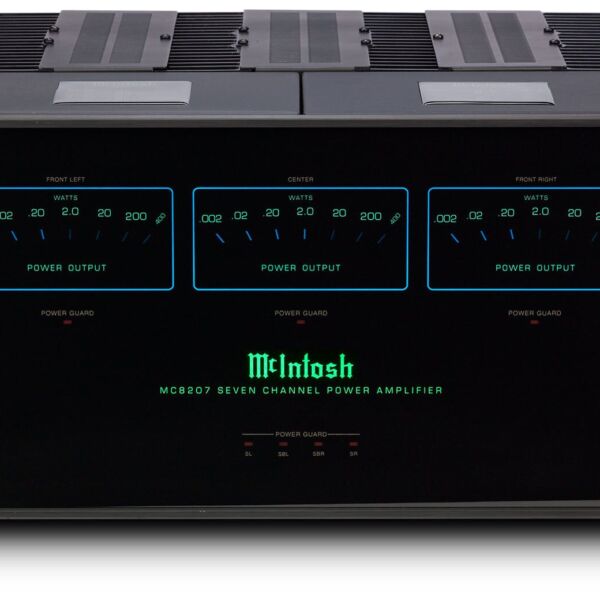

Mcintosh mc8207

Описание

• ELECTRONIC SPECIFICATIONS
  • Power Output per Channel
    200W @ 4 or 8 Ohms
  • Number of Channels
    7 (can also be used as a 2-zone amplifier with 5 channels in zone A and 2 channels in zone B)
  • Total Harmonic Distortion
    0.005%
  • S/N below rated output
    112dB
  • Dynamic Headroom
    1.7dB
  • Damping Factor
    >140
  • Rated Power Band
    20Hz to 20kHz
  • Frequency Response
    +0, -0.25dB from 20Hz to 20,000Hz
    +0, -3dB from 10Hz to 100,000Hz
• CONTROL
  • Remote Power Control
    Yes, 7 or 5 + 2 Channel
  • Multi-Channel DB25 Cable
    N/A
• GENERAL SPECIFICATIONS
  • Circuit Configuration
    Push-Pull Complementary
  • Circuit Design
    Solid State
  • Mono Bridge
    No
  • Mono Parallel
    No
  • Output Type
    Direct Coupled with Dynamic Power Manager®
  • Meters
    Yes, new style LED
  • Meter Light Switch
    No
  • Balanced Input
    Yes
  • Front Panel
    Glass
  • Illumination
    LED Fiber Optic
  • Chassis Style
    Inverted
• CONNECTIVITY
  • Speaker Binding Post Type
    Yes
• WEIGHTS & DIMENSIONS
  • Unit Dimensions (W x H x D)
    17-1/2″ (44.5cm) x 9-7/16″ (23.9cm) (including feet) x 21″ (53.3cm) (including front panel and cables)
  • Unit Weight
    83 lbs (37.6 kg)
  • Shipping Weight
    116 lbs (52.6 kg)
