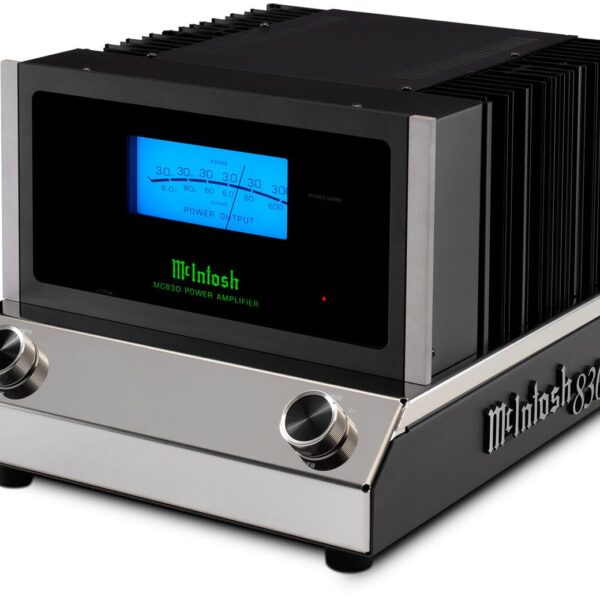

Mcintosh mc830

Описание

ELECTRONIC SPECIFICATIONS

• • Power Output per Channel
    300 Watts into 8 Ohms
    480 Watts into 4 Ohms
  • Number of Channels
    1
  • Total Harmonic Distortion
    0.005%
  • S/N below rated output
    Balanced: 120dB
    Unbalanced: 118dB
  • Dynamic Headroom
    2dB
  • Damping Factor
    >100 Wideband
  • Rated Power Band
    20Hz to 20kHz
  • Frequency Response
    +0, -0.25dB from 20Hz to 20,000Hz
    +0, -3.0dB from 10Hz to 100,000Hz

CONTROL

• • Remote Power Control
    Yes
  • Multi-Channel DB25 Cable
    N/A

CONNECTIVITY

• • Speaker Binding Post Type
    Patented Solid Cinch™ Speaker Binding Posts

GENERAL SPECIFICATIONS

• • Circuit Configuration
    Push-Pull Complementary
  • Circuit Design
    Solid State
  • Mono Bridge
    N/A
  • Mono Parallel
    N/A
  • Output Type
    Direct Coupled
  • Meters
    Yes
  • Meter Light Switch
    Yes
  • Balanced Input
    1
  • Front Panel
    Glass
  • Illumination
    Direct LED
  • Chassis Style
    Polished Stainless Steel

WEIGHTS & DIMENSIONS

• • Unit Dimensions (W x H x D)
    12-9/32″ (31.2cm) x 9-1/2″ (24.1cm) x 16″ (40.6cm)
  • Unit Weight
    48 lbs (21.8 kg)
  • Shipping Weight
    55 lbs (24.9 kg)
