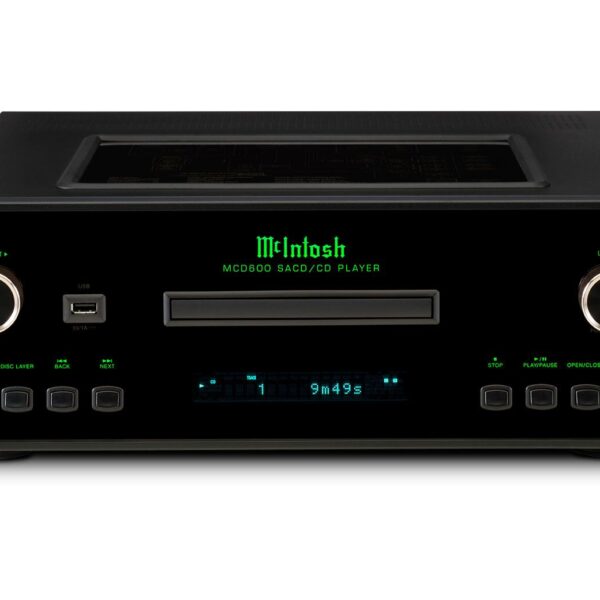

Mcintosh mcd600

Описание

AUDIO SPECIFICATIONS

• • Number of Channels
    2
  • Fixed Output Level
    2.0Vrms Unbalanced
    4.0Vrms Balanced
  • Variable Output Level
    0 — 8.0Vrms Unbalanced
    0 — 16.0Vrms Balanced
  • Output Impedance
    600 ohms Unbalanced and Balanced
  • Frequency Response
    4Hz to 40kHz, +0.5, -2dB (SACD)
    4Hz to 20kHz, ±0.5dB (CD)
    4Hz to 40kHz, +0.5, -2dB (Data)
  • Signal To Noise Ratio
    Better than 110dB (A-weighted)
  • Dynamic Range
    Better than 100dB
  • Total Harmonic Distortion
    0.002% @ 1000Hz (SACD)
    0.002% @ 1000Hz (CD)
    0.002% @ 1000Hz (Data)
  • Channel Separation
    Better than 98dB (1,000Hz)
  • Headphone Output Impedance
    47 ohms

DIGITAL AUDIO SPECIFICATIONS

• • Digital-to-Analog Converter (DAC) Type
    Premium 8-channel, 32-bit PCM/DSD, Quad Balanced
  • Coaxial Sample Rate
    16, 24-bit/96kHz
  • Optical Sample Rate
    16, 24-bit/192kHz
  • USB Sample Rate
    16, 24-bit/192kHz
  • Digital Coaxial Input
    0.5V p-p/75 ohms
  • Digital Optical Input
    -15dbm to -21dbm
  • Digital Output Sample Rate
    Up to 24-bit/192kHz
  • Digital Optical Output
    -15dbm to -21dbm
  • Digital Coaxial Output
    0.5V p-p/75 ohms
  • Digital Output Jitter
    N/A
  • Digital XLR Output
    N/A
  • Digital MCT (DIN) Output
    N/A

CONNECTIVITY

• • Balanced Fixed Output
    1
  • Unbalanced Fixed Output
    1
  • Balanced Variable Output
    1
  • Unbalanced Variable Output
    1
  • Digital Coaxial Input
    1
  • Digital Optical Input
    1
  • Digital USB Input
    1 (front)
  • Digital USB Input Type
    Type A
  • Digital Coaxial Output
    1
  • Digital Optical Output
    1
  • Digital XLR Output
    0
  • Digital MCT (DIN) Output
    0
  • Headphone Output
    1/4″ High Drive

CONTROL

• • Rear Panel IR Sensor Input
    1
  • Rear Panel Data Input
    1
  • Power Control Input
    1
  • Power Control Output
    1

GENERAL SPECIFICATIONS

• • Disc Formats
    SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA
  • Disc Capacity
    1
  • Laser Type
    Twin Beam
  • Laser Beam Wavelength
    650nm (SACD)
    790nm (CD)
  • Laser Power
    CLASS IIa/CLASS I
  • Standby Power Requirement
    <0.5 watt

WEIGHTS & DIMENSIONS

• • Unit Dimensions (W x H x D)
    17-1/2″ (44.45cm) x 6″ (15.24cm) x 19″ (48.3cm)Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
  • Unit Weight
    28 lbs (12.7 kg)

Shipping Weight
45 lbs (20.4 kg)
