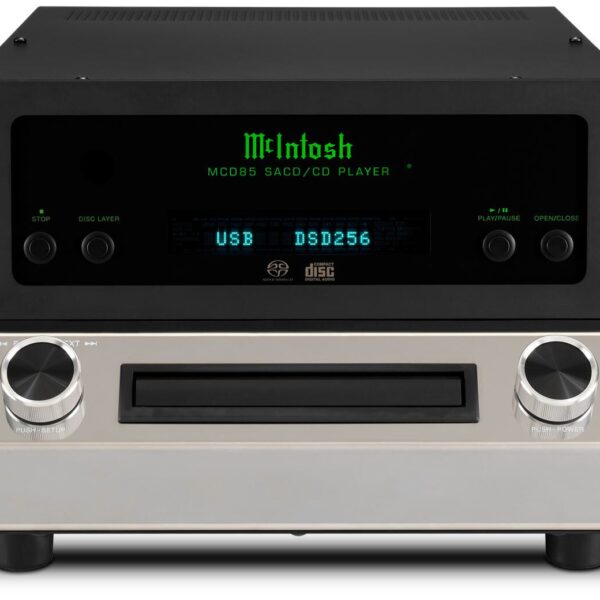

Mcintosh mcd85

Описание

AUDIO SPECIFICATIONS

• • Number of Channels
    2
  • Fixed Output Level
    2.0Vrms Unbalanced
    4.0Vrms Balanced
  • Variable Output Level
    N/A
  • Output Impedance
    100 ohms Unbalanced and Balanced
  • Frequency Response
    ±0.5dB from 20Hz-20kHz
  • Signal To Noise Ratio
    Better than 100dB (A-weighted)
  • Dynamic Range
    Better than 96dB
  • Total Harmonic Distortion
    0.02% @ 1000Hz
  • Channel Separation
    Better than 85dB (1,000Hz)
  • Headphone Output Impedance
    N/A

DIGITAL AUDIO SPECIFICATIONS

• • Digital-to-Analog Converter (DAC) Type
    8-channel, 32-bit PCM/DSD, Quad Balanced
  • Coaxial Sample Rate
    16, 24-bit/192kHz
  • Optical Sample Rate
    16, 24-bit/192kHz
  • USB Sample Rate
    16, 24-bit/192kHz
    Native DSD and DoP DSD Up to DSD256, DXD384
  • Digital Coaxial Input
    0.5V p-p/75 ohms
  • Digital Optical Input
    -15dbm to -21dbm
  • Digital Output Sample Rate
    N/A
  • Digital Optical Output
    N/A
  • Digital Coaxial Output
    N/A
  • Digital Output Jitter
    N/A
  • Digital XLR Output
    N/A
  • Digital MCT (DIN) Output
    N/A

CONNECTIVITY

• • Balanced Fixed Output
    1
  • Unbalanced Fixed Output
    1
  • Balanced Variable Output
    0
  • Unbalanced Variable Output
    0
  • Digital Coaxial Input
    2
  • Digital Optical Input
    2
  • Digital USB Input
    1
  • Digital USB Input Type
    Type B
  • Digital Coaxial Output
    0
  • Digital Optical Output
    0
  • Digital XLR Output
    0
  • Digital MCT (DIN) Output
    0
  • Headphone Output
    0

CONTROL

• • Rear Panel IR Sensor Input
    1
  • Rear Panel Data Input
    1
  • Power Control Input
    1
  • Power Control Output
    1

GENERAL SPECIFICATIONS

• • Disc Formats
    SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA
  • Disc Capacity
    1
  • Laser Type
    Twin Beam
  • Laser Beam Wavelength
    650nm (SACD)
    790nm (CD)
  • Laser Power
    CLASS IIa/CLASS I
  • Standby Power Requirement
    <0.5 watt

WEIGHTS & DIMENSIONS

• • Unit Dimensions (W x H x D)
    12-5/32″ (30.9cm) x 7-3/4″ (19.7cm) x 16-1/4″ (41.3cm)
  • Unit Weight
    20.5 lbs (9.3 kg)
  • Shipping Weight
    27.5 lbs (12.5 kg)
