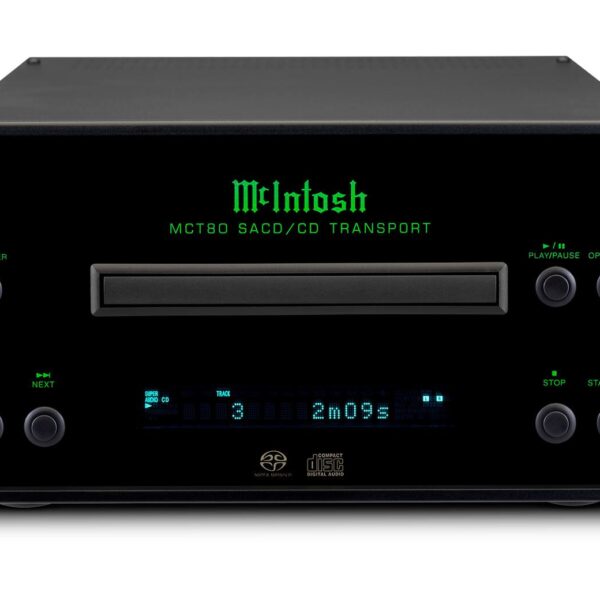

Mcintosh mct80

Описание

AUDIO SPECIFICATIONS

• • Number of Channels
    2
  • Fixed Output Level
    N/A
  • Variable Output Level
    N/A
  • Output Impedance
    N/A
  • Frequency Response
    N/A
  • Signal To Noise Ratio
    N/A
  • Dynamic Range
    N/A
  • Total Harmonic Distortion
    N/A
  • Channel Separation
    N/A
  • Headphone Output Impedance
    N/A

DIGITAL AUDIO SPECIFICATIONS

• • Digital-to-Analog Converter (DAC) Type
    N/A
  • Coaxial Sample Rate
    N/A
  • Optical Sample Rate
    N/A
  • USB Sample Rate
    N/A
  • Digital Coaxial Input
    N/A
  • Digital Optical Input
    N/A
  • Digital Output Sample Rate
    Coaxial: Up to 24-bit/192kHz
    Optical: Up to 24-bit/192kHz
    MCT: Up to 24-bit/96kHz (CD); DSD128 (SACD and Data DVD)
  • Digital Optical Output
    -15dbm to -21dbm
  • Digital Coaxial Output
    0.5V p-p/75 ohms
  • Digital XLR Output
    N/A
  • Digital MCT (DIN) Output
    3V @110 ohms
  • Digital USB Input Type
    N/A
  • Digital Output Jitter
    ≤ 32ns with 1kHz test tone

CONNECTIVITY

• • Balanced Fixed Output
    0
  • Unbalanced Fixed Output
    0
  • Balanced Variable Output
    0
  • Unbalanced Variable Output
    0
  • Digital Coaxial Input
    0
  • Digital Optical Input
    0
  • Digital USB Input
    0
  • Digital USB Input Type
    N/A
  • Digital Coaxial Output
    1
  • Digital Optical Output
    1
  • Digital XLR Output
    0
  • Digital MCT (DIN) Output
    1
  • Headphone Output
    0

CONTROL

• • Rear Panel IR Sensor Input
    1
  • Rear Panel Data Input
    1
  • Power Control Input
    1
  • Power Control Output
    1

GENERAL SPECIFICATIONS

• • Disc Formats
    SACD, Hybrid SACD, CD, CD-R/RW (MP3 and WMA), user generated DVD or CD Data Discs (with music file formats including DSD (up to DSD128), WAV (up to 24-bit/192kHz), FLAC, MP3 and others)
  • Disc Capacity
    1
  • Laser Type
    Twin Beam
  • Laser Beam Wavelength
    650nm (SACD)
    790nm (CD)
  • Laser Power
    CLASS IIa/CLASS I
  • Standby Power Requirement
    <0.5 watt

WEIGHTS & DIMENSIONS

• • Unit Dimensions (W x H x D)
    11-1/2″ (29.2cm) x 5-7/8″ (14.9cm) x 19″ (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm)
  • Unit Weight
    18.5 lbs (8.4 kg)

Shipping Weight
33 lbs (15 kg)
