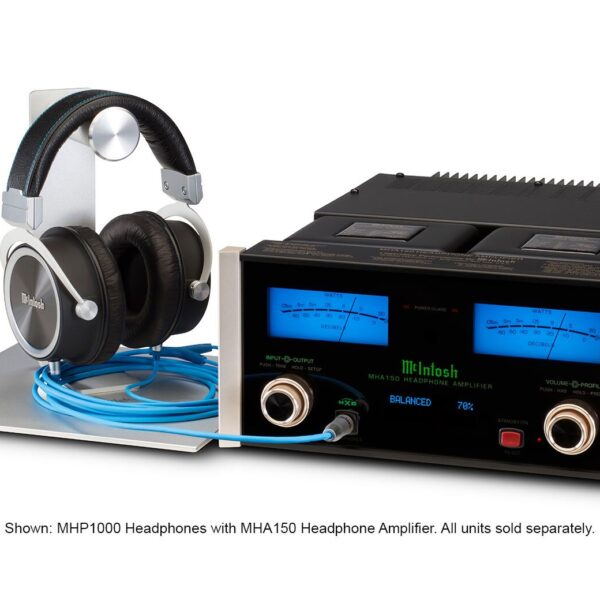

Mcintosh mha150

Описание

• HEADPHONE OUTPUT SPECIFICATIONS
  • Headphone Power Output
    High Selection: 1W
    Normal Selection: 250mW
  • Headphone Output Impedance
    8-40 Ohms
    40-150 Ohms
    150-600 Ohms
• ELECTRONIC SPECIFICATIONS
  • Power Output per Channel
    50 Watts
  • Speaker Impedance
    8 Ohms
  • Rated Power Band
    20Hz to 20kHz
  • Total Harmonic Distortion
    0.005%
  • Intermodulation Distortion
    0.005% maximum, if the instantaneous peak power is 100 watts or less per channel with both channels operating for any combination of frequencies from 20Hz to 20kHz
  • Dynamic Headroom
    1.5dB
  • Frequency Response
    +0, -0.5dB from 20Hz to 20kHz
    +0, -3dB from 10Hz to 100kHz
  • Sensitivity (Unbalanced)
    300mV
  • Sensitivity (Balanced)
    600mV
  • Maximum Input Signal (Unbalanced)
    8V
  • Maximum Input Signal (Balanced)
    16V
  • Signal To Noise Ratio
    105dB
  • Input Impedance (Balanced / Unbalanced)
    25K/25K
  • Damping Factor
    >150
  • Preamplifier Output
    3V (8V maximum)
  • Preamplifier Output Impedance
    500 Ohms
  • Voltage Gain
    36.5dB
  • Power Guard
    <2% THD with up to 16dB overdrive at 1kHz
• CONNECTIVITY
  • Headphone Output
    1/4″ High Drive with Headphone Crossfeed Director (HXD®)
  • Balanced Input
    1
  • Unbalanced Input
    1
  • Digital AES/EBU Input
    0
  • Digital Coaxial Input
    1
  • Digital Optical Input
    1
  • Digital MCT (DIN) Input
    1
  • Digital USB Input
    1
  • Preamplifier Output
    1
• DIGITAL AUDIO SPECIFICATIONS
  • Digital AES/EDU Input Sample Rate
    N/A
  • Digital Coaxial Input Sample Rate
    16-bit, 24-bit — 32kHz to 192kHz
  • Digital Optical Input Sample Rate
    16-bit, 24-bit — 32kHz to 192kHz
  • Digital MCT (DIN) Input Sample Rate
    16-bit, 24-bit — 32kHz to 192kHz
  • Digital USB Input Sample Rate
    16-bit, 24-bit, 32-bit — 32kHz to 384kHz
• CONTROL
  • Tone Controls
    5 Step Bass Boost Control: 0 to +12.5dB (in 2.5dB steps) @ 40Hz
  • Power Control Input
    1
  • Power Control Output
    1
• GENERAL SPECIFICATIONS
  • Output Meters
    Yes
  • Vacuum Tube or Solid State
    Solid State
  • Power Requirement
    120V 50/60Hz, 1.5A
  • Standby Power Requirement
    <0.25 Watts
  • Output Type
    Autoformer™ for Headphones
    Direct Coupled for Speakers
• WEIGHTS & DIMENSIONS
  • Unit Dimensions (W x H x D)
    11-1/2″ (29.2cm) x 5-7/8″ (14.9cm) x 14-5/8″ (37.1cm)
  • Unit Weight
    26.5 lbs (12 kg)
  • Shipping Weight
    32.5 lbs (14.8 kg)
