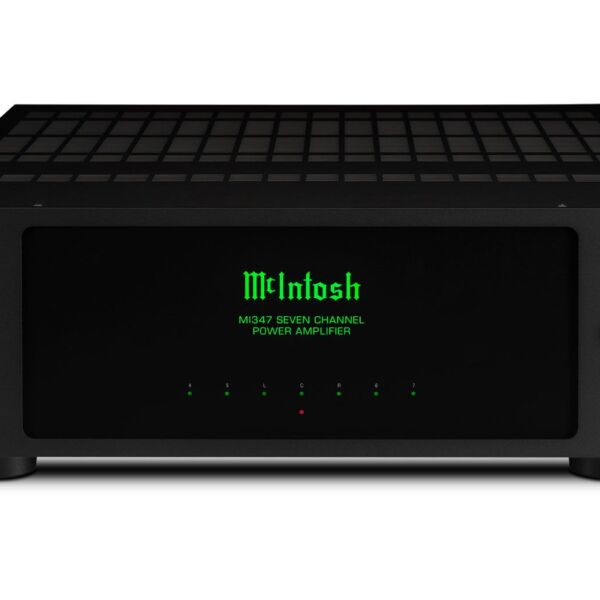

Mcintosh mi347

Описание

• ELECTRONIC SPECIFICATIONS
  • Power Output per Channel
    3 Front Channels: 250 Watts into 8 Ohms or 300 Watts into 4 Ohms
    Surround Channels: 125 Watts into 8 Ohms or 200 Watts into 4 Ohms
  • Number of Channels
    7
  • Total Harmonic Distortion
    0.025%
  • S/N below rated output
    100dB
  • Dynamic Headroom
    8 Ohms: 2.5dB
    4 Ohms: 3.5dB
  • Damping Factor
    8 Ohms: >85
    4 Ohms: >45
  • Rated Power Band
    20Hz to 20kHz
  • Frequency Response
    +0, -0.9dB from 20Hz to 20,000Hz
• CONTROL
  • Remote Power Control
    Yes
  • Multi-Channel DB25 Cable
    N/A
• CONNECTIVITY
  • Speaker Binding Post Type
    Standard
• GENERAL SPECIFICATIONS
  • Circuit Configuration
    Closed loop digital switching
  • Circuit Design
    Digital
  • Mono Bridge
    N/A
  • Mono Parallel
    N/A
  • Output Type
    Direct Coupled
  • Meters
    No
  • Meter Light Switch
    No
  • Balanced Input
    7
  • Front Panel
    Glass with removable rack mounting ears
  • Illumination
    Direct LED
  • Chassis Style
    Black painted steel
• WEIGHTS & DIMENSIONS
  • Unit Dimensions (W x H x D)
    17-1/2″ (44.45cm) (19″ (48.3cm with mounting ears)) x 6-1/16″ (15.4cm) (including feet) x 21″ (53.3cm) (including front panel and cables)
  • Unit Weight
    32.5 lbs (14.8 kg)
  • Shipping Weight
    47 lbs (24.4 kg)
