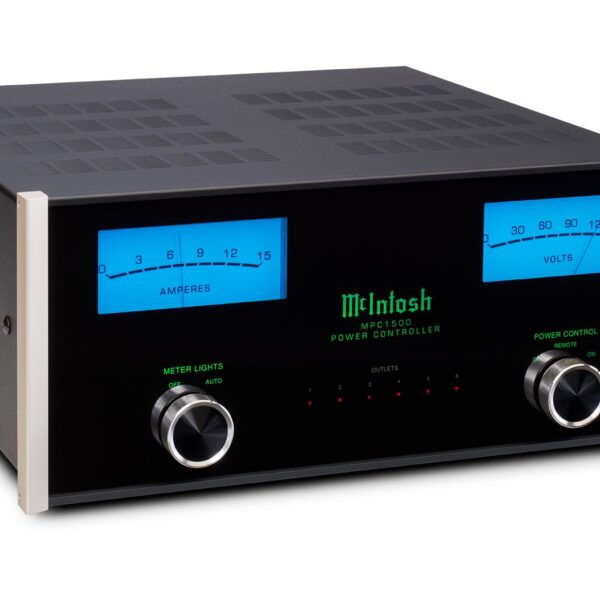

Mcintosh mpc1500

Описание

• ELECTRONIC SPECIFICATIONS
  • Load Regulation
    ± 2.5 %
  • Output Voltage
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    120 Volts AC Nominal (100 Volts AC Nominal for Japan only)

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    230 Volts AC Nominal
  • Power Requirement
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    120 Volts ~60Hz (100 Volts ~50/60Hz for Japan only)
    12.0 Amps (max)
    1440 Watts (max) (1200 Watts (max) for Japan only)

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    230 Volts ~50/60Hz
    6.0 Amps (max)
    1380 Watts (max)
• GENERAL SPECIFICATIONS
  • AC Power Line Protection
    Specially wound toroidal isolation transformer
  • Surge Suppression Type
    Quick-acting surge suppression module
  • Number of Receptacles
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    6 medical grade duplex receptacles

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    6 high quality single receptacles
  • Number of Always ON Receptacles
    2
  • Number of Programmable Receptacles
    4
  • Meters
    1 for Amps, 1 for Volts
  • Meter Light Switch
    Yes
• WEIGHTS & DIMENSIONS
  • Unit Dimensions (W x H x D)
    17-1/2″ (44.45cm) x 7-5/8″ (19.37cm) (including feet) x 22″ (55.88cm) (including front panel, knobs and cables)
  • Unit Weight
    87 lbs (39.46 kg)
  • Shipping Weight
    105 lbs (47.63 kg)
