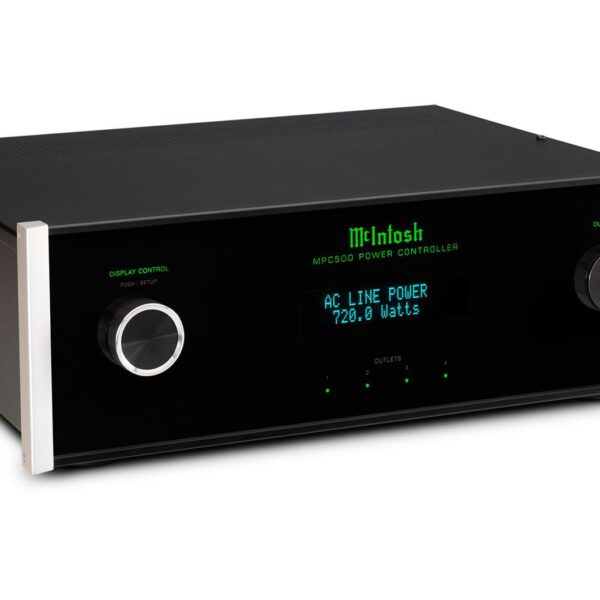

Mcintosh mpc500

Описание

• ELECTRONIC SPECIFICATIONS
  • Load Regulation
    N/A
  • Output Voltage
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    120 Volts AC Nominal

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    240 Volts AC Nominal
  • Power Requirement
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    120 Volts, 50/60Hz
    12.0 Amps (max)
    1440 Watts (max)

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    240 Volts, 50Hz
    6.0 Amps (max)
    1440 Watts (max)
• GENERAL SPECIFICATIONS
  • AC Power Line Protection
    Thermally protected metal-oxide varistor (TPMOV) for Line to Neutral protection
  • Surge Suppression Type
    AC Power Line: thermally protected metal-oxide varistor (TPMOV)
    Secondary Surges: GDTs, PTC thermistors, TVS components
  • Number of Receptacles
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    8

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    4
  • Number of Always ON Receptacles
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    2

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    1
  • Number of Programmable Receptacles
    With Type B (a.k.a. NEMA 5-15R) receptacles:
    3 pairs

    With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
    3
  • Meters
    0
  • Meter Light Switch
    N/A
• WEIGHTS & DIMENSIONS
  • Unit Dimensions (W x H x D)
    17-1/2” (44.45cm) x 6” (15.2cm) x 19” (48.26cm)
  • Unit Weight
    18.5 lbs (8.39 kg)
  • Shipping Weight

34 lbs (15.42 kg)
