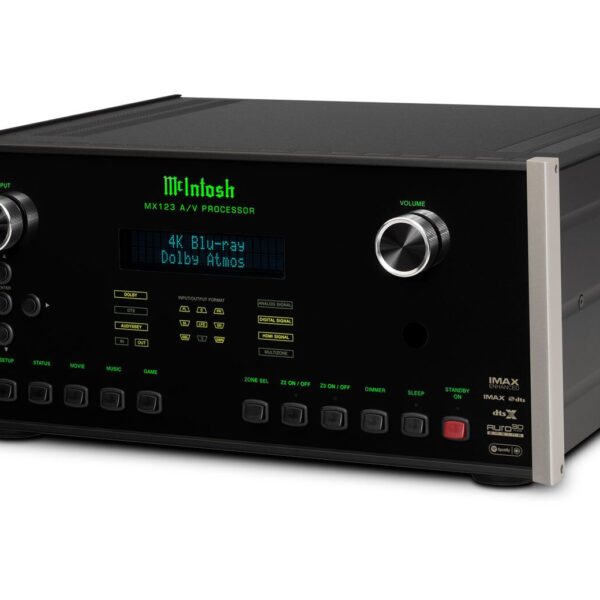

Mcintosh mx123

Описание

• CONNECTIVITY
  • Multi-Channel Outputs Balanced
    13.2
  • Multi-Channel Inputs Unbalanced
    7.1
  • Multi-Channel Outputs Unbalanced
    15.2
  • Stereo Inputs Balanced
    1
  • Stereo Inputs Unbalanced
    8
    (including 1 Moving Magnet Phono)
  • Stereo Outputs Unbalanced
    2
  • Digital Coaxial Input
    2
  • Digital Coaxial Output
    0
  • Digital Optical Input
    2
  • AES/EBU Balanced Input
    0
  • HDMI Input
    7
    HDCP 2.2/2.3, High Dynamic Range (Dolby Vision, HDR10 and HLG), 4K Ultra HD at 50/60Hz, 4:4:4 color, Rec. 2020, 3D video pass-through
  • HDMI Output
    3
    HDCP 2.2/2.3, High Dynamic Range (Dolby Vision, HDR10 and HLG), 4K Ultra HD at 50/60Hz, 4:4:4 color, Rec. 2020, 3D video pass-through, (1) eARC
  • HDBT Output
    0
  • USB
    1 Type A
  • Component Input
    3
  • Component Output
    1
  • Composite Input
    4
  • Composite Output
    2
  • Subwoofer 2 Output
    Yes
    (discrete signal from subwoofer 1)
  • Network Connection
    1
  • Max # of audio channels in Zone A
    15
  • Additional Zone Outputs
    Zone 2: HDMI audio/video, component video, composite video, analog stereo audio
    Zone 3: Analog stereo audio
  • Advanced Connections
    Ethernet Web interface and firmware update, IP-based control, Web Data Streaming, Apple AirPlay 2, Bluetooth, Spotify Connect
• PROCESSING
  • Total Harmonic Distortion (DSP Bypass)
    0.005%
  • Dolby Processing
    Atmos/True HD/Digital Plus&EX/Pro Logic IIz, IIx
  • DTS Processing
    DTS:X/Virtual:X/HD Master & High Res. Audio/ES/96/24, Discrete & Matrix6.1/Neo:6/Express/Neural-X
  • Auro Processing
    Auro 3D, Auro-Matic, Auro 9.1, 10.1
  • Pure Stereo DSP Bypass Mode
    Yes
  • Video Scaling
    4K Upconversion
  • High Dynamic Range (HDR)
    Dolby Vision, HDR10 and HLG
• CONTROL
  • Third Party Control
    RS232, Web IP, IR Input
  • Tone Controls
    9 Band Equalizer, Bass and Treble
  • OSD Overlay on HDMI Output
    Yes
  • Input-Output Format Indicators
    9 in and 9 out
  • Control of McIntosh Sources
    Yes, by handheld remote, 1 Data Out, 2 Power Control Trigger jacks
• GENERAL SPECIFICATIONS
  • Channel Formats
    13.2, 7.1, 5.1, Stereo
  • DSP Room Correction
    Audyssey MultEQ XT32, Dynamic EQ / Dynamic Volume, DSX
  • Microphone and stand included
    Yes
  • Network Features
    Wi-Fi dual band 2.4/5GHz, Apple AirPlay 2, Bluetooth, Spotify Connect
  • Unique Crossover Frequency, Each Speaker
    Yes
  • Special Features
    IMAX Enhanced, Rear Panel USB-Apple Dock, HDMI in standby, Apple AirPlay 2, Bluetooth, Spotify Connect
• WEIGHTS & DIMENSIONS
  • Unit Dimensions (W x H x D)
    17-1/2″ (44.45cm) x 7-5/8″ (19.37cm) (including feet) x 19-1/2″ (49.53cm) (including front panel, knobs, rear panel connections and USB drive)
  • Unit Weight
    31 lbs (14 kg)
  • Shipping Weight
    55 lbs (25 kg)
