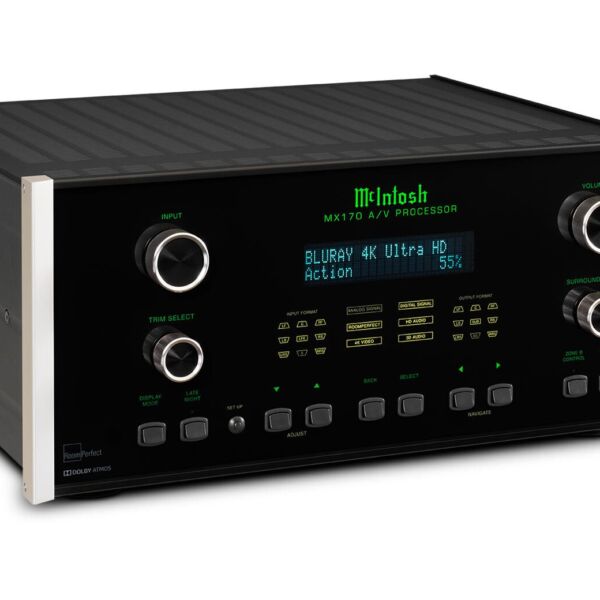

Mcintosh mx170

Описание

• CONNECTIVITY
  • Multi-Channel Outputs Balanced
    15.1
  • Multi-Channel Inputs Unbalanced
    7.1
  • Multi-Channel Outputs Unbalanced
    0
  • Stereo Inputs Balanced
    2
  • Stereo Inputs Unbalanced
    5
    (including 1 Moving Magnet Phono)
  • Stereo Outputs Unbalanced
    1 (Zone B)
  • Digital Coaxial Input
    3
  • Digital Coaxial Output
    1 (Zone B)
  • Digital Optical Input
    4
  • AES/EBU Balanced Input
    1
  • HDMI Input
    8
    HDCP 2.2/2.3, 18Gbps, 4K Ultra HD at 50/60Hz, 4:4:4 color, High Dynamic Range (Dolby Vision, HDR10 and HLG), 3D video pass-through
  • HDMI Output
    4
    HDCP 2.2/2.3, 18Gbps, 4K Ultra HD at 50/60Hz, 4:4:4 color, High Dynamic Range (Dolby Vision, HDR10 and HLG), 3D video pass-through, (3) ARC, (1) eARC
  • HDBT Output
    1
  • USB
    2 Type A
    1 Type B for digital audio (2.0, 24-bit/192kHz Asynchronous)
  • Component Input
    0
  • Component Output
    0
  • Composite Input
    0
  • Composite Output
    0
  • Subwoofer 2 Output
    4 auxiliary outputs
  • Network Connection
    2
  • Max # of audio channels in Zone A
    16
  • Additional Zone Outputs
    Zone B: Analog and digital audio outputs
  • Advanced Connections
    Ethernet Web interface and firmware update, IP-based control
• PROCESSING
  • Total Harmonic Distortion (DSP Bypass)
    0.005%
  • Dolby Processing
    Atmos/True HD/Digital, EX/ProLogic IIx
  • DTS Processing
    DTS:X/HD Master & High Res. Audio/ES/96/24, Discrete & Matrix6.1, Neo:X
  • Auro Processing
    Auro 3D, Auro-Matic, Auro 9.1, 10.1, 11.1
  • Pure Stereo DSP Bypass Mode
    No
  • Video Scaling
    No
  • High Dynamic Range (HDR)
    Dolby Vision, HDR10 and HLG
• CONTROL
  • Third Party Control
    RS232, Web IP, IR Input
  • Tone Controls
    Bass and Treble with adjustable frequency
  • OSD Overlay on HDMI Output
    No
  • Input-Output Format Indicators
    9 in and 9 out
  • Control of McIntosh Sources
    Yes, wired with data cables
• GENERAL SPECIFICATIONS
  • Channel Formats
    15.1, 11.1 (7.1.4), 7.1, 5.1, Stereo
  • DSP Room Correction
    RoomPerfect, 1/12 octave
  • Microphone and stand included
    Yes
  • Network Features
    Ethernet Control and Setup
  • Unique Crossover Frequency, Each Speaker
    Yes
  • Special Features
    Up to 64 input capability, 4 assignable auxiliary channels
• WEIGHTS & DIMENSIONS
  • Unit Dimensions (W x H x D)
    17-1/2″ (44.45cm) x 7-5/8″ (19.37cm) (including feet) x 19-1/2″ (49.53cm) (including front panel, knobs, and rear panel connections)
  • Unit Weight
    30 lbs (13.6 kg)
  • Shipping Weight
    54 lbs (24.5 kg)
