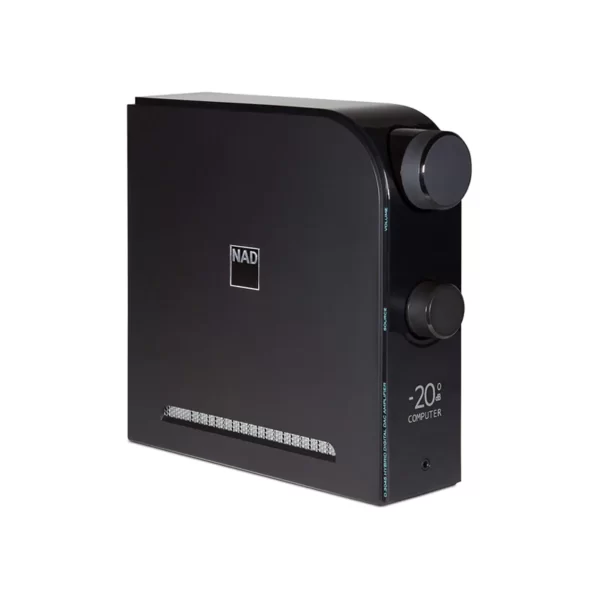

StereoPlus / NAD D 3045
NAD D 3045NAD D 3045NAD D 3045
NAD D 3045
NAD D 3045
NAD D 3045

NAD D 3045

949.00

D3045 имеет фоновход, асинхронный USB, поддерживающий сигналы в PCM до 24 бит/192 кГц и MQA. Помимо этих разъемов, на борту гибридного усилителя разместились HDMI ARC, коаксиальный вход, пара оптических, выход предусилителя, выход на сабвуфер и порт для наушников. Дополнительно имеется и Bluetooth с поддержкой aptX.

Артикул: NAD-D3045 Категория:

Описание

PREAMPLIFIER SECTION LINE INPUT/PRE OUT

THD (20Hz – 20kHz) <0.003% at 2V out

Signal-to-Noise Ratio >100dB (IHF, A-weighted, ref. 500mV out, unity gain)

Channel separation

  • >85dB (1kHz)
  • >80dB (10kHz)

Input impedance (R and C) 47kohms + 220pF

Maximum input signal >5.5Vrms (ref. 0.1% THD)

Output impedance 400 Ohms

Input sensitivity 82mV (ref. 500mV out, Volume maximum)

Frequency response ±0.2dB (20Hz – 20kHz)

Maximum voltage output – IHF load >4V (ref. 0.1% THD)

PHONO INPUT / PRE OUT

THD (20Hz – 20kHz) <0.015% at 2V out

Signal-to-Noise Ratio

  • >82dB (200 Ohm source, A-weighted, ref. 500mV out)
  • >76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)

Input sensitivity 1.35mV (ref. 500mV out, Volume maximum)

Maximum input signal at 1kHz >90mVrms (ref. 0.1% THD)

Frequency response ±0.3dB (20Hz – 20kHz)

LINE INPUT / HEADPHONE OUT

THD (20Hz – 20kHz) <0.003% at 120mW

Signal-to-Noise Ratio >90dB (32 Ohm load; A-weighted, ref. 500mV out, unity gain)

Frequency response ±0.3dB (20Hz – 20kHz)

Output impedance 2 Ohms Maximum headphone output – 32 Ohm load <8V (ref. 0.1% THD)

GENERAL SPECIFICATIONS LINE INPUT/SPEAKER OUT

Continuous output power into 4 and 8 Ohms 60W (ref. 20Hz-20kHz at 0.03% THD, both channels driven)

THD (20Hz – 20kHz) <0.005% (at 1W, 4 and 8 ohms)

Signal-to-Noise Ratio >98dB (A-weighted, 500mV input, ref. 2.828V out in 4 Ohms)

Clipping power >80W (at 1kHz 4 Ohms 0.1% THD)

IHF dynamic power

  • 8 Ohms : 80W
  • 4 Ohms : 150W
  • 2 Ohms : 200W

Peak output current >18A (in 1 Ohm, 1ms)

Damping factor >300 (ref. 8 Ohms, 20Hz to 6.5kHz)

Frequency response ±0.3dB (20Hz – 20kHz)

Channel separation

  • >75dB (1kHz)
  • >70dB (10kHz)

Input sensitivity 260mV (for 30W in 4 Ohms)

Supports bit rate/sample rate

  • up to 24 bit/192kHz (digital source)
  • up to 24 bit/384kHz (computer source)

Standby power <0.5W

DIMENSION AND WEIGHT

Gross dimensions (W x H x D)* 70 x 235 x 265 mm 2 13/16 x 9 5/16 x 10 7/16 inches**

Net weight 3.6kg (7.9lb)

Shipping weight 2.6kg (5.7lb)
