| Amplifier |
|
| Channels: |
9.2With External Amplifier: 11.2 |
| Power Output per Channel: |
1-Channel Driven:230 W at 6 Ohms / 1 kHz / 10% THD2-Channel Driven:120 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD |
| Audio Processing |
|
| DTS Compatibility: |
DTS 96/24, DTS Express, DTS Neural:X, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility: |
Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Digital Plus, Dolby TrueHD |
| Auro 3D Support: |
No |
| Upmixing Technology: |
Dolby Surround, Dolby Atmos Height Virtualization Technology |
| DAC: |
192 kHz / 24-Bit |
| Video |
|
| HDR Compatibility: |
HDR10+, Hybrid Log Gamma |
| Upscaling: |
1080p to 8K UHD |
| GUI: |
Yes |
| Connectivity |
|

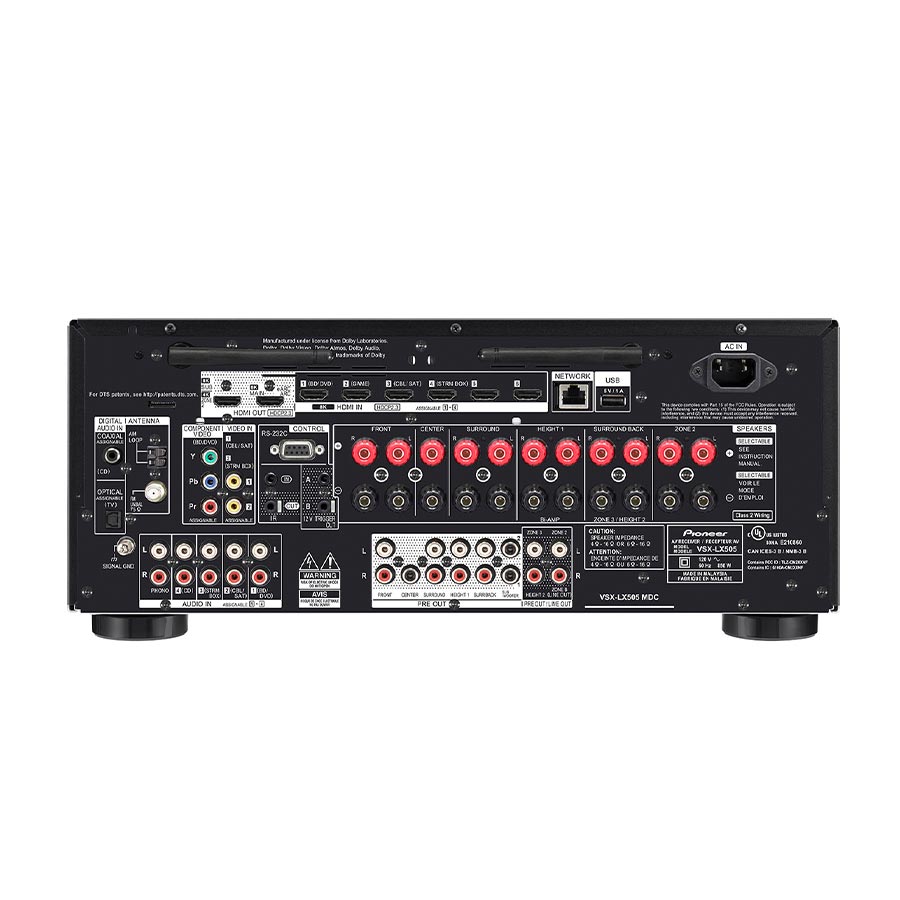

| Rear A/V Inputs: |
6 x HDMI 2.11 x USB Type-A1 x Digital Coaxial1 x Optical TOSLINK1 x 3RCA Component2 x RCA Composite4 x Stereo RCA1 x Stereo RCA (Phono) with Ground Screw |
| Rear A/V Outputs: |
1 x HDMI1 x HDMI Zone 21 x Stereo RCA Zone 2 / Zone B Line-Out1 x Stereo RCA Zone 3 Pre-/Line-Out1 x 9-Channel RCA Pre-Out2 x RCA Subwoofer Pre-Out |

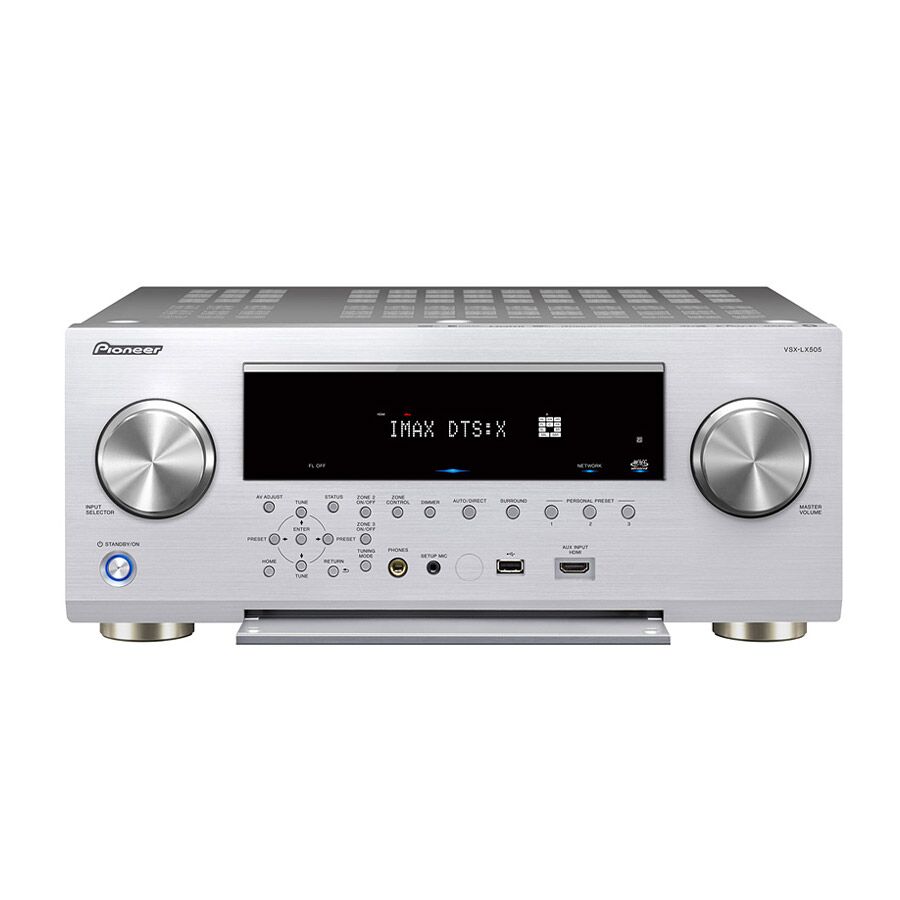

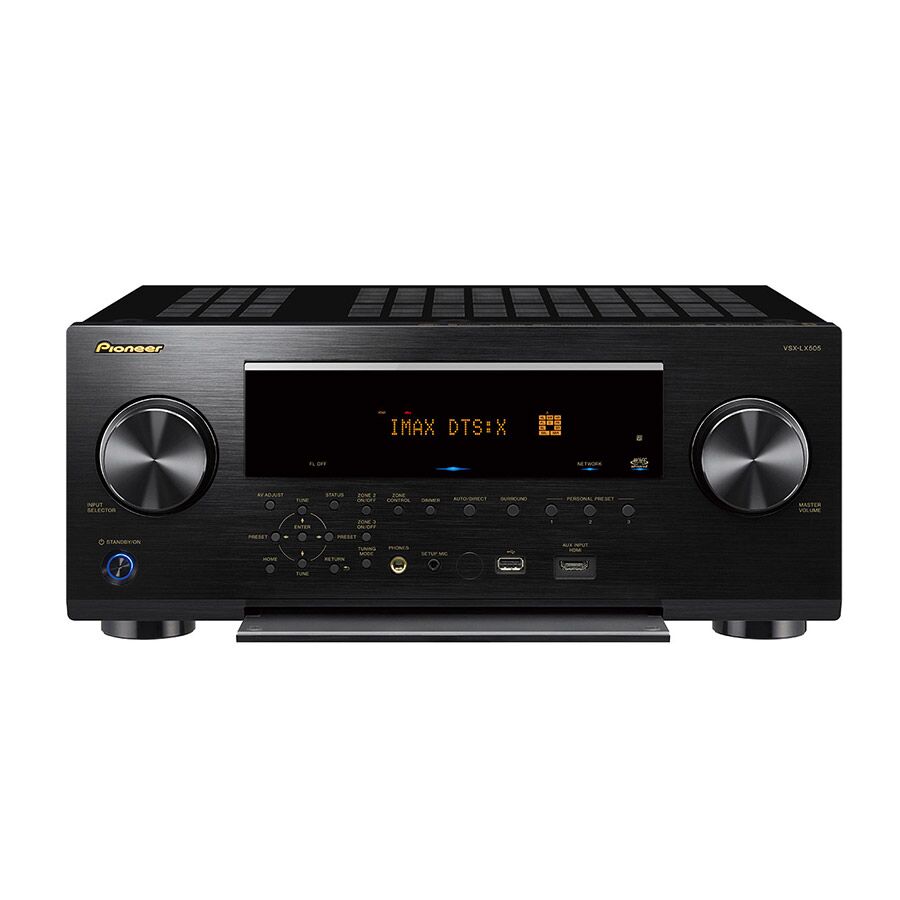

| Front I/O: |
1 x HDMI Aux Input1 x USB Type-A Input1 x 1/8″ / 3.5 mm Setup Mic Input1 x 1/4″ / 6.35 mm Headphone Output |
| Other Rear I/O: |
1 x RJ45 (Ethernet) Input/Output1 x DE-9 (RS-232C) Input1 x 1/8″ / 3.5 mm (IR) Input1 x 1/8″ / 3.5 mm (IR) Output1 x 1/8″ / 3.5 mm (12 V Trigger) Input1 x 1/8″ / 3.5 mm (12 V Trigger) Output1 x FM Coaxial F-Type Input1 x AM Block Input |
| Speaker Connectors: |
11 x Binding Post Pair (Front, Center, Height, Height 2, Rear, Rear Surround) |
| HDCP Support: |
Version 2.3 |
| HDMI Compression Modes: |
Not Specified by Manufacturer |
| Audio Return Channel (ARC): |
ARC, eARC |
| HDMI CEC: |
Yes |
| Media Card Slot: |
None |
| Wireless Connectivity |
|
| Wi-Fi: |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Supported Audio Codecs: |
AAC, SBC, aptX, aptX HD |
| Wireless Audio Protocols: |
AirPlay 2, Chromecast built-in, DTS Play-Fi |
| Control |
|
| External Control Support: |
Android/iOS Control App |
| Virtual Assistant: |
Works with Alexa, Works with Google Assistant |
| Tuner Section |
|
| Tuner Type: |
AM, FM |
| Number of Tuner Presets: |
40 Stations |
| Power |
|
| AC Input Power: |
120 VAC, 60 Hz |
| Power Consumption: |
Active: 850 WStandby: 0.1 W |
| Physical |
|
| Dimensions (W x H x D): |
17.1 x 7.3 x 15.2″ / 435.0 x 185.0 x 386.0 mm |
| Weight: |
28.7 lb / 13 kg |
| Packaging Info |
|
| Package Weight: |
32.835 lb |
| Box Dimensions (LxWxH): |
20.7 x 19.2 x 13.2″ |
