Описание
SYSTEM

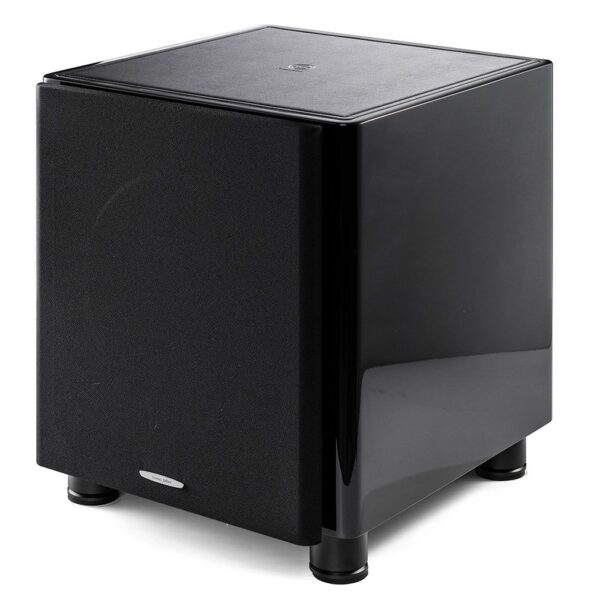

Sealed box loading, down firing active subwoofer
SPEAKERS
1 x 210 mm (8”) long throw, treated paper cone, wide rubber surround LF unit
AMPLIFICATION
High linearity Class AB
150 W (nominal), 250 W (peak)
FREQUENCY RESPONSE
@ — 6dB, from 30 Hz to Fc (user adjustable)
MAINS INPUT VOLTAGE
Factory selected, 120 Vac – 60 Hz or 230 Vac — 50 Hz
FUSE
T4.0A (110 Vac, 60 Hz); T2.0A (230 Vac, 50 Hz)
CONTROLS
Independent Master and LFE volume controls;
Continuously adjustable Crossover frequency (30 to 120 Hz),
slope 24 dB/oct;
Signal phase inversion switch (0/180°)
AUDIO SIGNAL INPUTS
LFE (Low Frequency Effect) — mono RCA plug; LINE — mono RCA plug; HIGH LEVEL — Neutrik 4-pole Speakon©
POWER CONSUMPTION
0.5 W (Stand-by)
200 W (rated power)
DIMENSIONS (HXWXD)
334 x 286 x 316 mm including feet
13.1 x 11.2 x 12.4 in including feet
WEIGHT
14.5 Kg
32 lb
