Описание

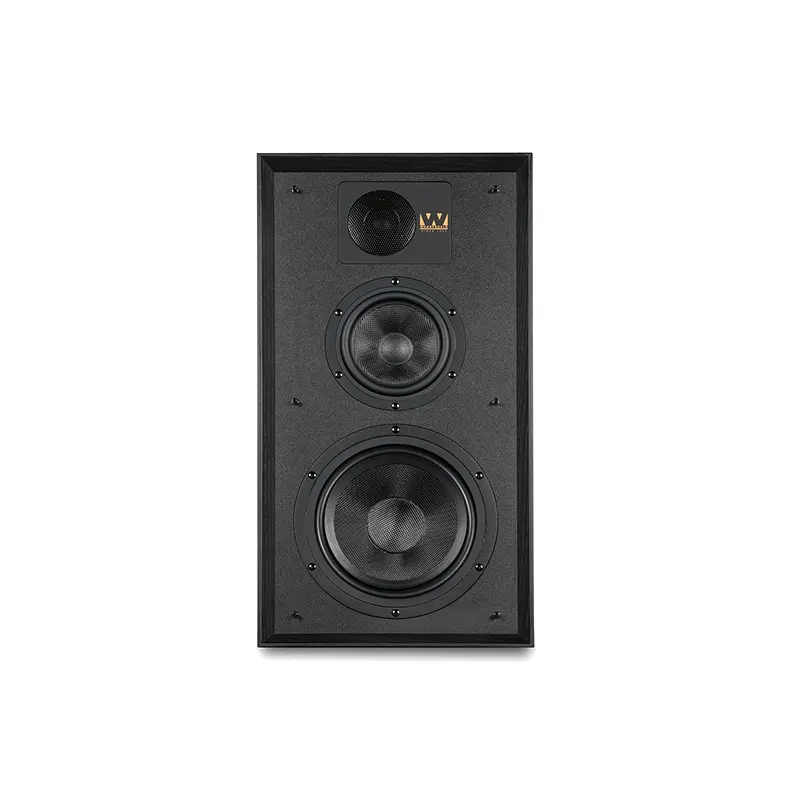

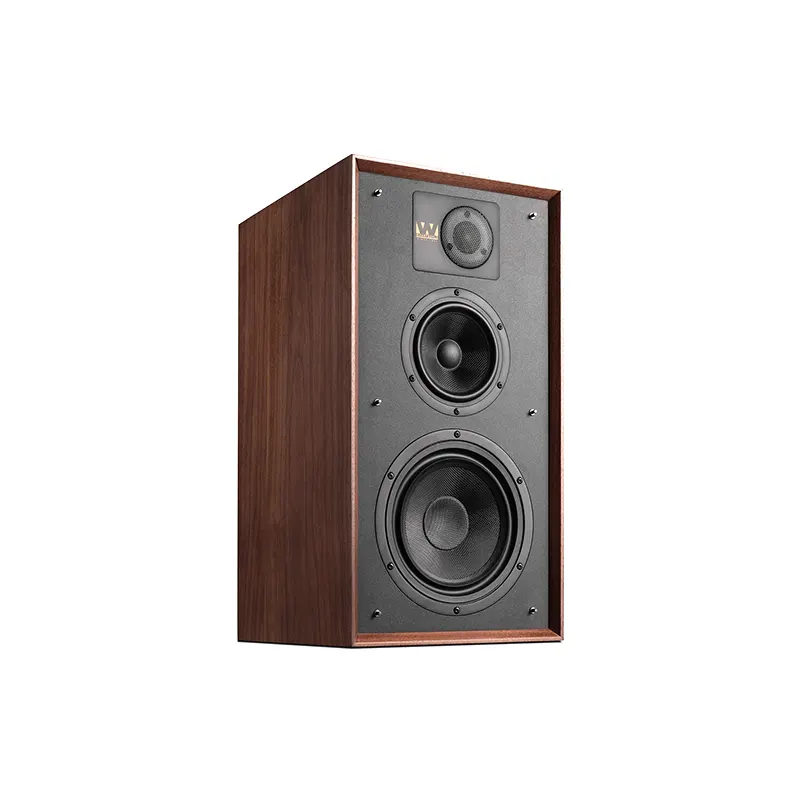

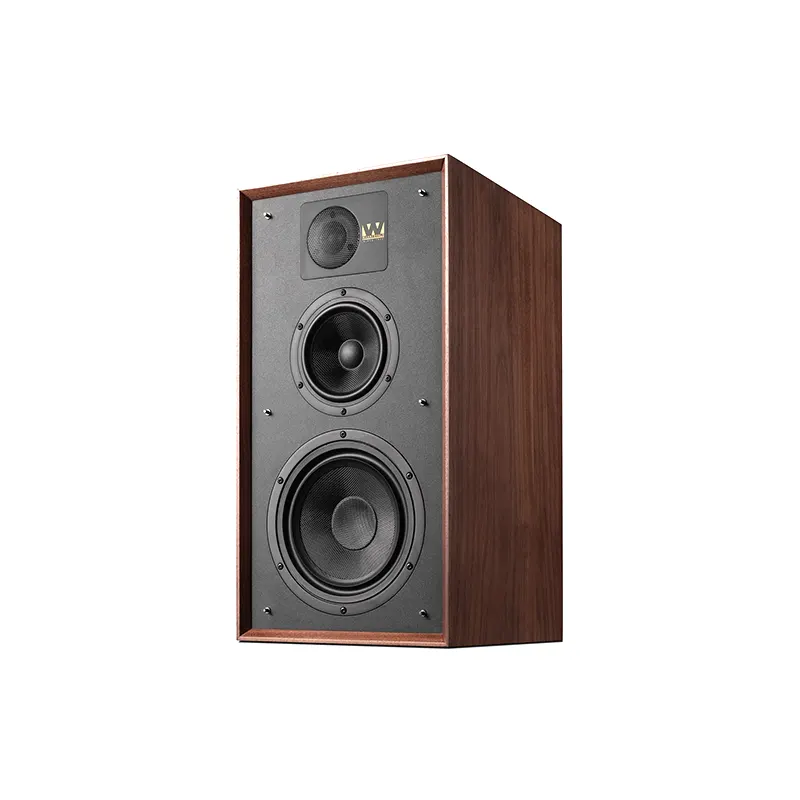

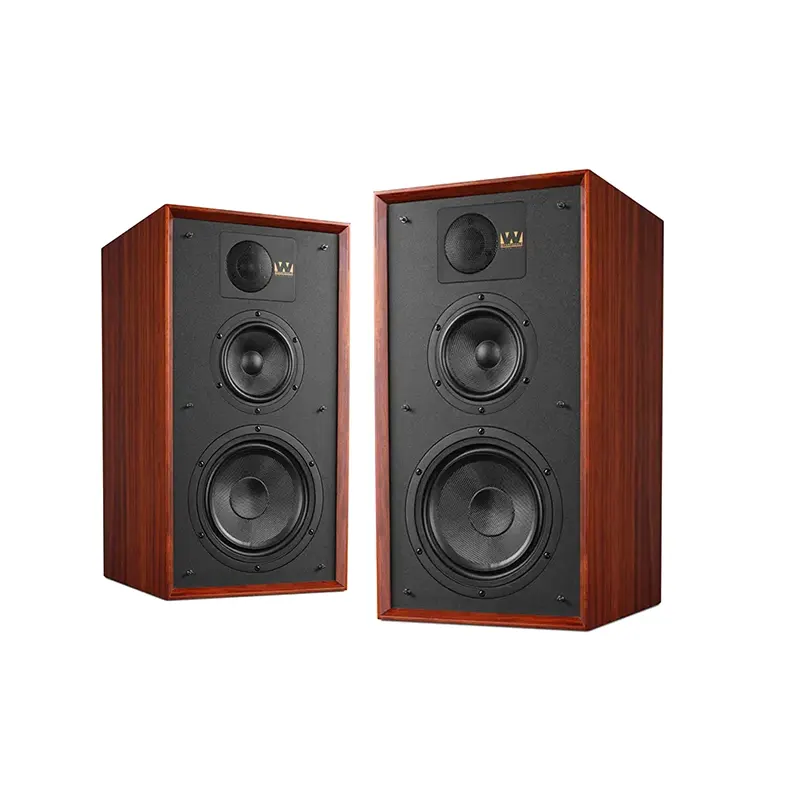

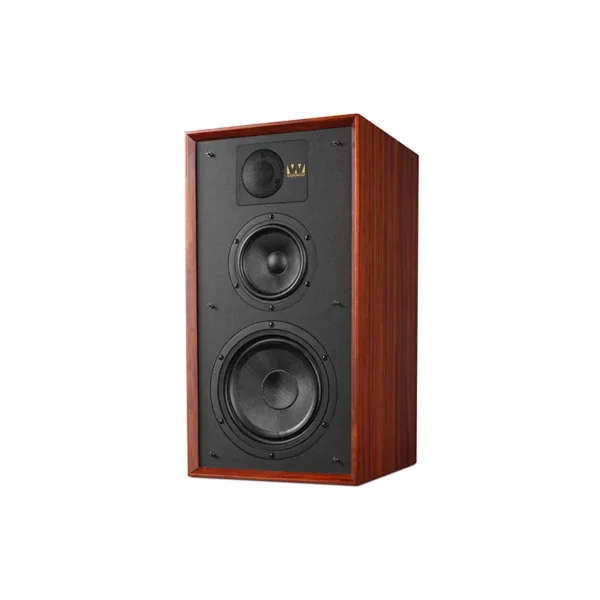

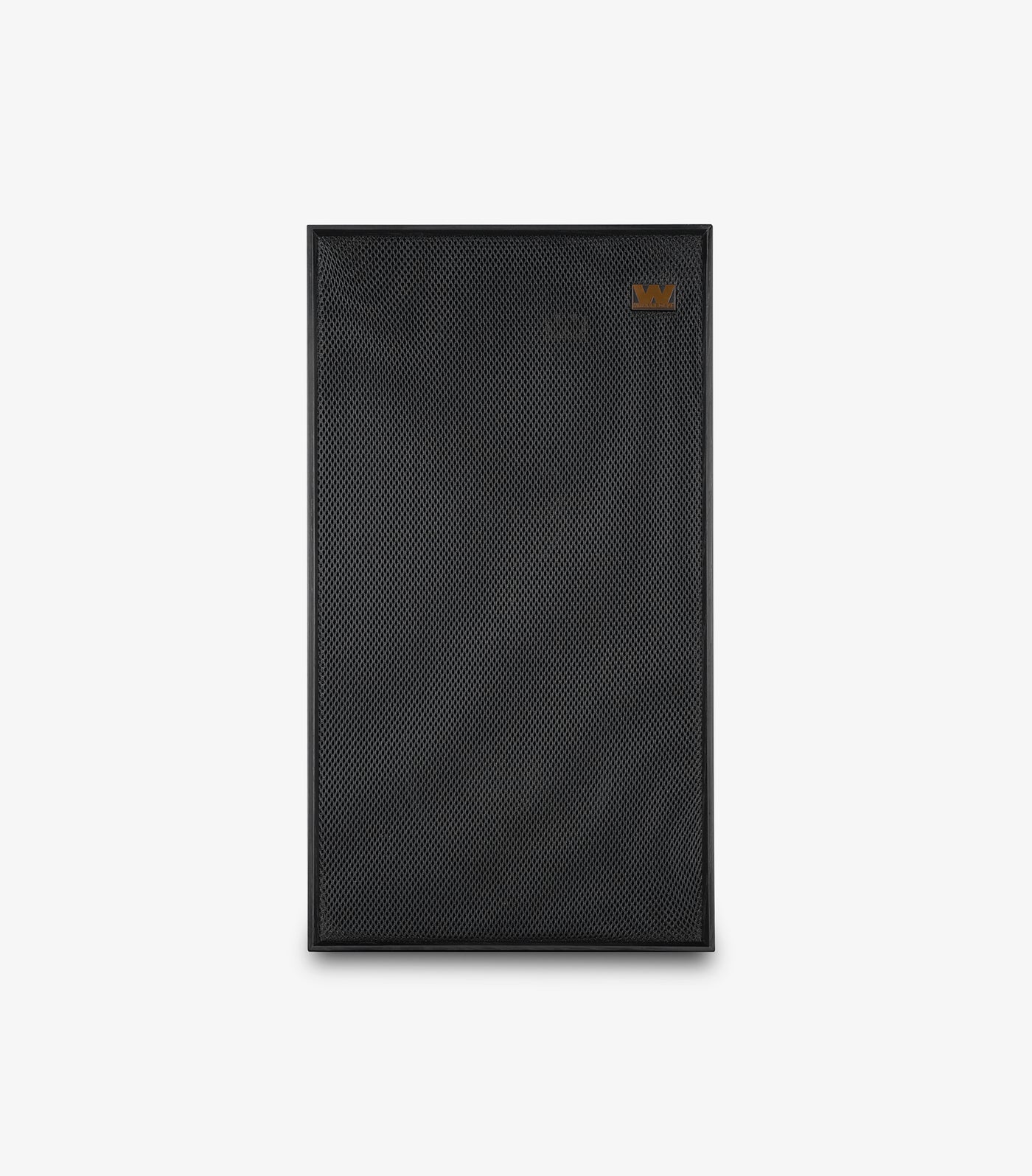

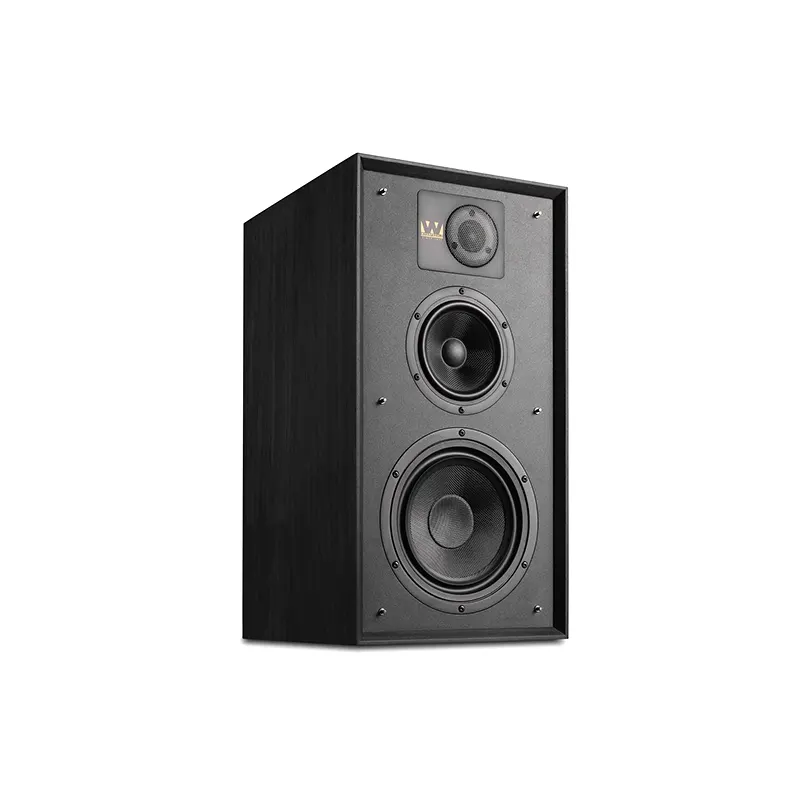

| Model | LINTON |
|---|---|
| General Description | 3-way vented-box/standmount |

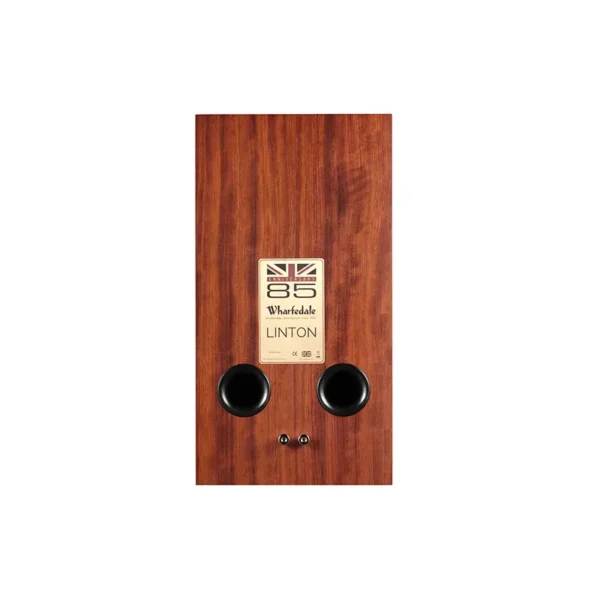

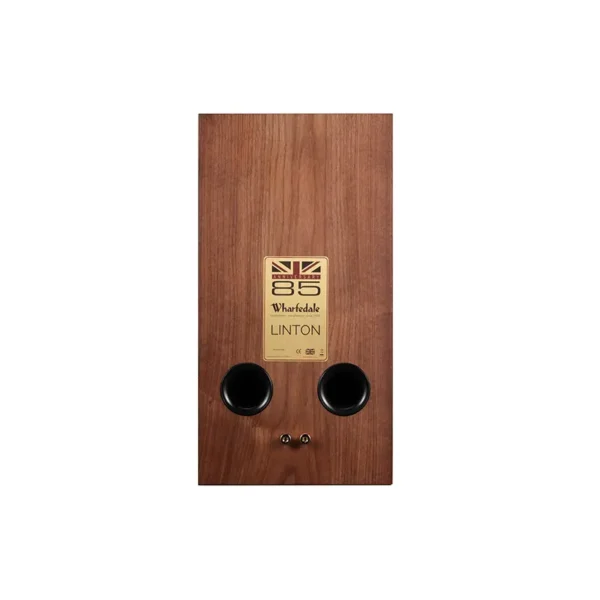

| Enclosure Type | Bass reflex |
| Transducer Complement | 3-way |
| Bass Driver | 8″(200mm) black woven Kevlar® cone |
| Midrange Driver | 5″(135mm) black woven Kevlar® cone |
| Treble Driver | 1″ (25mm) soft dome |
| Full-range Driver | |
| AV Shield | No |
| Sensitivity (2.0V @1m) | 90dB |
| Peak Powder Handling | |
| Recommended Amplifier Power | 25-200W |
| Peak SPL | 110dB |
| Nominal Impedance | 6Ω |
| Minimum Impedance | 3.5Ω |
| Frequency Response(+/-3dB) | 40Hz ~ 20kHz |
| Bass Extension(-6dB) | 35Hz |
| Crossover Frequency | 630Hz & 2.4kHz |
| Cabinet Volume(in litres) | 57.6L |
| Dimensions (mm) | |
| Height (on plinth) | 565mm |
| Width | 300mm |
| Depth (with terminals) | (330+30)mm |
| Net Weight | 18.4kg/pcs |
| Gross weigh | 20.5kg/ctn |
