Описание
| Input sensitivity/ Input impedance |
Unbalanced 180mV/45kΩ Balanced 180mV/90kΩ |
|---|---|
| Output/Input impedance |
Unbalanced rating 1V/90Ω, max. 14.1V Balanced rating 1V/180Ω, max. 28.7V |
| Frequency response | 20Hz to 20kHz (+0, within -0.1dB) 5Hz to 110kHz (+0, within -3.0dB) |
| Total harmonic distortion | Unbalanced 0.005% (20Hz to 20kHz) Balanced 0.003% (20Hz to 20kHz) |
| S/N ratio (IHF-A) | Unbalanced 129dB Balanced 132dB |
| Volume control | LECUA-EX |
| Amplification feedback circuit | LIFES 1.0 |
| Max. change amount of tone control |
BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz |
| Remote control functions | Operation, Dimmer, Input selector Output mode (Unbalanced, Balanced, Bi-amp) Balanced phase switching Channel preset (Balanced phase setting, Input level offset setting, Bi-amp output level setting) External pre-amplifier input Line straight, Loudness, Volume up/down, Mute Zoom display |
| Power consumption | 40W, 2.6W (at standby) |
| External dimensions | 440(W) x 130(H) x 434(D) mm front side knob of 16mm and rear side terminal of 15mm included in depth |
| Net weight | 19.8kg (main unit) |

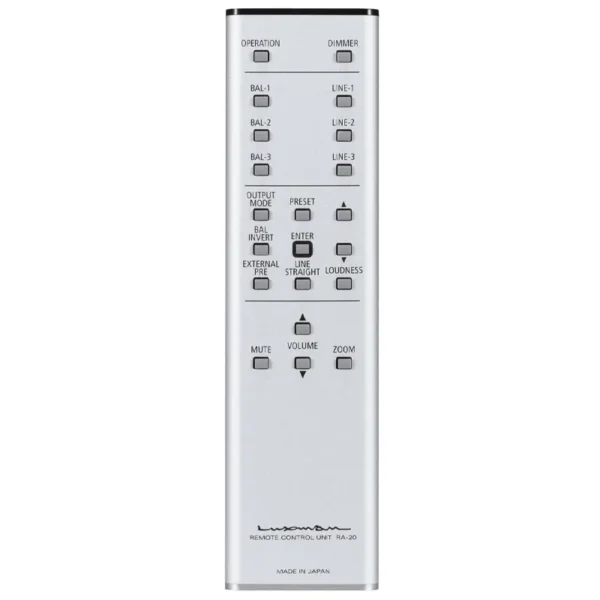

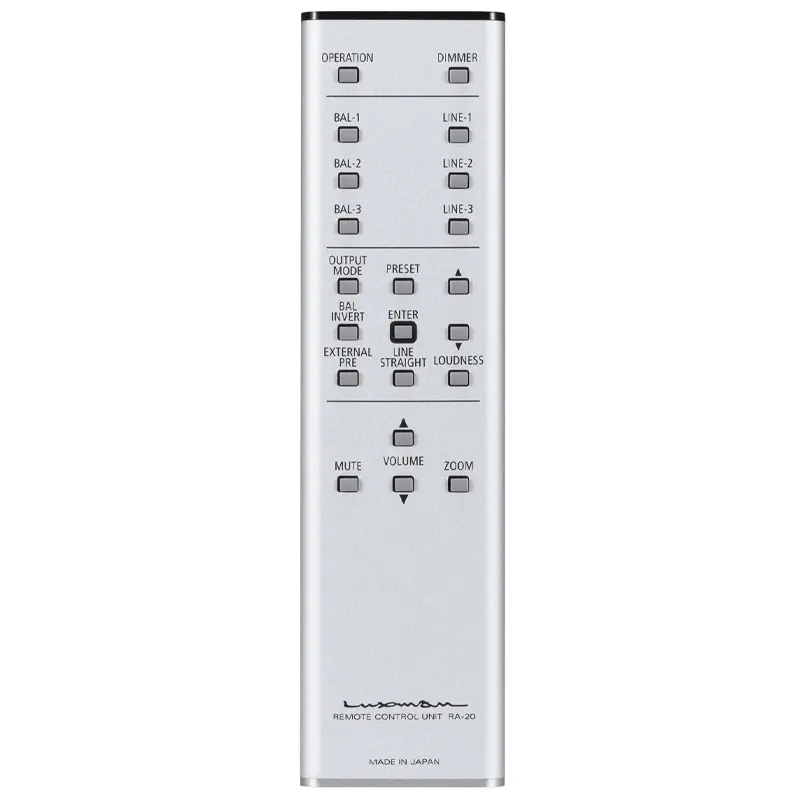

| Accessories | Remote control (RA-20), Power cable |
