Power Output – Both Channels Driven
400 watts x 2, 8 Ω
600 watts x 2, 4 Ω
Power Output – Bridged Mode
1200 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended
Power measurement parameters are at 120 VAC:
0.05% THD, RMS continuous power,
full audio band (20 Hz — 20 kHz)

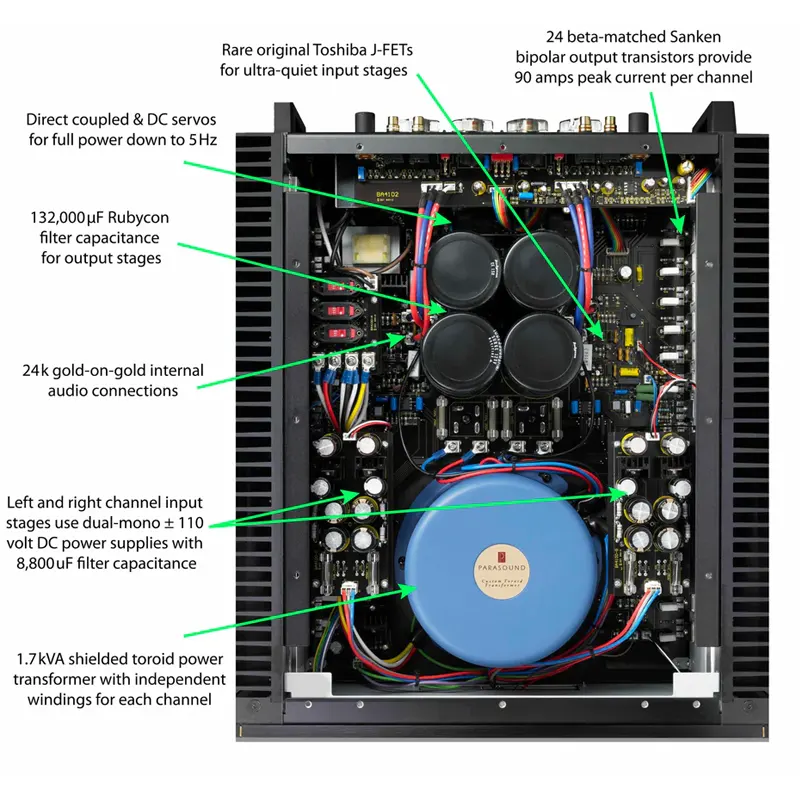

Current Capacity
90 amps peak, per channel
Slew Rate
> 130 volts per microsecond
Frequency Response
5 Hz — 100 kHz, +0/-3 dB
20 Hz — 20 kHz, +0/-0.25 dB
Total Harmonic Distortion (THD)
< 0.05 % at full power
< 0.03 % at typical listening levels
IM Distortion
< 0.04 %
TIM
Unmeasurable
Inter-channel Crosstalk
> 87 dB at 1 kHz
> 72 dB at 20 kHz
Input Impedance
Unbalanced: 33 kΩ
Balanced: 66 kΩ,(33 kΩ per leg)
Total Gain
29 dB
Input Sensitivity for 28.28 V Output into 8 Ω
Unbalanced: 1 V
Balanced: 1 V per leg
S/N Ratio
> 116 dB, input shorted, IHF A-weighted
> 111 dB, input shorted, unweighted
Damping Factor
1000 at 20 Hz
DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirements
2 mV — 10 mV

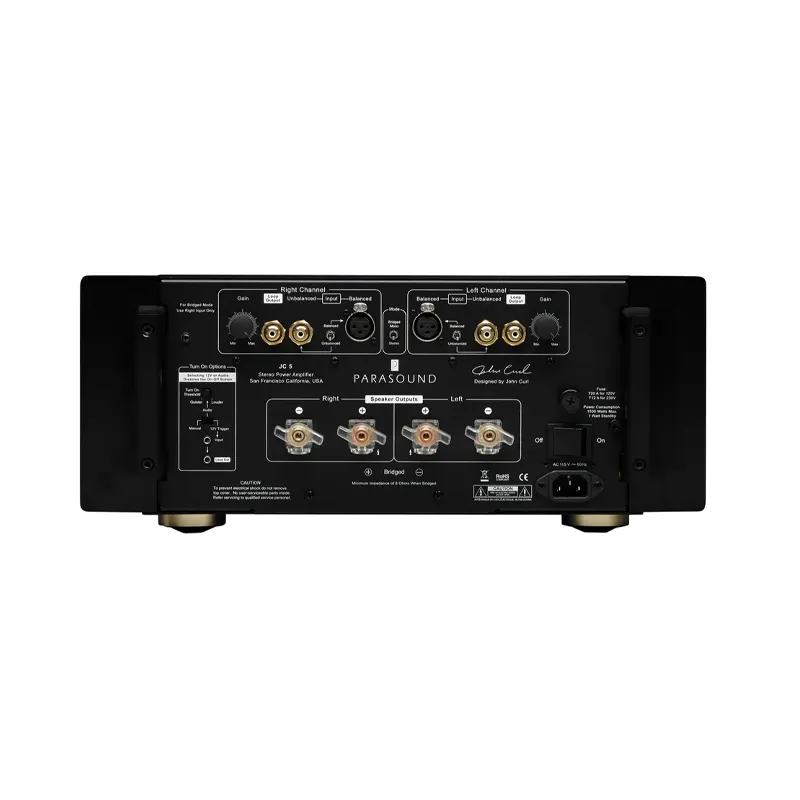

XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)

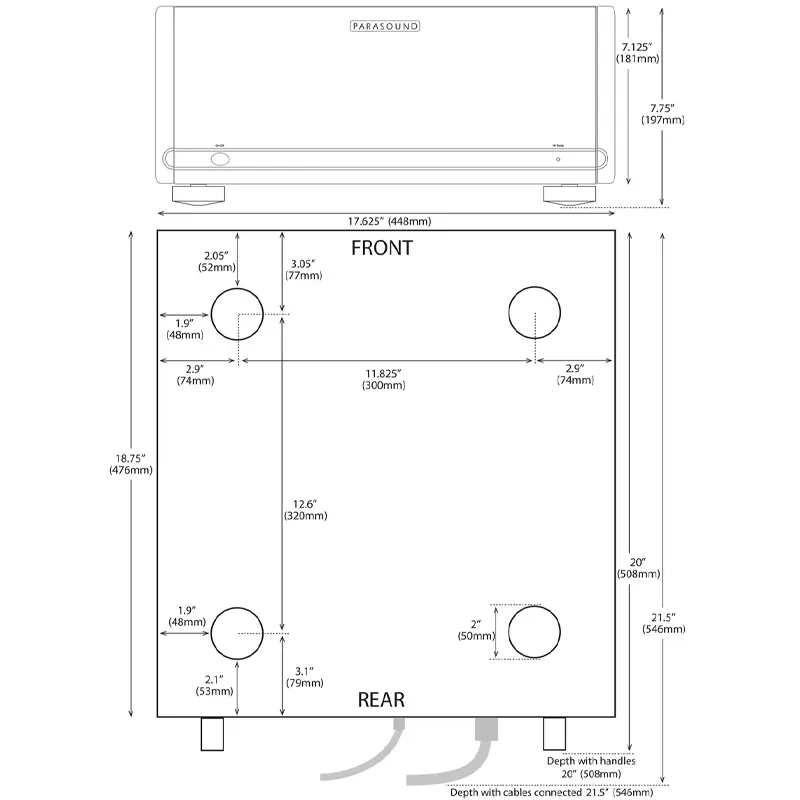

Dimensions
Width: 17-5⁄8″ (448 mm)
Height without feet: 7-1⁄8″ (181 mm)
Height with feet: 7-3/4″ » (197 mm)
Depth: 20″ (508 mm)
Depth with cables: 21-1⁄2″ (546 mm)
Net Weight
73 lb. (33.1 kg)
Shipping Weight
90 lb. (40.8 kg)
Power Requirement
Standby: 1 Watt
Idle (no music playing): 225 Watts
Typical listening levels: 400 Watts
Maximum: 1500 Watts
