Описание

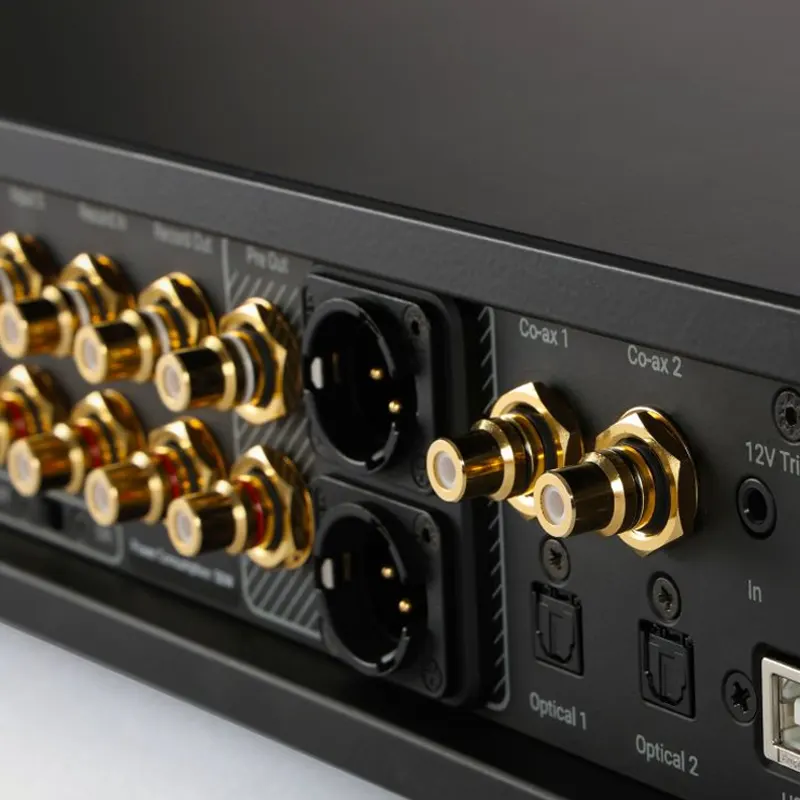

| INPUT — S/PDIF Co-ax and Optical | 16-24 bit @ 32/44.1/48/88.2/96/176.4/192kHz |
| INPUT — USB | 16-32 bit @ 44.1/48/88.2/96/176.4/192kHz PCM or DSD64 (DoP), Asynchronous, Power Consumption 0W (<0.5mA) |
| PRE-AMP — THD+N | Typically 0.001% @ 1kHz 2V Unbalanced or 4V Balanced 0dB gain |
| PRE-AMP — Frequency Response | 8Hz (-0.5dB point) to 28kHz (-0.5dB point) at 0dB gain Balanced Input/ Output |
| DAC — THD+N | Typically 0.0045% @ 1kHz 0dBFS 2V Pre Out |
| HEADPHONE AMP — Max Level 33Ω | 9V / 2.5W @ 0.1% THD+N (230V/120V) |
| HEADPHONE AMP — Max Level 240Ω | 10.85V / 0.5W @ 0.1% THD+N (230V/120V) |
| HEADPHONE AMP — THD+N | Typically 0.0035% @ 1kHz 2V into 240Ω or 33Ω |
| Power Consumption | 50W |
| Power Consumption (Standby) | 0.4W (activated automatically if no signal present after 20 minutes) |
| Dimensions W x H x D | 435 x 97 x 380mm (17 x 3.8 x 15in) |
| Weight | 14kg (31lbs) |
