Description

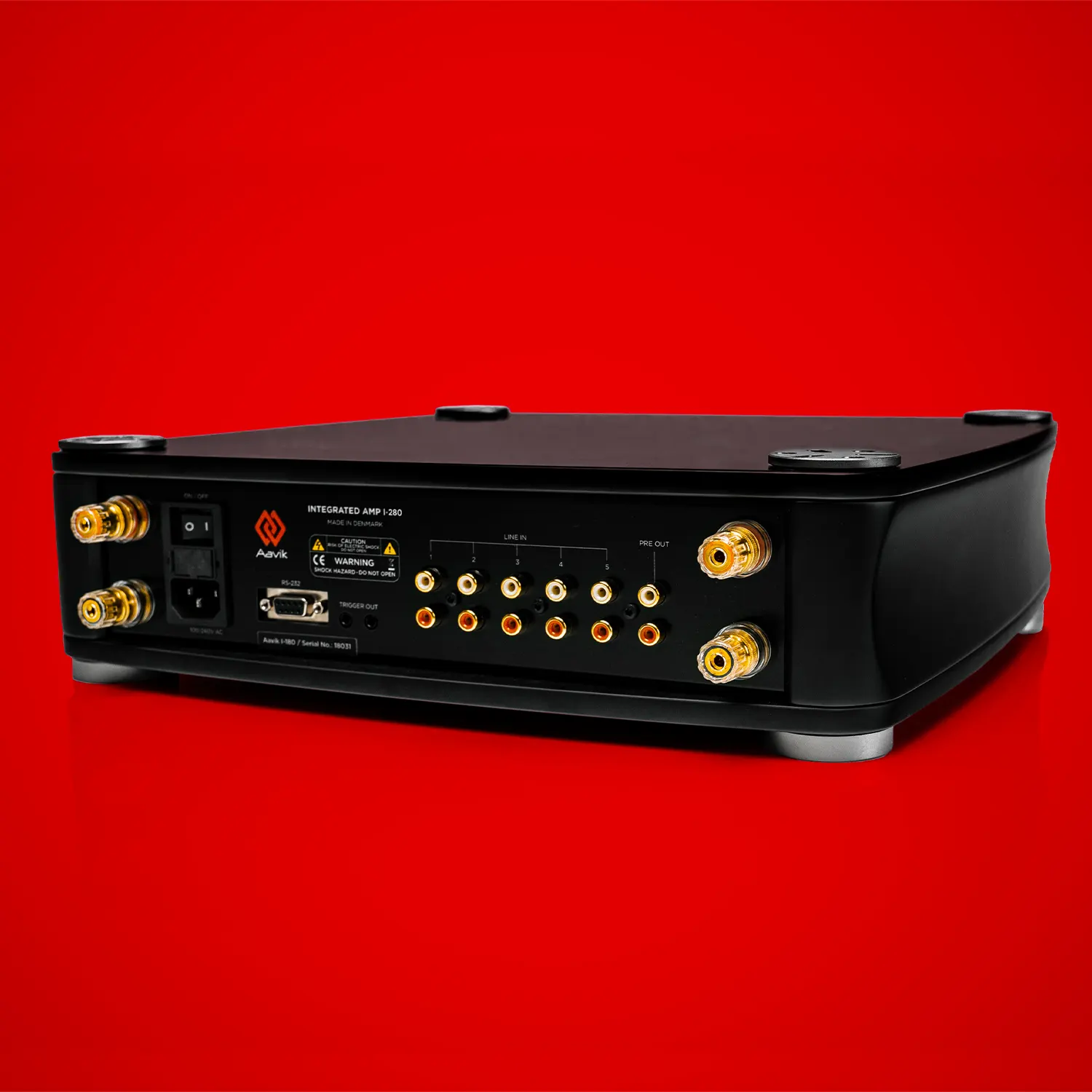

Connections
Line in:
Line inputs: 5 single ended – RCA
Gain Line 1-4: 5-15dB; max input 4,5V RMS
Gain Line 5: 1-11dB; max input 6,5V RMS
Input impedance: 10Kohm
Gain Line 1-4: 5-15dB; max input 4,5V RMS
Gain Line 5: 1-11dB; max input 6,5V RMS
Input impedance: 10Kohm
Pre out:
Pre out: 1 single ended – RCA
Max output: 7,5Vms
Distortion, line stage: <0,005% (THD at 1kHz, 1V input)
Output impedance: 50 ohm
Max output: 7,5Vms
Distortion, line stage: <0,005% (THD at 1kHz, 1V input)
Output impedance: 50 ohm
Power out:

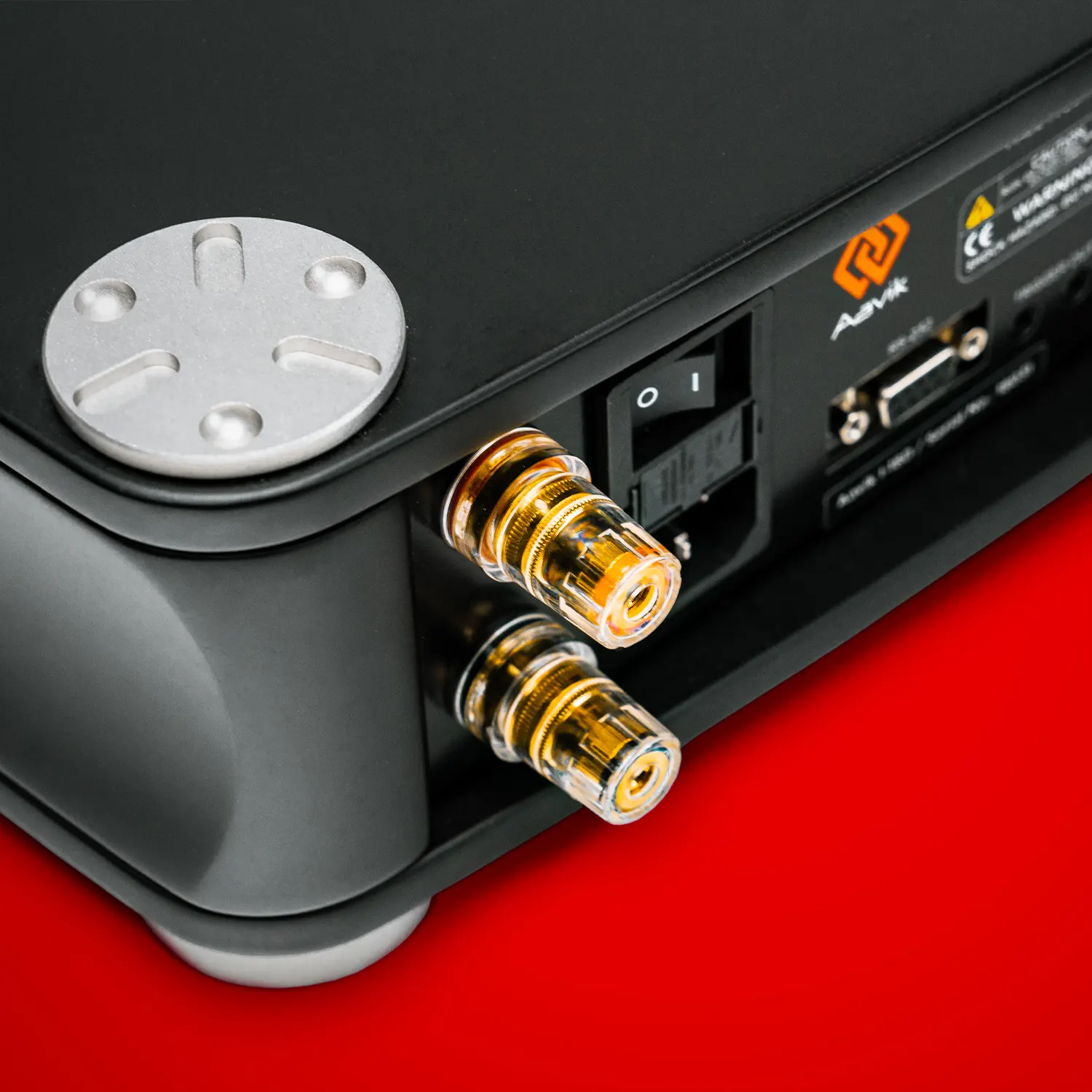

Speaker terminals Spade connectors or 4mm banana plugs
Amplifier Section
Volume Control: 76 dB – 1dB steps
Output:
2×300 w, 8 ohm
2 x 600 w, 4 ohm
Distortion (THD+N): <0,006% (1-100W, 1 kHz, 8 ohm)
IMD: <0,002% (1-100W, 4 ohm)
TIM: <0,008% (1-100W, 4 ohm)
Aavik Noise Reduction
Active Tesla Coils: 72
Active Square Tesla Coils: 168
Dither circuitry: 8
Anti Aerial Resonance Coils: 4
Power consumption
Standby: <0.5W
Idle: <50W
Dimensions and Weight
L x W x H: 400 x 384 x 102 mm
Weight: 9.0 kg
