Aavik U-280

15500.00

Pastiprinātājs ar digitālajām ieejām.

Description

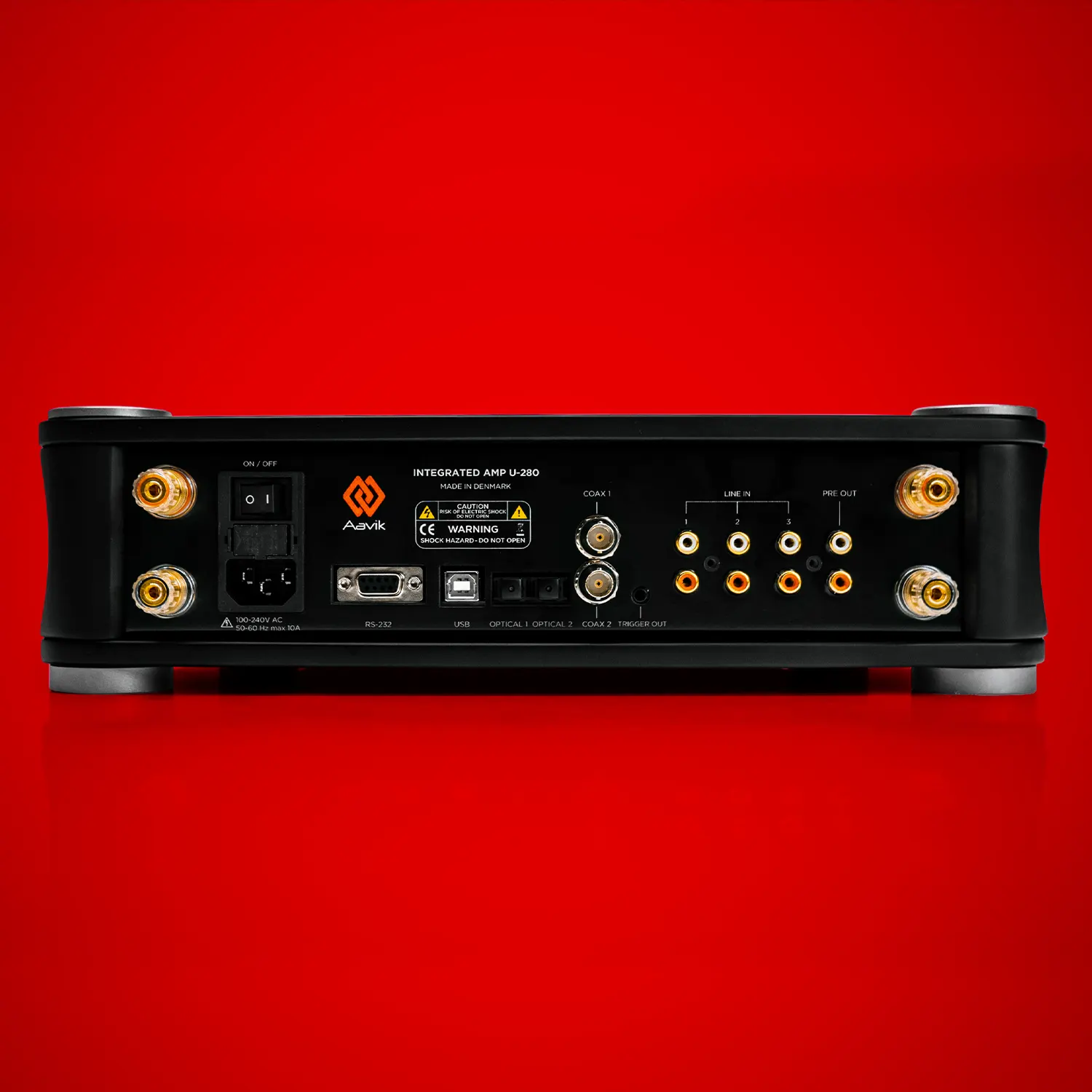

Connections

Line in:

Gain Line 1-4: 5-15dB; maximum input 4.5V RMS
Gain Line 5: 1-11dB; max input 6,5V RMS
Input impedance: 10K ohm

Digital in:

S/P-DIF: 2 x BNC
Optical: 2 x TOSLINK
UAC 2: 1 x USB

All inputs support PCM 24-bit 32-192kHz, MQA and DSD64.
The USB input also supports DSD128.

Output:

Line out: 1 x RCA
Max output: 7,5Vrms
Distortion, line stage: <0,005% (THD at 1kHz, 1V input)
Output impedance: 50 ohm

Amplifier section

Volume control: 76 dB – 1dB steps
Output:
2 x 300W 8 ohm
2 x 600W 4 ohm
Distortion (THD+N): <0,006% (1-100W, 1kHz, 8 ohm)
IMD: <0,002% (1-100W, 4 ohm)
TIM: <0,008% (1-100W, 4 ohm)

Aavik Noise Reduction

Active Tesla Coils: 72
Active Square Tesla Coils: 160
Dither circuitry: 8
Anti Areal Resonance Coils: 4



Power consumption

Standby: <0.5W
Idle: <65W



Dimensions and Weight

L x W x H: 400 x 384 x 102 mm

Weight: 9 kg
