| Audio |
|
|
| Supported Audio File Formats: |
MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS |
|
| Supported Hi-Res Audio File Formats: |
FLAC, MQA, WAV, AIFF, MPEG-4 SLS |
|
| Supported Multi-Channel Audio Formats: |
Dolby Digital |
|
| Processor: |
ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core |
|
| Native Sampling Rates: |
up to 192 kHz |
|
| Supported Network File Sharing: |
Server Messsage Block (SMB) up to 200,000 files |
|
| Native Sampling Rates: |
up to 192 kHz |
|
| Bit Depths: |
16 – 24 |
|
| Signal-to-Noise Ratio: |
SNR -91dBATHD+N, 0.008% |
|
| DAC: |
32-Bit, 384kHzDifferential Output design |
|
| Amplification: |
DirectDigital™ |
|
| Rated Power Output: |
40W x 2 (8 Ohms) |
|
| IHF Dynamic Power: |
80W (4 Ohms) / 50W (8 Ohms) |
|
| Minimum Impedance: |
4 Ohms |
|
| Software & Integrations |
|
|
| Operating System: |
BluOS |
|
| Processor: |
ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core |
|
| App Controller Operating Systems: |
iOS, Android, Windows, macOS |
|
| Network File Sharing: |
SMB up to 200,000 track index |
|
| Album Art Supported: |
JPG, PNG |
|
| Voice Control: |
Amazon Alexa Skills; Actions on Google |
|
| 3rd-Party: |
AirPlay 2Spotify ConnectTidal ConnectRoon Ready |
|
| Control Systems: |
Control4, Crestron, URC, RTI, ELAN, Lutron |
|
| General |
|
| Finish: |
Black/White; Matte Satin Paint |
| Included Accessories: |
Black/White; Matte Satin Paint120V AC Power Cord230V AC Power CordEthernet CableTOSLINK Optical to 3.5mm Mini AdapterMetal Mounting BracketMetal Mounting ScrewRubber Mount AttachmentSafety/Warranty GuideQuick Setup Guide |
| Max Power Consumption: |
210W |
| Storage Environment: |
-10°C to 50°C, 20% to 80% relative humidity |
| Operating Environment: |
‘0°C to 40°C |
| Product Weight: |
1.37kg/3.02lbs |
| Product Dimensions: |
219 x 44.5 x 193 mm8.6 x 1.75 x 7.6 in |
| Shipping Weight: |
2.62kg/5.78lbs |
| Shipping Dimensions: |
300 x 300 x 95 mm11.8 x 11.8 x 3.74 in |
| User Interface |
|
| Status Indicator: |
LED |
| Play/Pause Button: |
Touch LED |
| Volume Control Buttons: |
Touch LED |
| Previous/Next Track Buttons: |
Touch LED |
| Preset Buttons: |
In-App |

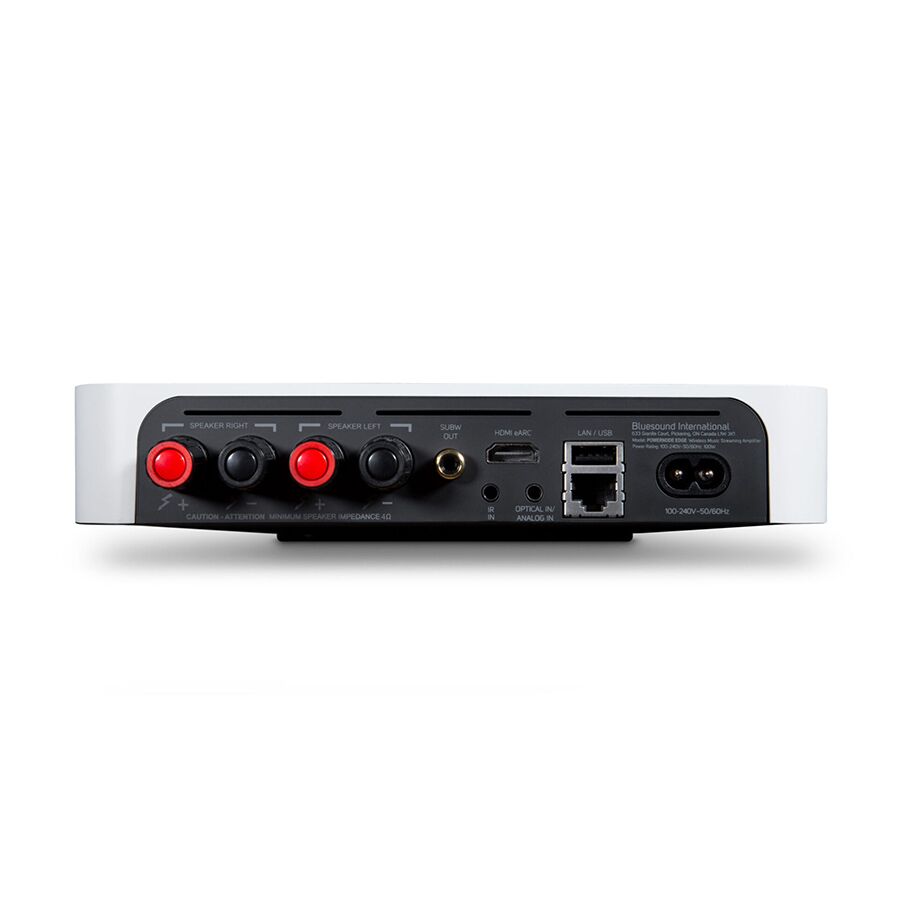

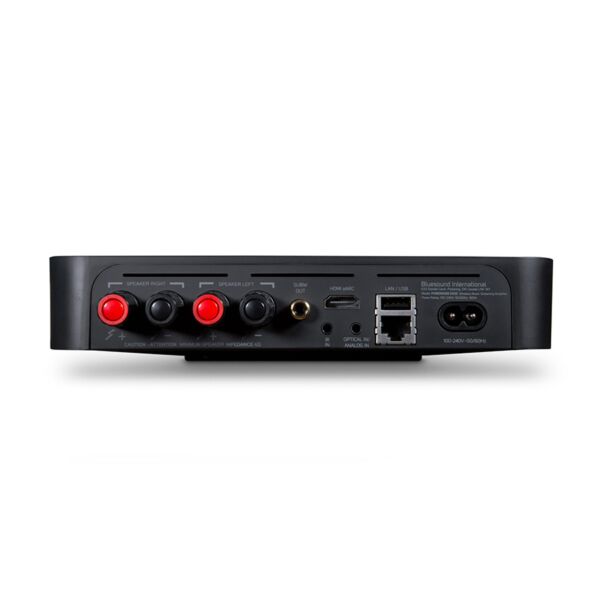

| Connections |
|
| Power Supply: |
Universal bi-pin AC cord input (100-240AC) |
| Ethernet/LAN: |
Ethernet RJ45, Gigabit 1000 Mbps |
| Wi-Fi Built In: |
Wi-Fi 5 (802.11ac), dual-band |
| Bluetooth Quality: |
Bluetooth 5.0 aptX HD |
| Bluetooth Connectivity: |
Two-Way (transmit & receive) |
| IR Optical Built In: |
IR Sensor Built In – front panel with IR Remote Learning |
| IR Input: |
3.5mm Jack |
| Optical/Analog Input: |
Combo – Mini TOSLINK/Stereo 3.5mm |
| HDMI Input: |
HDMI eARC |
| USB IN: |
Type A (Fat32 Formatted) |
| Headphone Output: |
Bluetooth only |
| Subwoofer Output: |
RCA x 1; Wireless to PULSE SUB+ |
| Speaker Terminals: |
5-Way Binding Post |
