Description
Features
DAC operation mode: USB / Coax / Optical
Yes / No / No
Advanced AL 32 Plus
Yes
DAC Master Clock Design
ASRC in DAC
Customized Components
Yes
CD Compatibility: CD / CD-R/RW / WMA / MP3 / AAC
Yes / Yes / Yes / Yes / Yes
Others

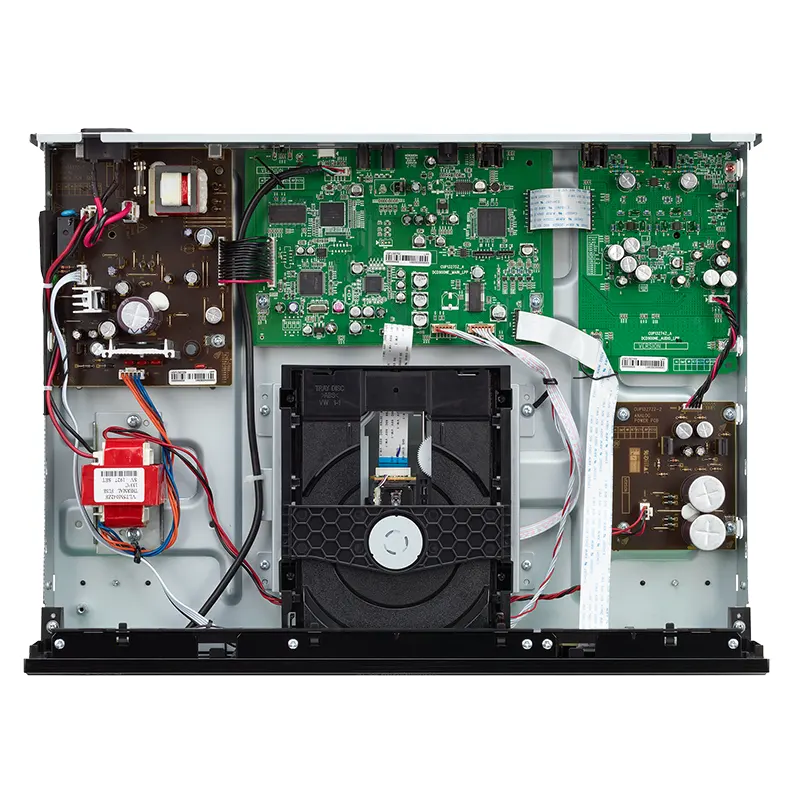

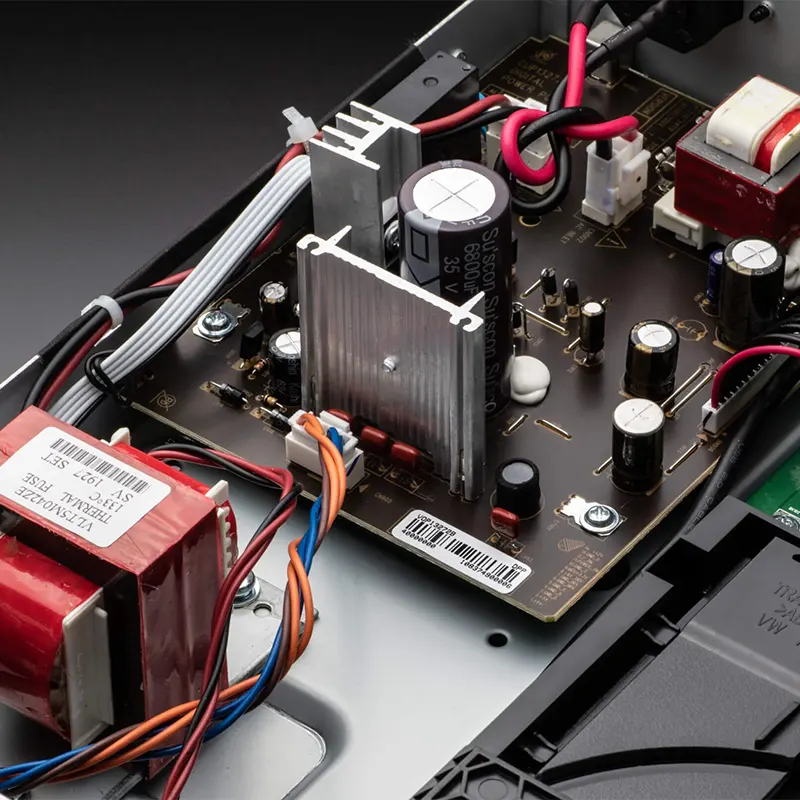

Separated rectifier circuit for analog and digital circuitry
Yes
Display: Dimmer / Off
Yes / Yes
Playback
Program Play (CD / SA-CD)
Yes / No
Repeat
Yes
Random Play
Yes
Inputs Outputs
Headphone Out
No
Headphone Volume Control
No
Digital Optical In / Out
No / Yes
Digital Coaxial In / Out
No / Yes
Gold plated Cinch
Yes
Remote Control Bus in / out
Yes

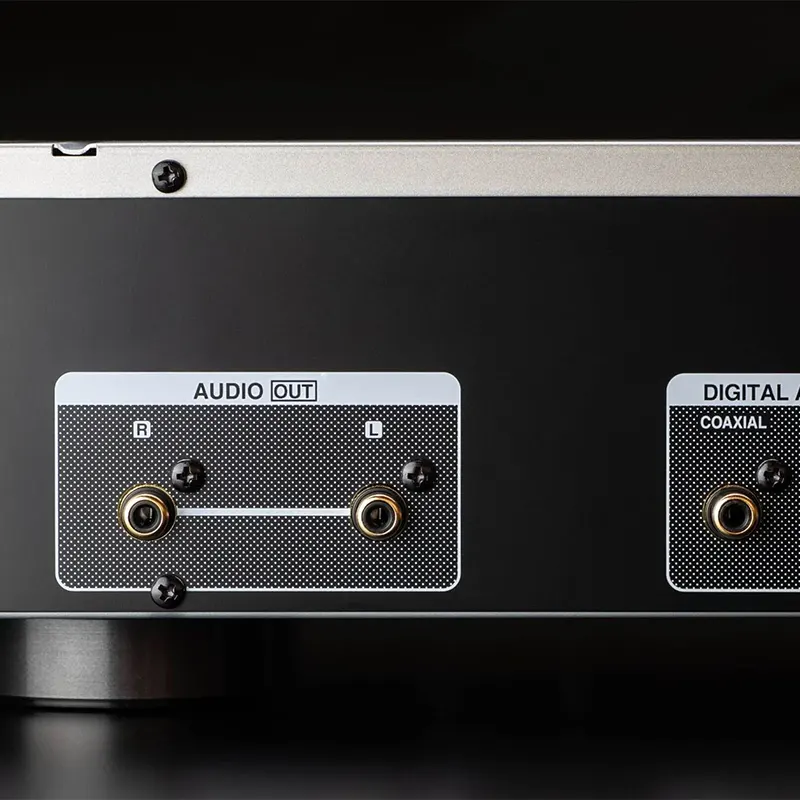

Analogue Out (Cinch)
2Ch
USB Audio (Front) / Made for iPod / Made for iPhone
Yes / No / No
USB-A File support
MP3/WMA/AAC
Yes / Yes / Yes
WAV
Yes (~192kHz/24bit)
FLAC
Yes (~192kHz/24bit)
ALAC
Yes (~96kHz/24bit)
AIFF
Yes (~196kHz/24bit)
DSD (DIFF / DSF)
Yes(~5.6MHz)
Specifications
Signal to Noise Ratio
115 dB (CD/USB)
Frequency Response
USB (PCM/DSD): 2Hz – 50kHz (-3dB) CD: 2Hz – 20kHz
Total Harmonic Distortion
USB DSD: 0.0015% USB PCM 24bit: 0.0020% CD: 0.0025%
Line Level Output
2.2Vms
D/A Conversion
DAC IC
ES9018K2M
Digital Filter
AL32 Processing Plus
Dynamic Range
101 dB (CD)
General

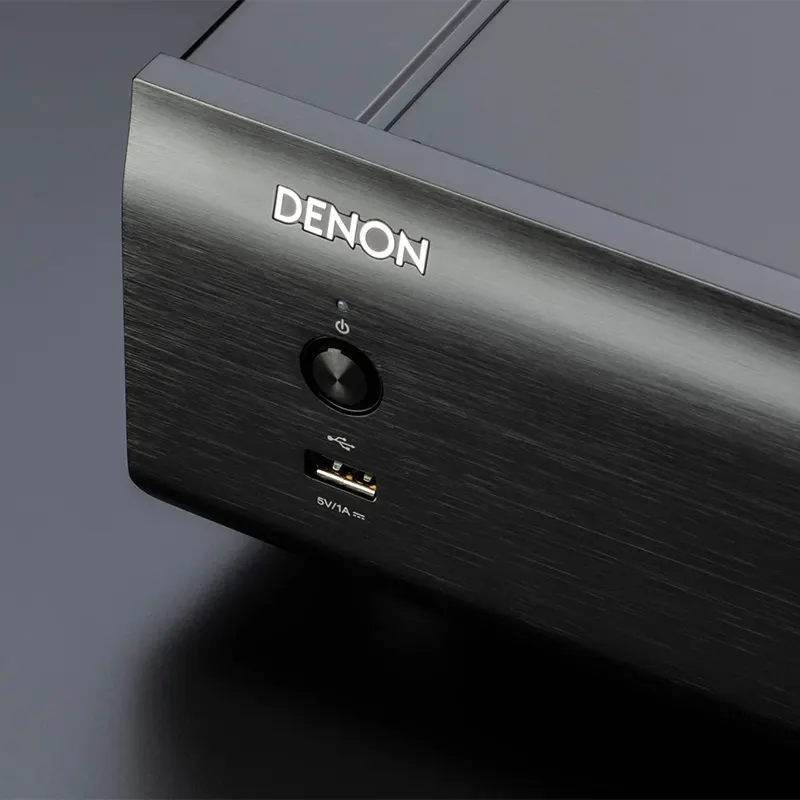

Metal Front Panel
Aluminum
Power Consumption in W
24W
Standby Consumption in W
0.3W

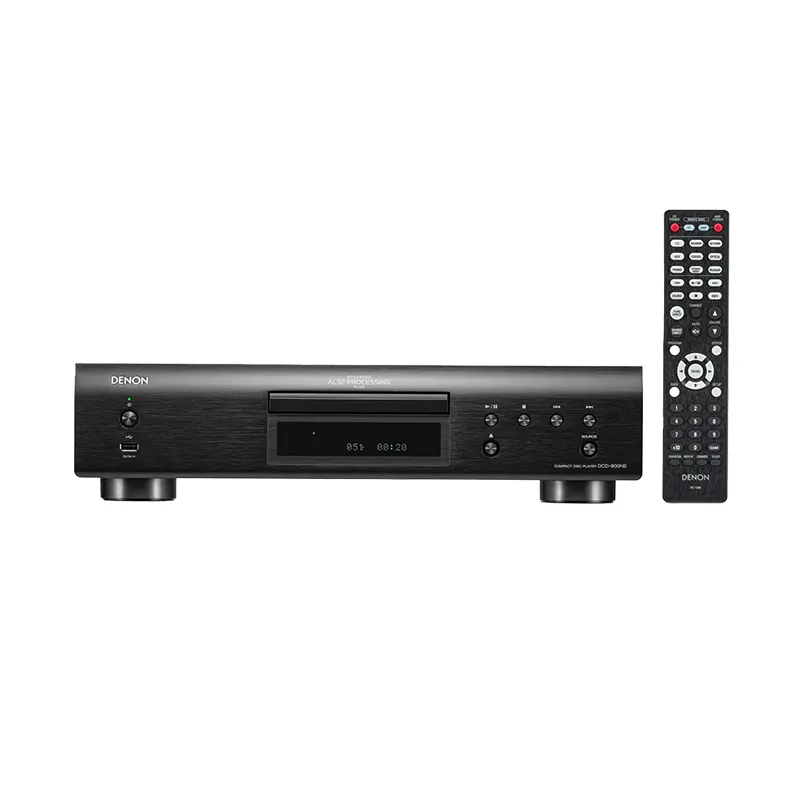

Remote Control
Auto Power Off
Yes
Weight
4.9kg
10.8lb
Available colors: Premium Silver / Black
Yes / Yes
Maximum Dimensions (W x D x H)
434 x 328 x 107mm
17.1 x 12.9 x 4.2in
Carton Maximum Dimensions (W x D x H)
524 x 476 x 197mm
20.6 x 18.8 x 7.8in
Carton Weight (inc. product)
7kg
15.4 lbs
