Description
TECHNICAL DATA:

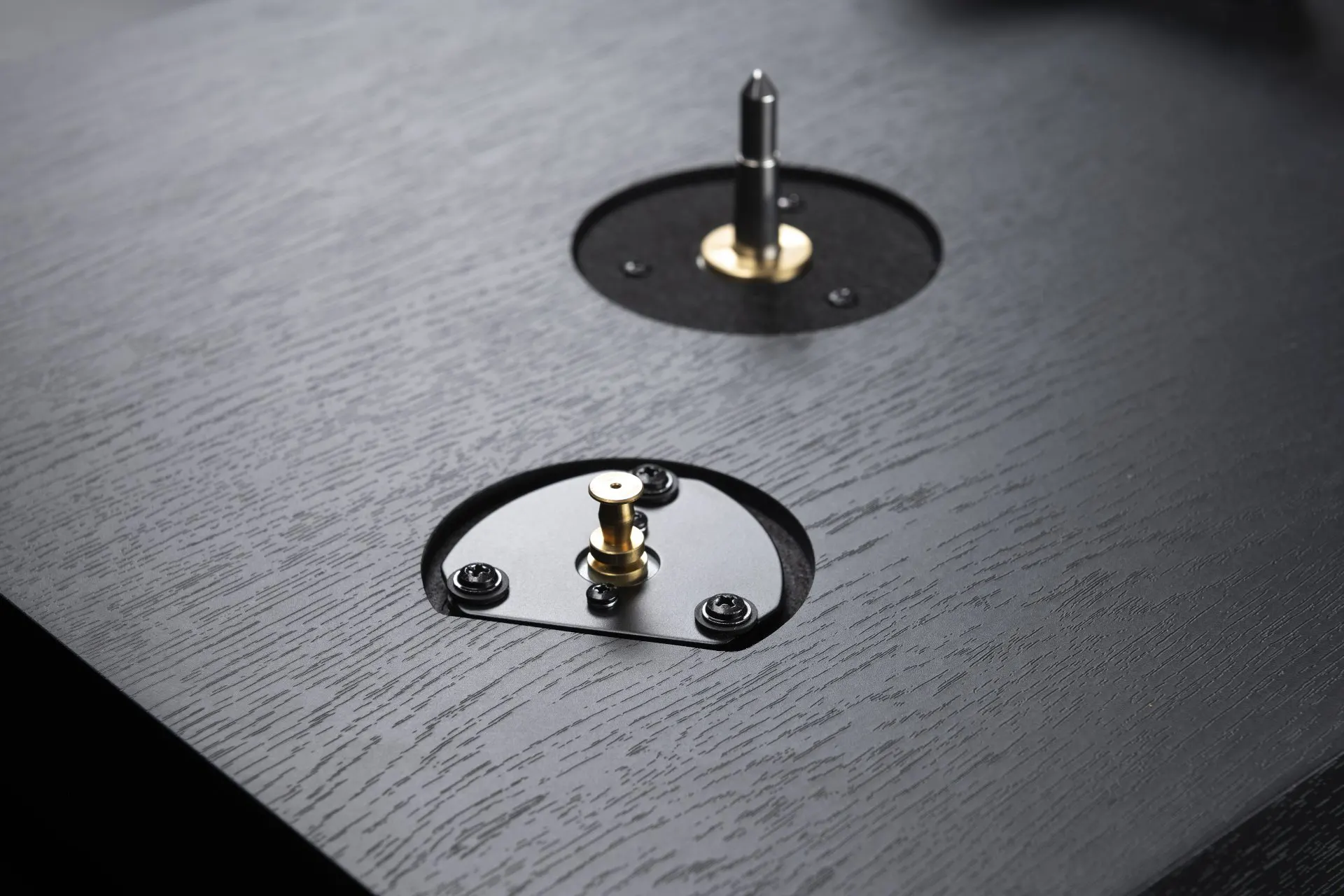

Motor:
Drive: Belt
Speed settings: 33/45/78
Wow & Flutter: < ±0,1 % (DIN WTD)

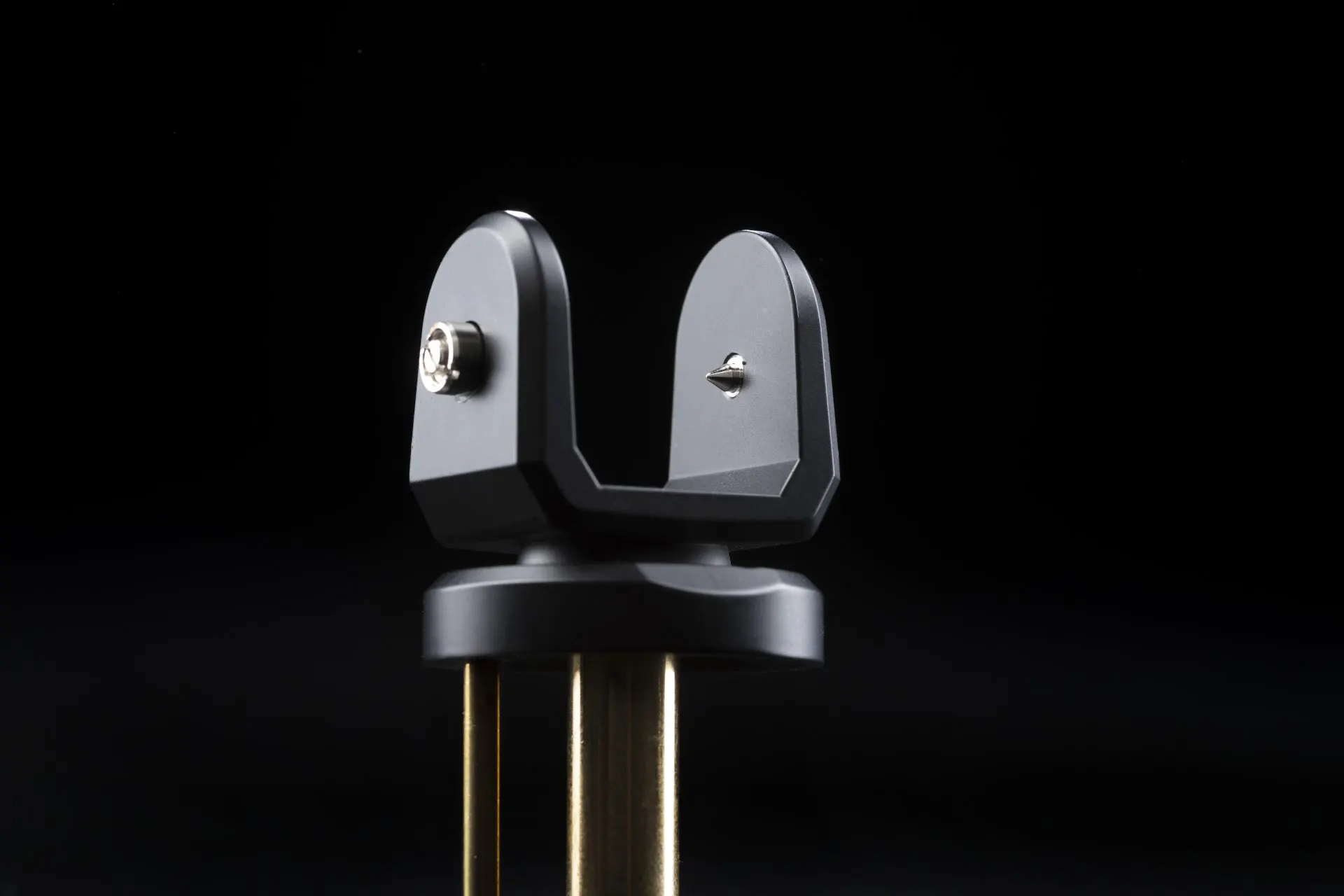

Tonearm:
Auto-Start/-Stop-Function: ✕
Bearing: Ball-bearing
Effective length: 221,5 mm
Offset Angle: 25,6°
Overhang: 19 mm
Type: statically balanced
Stylus Pressure Range: 0 g bis 4 g
Cartridge Weight Range 5 g bis 9 g

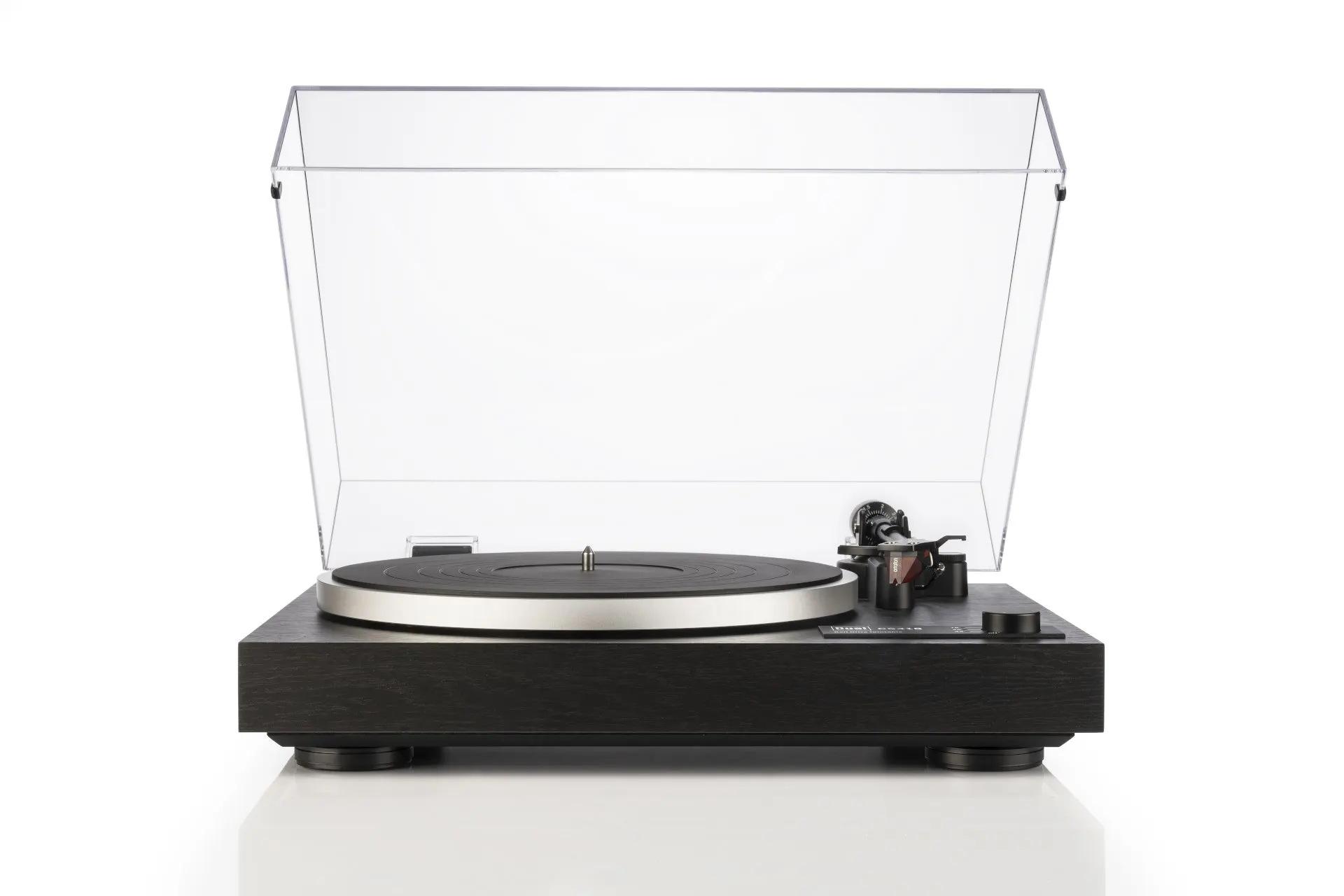

Factory installed pick up: Ortofon 2M Red
Platter:
Material: Aluminium die-cast
Mat: Rubber 2,5 mm

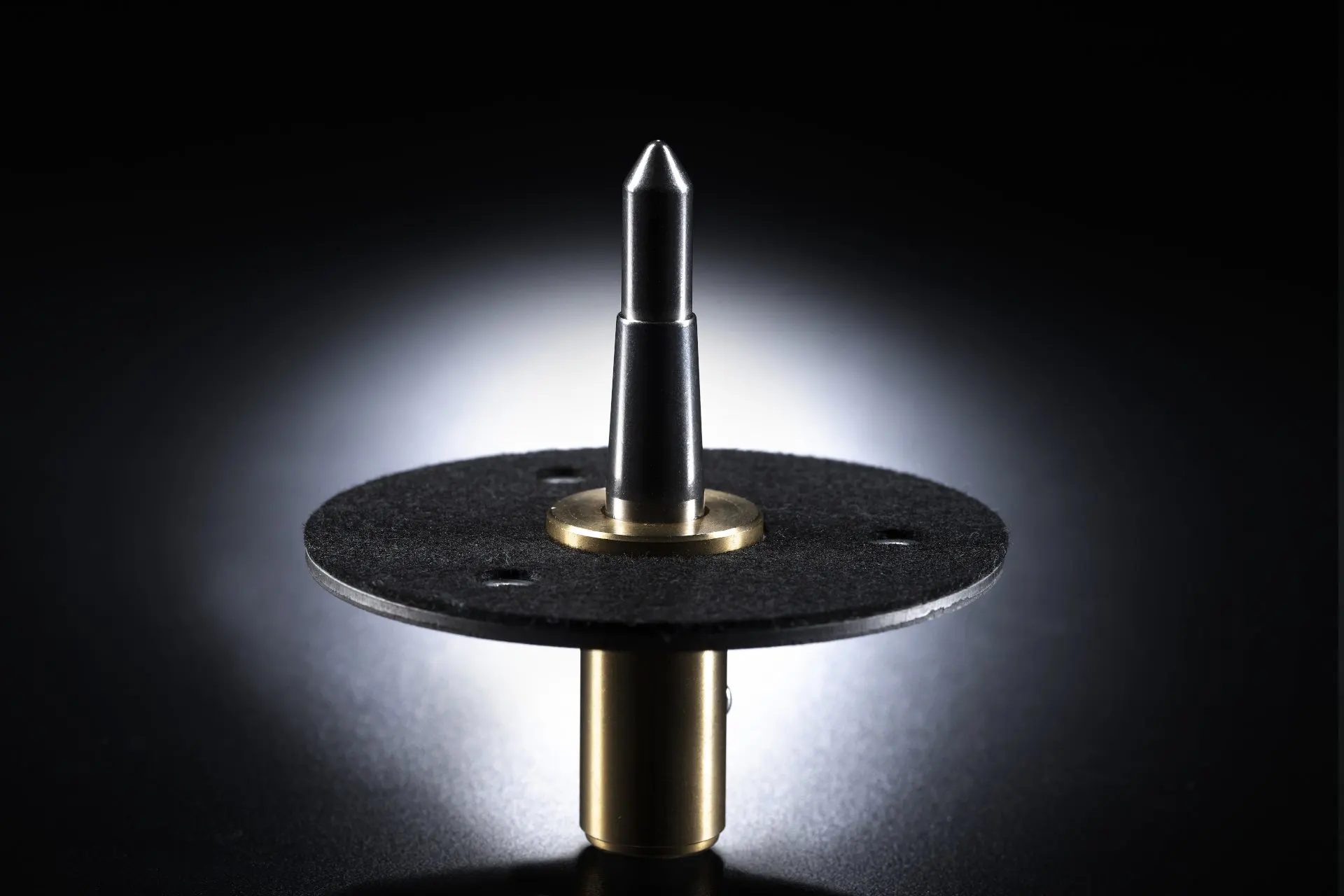

Bearing: Hardened steel spindle Brass bushing
Diameter: 305 mm
Weight (incl. Mat): 850 g
Plinth:
Material: MDF, folded
Surface finish: Vinyl veneer / Black
Feet: Ø 62 mm / Elastomer

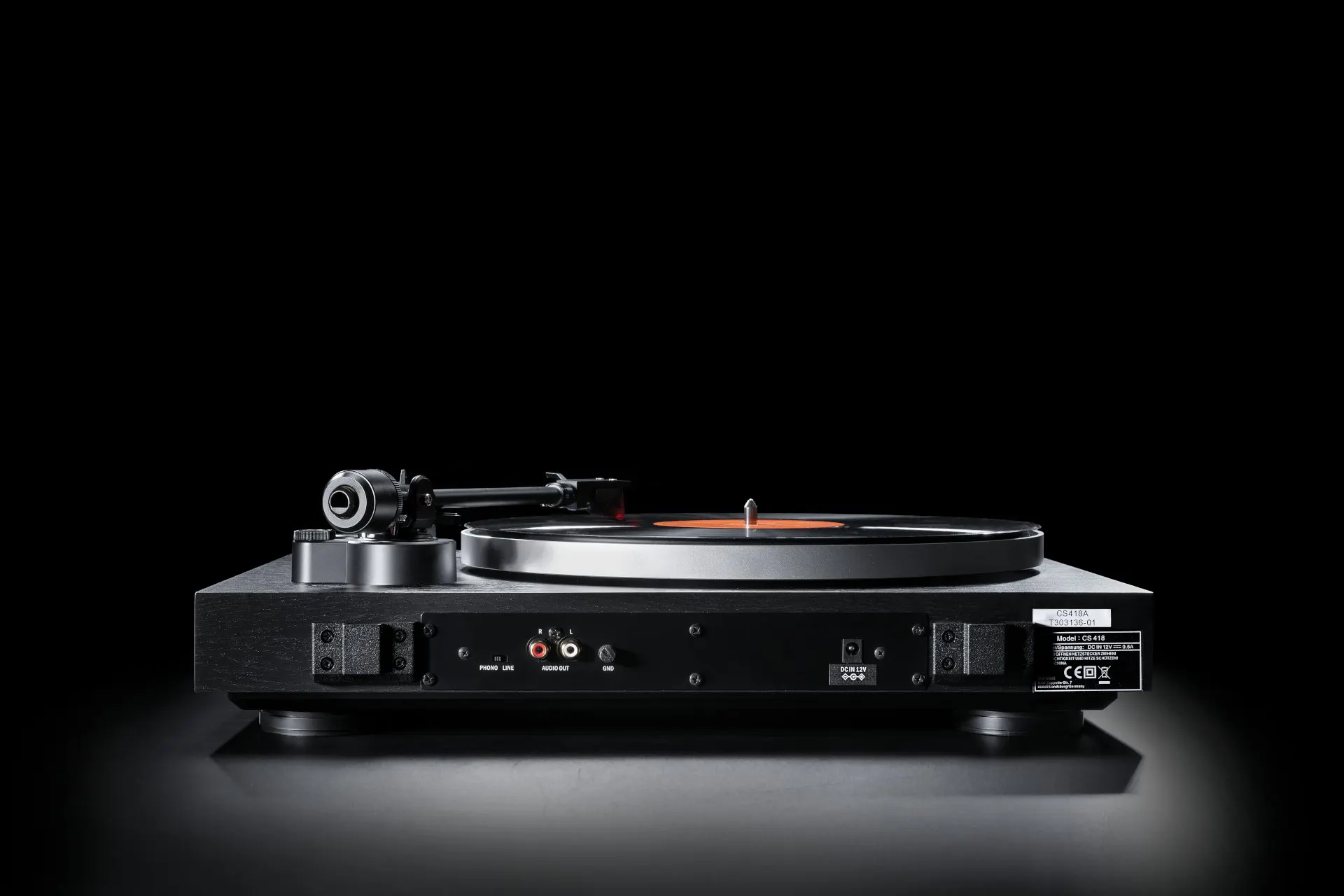

Connection: RCA socket
Connection to Phono Input: ✓
Connection to Line Input: ✓
Digital Output: ✕
Dimension, closed dustcover: 435 x 367 x 145 mm
Dimension, open dustcover: D: 415 mm / H: 400 mm
Weight: 5,8 kg
Power plug AC / DC: External power supply
