Description

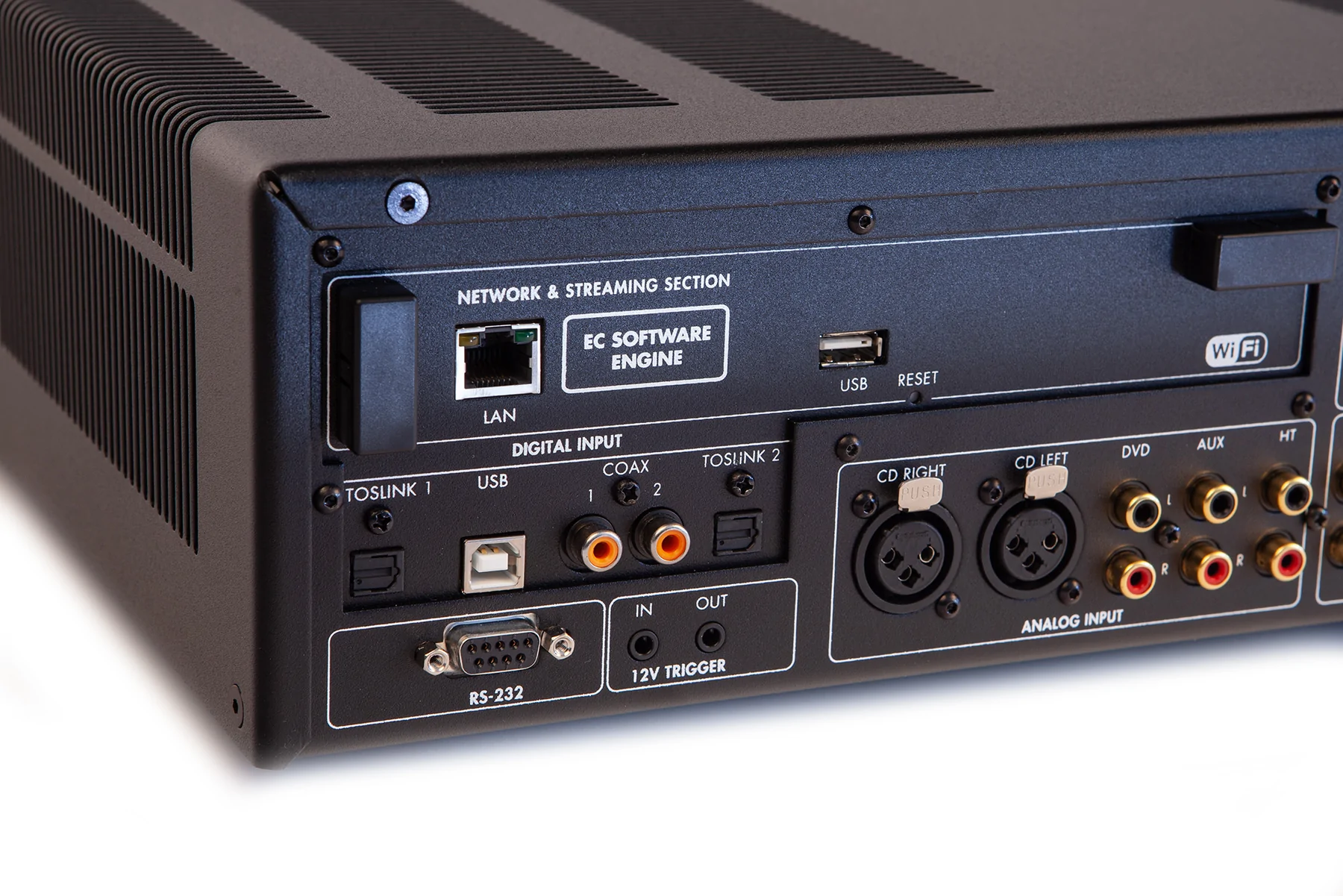

Streamer section
• Advanced 802.11 AC WiFi with MIMO
• 1x Gigabit Ethernet (1000Mbps)
• 1x USB for external storage
• iOS, Android and web app
Streaming services
• AirPlay ®
• AirPlay 2 ®*
• Spotify ® Connect
• Qobuz ®
• TIDAL ®
• TIDAL ® Connect
• Roon Ready
• DLNA
• Internet Radio
• Bluetooth streaming from any Bluetooth enabled device
* Future software update.
Supported formats:
• All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)
Preamplifier section
Input impedance ( Balanced input ) 47Kohm
Maximum input level 10 Volt RMS
Noise floor ( 1Vrms, 20 – 20 kHz, balanced) -135 dB
THD + N (1Vrms, 20 – 20 kHz, balanced) <0.004%
Gain (Balanced) 0 dB
Amplifier section
Output Impedance < 0,02 Ohm
Frequency response 1 – 150 kHz
Channel separation > 120 dB
THD ( 20 – 20 kHz) < 0.004%
Maximum peak current >100A
Damping factor 8 ohm load >350
I Input sensitivity 120W output 1.3Vrms
Input sensitivity HT 120W output 1Vrms
Gain HT Input x36 (31 dB)
Rated output power
8 ohms 2 x 125 W
4 ohms 2 x 200 W
2 ohms 2 x 370 W
Power consumption 110 W
Standby 1W
(no load or signal)
Dimensions
Width 470 mm / 18.3 inches
Depth ( with a speaker terminals) 430 mm / 16.9 inches
Height 128 mm / 5 inches
Weight 20,5 Kg / 45 lbs.
