Description
| Type: | Class AB stereo power amplifier |
| Output power: | 180W RMS into 8Ω / 280W RMS into 4Ω (stereo) |
| Bridged mono output: | up to 500W RMS into 8Ω |
| Power supply: | custom 800W toroidal linear transformer |
| Output stage: | 3 pairs of precision MOSFETs |
| THD+N: | 0.003% at 1kHz |
| Signal-to-noise ratio: | ≥115dB (A-weighted) |
| Damping factor: | >400 at 8Ω |
| Frequency response: | 10Hz–30kHz (±0.5dB at 1W/8Ω) |
| Crosstalk: | <-95dB at 180W into 8Ω |
| Inputs: | 1x balanced XLR, 1x unbalanced RCA |
| Input impedance: | 10kΩ (XLR and RCA) |
| Switchable gain (XLR): | 5.2V/23dB or 2.6V/29dB |
| Switchable gain (RCA): | 2.65V/23dB or 1.3V/29dB |
| 12V trigger: | input and output (power-on sequencing) |

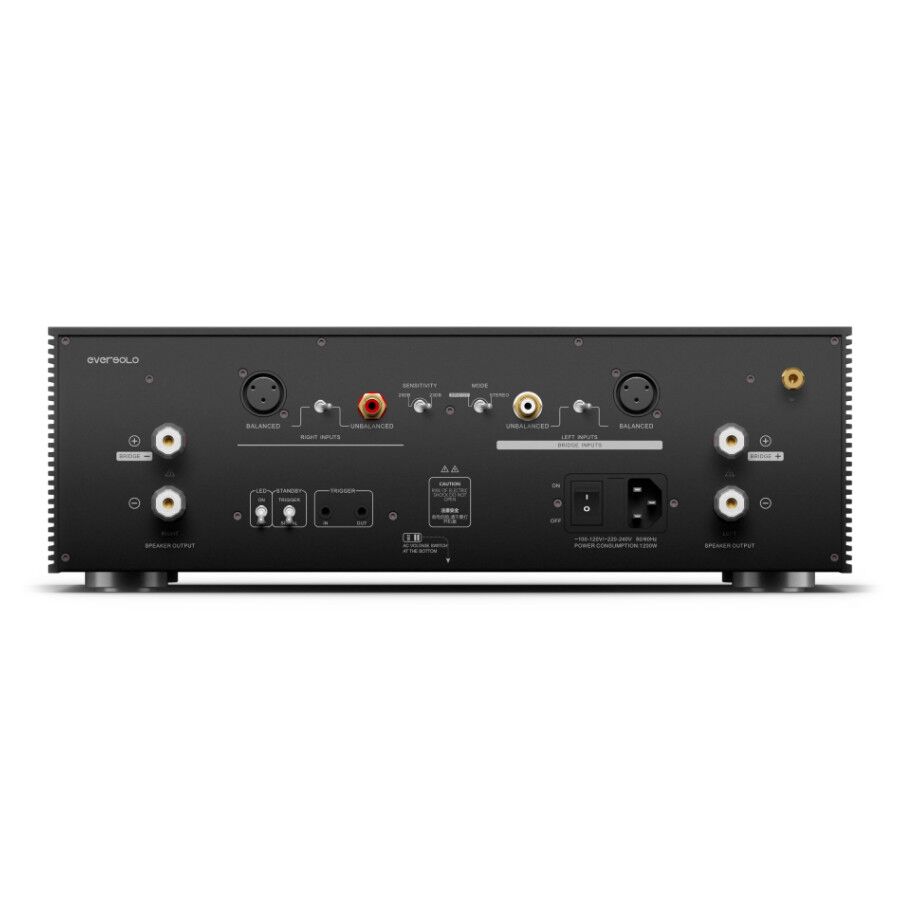

| Bridge mode: | dedicated terminals on the rear panel |
| Mains power: | 100–120V / 220–240V |
| Max consumption: | 1200W |
| Dimensions (W×D×H): | 265 x 388 x 119mm |
| Net weight: | 15.9kg |
