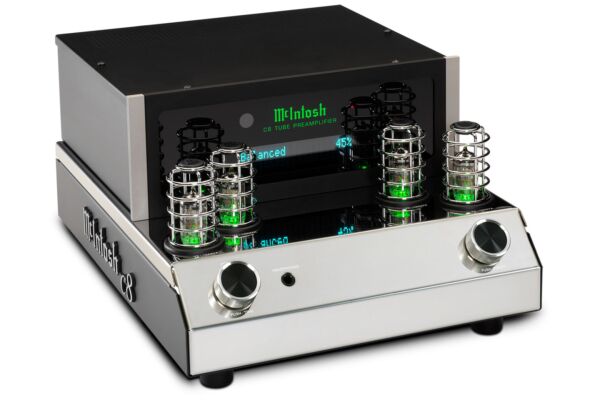

StereoPlus / Mcintosh c8
Mcintosh c8Mcintosh c8Mcintosh c8Mcintosh c8
Mcintosh c8
Mcintosh c8
Mcintosh c8
Mcintosh c8

Mcintosh c8

5550.00

Lampu priekšpastiprinātājs ar iebūvēto fonokorektoru un austiņu pastiprinātāju.

Description

ELECTRONIC SPECIFICATIONS

    • Number of Channels
      2
    • Total Harmonic Distortion
      0.08%
    • Frequency Response
      +0, -0.5dB from 20Hz to 20kHz
      +0, -3dB from 15Hz to 100kHz
    • Maximum Volts Out (Balanced / Unbalanced)
      16V RMS / 8V RMS
    • Sensitivity High Level (Balanced / Unbalanced)
      900mV / 450mV
    • Sensitivity Phono (Moving Coil)
      0.45mV
    • Sensitivity Phono (Moving Magnet)
      4.5mV
    • Signal To Noise Ratio (High Level)
      95dB
    • Signal To Noise Ratio (Moving Coil)
      75dB
    • Signal To Noise Ratio (Moving Magnet)
      80dB
    • Voltage Gain (High Level)
      15dB
    • Voltage Gain (Moving Coil)
      75dB
    • Voltage Gain (Moving Magnet)
      55dB
    • Input Impedance (Balanced / Unbalanced)
      44K ohm, 22K ohm

CONNECTIVITY

    • Balanced Input
      1
    • Unbalanced Input
      2
    • Phono Input Moving Coil
      1 (adjustable)
    • Phono Input Moving Magnet
      1 (adjustable)
    • Upgradeable Digital Audio Module
      Yes: DA2 can be installed
    • Digital Coaxial Input
      0
    • Digital Optical Input
      0
    • Digital MCT (DIN) Input
      0
    • Digital USB Input
      0
    • HDMI (ARC) Input
      0
    • Digital AES/EBU Input
      0
    • Balanced Fixed Output
      0
    • Balanced Variable Output
      1
    • Unbalanced Fixed Output
      0
    • Unbalanced Variable Output
      2
    • Headphone Output
      1/4″ High Drive
    • Input Level Match
      Yes, +/- 6dB
    • Home Theater PassThru
      Yes
    • Unbalanced Analog Connector Type
      Standard
    • Service Port
      1

CONTROL

    • Tone Controls
      Bass and Treble
    • Tone Bypass and Input Assign
      Yes
    • RS232 Control Input
      Yes
    • Power Control Output
      1 Main, 2 Trigger
    • Rear Panel Data Port
      2
    • Rear Panel IR Sensor Input
      Yes

GENERAL SPECIFICATIONS

    • Multi-Chassis or Single
      Single
    • Output Meters
      No
    • Vacuum Tube or Solid State
      Vacuum Tube
    • Power Consumption (On)
      50 Watts

WEIGHTS & DIMENSIONS

    • Unit Dimensions (W x H x D)
      12-9/32″ (31.2cm) x 7-5/8″ (19.4cm) x 16-1/4″ (41.3cm)
    • Unit Weight
      18 lbs (8.2 kg)
    • Shipping Weight
      25 lbs (11.3 kg)
