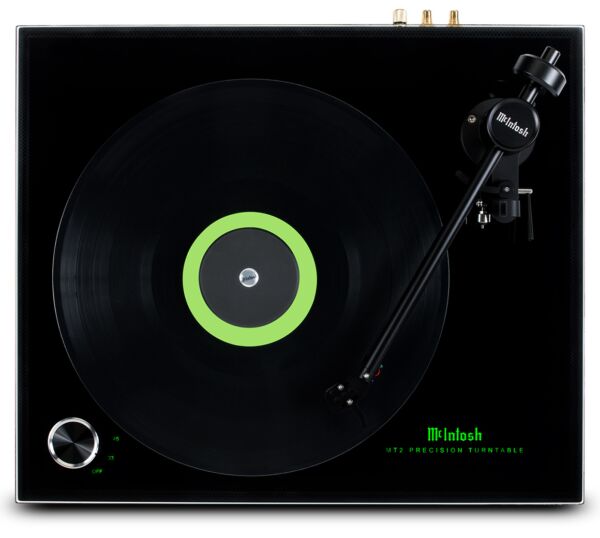

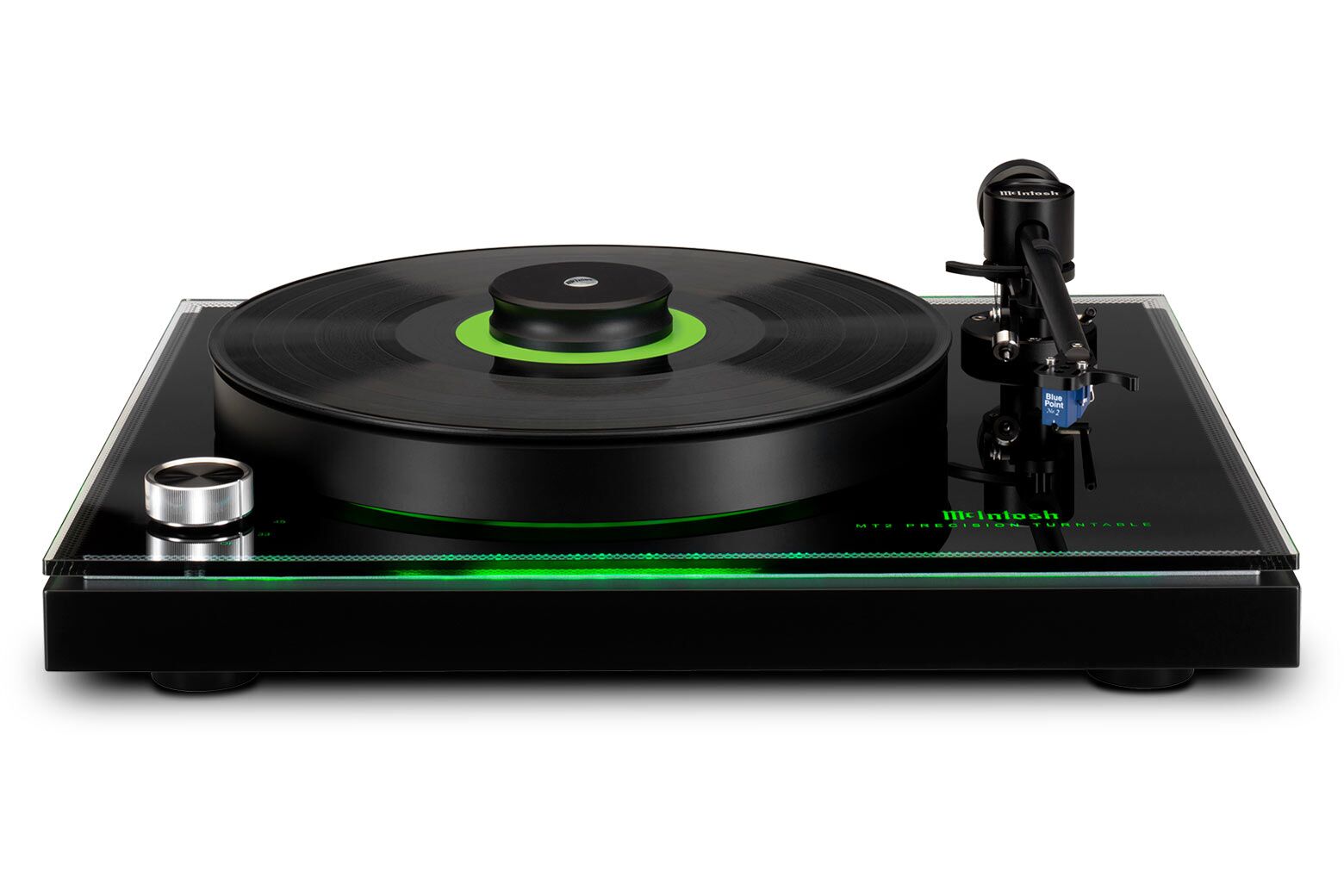

Mcintosh mt2

Description

• • Cartridge Type
    Moving Coil, High Output
  • Output Level
    2.5 mV at 5 cm/s
  • Load Impedance
    1000 Ohms recommended (Preamp MC Input)
  • Frequency Response
    20Hz to 50kHz
  • Channel Separation
    35dB at 1kHz
  • Compliance
    15 x 10-6 cm/dyne
  • Recommended Tracking Force
    2.0 g
  • Channel Difference
    Less than 0.5dB at 1kHz
  • Total Mass
    6.3 g
  • Stylus
    Elliptical Diamond
  • Cantilever Material
    Aluminum
  • TONEARM SPECIFICATIONS
    • Bearing
      Sapphire and Ceramic
    • Arm Tube
      Dural-Aluminum
    • Counterweight
      Eccentric
    • Adjustments
      Vertical Tracking Angle, Antiskate, Azimuth
  • TURNTABLE SPECIFICATIONS
    • Playback Speeds
      33-1/3 and 45 rpm
    • Motor Type
      DC Motor with Stainless Steel Brushes
    • Speed Control
      Servo System
    • Platter
      Dynamically balanced polyoxymethylene (POM)
    • Platter Bearing
      Polished and tempered steel shaft in sintered bronze bushings
    • Signal To Noise Ratio
      35dB – 40dB
    • Wow & Flutter
      0.15% – 0.25%
  • CONNECTIVITY
    • Stereo Outputs Unbalanced
      1
  • CONTROL
    • Power Control Input
      0
    • Power Control Output
      0
    • Platter Light
      N/A
    • Speed Control Fine Adjustment
      Yes
  • GENERAL SPECIFICATIONS
    • Dust Cover Included
      Yes
  • WEIGHTS & DIMENSIONS
    • Unit Dimensions (W x H x D)
      17-13/16″ (45.2cm) x 5″ (12.7cm) (6″ (15.2cm) with dust cover) x 17″ (43.2cm)
      Note: Tone Arm Height will vary depending on the type of Cartridge installed.
    • Unit Weight
      29 lbs (13.2 kg)
    • Shipping Weight
      39 lbs (17.6 kg)
