Description

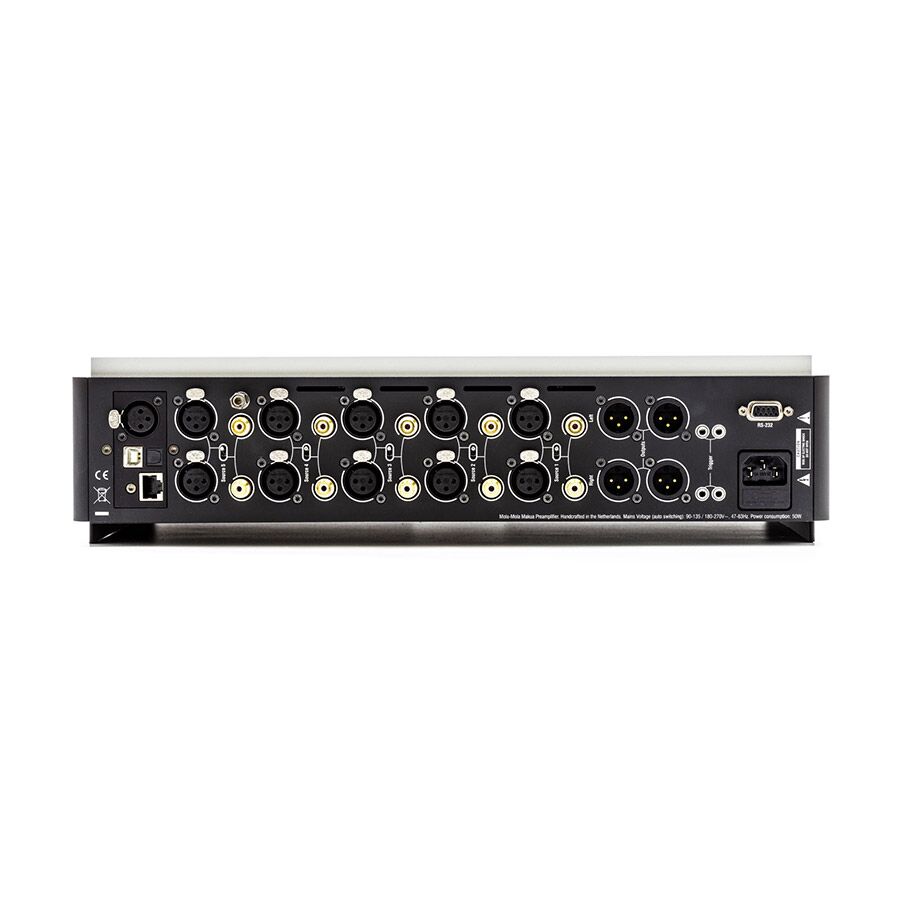

I/O:
• 5 balanced and 5 unbalanced inputs, selectable by switch and software
• 2 parallel balanced outputs for bi-amping (XLR)
• Mastering mode
• 4 programmable trigger outputs (3.5mm Jack)
• All inputs routable through optional processor boards like the phono stage
• Processing balance and input gain offset
• Phase invert and mono sum
• Full software control of routing and processing
Performance:
• Maximum input/output level: 20dBu (7.75Vrms)
• Unweighted noise voltage at unity gain: 1.9uV
• Input impedance: 100kohm
• Output impedance: 44ohm
• Distortion at maximum signal level (THD, IMD): not measurable, estimated around -150dB
• Bandwidth >200kHz
• Gain range: -70dB to +15dB
• Gain resolution: <1dB, better than 0.2dB over normal listening range
Control:
• 6 programmable presets
• (premium) Remote control
• Mola Mola Remote app
• RS232 (SUB-D)
Dimensions and weight: 420mm (W) x 110mm (H) x 345mm (D) (Depth includes volume knob and connectors), 11kg
