Description
System Format
2-Way
Frequency Response, In-Room (-6dB)
50 Hz — 30 kHz
Sensitivity (2.83 Vrms @ 1m, Free-Field)
88 dB
Nominal Impedance
8 Ohms
Minimum Impedance (20 Hz to 20 kHz)
4.3 Ohms @ 200 Hz
Maximum Peak SPL (AES75, Z-weighted)
119 dB
Continuous Power Handling (CTA 426-B)
120 W
Recommended Amplifier Power (RMS, Music Signal)
60 – 140 W into 4 Ohms
30 – 120 W into 8 Ohms
Bass Alignment
Sealed
Port Tuning Frequency
N/A
Crossover Frequency
LF/HF: 2.7 kHz

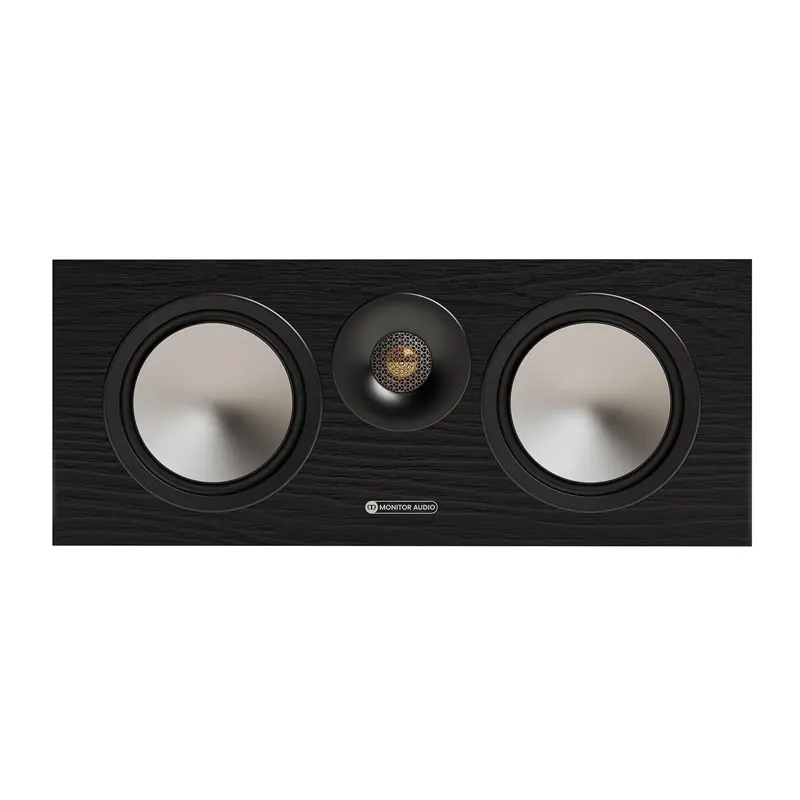

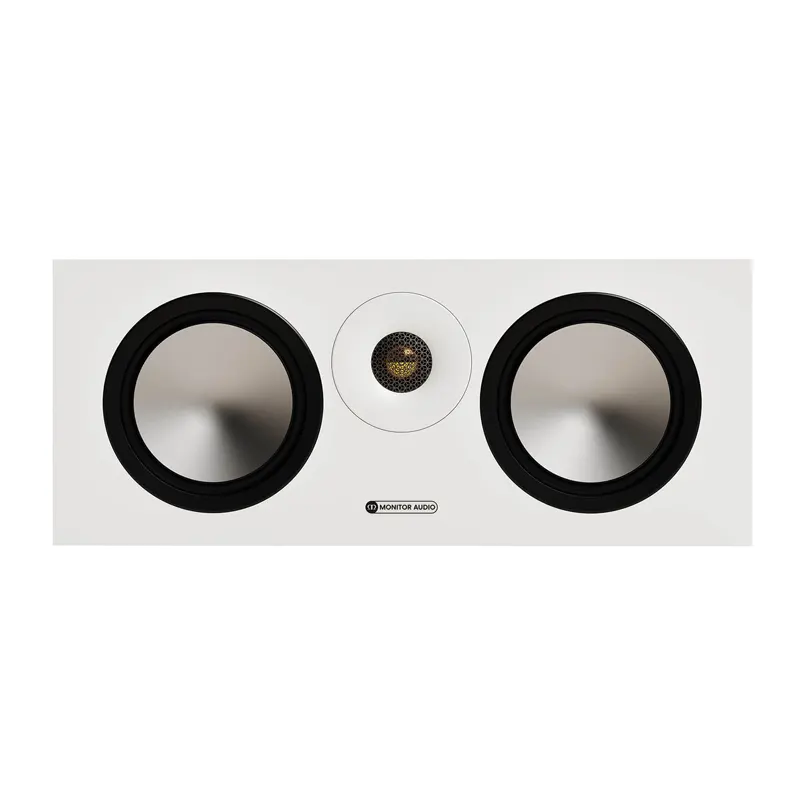

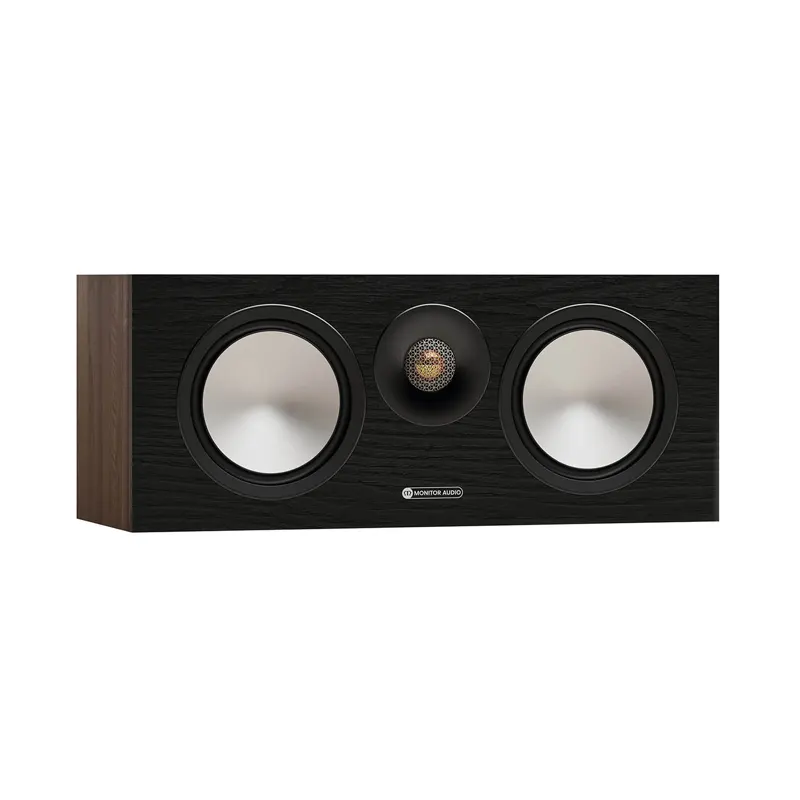

Drive Unit Complement
2 x 6″ C-CAM bass mid driver
1 x 25mm C-CAM Gold Dome tweeter
External Dimensions with all accessories fitted (H x W x D)
205 x 500 x 229 mm (81/16 x 1911/16 x 9″)
Packed Dimensions (H x W x D)
618 x 307 x 307 mm (245/16 x 121/16 x 121/16″)
Weight (each)
8.1 kg (17 lb 14 oz)
Sold As
Single
Warranty
5 years
