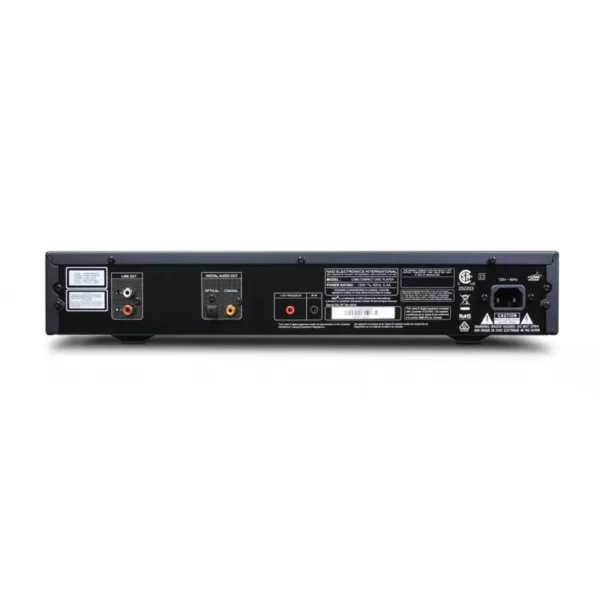

StereoPlus / NAD C 568
NAD C 568NAD C 568NAD C 568
NAD C 568
NAD C 568
NAD C 568

NAD C 568

999.00

CD atskaņotājs

SKU: NAD-C568 Category:

Description

Key Features

  • CD, CD-R and CD-RW Compatible
  • USB Input supports external memory and audio rates up to 384kbps
  • MP3 and WMA decoding
  • NAD CD-8 full function remote control
  • Ultra-High Precision Clock Module for lowest jitter
  • Wolfson 24 bit Digital to Analogue Converter
  • Super High-Speed OPAmps
  • Coaxial Digital Output
  • Optical Digital Output
  • Toroid Power supply with separate power regulators for analogue and digital sections
  • VFL Display with CD text
  • Selectable Track, Time and Repeat
  • Repeat Mode for single track or entire CD
  • Program Play up to 20 tracks
  • Random Play
  • External IR input
  • 12V Trigger input
  • <0.5 watt Standby consumption
  • Detachable AC cord

General Parameters

Output level

Analog: 2.2 ± 0.1 V
Optical: -22.5 ±3.5dBm
Coaxial: 650 ±150mV

Frequency response

±0.3 dB (ref. 0 dB 20 Hz-1 kHz)
±0.5 dB (ref. 0 dB 5 kHz-20 kHz)

Total harmonic distortion

<0.01% (ref. 1 kHz, Audio LPF)

Signal/Noise ratio 118 dB (ref. 1 kHz, A-weighted LPF Stop, Pause)

Channel balance ±0.5 dB (ref. 0dB 1kHz)

Dynamic range 95dB

Channel separation >90dB

De-emphasis

-3.73 to -5.33 dB (ref. 0dB 1 kHz, 5 kHz)
-8.04 to -10.04 dB (ref. 0dB 1 kHz, 16 kHz)

Linearity

±0.01 dB (ref. 0dB 1 kHz at -3 dB)
±0.02 dB (ref. 0dB 1 kHz at -6 dB)
±0.02 dB (ref. 0dB 1 kHz at -10 dB)
±0.05 dB (ref. 0dB 1 kHz at -20 dB)
±0.15 dB (ref. 0dB 1 kHz at -60 dB)

Standby power <0.5W

USB

Output level 2.2 ± 0.2V

Frequency response ±1dB (ref. 0dB 20Hz – 16kHz)

Total harmonic distortion <0.03% (ref. 0dB 1kHz, Audio LPF)

Signal/Noise ratio 118dB (ref. 0dB 1kHz, A-weighted Pause)

Weight & Dimensions

Gross Unit Dimensions* (W x H x D) 435 x 80 x 306mm | 17 1/8 x 3 3/16 x 12 11/16″**

Net weight 4.9kg (10.8lb)

Shipping weight 6.9kg (15.2lb)
