Description

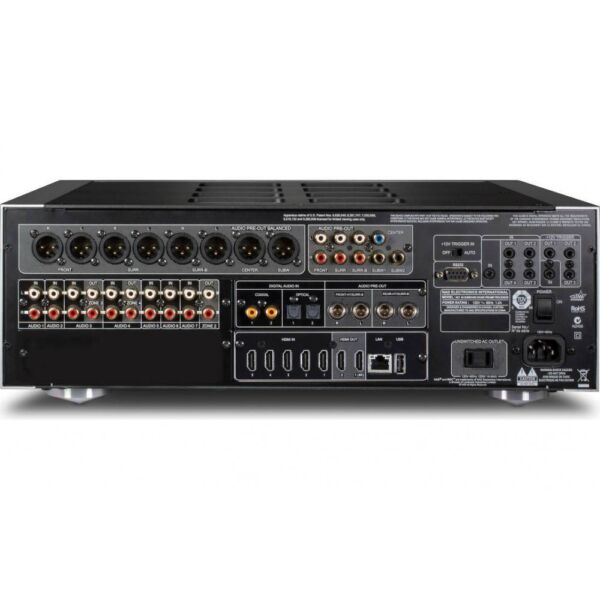

CONNECTIONS:
LINE INPUT/PRE OUT
HDMIUp to 4KUHD
Coaxial0.5 Vpp
EthernetRJ45 10/100/1000 Ethernet
LINE LEVEL INPUT
Input Impedance (R and C) 56kΩ + 220pF
Input Sensitivity 40mV (ref. 500mV out)
Maximum Input Signal>8Vrms
Signal/Noise Ratio, A-weighted
>90dB (ref. 500mV in, 500mV out, volume set to unity gain)
>80dB (ref. 2V out, volume maximum)Channel Separation
>70dB (ref. 1kHz / 10kHz)Frequency Response
±0.3dB (ref. 20Hz – 20kHz, Tone Active)
±0.3dB (ref. 20Hz – 20kHz, Tone Defeat)Frequency Response (subwoofer out)
10 – 200Hz (ref. -3dB)
OUTPUT
XLR>2Vrms
Maximum output level >8Vrms into 600Ω
THD (CCIF IMD, DIM 100) <0.005% (ref. 20Hz – 20kHz, 2V out)
Tone Controls Treble | ±10dB at 10kHz (ref. 2V in, 2V out)
Bass |±10dB at 100kHz (ref. 2V in, 2V out)
GENERAL
Standby power<0.5W
Unit Dimension (WxHxD) – Gross 435 x 156 x 386mm
Net Weight10.9kg
Shipping Weight17.5kg
