Description
OUTPUT POWER 250w(4Ω, 1kHz, THD 0.7%, 2ch driven) /
125w(8Ω, 20Hz-20kHz, THD 0.08%, 2ch driven)
AMPLIFIER CHANNEL 2 Ch
PRE AMPLIFIER CHANNEL 2.1 Ch
AMPLIFIER TYPE Class D
FREQUENCY RESPONSE 20Hz~30kHz(+1/-3dB)
TONE CONTROL (BASS / TREBLE) 100Hz ±10dB / 10kHz ±10dB
SPEAKER IMPEDANCE 4-16Ω

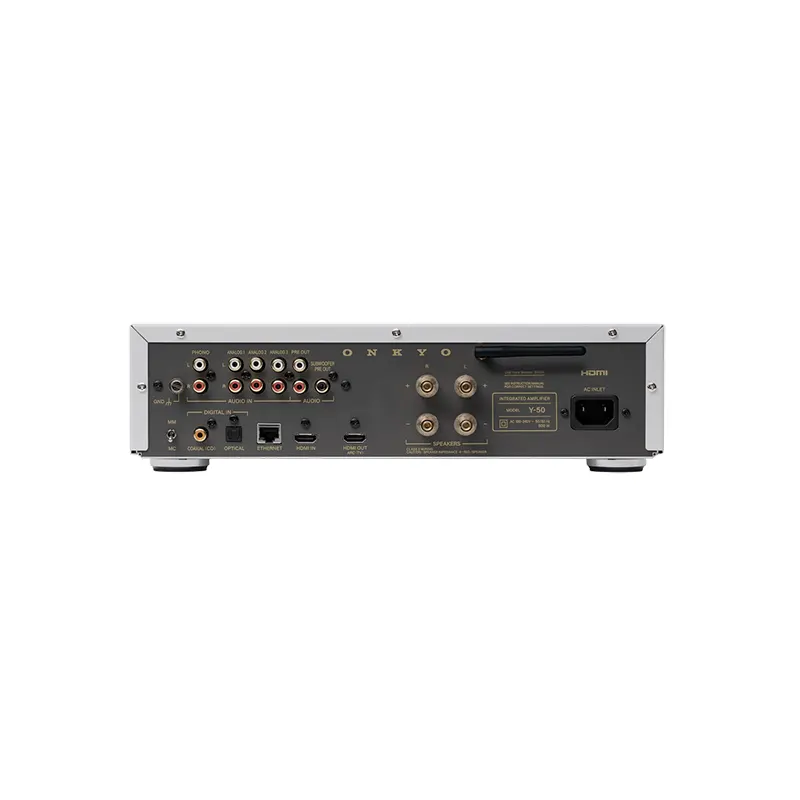

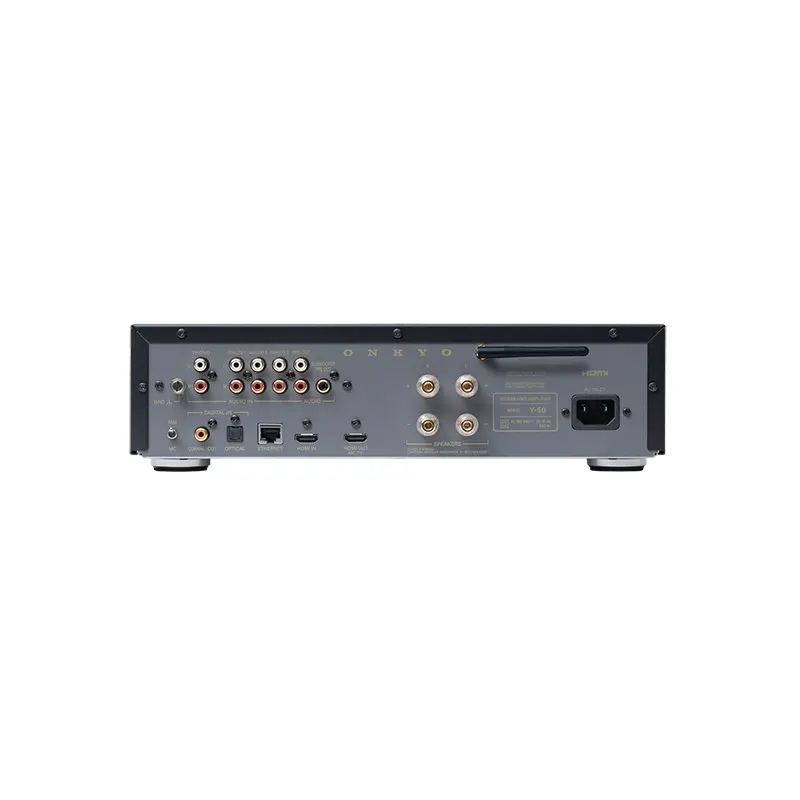

ANALOG AUDIO INPUT RCA (Unbalanced) x 3 Pair
DIGITAL AUDIO INPUT HDMI INx1 (4K/120p, 8K/60p, VRR, QFT, ALLM, QMS, DSC, HDCP2.3)
HDMI OUTPUT 1
PHONO INPUT 1 Pair (MM/MC)
AUDIO PRE OUTPUT RCA (Unbalanced) x 1 Pair
SUBWOOFER OUTPUT 1 Ch
HEADPHONE OUTPUT 1/4”(6.3mm) Jack
NETWORK CONNECTIVITY Ethernet Terminal(10BASE-T/100BASE-TX)
BLUETOOTH SBC, AAC
ROOM CALIBRATION Original (Onkyo Room EQ)
PRODUCT DIMENSIONS (W X H X D) 13.8” (350mm) x 3.9” (99mm) x 13.3” (337mm)
PRODUCT WEIGHT 10.8 lb. (4.9 kg)
PACKAGE DIMENSIONS (W X H X D) 18.3” (465mm) x 8.9” (225mm) x 15.9” (405mm)
PACKAGE WEIGHT CUM: 16.8lbs (7.6 kg), CUP:16.3lb (7.4kg),
CUR/CUJ: 15.9lb (7.2kg)
POWER CONSUMPTION 115w, 1.8w (idle), Less than 0.4w (Standby
