Description
Input impedance: Stepless 10 – 1000 ohms or fix 47kOhms
Input capacitance: 50, 150, 300, 400 pF
Gain (+ 6dB using XLR Out sockets): 40, 45, 50, 55, 60, 65 dB
Signal / Noise ratio MM (40dB): 104dBV, 111dBV – ‚A‘ weighted
Signal / Noise ratio MC (60dB): 85dBV, 91dBV – ‚A‘ weighted
THD at 1 kHz: <0,001% MM, < 0,004% MC
THD (20Hz-20kHz): <0,005% MM, < 0,01% MC
RIAA equalization curve accuracy: < 0,25dB / 20Hz – 20kHz
Subsonic filter: at 20Hz with 18dB/octave

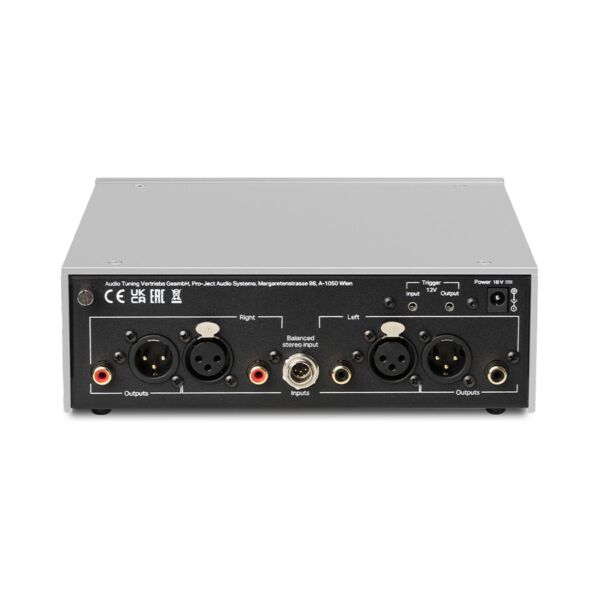

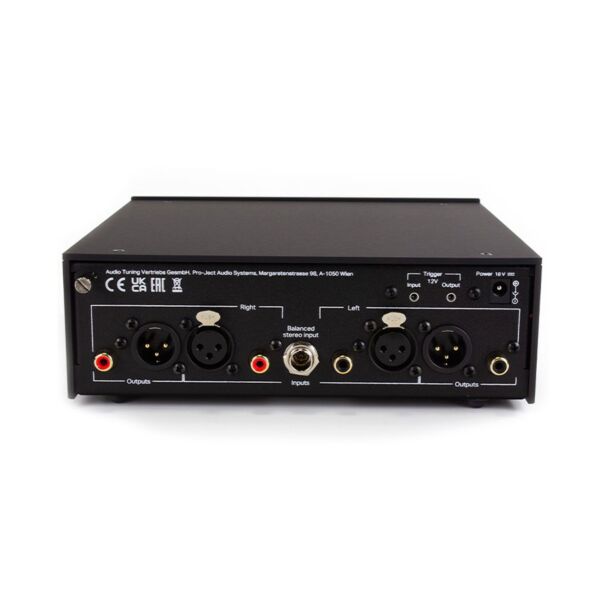

Input: 1x 5-pin mini XLR / 1x pair XLR / 1x pair RCA phono
Line-level output: 1x pair RCA, 1x pair XLR
Wiring XLR sockets: 1 ground, 2 “hot” and 3 “cold”
Trigger In/Out: 12V on/off detector
Power supply DC: 18V/500mA
Power consumption: 18V/max.290mA DC, <0.5 W standby
Dimensions: 206 x 72 x 194 (205 with sockets) mm
Weight: 1480g without power supply
