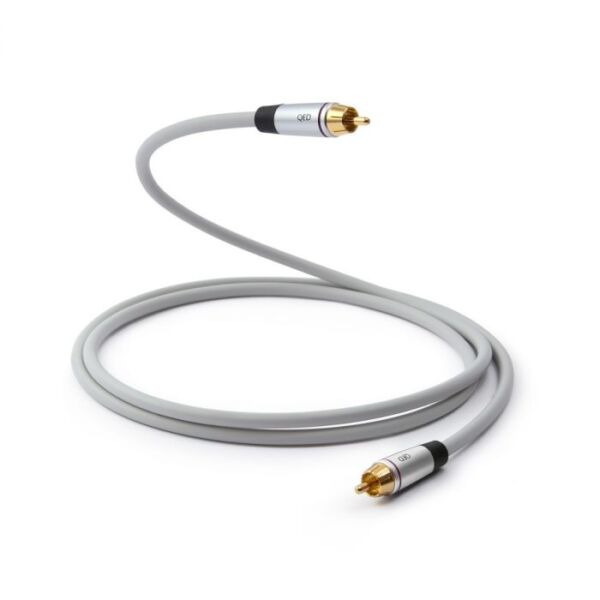

Description
Product Features
- True 75Ω digital audio cable geometry
- Solid-core 99.999% oxygen-free copper conductor
- Dual-screen electromagnetic protection
- Foamed polyethylene dielectric
- Gold-plated RCA/phono connectors
- Flexible TPE outer jacket
Technical Specifications
- Conductor Material: Solid 99.999% Oxygen-Free Copper
- Conductor Construction: 1 × 1/0.58 mm (23 AWG)
- Screening Material: Aluminium/Mylar Foil Plus Tinned Copper Shield Braid
- Dielectric: Extruded Foamed Polyethylene
- Loop Resistance: 0.075 Ω/m
- Parallel Capacitance: 58 pF/m
- Loop Inductance: 0.39 μH/m
- Dissipation Factor: 0.0090 @10kHz
- Characteristic Impedance: 75 Ω
- Outside Diameter: 6 mm
