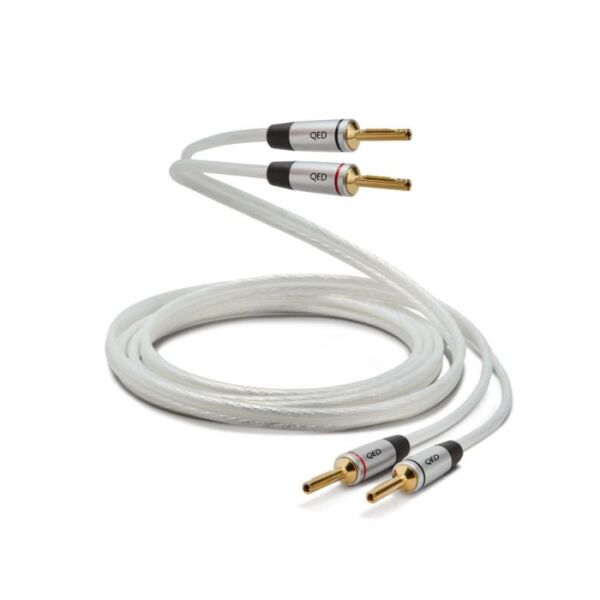

QED Performance Speaker Cable

Description

Product Features

• 2.5 mm² conductor cross-sectional area
• X-Tube Plus™ Technology
• 99.999% oxygen-free copper conductors
• Low-loss LDPE dielectric
• Airloc™ cold-weld terminations
• Banana plug and spade terminated options
• Available in pre-terminated and reel formats

Technical Specifications

• Conductor Material: Stranded 99.999% Oxygen-Free Copper
• Construction: 10 × 19/0.13 mm
• Stranded Diameter: 2.1 mm
• Cross-Sectional Area: 2.5 mm² (AWG14)
• Dielectric: LDPE
• Loop Resistance: 0.017 Ω/m
• Parallel Capacitance: 26 pF/m
• Loop Inductance: 0.56 μH/m
• Dissipation Factor: 0.0009 @10kHz
• Characteristic Impedance: 147 Ω
• Jacket Outside Diameter: 3.96 × 9 mm
• Jacket Finish: Translucent White
