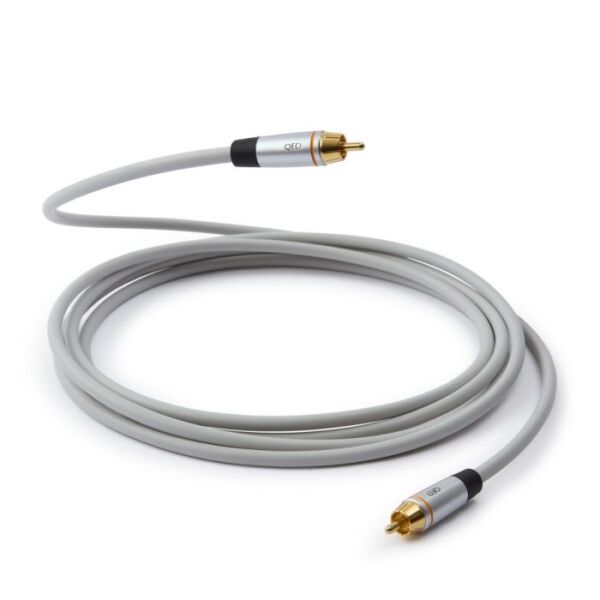

Description
Product Features
- Solid Complementary Conductor™ Technology
- Ferrite Insulation Technology™
- Dual electrostatic screening
- Foamed polyethylene dielectric
- Gold-plated phono connectors
- Ultra-flexible TPE jacket
Technical Specifications
- Conductor Material: Solid Enamelled 99.999% Oxygen-Free Copper
- Conductor Construction: (1 × 1/0.511 + 1 × 1/0.254) [24 AWG]
- Screening Material: Ferrite Jacket, Aluminium Mylar Wrap and 100% Shield Braid
- Dielectric: Foamed Polyethylene
- Loop Resistance: 0.081 Ω/m
- Parallel Capacitance: 66 pF/m
- Loop Inductance: 0.38 μH/m
- Dissipation Factor: 0.0124 @10kHz
- Characteristic Impedance: 75 Ω
- Outside Diameter: 6 mm
- Jacket Finish: Cool Grey TPE
