Description
Audio Processing
• Premium DAC : ESS 9039Q2M high-performance DAC
• Bit-Perfect Playback : Supports up to 192kHz/24-bit audio
• Dynamic Range : ≥120dB for high-resolution sound
• Pure Analog Input : No ADC conversion, maintaining signal integrity

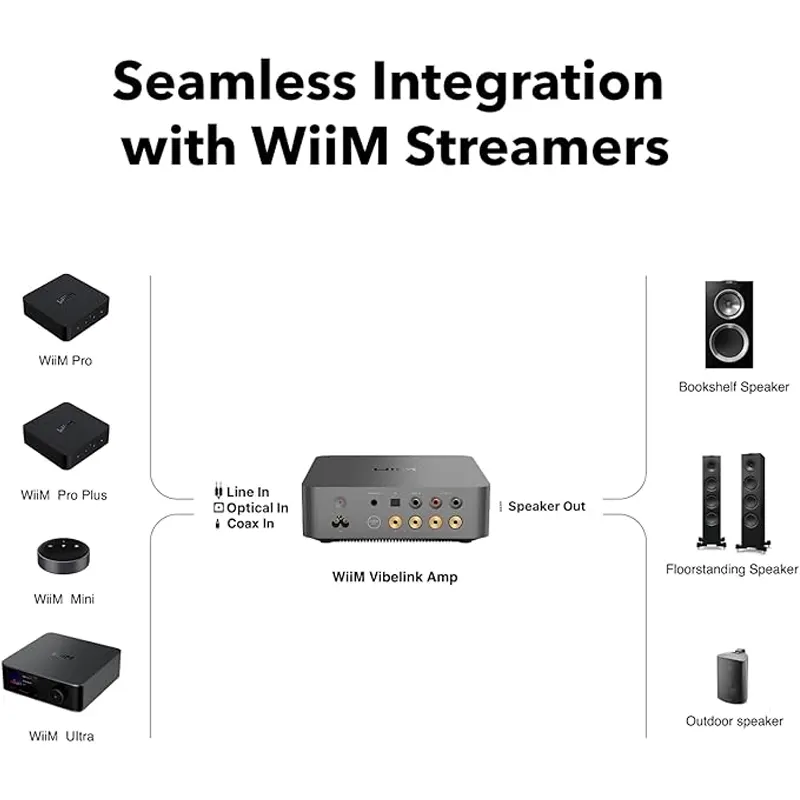

Input & Output Options

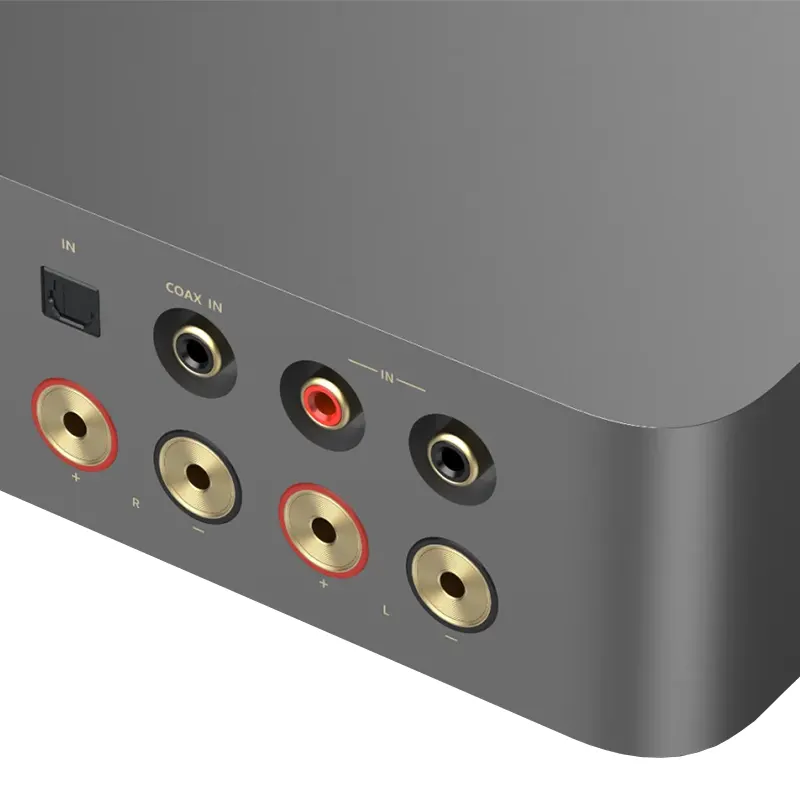

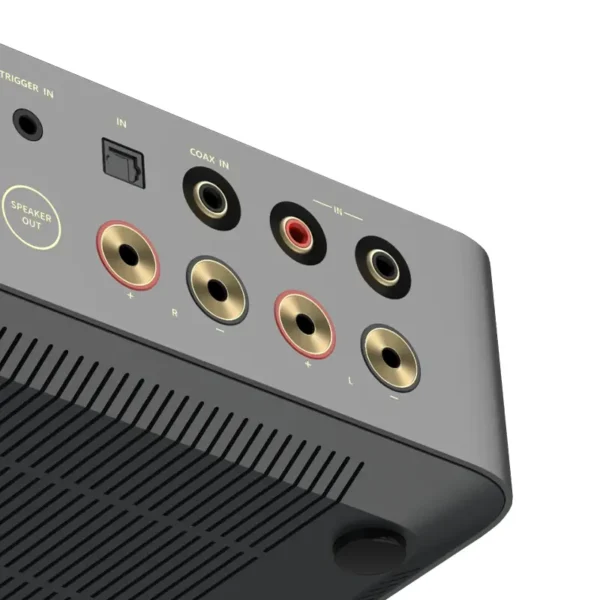

Analog Inputs:
• 1x RCA Stereo (Line-In, pure analog signal path)
✅ Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
✅ Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
✅ Trigger & Power Management:
• 12V Trigger In: Auto power-on with compatible devices
• Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity
Supported Audio Formats
PCM up to 192kHz/24-bit (through digital sources)

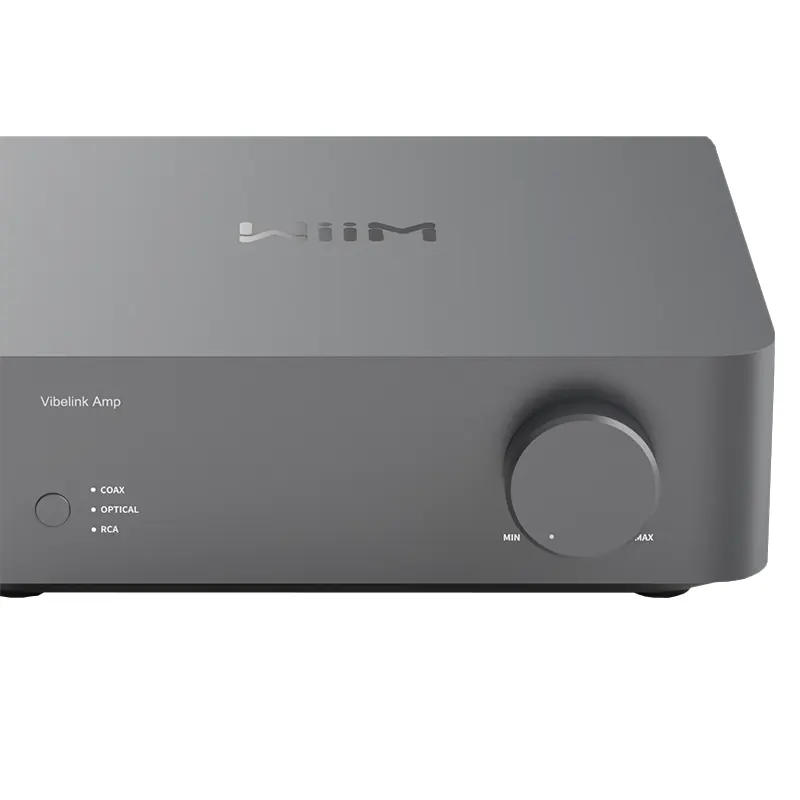

Control Interfaces
Volume Knob: Adjusts volume
LED Indicator: Three 4-color RGBW LED indicates source input and device status
Build & Design
• Chassis: Premium unibody aluminum for durability & heat dissipation
• Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
• Cooling System: Passive, silent operation
