Description
Size & weight
Dimensions
Height: 1221mm (48.1 in) including tweeter and plinth
Width: 372mm (14.6 in) cabinet only, 447mm (17.6in) including plinth
Depth: 556mm (21.9in) including grille and terminals, 597mm (23.5in) including plinth
Net weight
106.4kg (234.6lbs)
Technical details
Technical features
Diamond dome tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST midrange
Anti-Resonance plug
Biomimetic Suspension
Turbine Head
Matrix™
Aerofoil™ base cones
Flowport™
Description
3-way vented-box system
Drive units
1x ø25mm (1in) Diamond dome high-frequency
1x ø150mm (6in) Continuum cone FST midrange
2x ø250mm (10in) Aerofoil™ bass
Frequency range
-6dB 13Hz to 35kHz
Frequency response
15Hz to 28kHz (+/-3dB)
Sensitivity
90dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 30Hz – 20kHz
<0.3% 100Hz – 8kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 1000W into 8Ω on unclipped programme
Max recommended cable impedance
0.1Ω
Finishes
Cabinet finishes

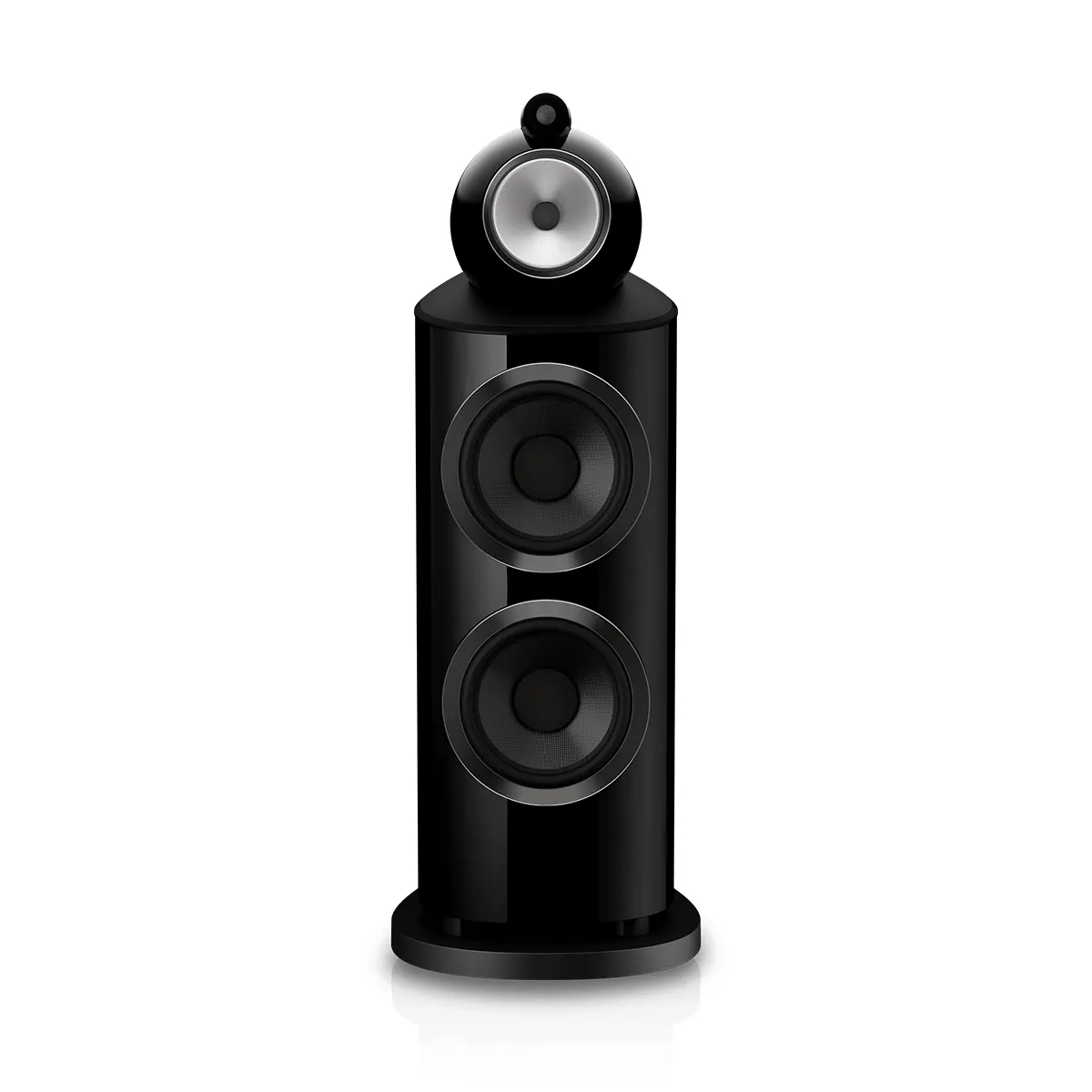

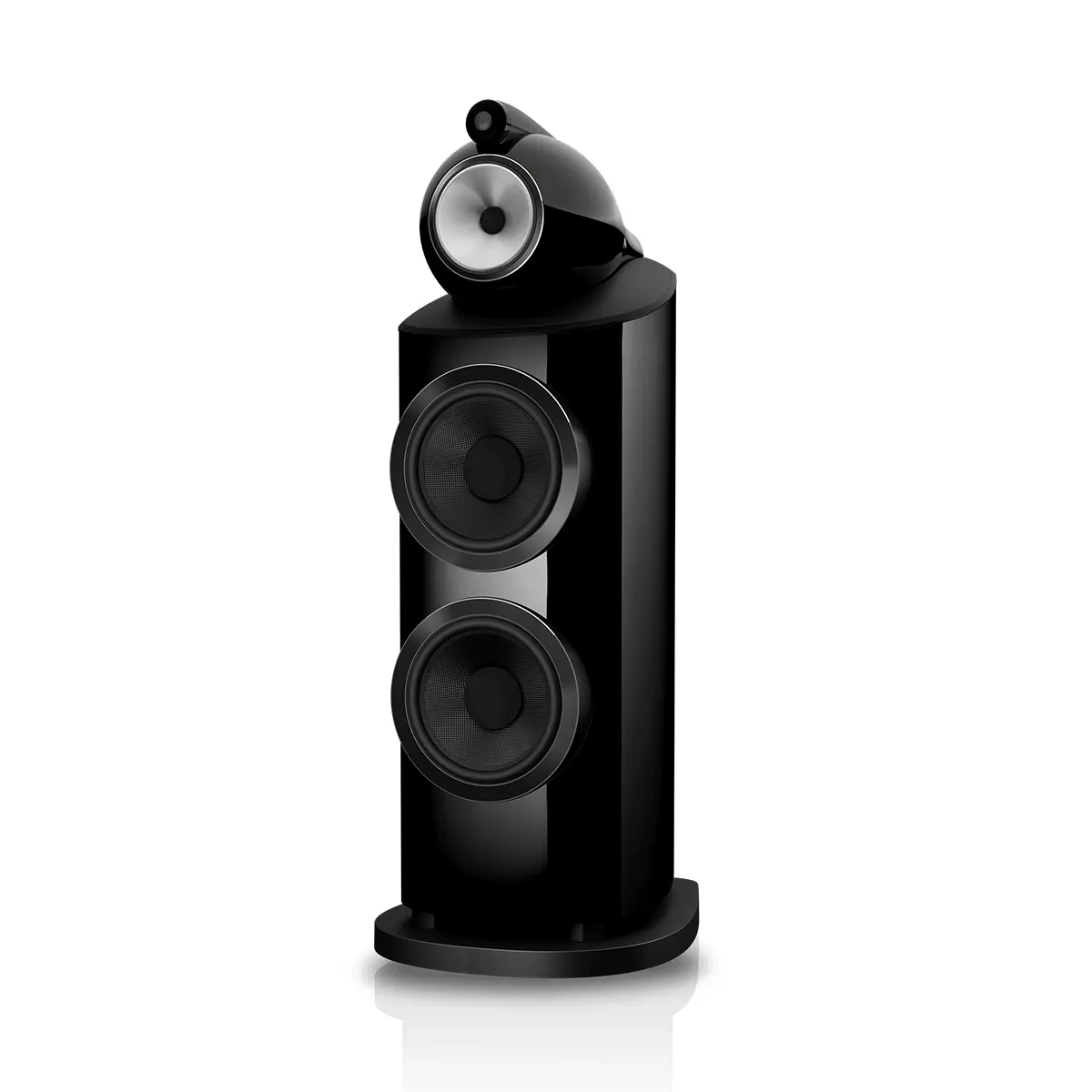

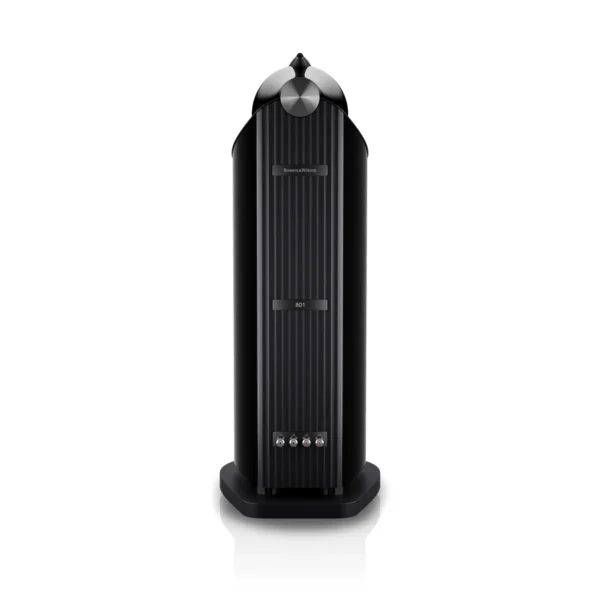

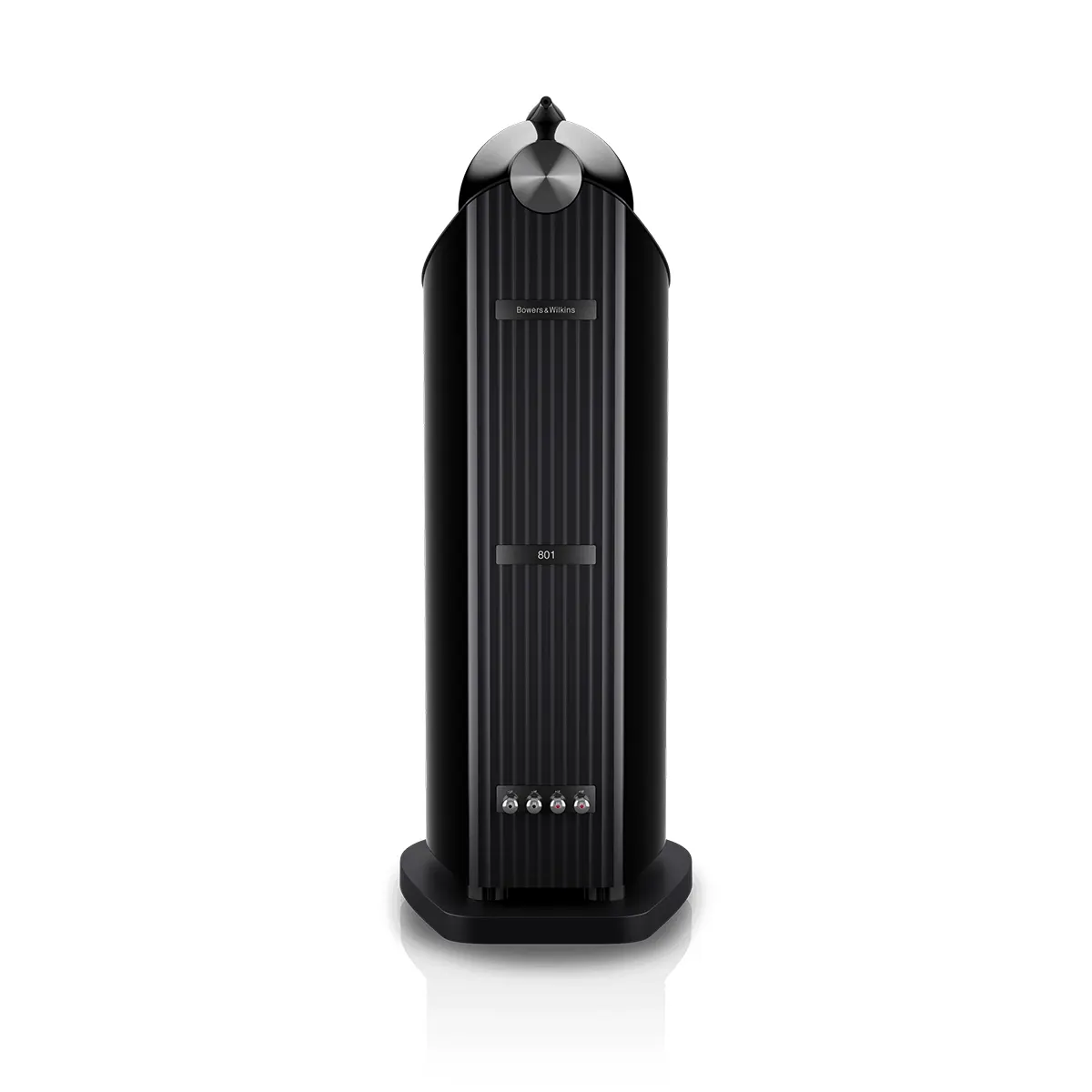

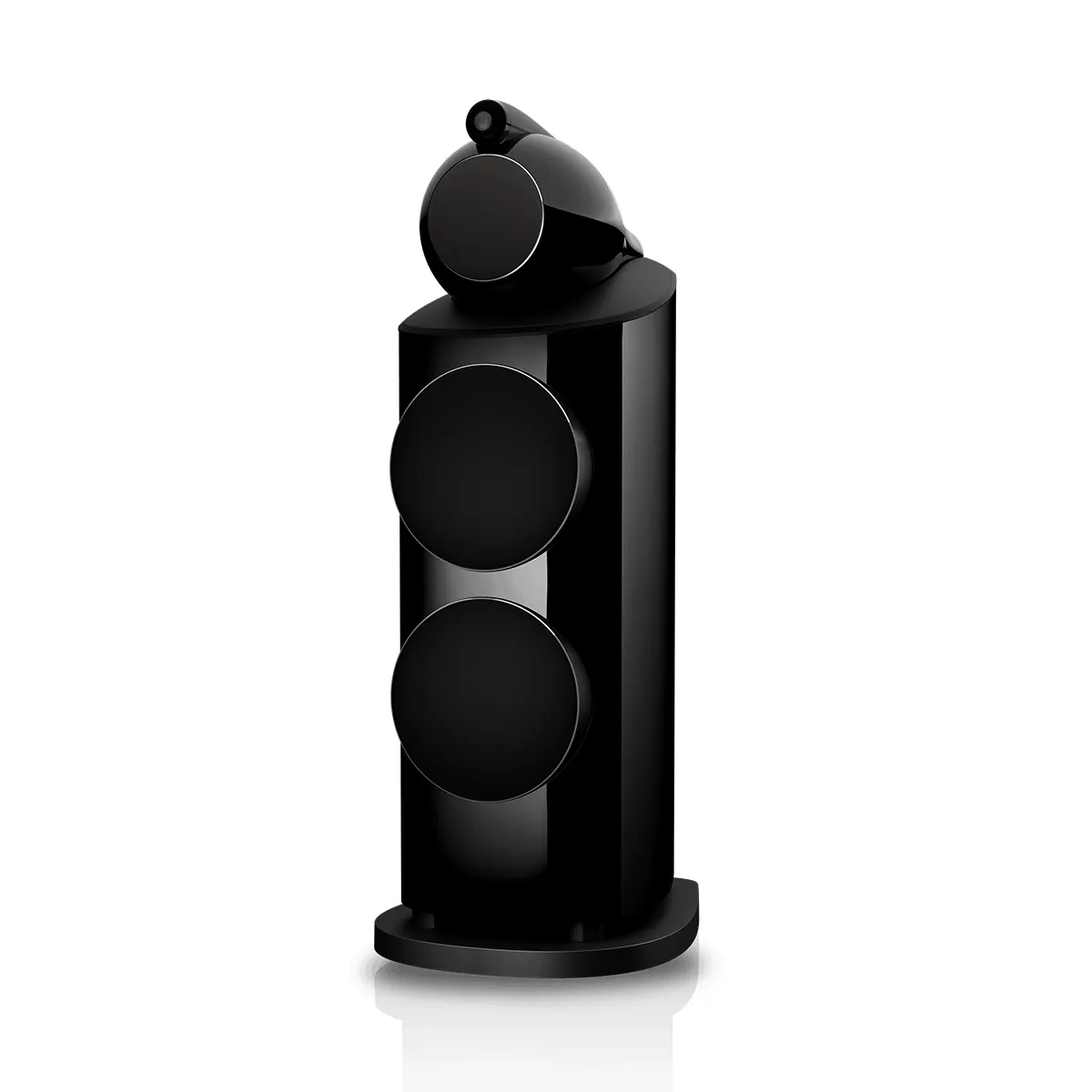

Stealth Black

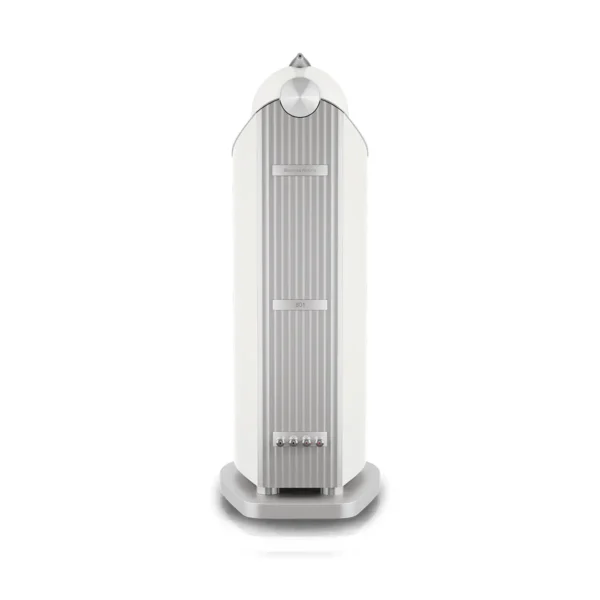

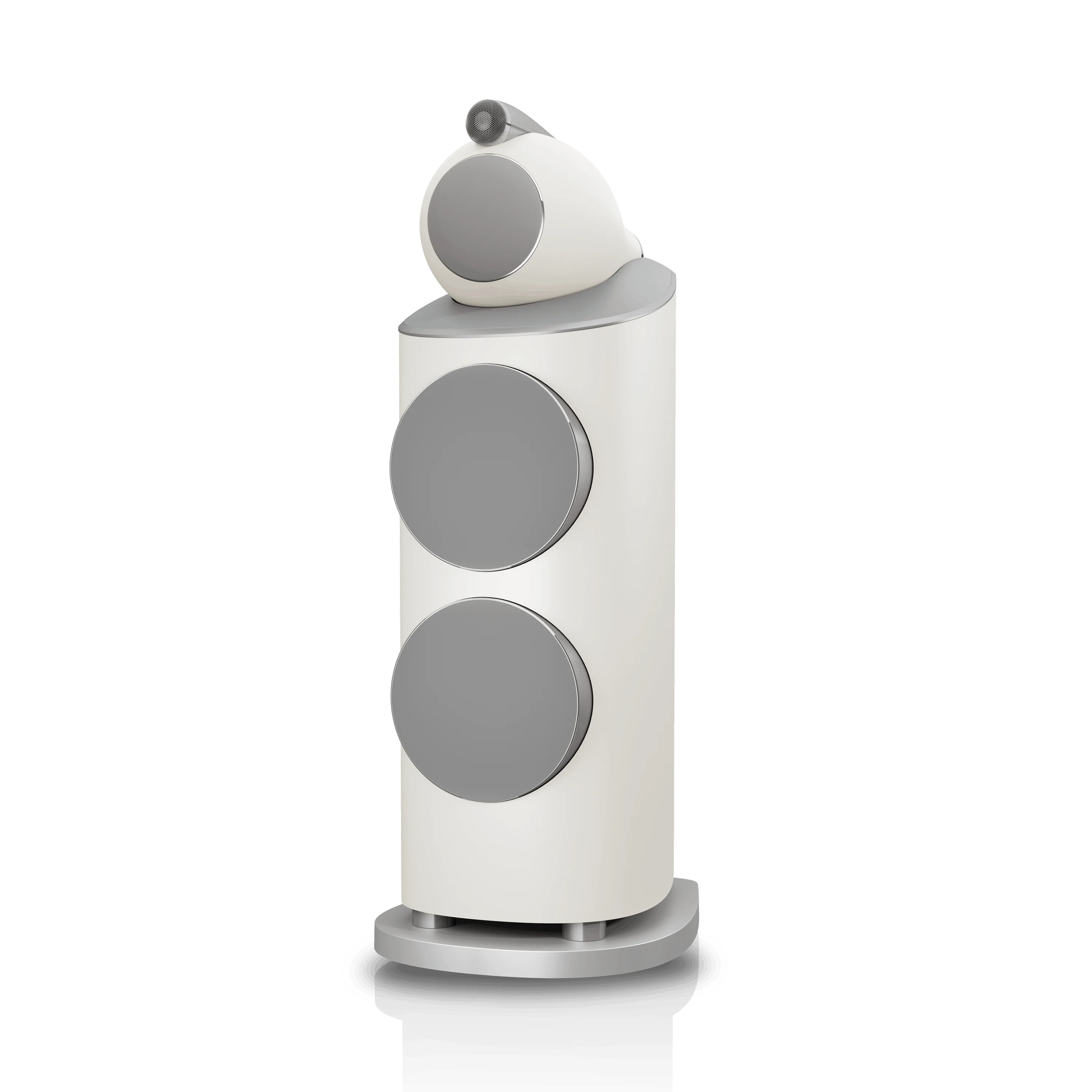

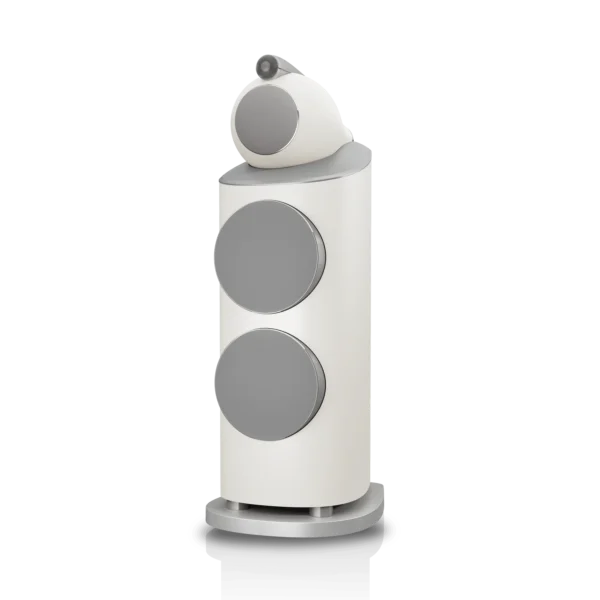

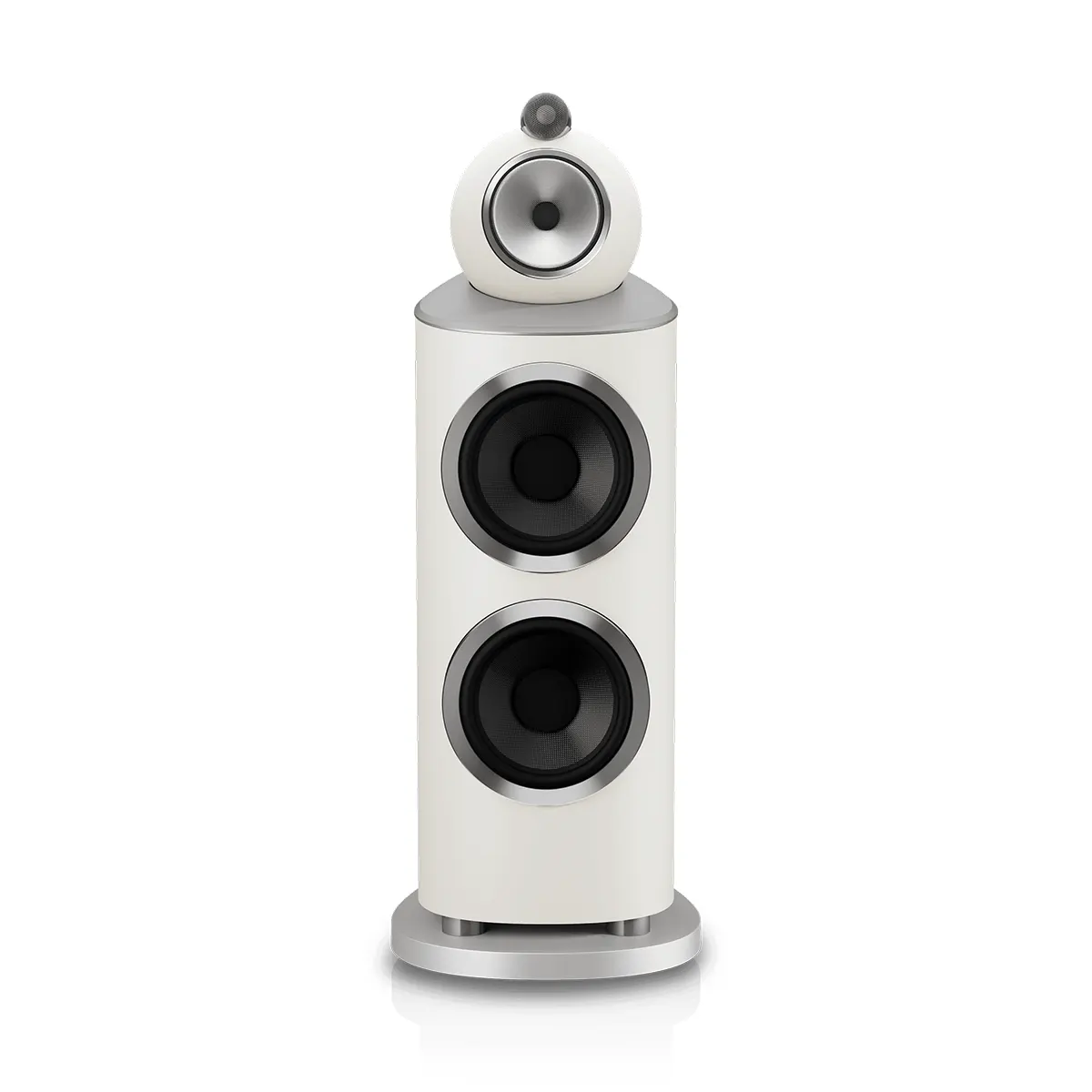

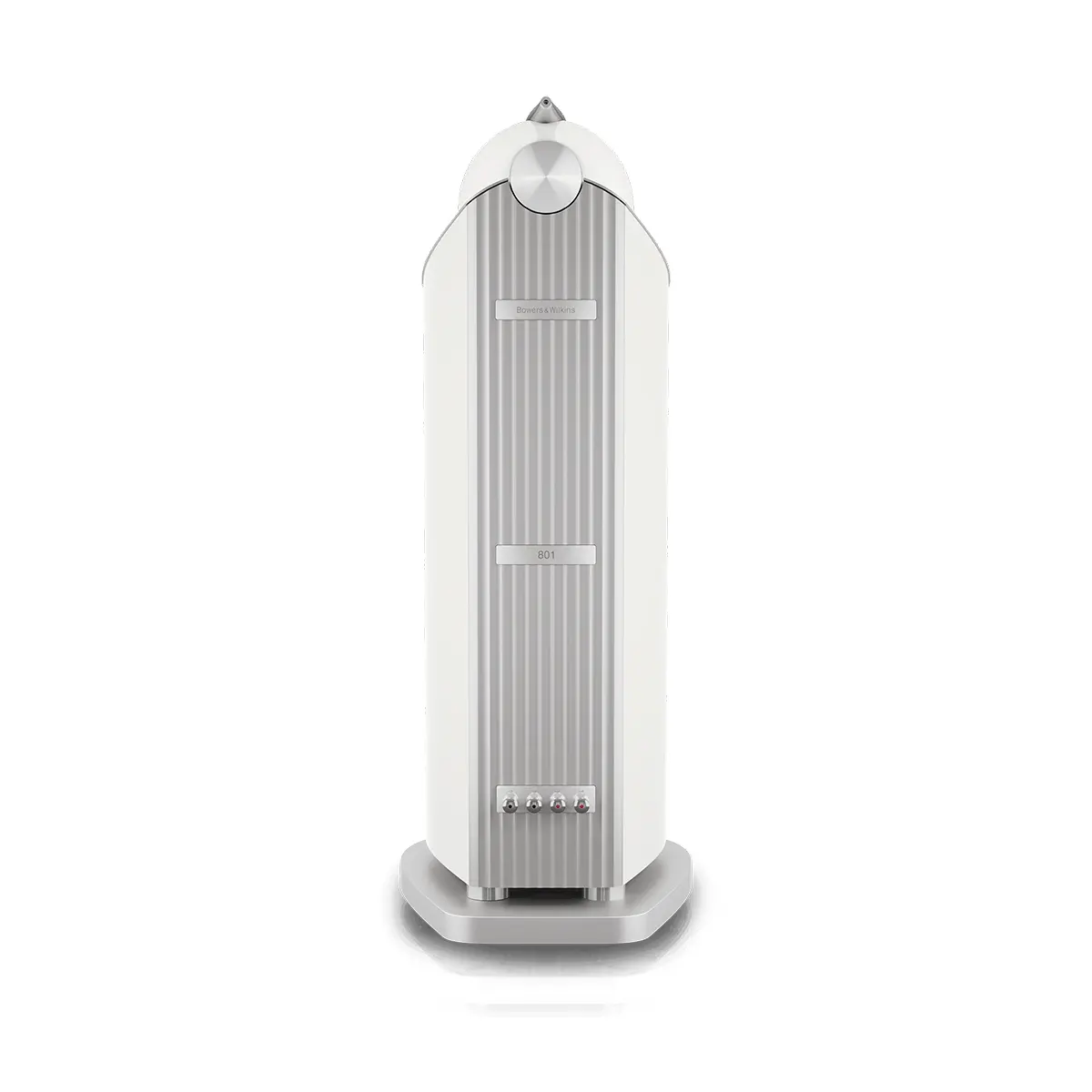

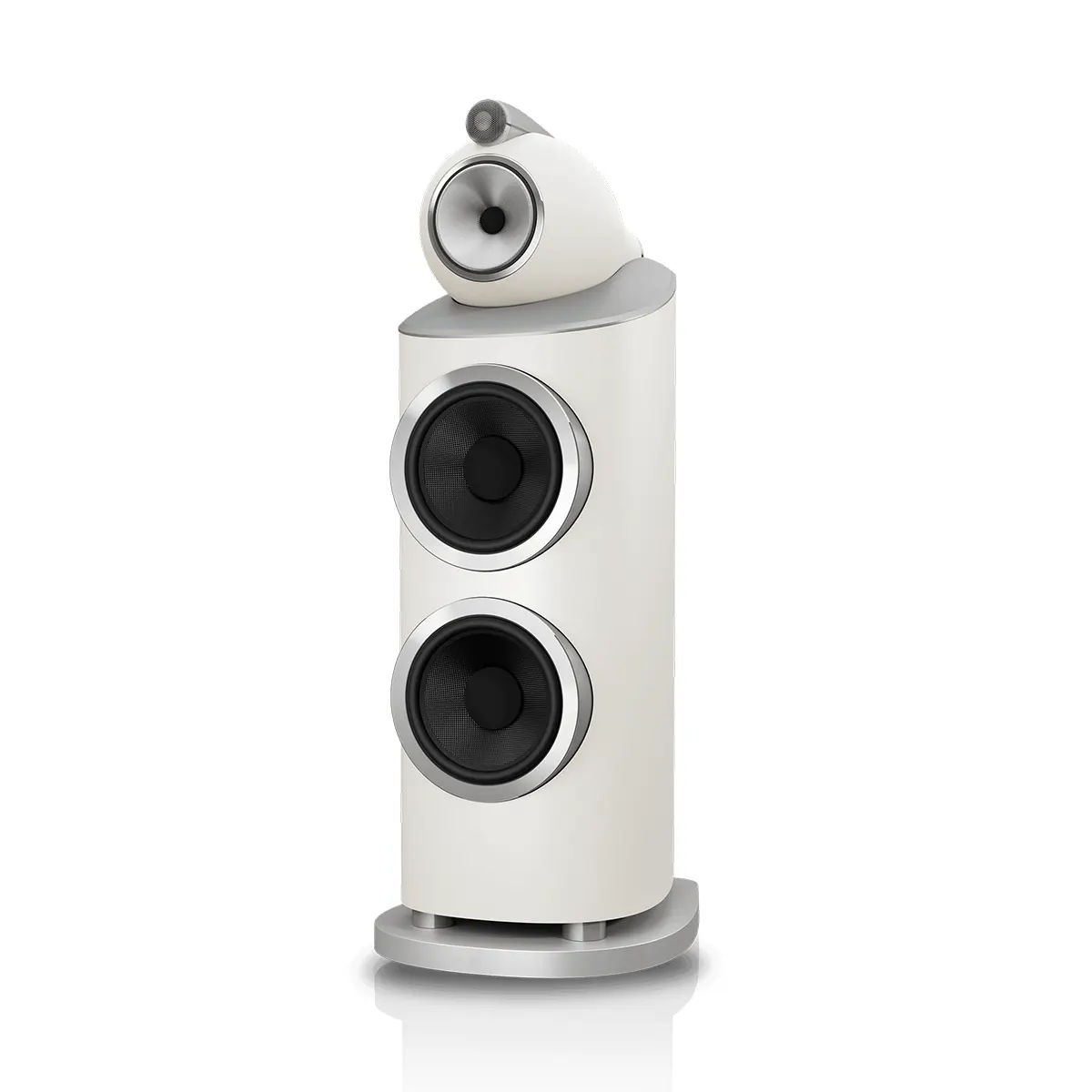

Warm White

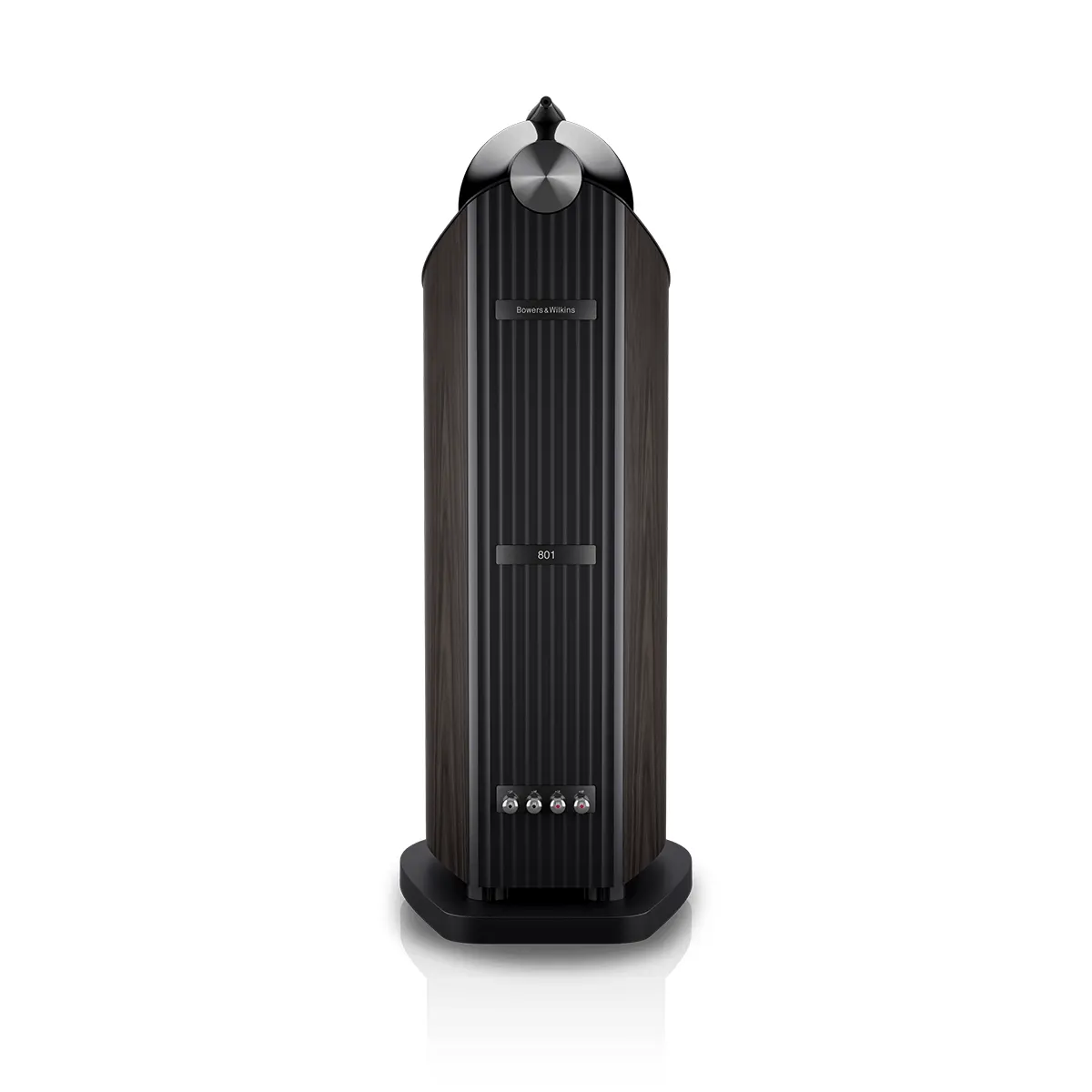

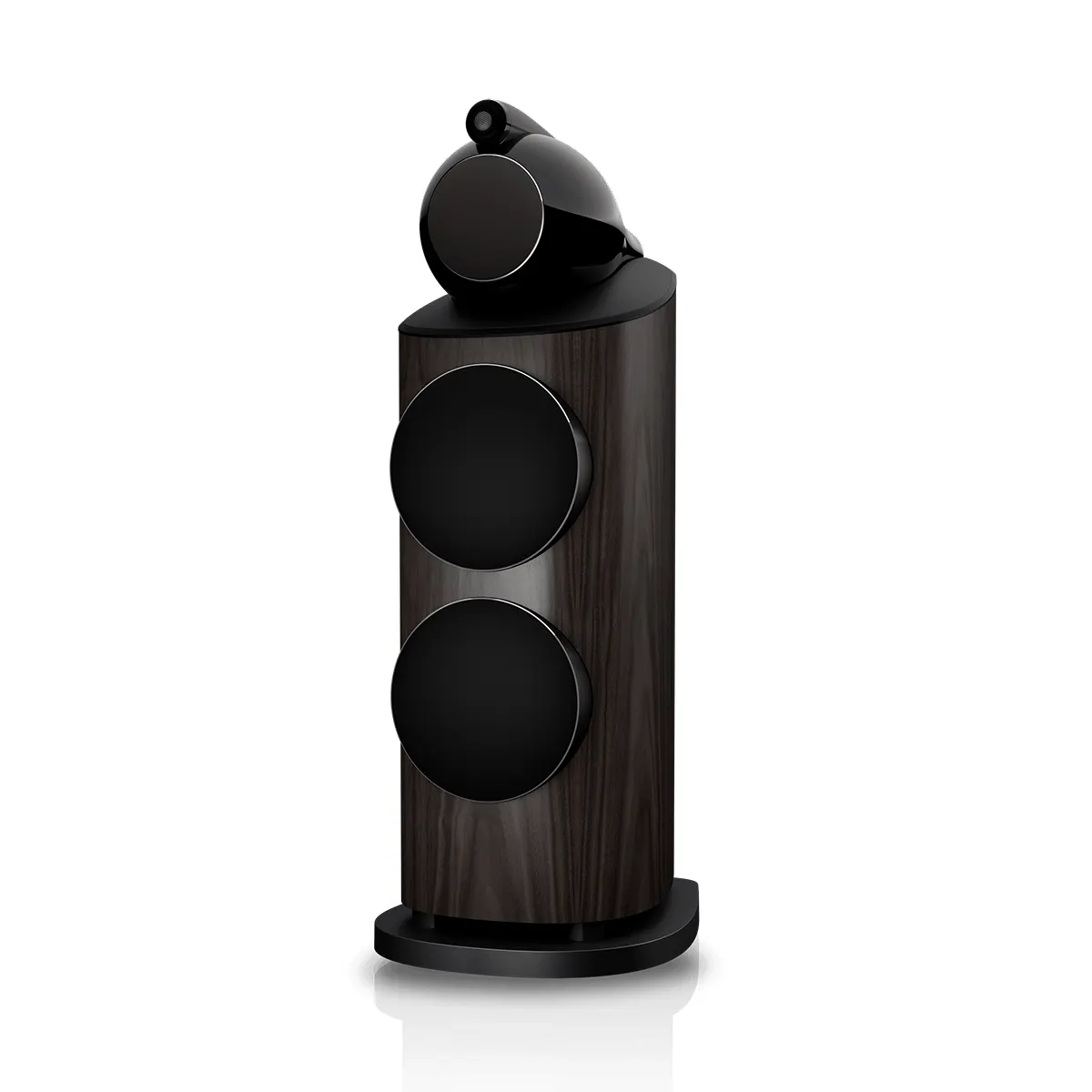

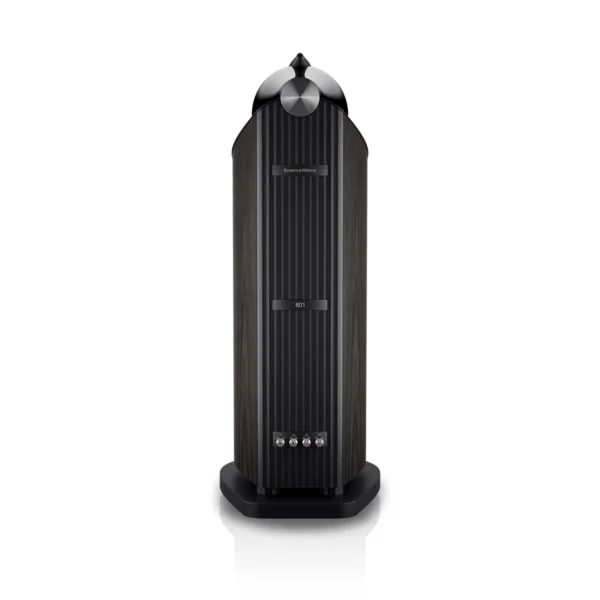

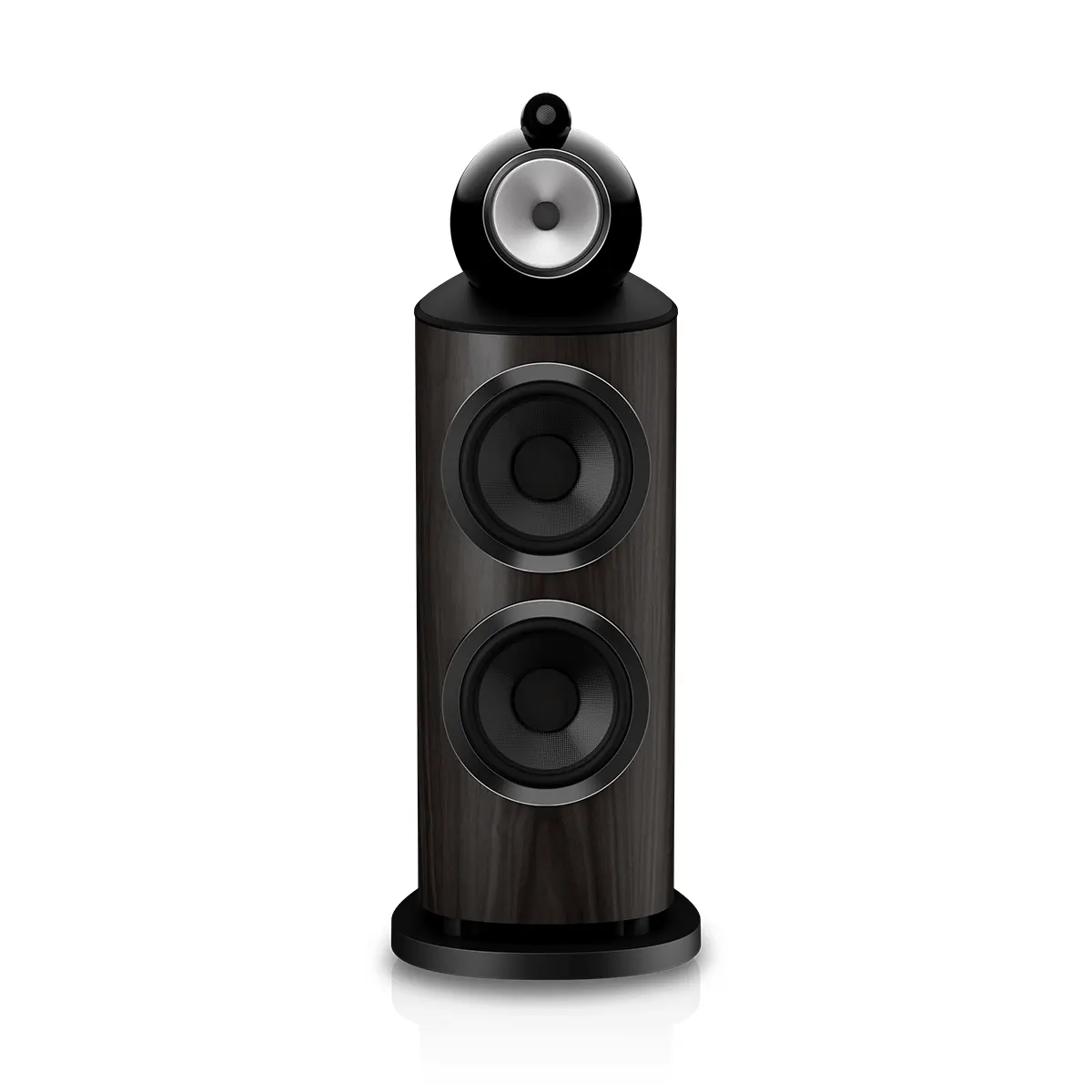

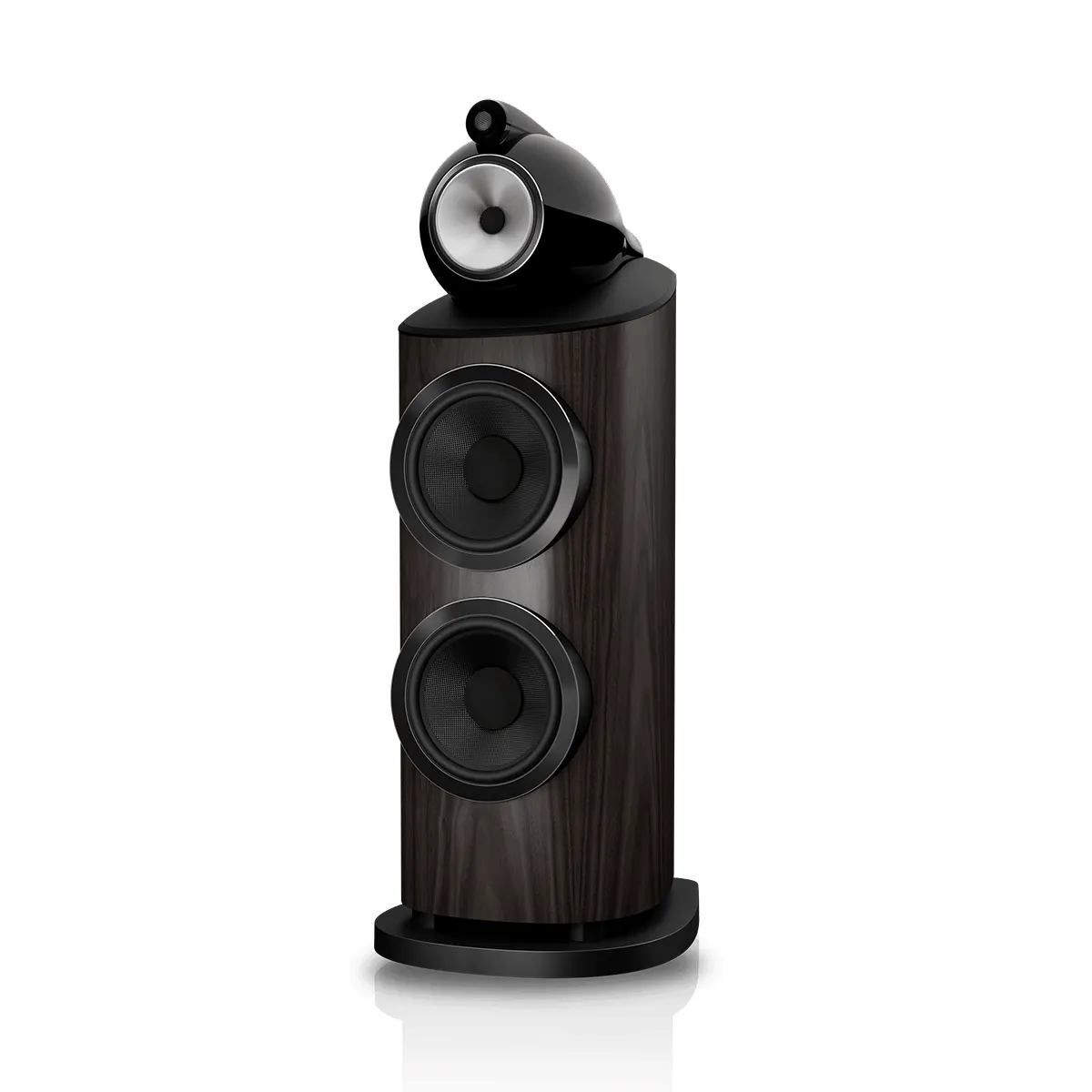

Dark Walnut

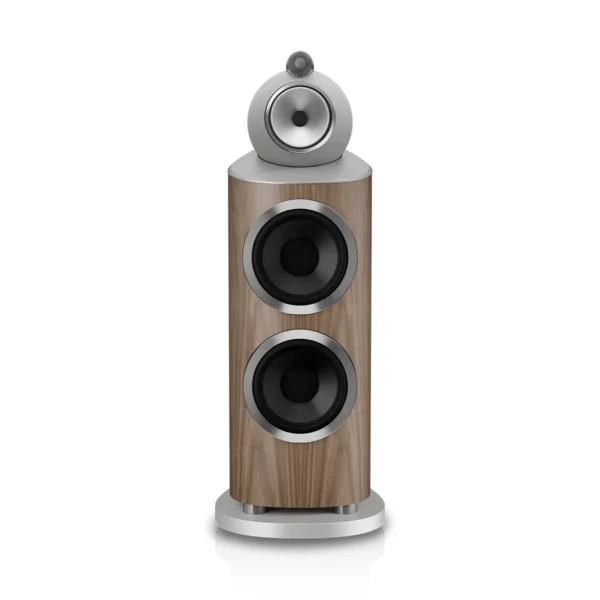

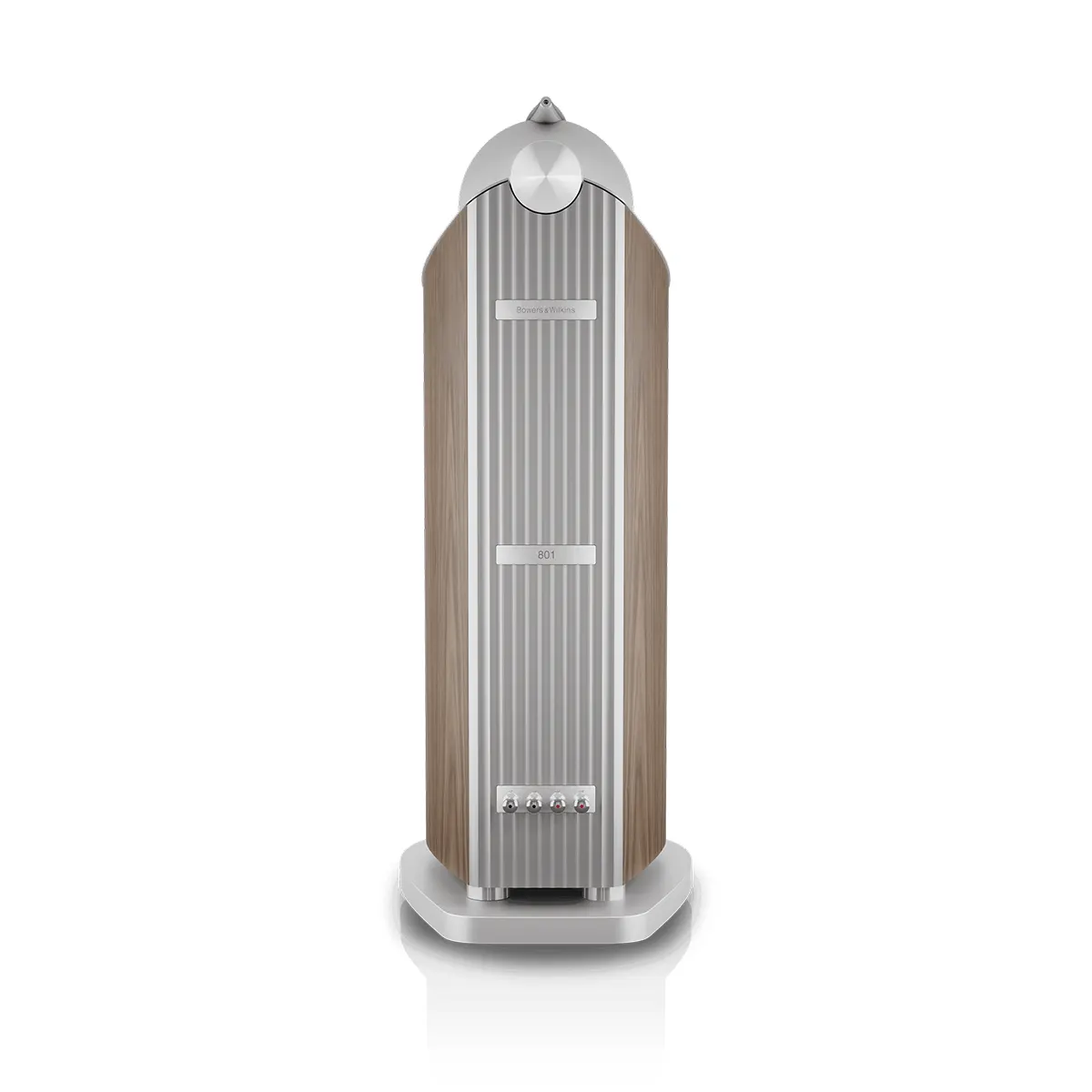

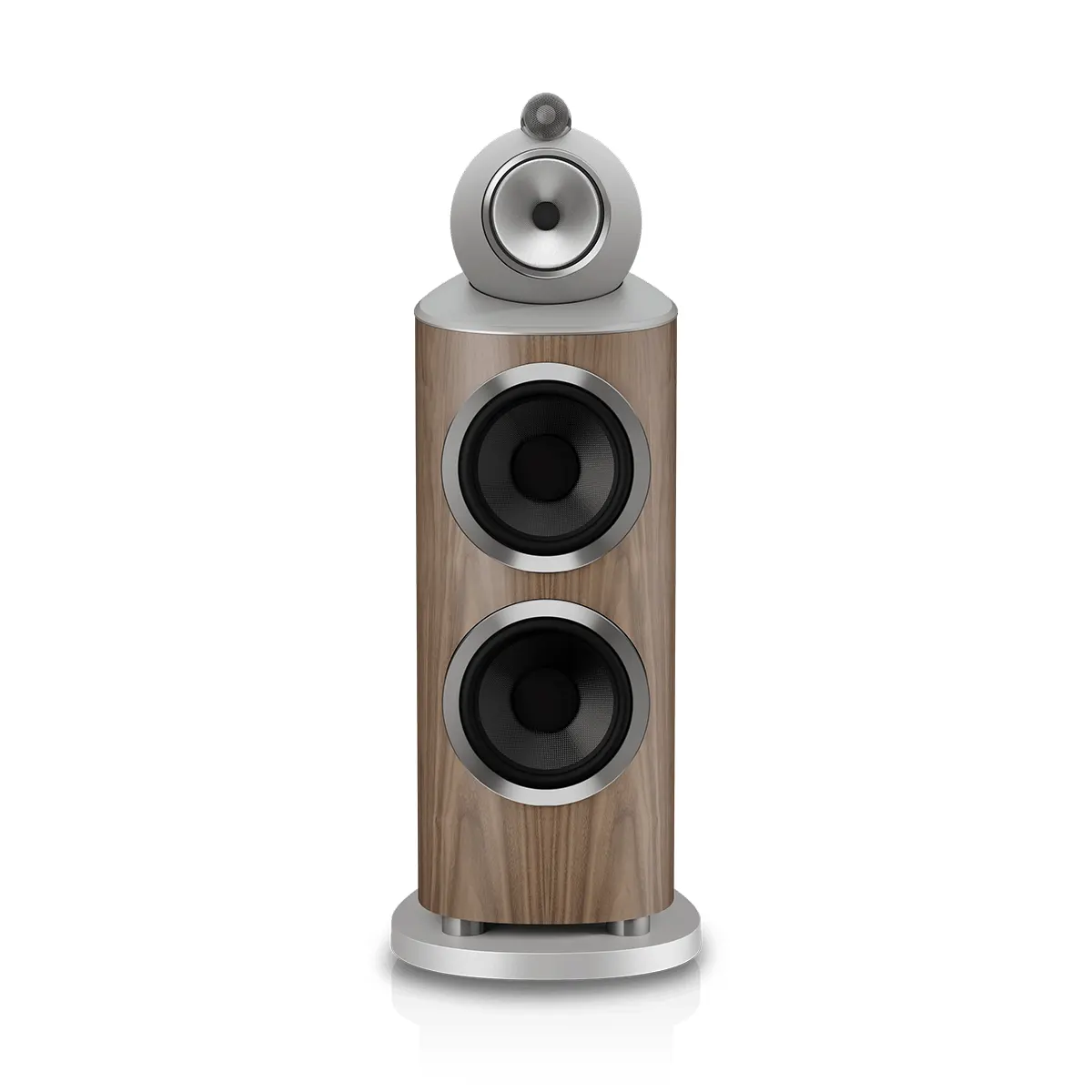

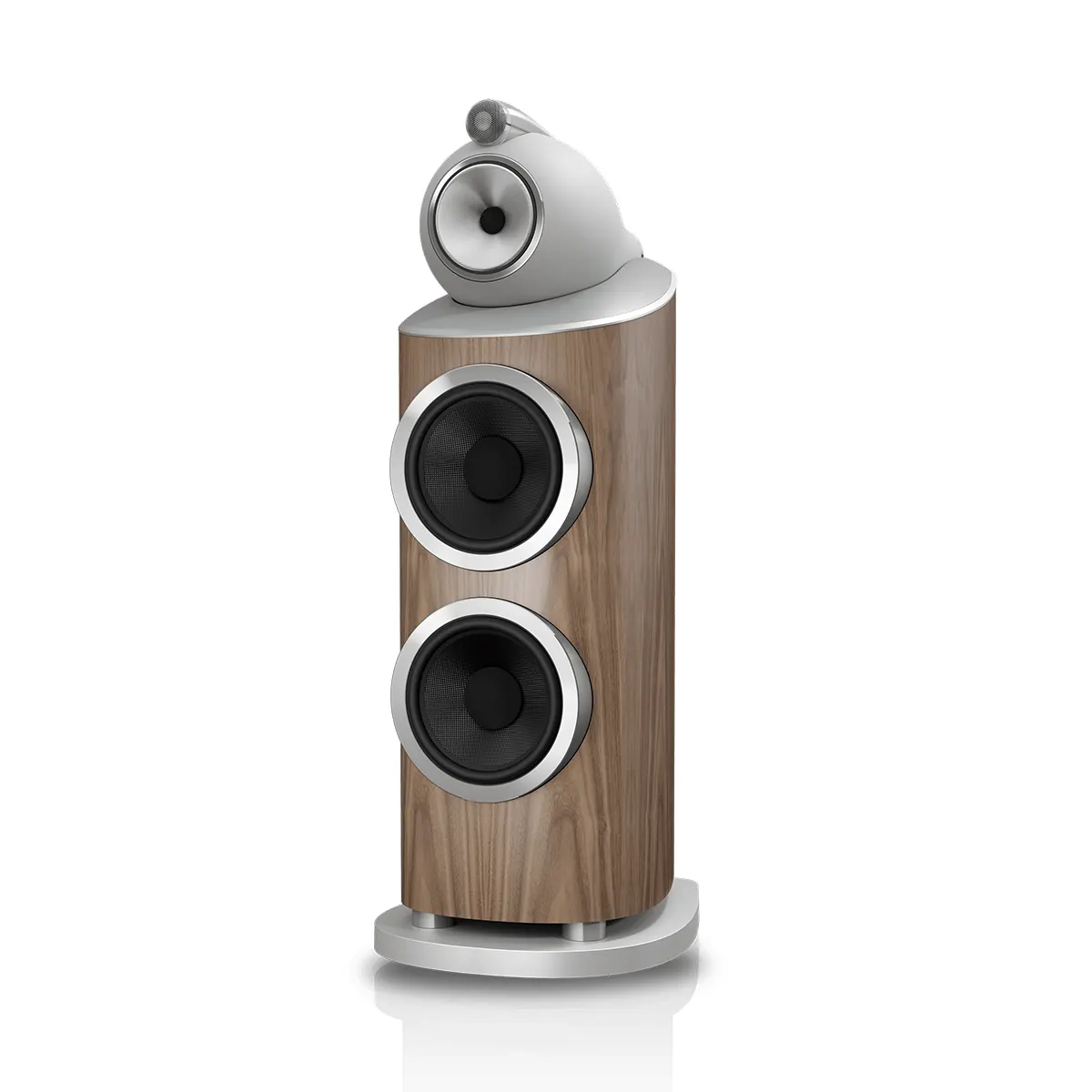

Light Walnut
Grille finishes
Black (Stealth Black and Dark Walnut)

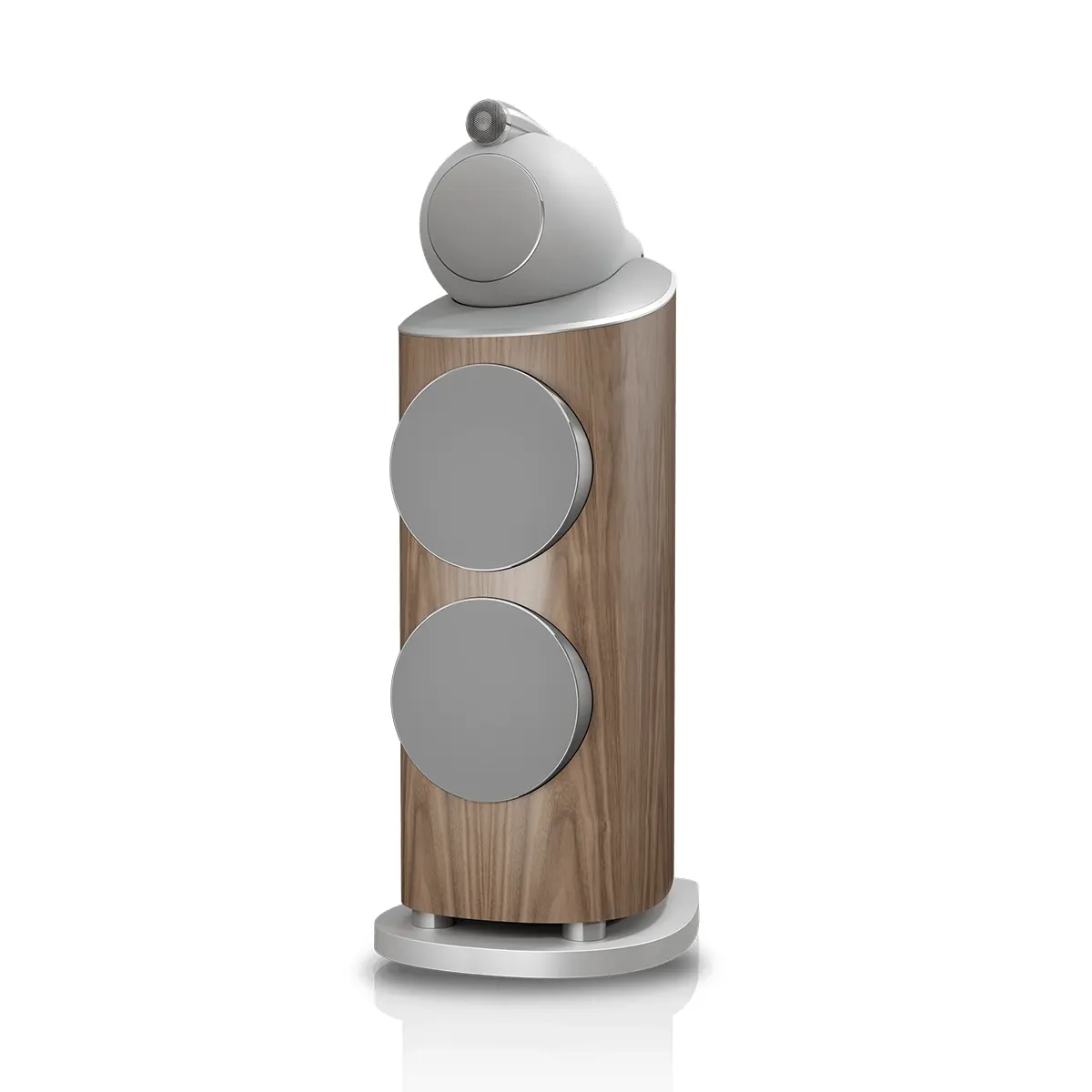

Grey (Warm White and Light Walnut)
