Description
| POWER OUTPUT | 100 watts (into 8Ω) |
| THD (UNWEIGHTED) | <0.01% @ 1kHz, 80% of rated power <0.15% 20Hz – 20kHz, 80% of rated power |
| FREQUENCY RESPONSE (-1DB) | 5Hz – 50kHz |
| S/N RATIO (REF 1W) | >82dB (unweighted) |
| INPUT IMPEDANCES | 47k ohms |
| POWER AMP DAMPING FACTOR | >50 |
| STANDBY POWER CONSUMPTION | <0.5W |
| MAX. POWER CONSUMPTION | 550W |
| BASS/TREBLE CONTROLS | Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz |
| SUBWOOFER OUTPUT | 200Hz 2nd order L+R Level follows volume setting |
| DIGITAL INPUTS | PCM 16-24-bit S/P DIF Co-axial 32-192kHz TOSlink Optical 32-192kHz |
| DIMENSIONS | 110 x 430 x 340mm (4.3 x 16.9 x 13.4”) |
| WEIGHT | 8.1kg (17.8lbs) |
| BLUETOOTH | 5.0 A2DP/AVRCP supporting SBC |
| TUNER BANDS | European AM (522-1629kHz) FM (87.5-108MHz) / AM (540 – 1700kHz) FM (88 – 108MHz) |
| AERIAL INPUTS | FM 75 ohms, Coaxial. AM 300 ohms wire loop/ single wire |
| SIGNAL TO NOISE (TUNER) | 60dB typical (FM) |
| DISTORTION (TUNER) | <0.4% @ 1kHz 50kHz deviation (FM mono) <0.6% @ 1kHz 50kHz deviation (FM stereo) |

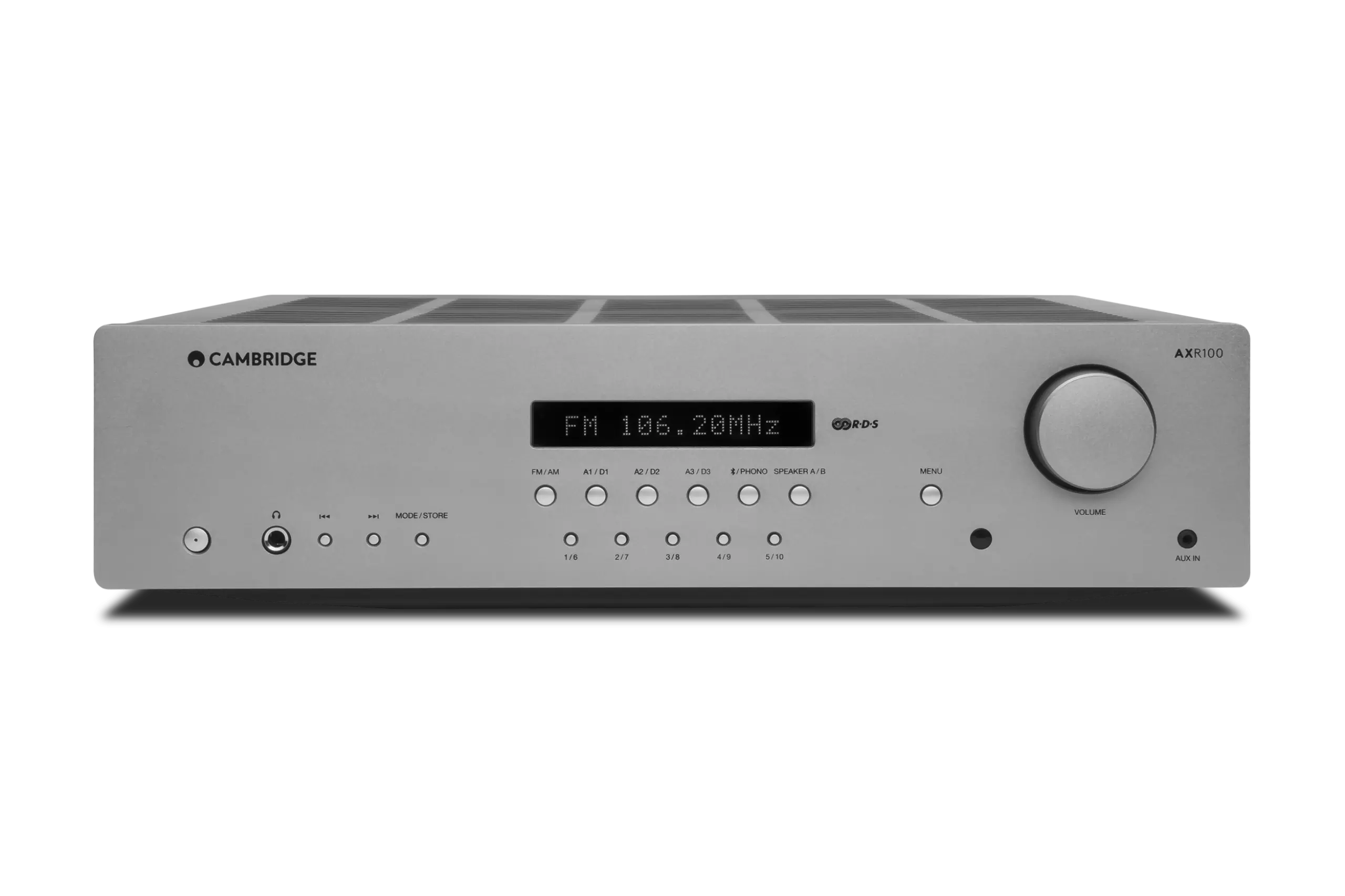

| IN THE BOX | AXR100 Stereo Receiver, Power Cable, Remote Control, 2 x AAA Batteries, FM antenna, AM antenna |
